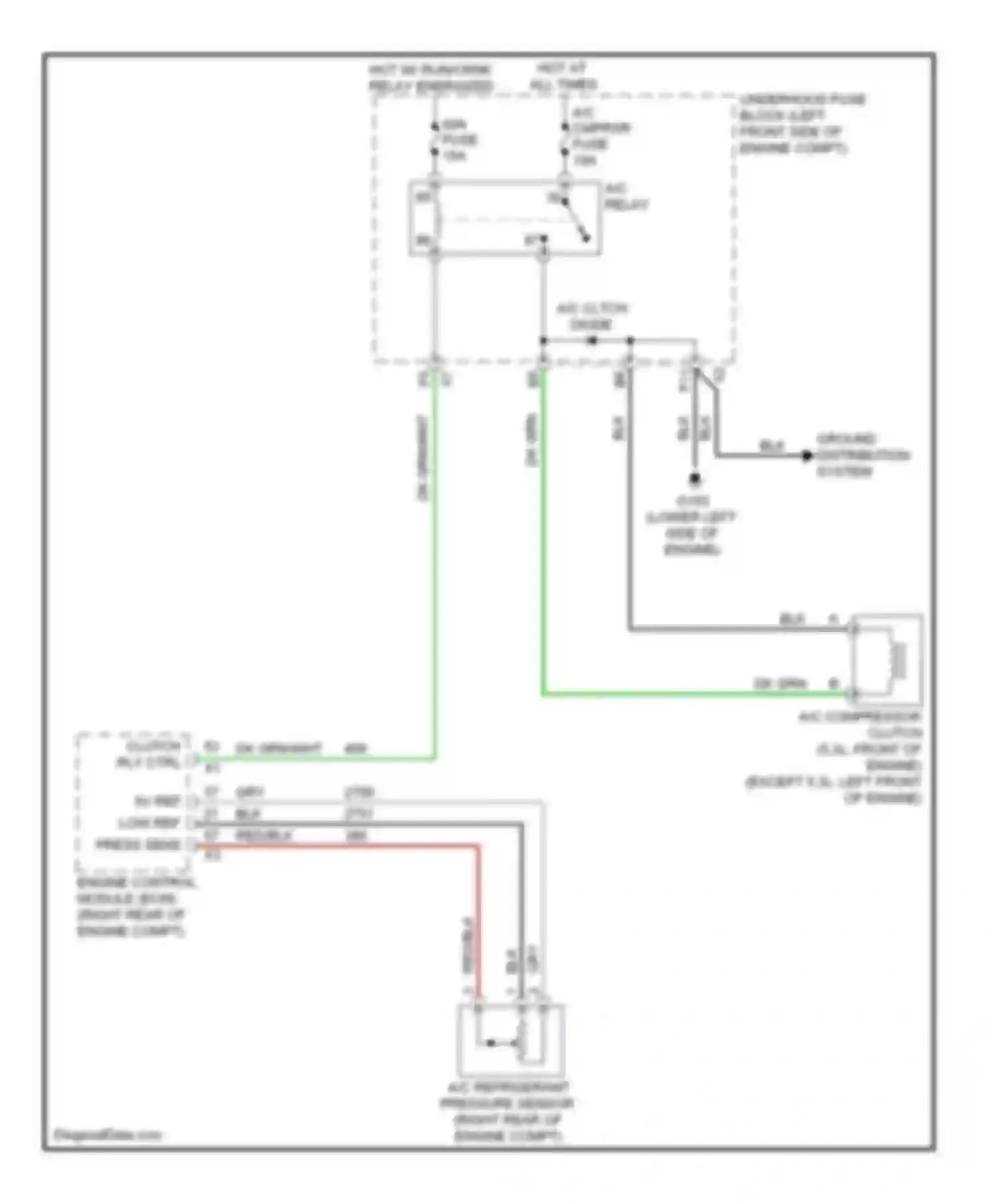

Car Wiring Diagrams for Compressor circuit for Chevrolet Colorado I (2004-2012)

A/C CLTCH DIODE A/C CMPRSR FUSE A/C REFRIGERANT PRESSURE SENSOR (RIGHT REAR OF ENGINE COMPT) A/C RELAY BLK WIRE CLUTCH RLY CTRL DK GRN WIRE DK GRN/WHT WIRE ENGINE CONTROL MODULE (ECM) (RIGHT REAR OF ENGINE COMPT) GROUND DISTRIBUTION SYSTEM GRY WIRE HOT AT ALL TIMES HOT W/ RUN/CRNK RELAY ENERGIZED IGN FUSE LOW REF PRESS SENS RED/BLK WIRE UNDERHOOD FUSE BLOCK (LEFT FRONT SIDE OF ENGINE COMPT)
