Chevrolet Colorado I (2004-2012) left backup lamp ground distribution system Wiring diagram
This page shows the only wiring diagram for the component.left backup lamp ground distribution system, which is found in the car Chevrolet Colorado I (2004-2012). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

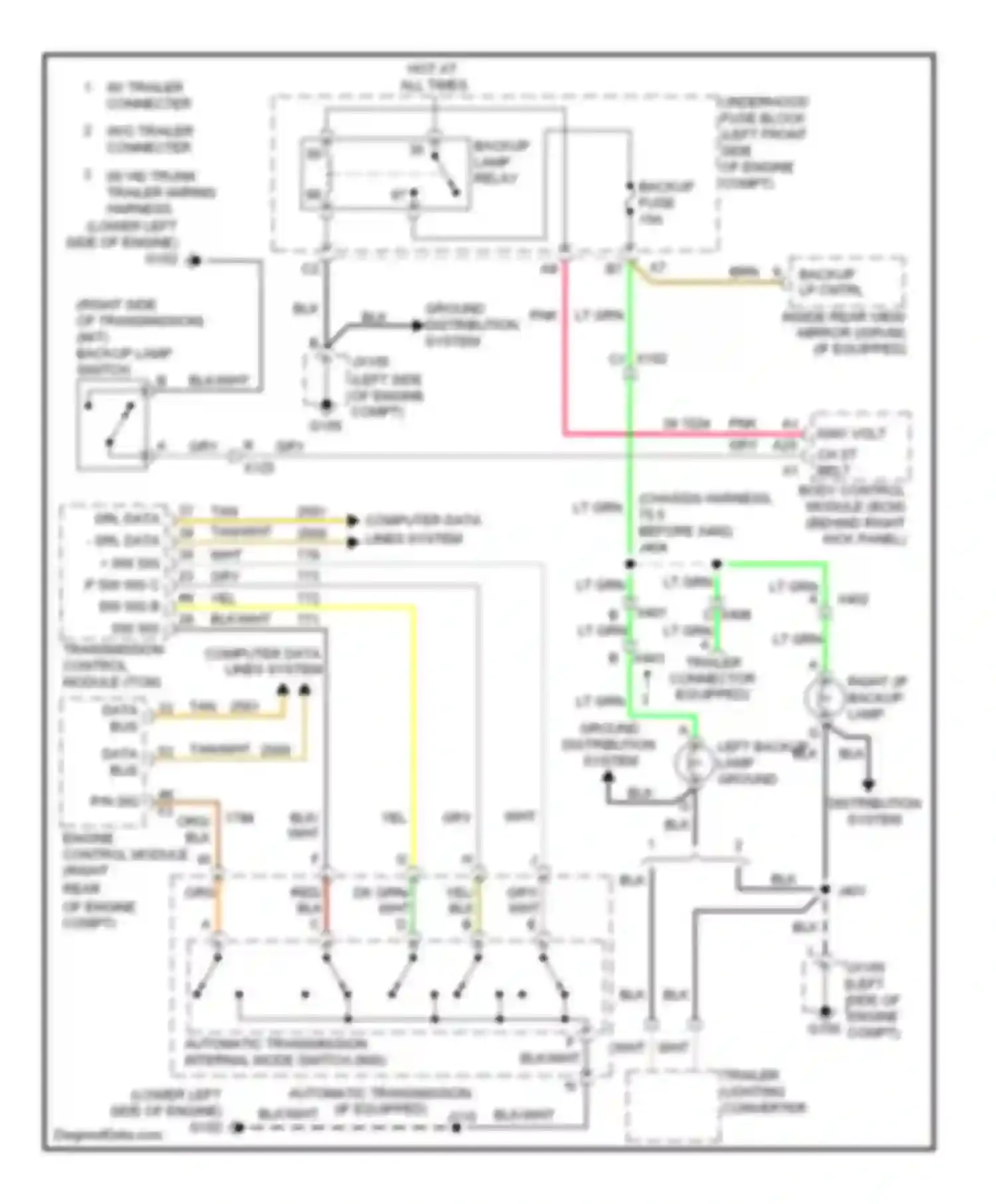

Wiring diagram left backup lamp ground distribution system (1 of 1)
AUTOMATIC TRANSMISSION (IF EQUIPPED)
AUTOMATIC TRANSMISSION INTERNAL MODE SWITCH (IMS)
BACKUP FUSE
BACKUP LAMP RELAY
BACKUP LAMP SWITCH
BACKUP LP CNTRL
BLK WIRE
BLK/WHT WIRE
BODY CONTROL MODULE (BCM) (BEHIND RIGHT KICK PANEL)
BRN WIRE
CH ST BELT SW
COMPUTER DATA LINES SYSTEM
DATA BUS -
DK GRN WIRE
ENGINE CONTROL MODULE (RIGHT REAR OF ENGINE COMPT)
GROUND DISTRIBUTION SYSTEM
GRY WIRE
HOT AT ALL TIMES
INSIDE REAR VIEW MIRROR (ISRVM) (IF EQUIPPED)
LEFT BACKUP LAMP GROUND DISTRIBUTION SYSTEM
LT GRN WIRE
MODULE (TCM)
ORG/ WIRE
P/N SIG
PNK 39 1524 WIRE
PNK WIRE
RED WIRE
SRL DATA - SRL DATA + SW SIG P SW SIG C SW SIG B SW SIG A
TAN WIRE
TAN/WHT WIRE
TRAILER CONNECTOR RIGHT (IF EQUIPPED) BACKUP LAMP
TRAILER LIGHTING CONVERTER
TRANSMISSION CONTROL
UNDERHOOD FUSE BLOCK (LEFT FRONT SIDE OF ENGINE COMPT)
W/ HD TRUNK TRAILER WIRING HARNESS
W/ TRAILER CONNECTER
W/O TRAILER CONNECTER
WHT WIRE
YEL WIRE
Go to component -> Backup lamps circuit -> LEFT BACKUP LAMP GROUND DISTRIBUTION SYSTEM
