Wiring Diagrams for Chevrolet Chevy Van G30 (1985-1994)

All-wheel abs circuit, with drl All-wheel abs circuit, without drl

4.3l (vin z), data link connector circuit

5.0l (vin h), data link connector circuit

5.7l (vin k), data link connector circuit

6.5l (vin p), data link connector circuit 6.5l (vin y), data link connector circuit

7.4l (vin n), data link connector circuit

4.3l (vin z), cruise control circuit

5.0l (vin h), cruise control circuit

5.7l (vin k), cruise control circuit

6.5l (vin p), cruise control circuit

7.4l (vin n), cruise control circuit

Defogger circuit

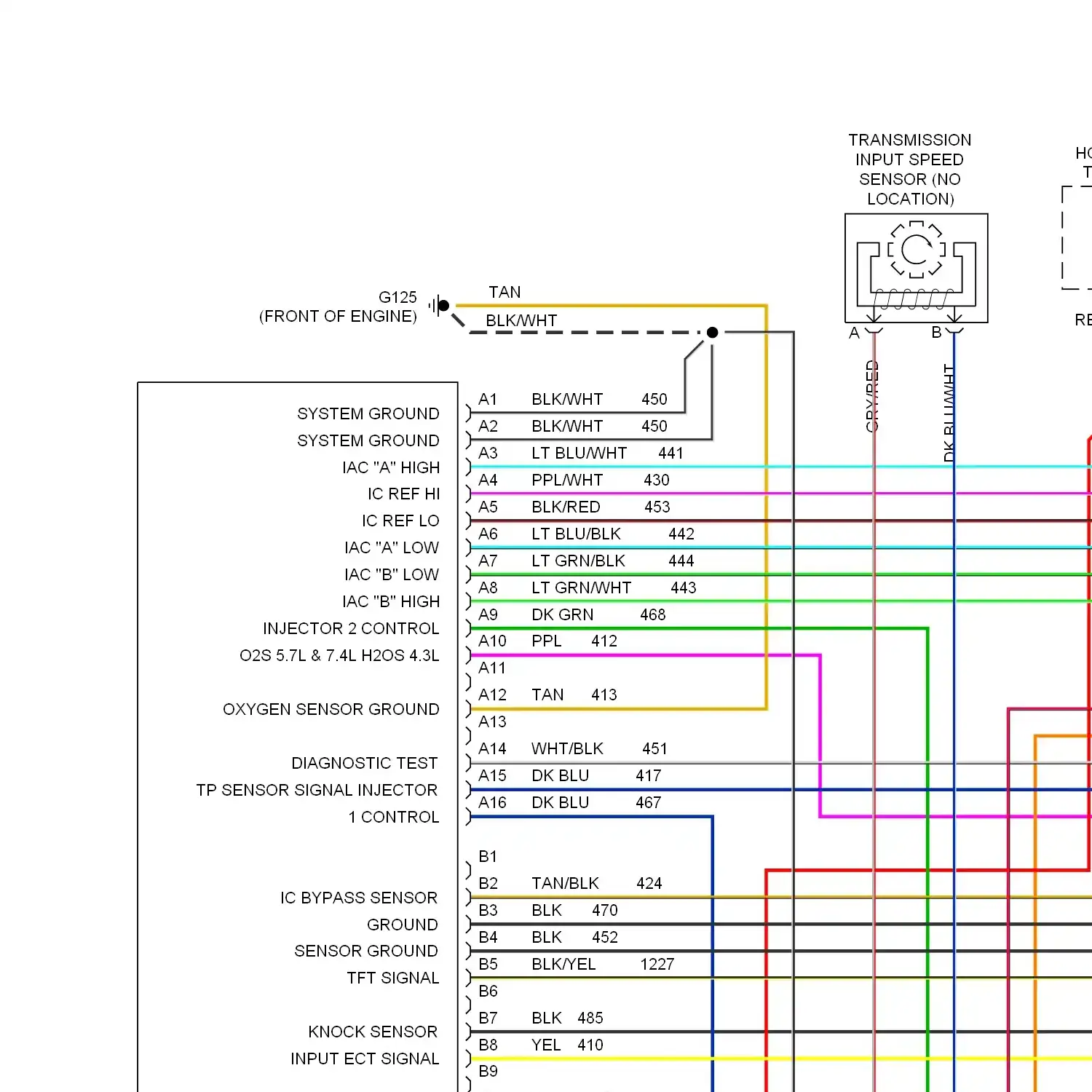

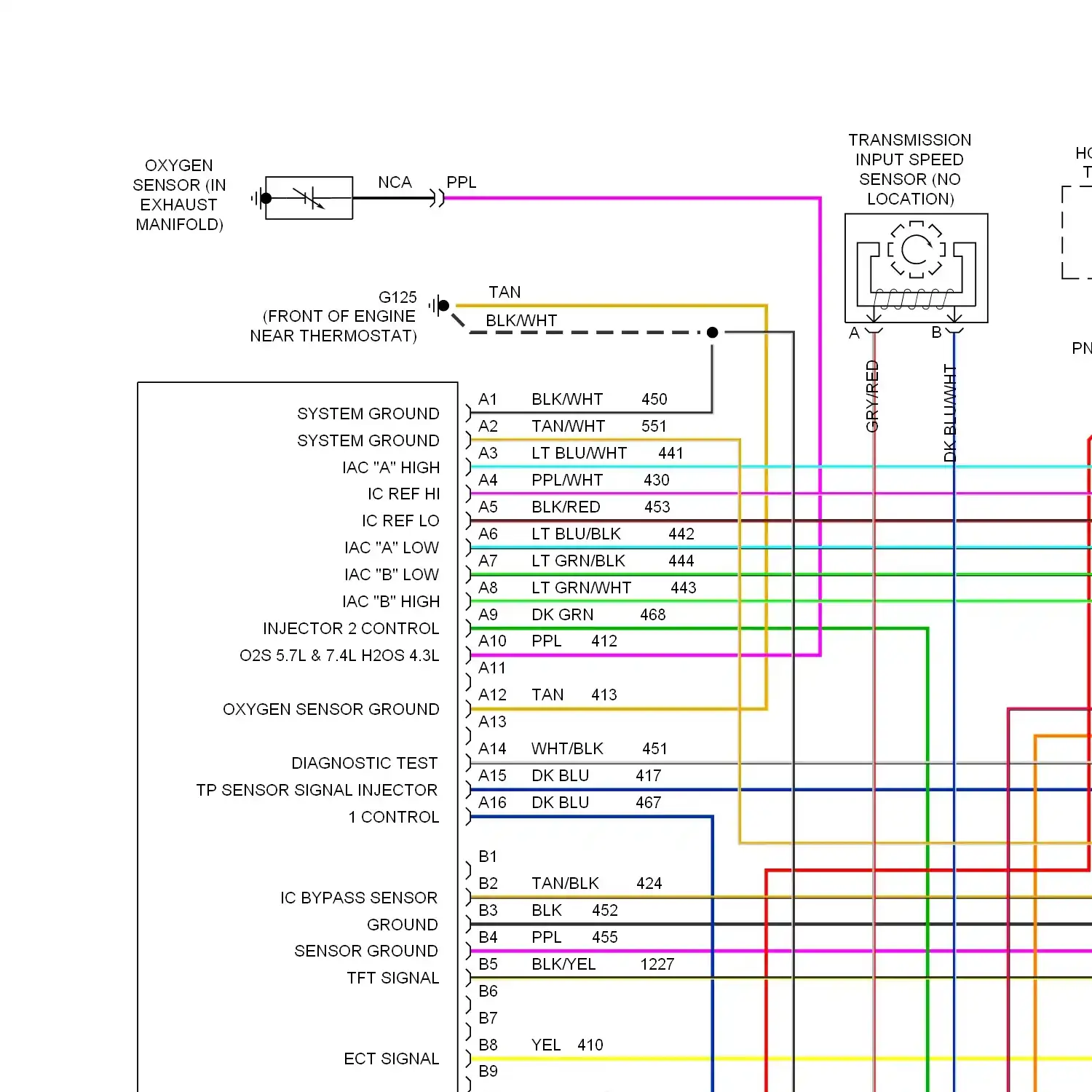

Wiring diagram engine performance 4.3l (vin z)s, 4l60e a/t Wiring diagram engine performance 4.3l (vin z)s, 4l80e a/t Wiring diagram engine performance 4.3l (vin z)s, a/t commercial chassis Wiring diagram engine performance 4.3l (vin z)s, m/t commercial chassis

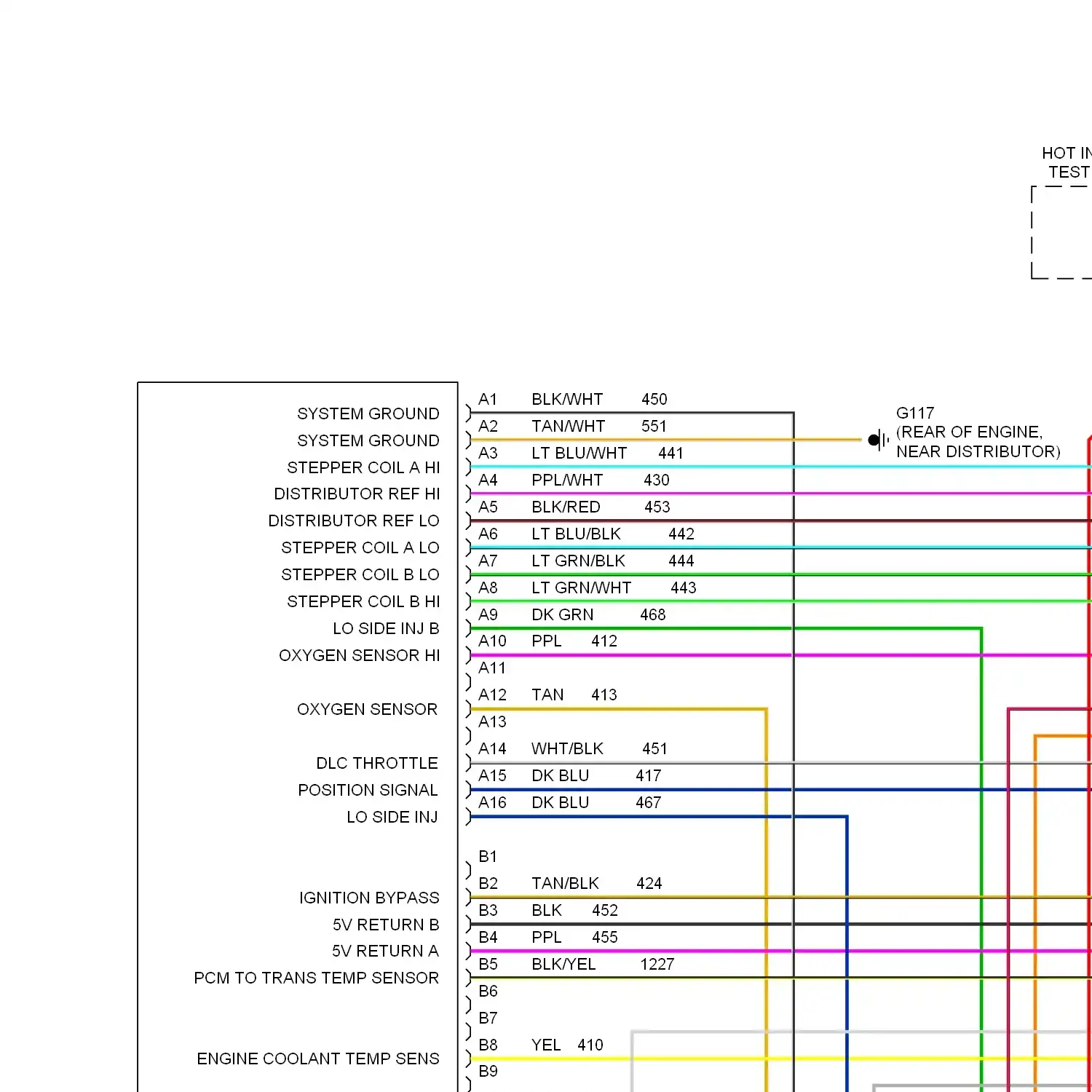

Wiring diagram engine performance 5.0l (vin h)s, 4l60e a/t Wiring diagram engine performance 5.0l (vin h)s, 4l80e a/t

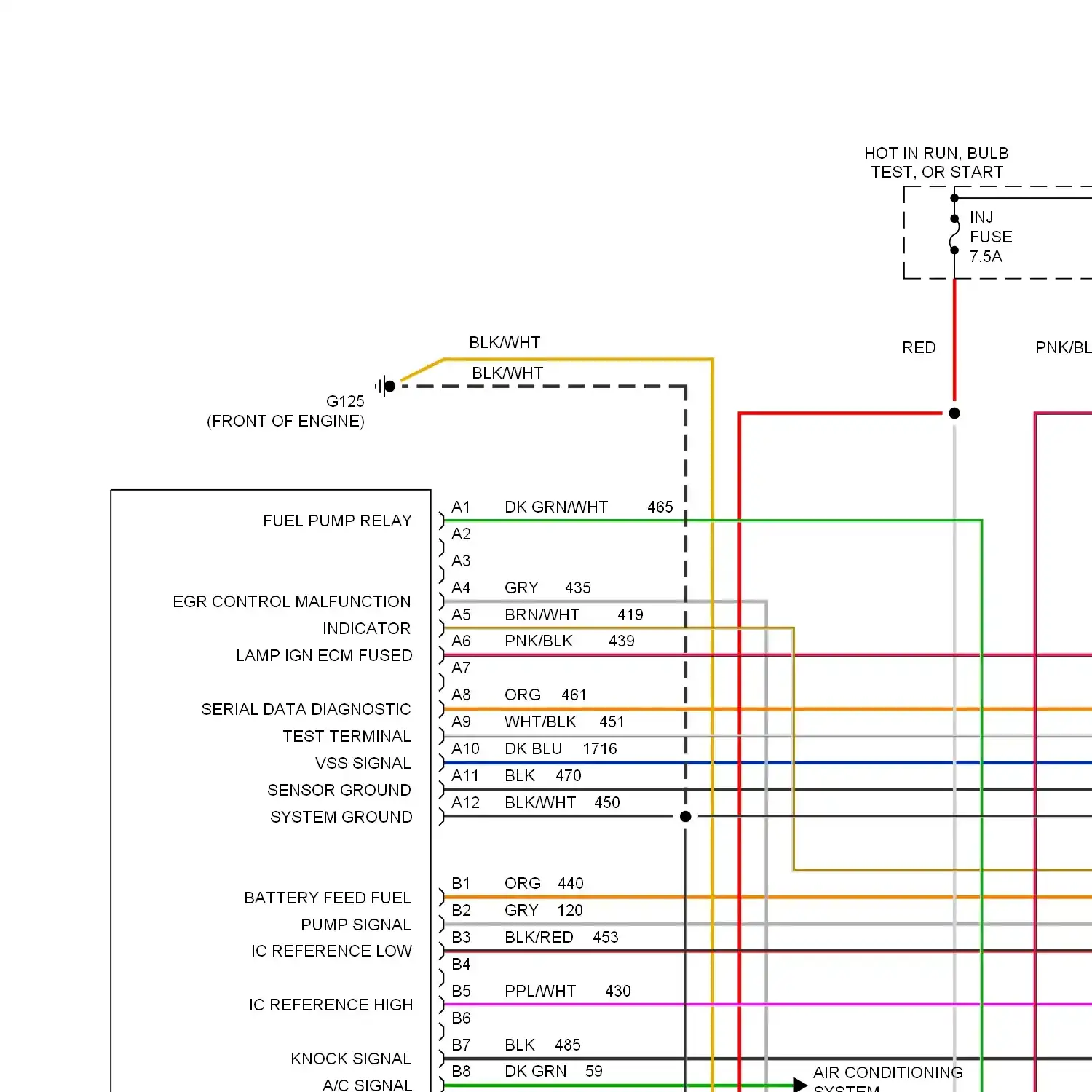

Wiring diagram engine performance 5.7l (vin k)s, 4l60e a/t Wiring diagram engine performance 5.7l (vin k)s, 4l80e a/t Wiring diagram engine performance 5.7l (vin k)s, a/t commercial chassis and motorhome Wiring diagram engine performance 5.7l (vin k)s, a/t p/g cutaway (1 of 3) Wiring diagram engine performance 5.7l (vin k)s, a/t p/g cutaway (2 of 3) Wiring diagram engine performance 5.7l (vin k)s, a/t p/g cutaway (3 of 3) Wiring diagram engine performance 5.7l (vin k)s, m/t commercial chassis

Wiring diagram engine performance 6.5l (vin f)s Wiring diagram engine performance 6.5l (vin p)s Wiring diagram engine performance 6.5l (vin y)s Wiring diagram engine performance 6.5l (vin y)s, a/t Wiring diagram engine performance 6.5l (vin y)s, m/t

Wiring diagram engine performance 7.4l (vin n)s, a/t commercial chassis and motorhome Wiring diagram engine performance 7.4l (vin n)s, a/t p/g cutaway (1 of 3) Wiring diagram engine performance 7.4l (vin n)s, a/t p/g cutaway (2 of 3) Wiring diagram engine performance 7.4l (vin n)s, a/t p/g cutaway (3 of 3)

Exterior light circuit, commercial chassis Exterior light circuit, cutaway chassis Exterior light circuit, motorhome chassis Exterior light circuit, without quad halogen headlamps Exterior light circuit, with quad halogen headlamps

Ground distribution circuit Ground distribution circuit, commercial chassis Ground distribution circuit, cutaway chassis Ground distribution circuit, motorhome chassis

Headlamps circuit, commercial chassis Headlamps circuit, commercial chassis with drl Headlamps circuit, cutaway chassis Headlamps circuit, cutaway chassis with drl Headlamps circuit, motor home chassis Headlamps circuit, motor home chassis with drl Headlamps circuit, with composite lamps Headlamps circuit, with sealed beam lamps Headlamps/fog lamps circuit, drl with composite lamps Headlamps/fog lamps circuit, drl with sealed beam lamps

Horn circuit Horn circuit, cutaway chassis

Instrument cluster circuit Instrument cluster circuit, commercial chassis Instrument cluster circuit, cutaway chassis Instrument cluster circuit, motorhome chassis

Courtesy lamps circuit, base Courtesy lamps circuit, with auxiliary lighting Instrument illumination circuit Interior light circuit, commercial chassis Interior light circuit, cutaway chassis Interior light circuit, motorhome chassis

Power antenna circuit

Power distribution circuit, commercial chassis (diesel) (1 of 2) Power distribution circuit, commercial chassis (diesel) (2 of 2) Power distribution circuit, commercial chassis (gasoline) (1 of 2) Power distribution circuit, commercial chassis (gasoline) (2 of 2) Power distribution circuit, cutaway chassis Power distribution circuit, diesel Power distribution circuit, gasoline Power distribution circuit, motorhome chassis

Door lock circuit, without swing out side door Door lock circuit, with swing out side door Keyless entry circuit Power door lock circuit

Power mirror circuit

Power window circuit

2-speaker system circuit Radio circuits, with cd player or cassette

Shift interlock circuit Shift interlock circuit, commercial chassis Shift interlock circuit, cutaway chassis Shift interlock circuit, motorhome chassis

4.3l (vin z), charging circuit 4.3l (vin z), starting circuit Charging circuit, commercial chassis (diesel) Charging circuit, commercial chassis (gasoline) Charging circuit, cutaway chassis Charging circuit, motor home chassis Starting circuit, commercial chassis (diesel) Starting circuit, commercial chassis (gasoline) Starting circuit, cutaway chassis Starting circuit, motor home chassis

5.0l (vin h), charging circuit 5.0l (vin h), starting circuit Charging circuit, commercial chassis (diesel) Charging circuit, commercial chassis (gasoline) Charging circuit, cutaway chassis Charging circuit, motor home chassis Starting circuit, commercial chassis (diesel) Starting circuit, commercial chassis (gasoline) Starting circuit, cutaway chassis Starting circuit, motor home chassis

5.7l (vin k), charging circuit 5.7l (vin k), starting circuit Charging circuit, commercial chassis (diesel) Charging circuit, commercial chassis (gasoline) Charging circuit, cutaway chassis Charging circuit, motor home chassis Starting circuit, commercial chassis (diesel) Starting circuit, commercial chassis (gasoline) Starting circuit, cutaway chassis Starting circuit, motor home chassis

6.5l (vin p), charging circuit 6.5l (vin p), starting circuit 6.5l (vin y), charging circuit 6.5l (vin y), starting circuit Charging circuit, commercial chassis (diesel) Charging circuit, commercial chassis (gasoline) Charging circuit, cutaway chassis Charging circuit, motor home chassis Starting circuit, commercial chassis (diesel) Starting circuit, commercial chassis (gasoline) Starting circuit, cutaway chassis Starting circuit, motor home chassis

7.4l (vin n), charging circuit 7.4l (vin n), starting circuit Charging circuit, commercial chassis (diesel) Charging circuit, commercial chassis (gasoline) Charging circuit, cutaway chassis Charging circuit, motor home chassis Starting circuit, commercial chassis (diesel) Starting circuit, commercial chassis (gasoline) Starting circuit, cutaway chassis Starting circuit, motor home chassis

Supplemental restraint circuit

4.3l (vin z), transmission circuit, 4l60-e 4.3l (vin z), transmission circuit, 4l80-e

5.0l (vin h), transmission circuit, 4l60-e

5.7l (vin k), transmission circuit, 4l60-e 5.7l (vin k), transmission circuit, 4l80-e

6.5l (vin f), transmission circuit, 4l80-e 6.5l (vin p), transmission circuit, 4l60-e 6.5l (vin y), transmission circuit, 4l80-e

7.4l (vin n), transmission circuit, 4l80-e

Warning system circuits Warning system circuits, commercial chassis Warning system circuits, cutaway chassis Warning system circuits, motorhome chassis

Front washer/wiper circuit, commercial chassis Front washer/wiper circuit, cutaway Front wiper/washer circuit Wiper/washer provisions circuit, motorhome chassis
