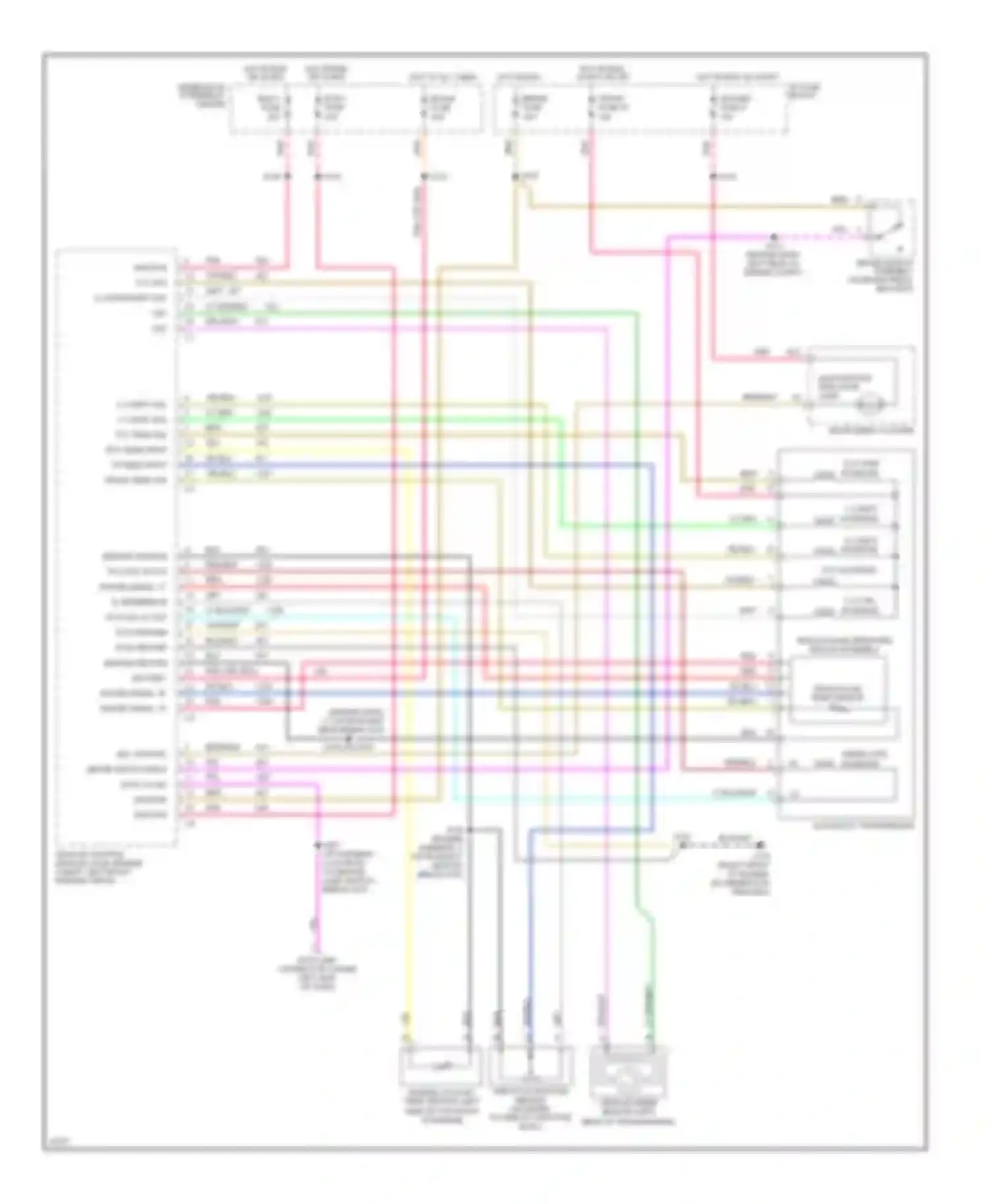

5.0l (vin m), transmission circuit, 4l60-e for Chevrolet Chevy Express G2500 (1996-2012)

1-2 SHIFT SOL 1-2 SHIFT SOLENOID 2-3 SHIFT SOL 2-3 SHIFT SOLENOID 3-2 CTRL SOLENOID 3-2 DOWNSHIFT SOL AUTOMATIC TRANSMISSION BATTERY IN BLK WIRE BLK/WHT WIRE BRAKE FUSE BRAKE SWITCH ASSEMBLY (ON BRAKE PEDAL BRACKET) BRAKE SWITCH INPUT BRN WIRE BRN/WHT WIRE DATA CLASS II DATA LINK CONNECTOR (UNDER LEFT SIDE OF DASH) DK BLU WIRE ECM 1 FUSE ECM-B FUSE ECT SENS INPUT ENG 1 FUSE ENGINE COOLANT TEMP SENSOR (LEFT SIDE OR TOP FRONT OF ENGINE) GAUGES FUSE 4 GRY WIRE HOT AT ALL TIMES HOT IN RUN HOT IN RUN OR START HOT IN RUN, START OR OFF I/P FUSE BLOCK IGNITION IN INSTRUMENT CLUSTER LT BLU/WHT WIRE LT GRN WIRE LT GRN/BLK WIRE MALFUNCTION INDICATOR LAMP MIL CONTROL ORG/ WIRE PCM GROUND PCS SOL HI OUT PCS SOL LO OUT PNK (OR ORG) WIRE PNK WIRE PPL PPL/WHT WIRE PRESS CTRL SOLENOID RANGE SIGNAL "A" RANGE SIGNAL "B" RANGE SIGNAL "C" RED WIRE RED/BLK WIRE SENSOR GROUND SENSOR RETURN TAN/BLK WIRE TAN/WHT WIRE TCC PWM SOL TCC PWM SOLENOID TCC SOL TCC SOLENOID THROTTLE POSITION SENSOR (MOUNTED TO SIDE OF THROTTLE BODY) TP SENS INPUT TRANS FLUID TEMP SENSOR TRANS FUSE 20 TRANS RANGE PRESSURE SWITCH ASSEMBLY TRANS TEMP SIG IN UNDERHOOD FUSE/RELAY CENTER VEHICLE CONTROL MODULE (VCM) (ENGINE COMPT, LEFT FRONT FENDER APRON) VEHICLE SPEED SENSOR (LEFT REAR OF TRANSMISSION) VSS HI VSS LO WHT WIRE YEL WIRE YEL/BLK WIRE
