2.4l vin k, cooling fan circuit for Chevrolet Captiva I facelift 2 (2013-2016)

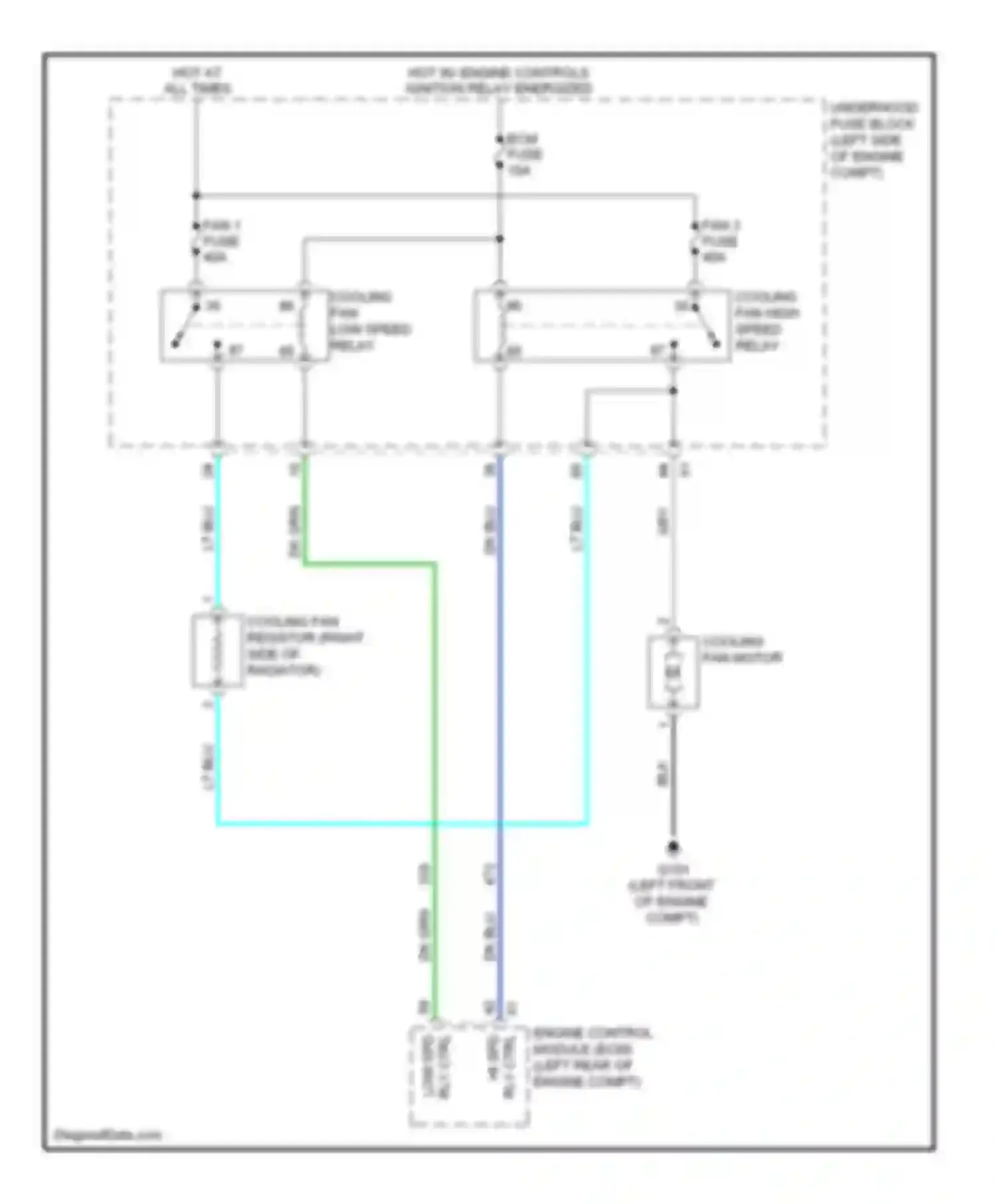

2.4l vin k, cooling fan circuit
BLK WIRE
COOLING FAN HIGH SPEED RELAY
COOLING FAN LOW SPEED RELAY
COOLING FAN MOTOR
COOLING FAN RESISTOR (RIGHT SIDE OF RADIATOR)
DK BLU WIRE
DK GRN WIRE
ECM FUSE
ENGINE CONTROL MODULE (ECM) (LEFT REAR OF ENGINE COMPT)
FAN 1 FUSE
FAN 3 FUSE
GRY WIRE
HI SPD RLY CTRL
HOT AT ALL TIMES
HOT W/ ENGINE CONTROLS IGNITION RELAY ENERGIZED
LOW SPD RLY CTRL
LT BLU WIRE
UNDERHOOD FUSE BLOCK (LEFT SIDE OF ENGINE COMPT)
