Wiring Diagrams for Chevrolet Camaro VI facelift (2018-2024)

Active bodyworks circuit

Automatic a/c circuit

2.0l vin x, anti-lock brakes circuit

3.6l vin s, anti-lock brakes circuit

6.2l vin 6, anti-lock brakes circuit

6.2l vin 7, anti-lock brakes circuit

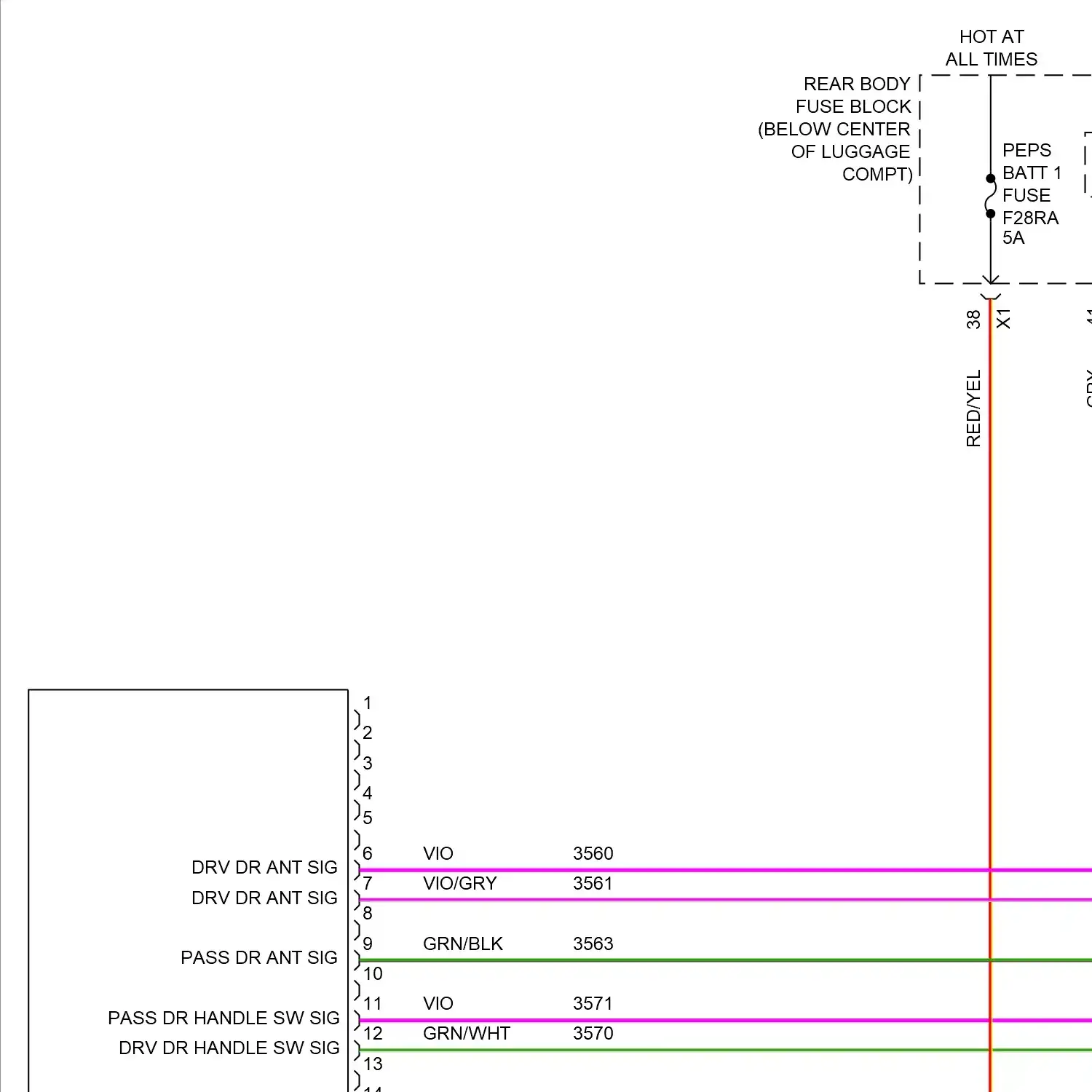

Forced entry circuit Pass-key circuit

Body control modules circuit

Computer data lines circuit

Cooling fan circuit

Cruise control circuit

Defoggers circuit

Electronic muffler circuit

Electronic power steering circuit

Electronic suspension circuit

Wiring diagram engine performance 2.0l vin x

Wiring diagram engine performance 3.6l vin s

Wiring diagram engine performance 6.2l vin 6

Wiring diagram engine performance 6.2l vin 7

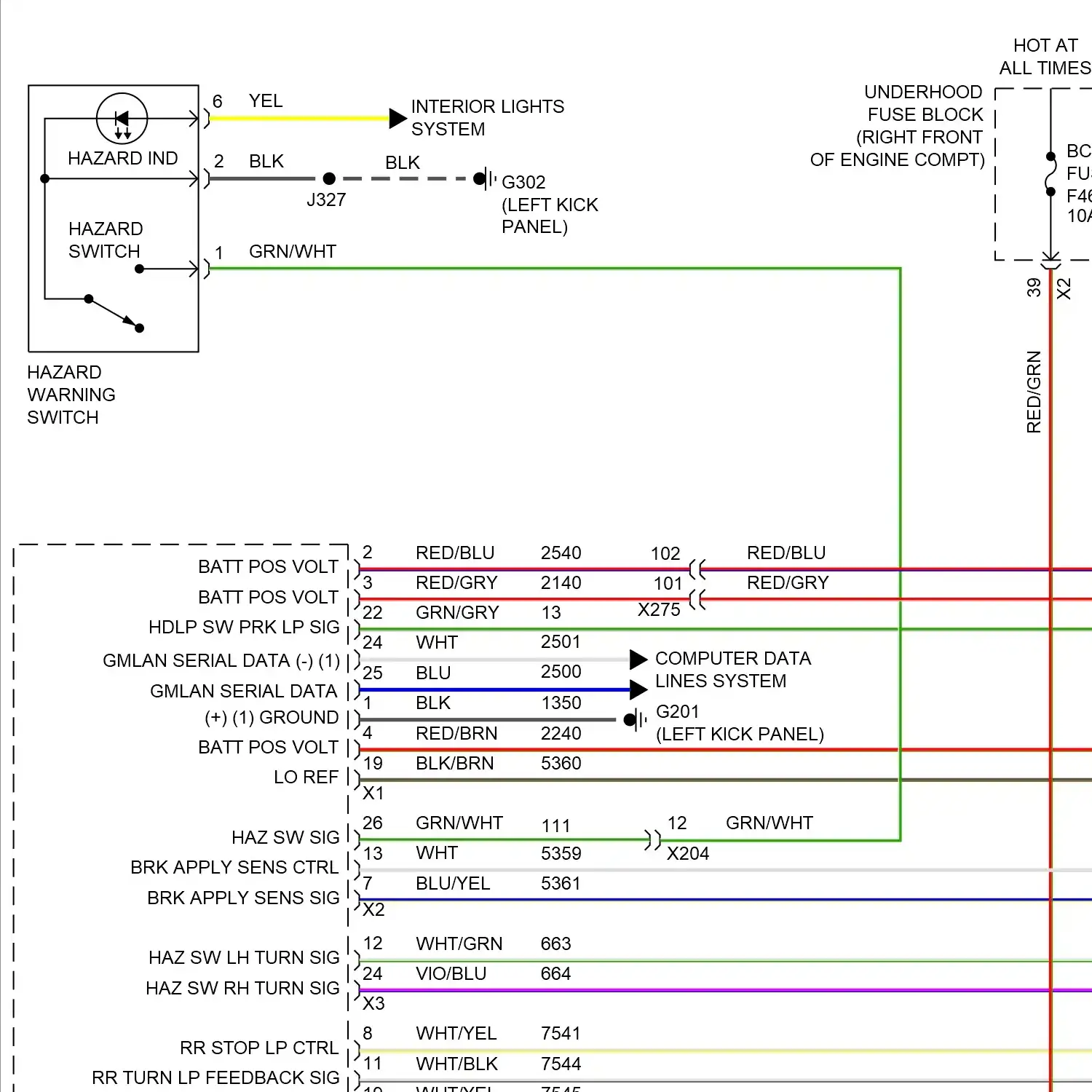

Backup lamps circuit Exterior lamps circuit

Ground distribution circuit

Headlamps circuit, w/ high intensity discharge Headlamps circuit, w/o high intensity discharge Headlamps leveling circuit

Horn circuit

Head-up display circuit Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Driver"s memory seat circuit Memory mirrors circuit

Blind spot monitoring circuit Navigation circuit, w/ active noise Navigation circuit, w/o active noise & amplifier Navigation circuit, w/o active noise w/ amplifier Parking assistant circuit

Power distribution circuit

Power door locks circuit

Electrochromic mirror circuit, w/ full video display Electrochromic mirror circuit, w/o full video display Power mirrors circuit

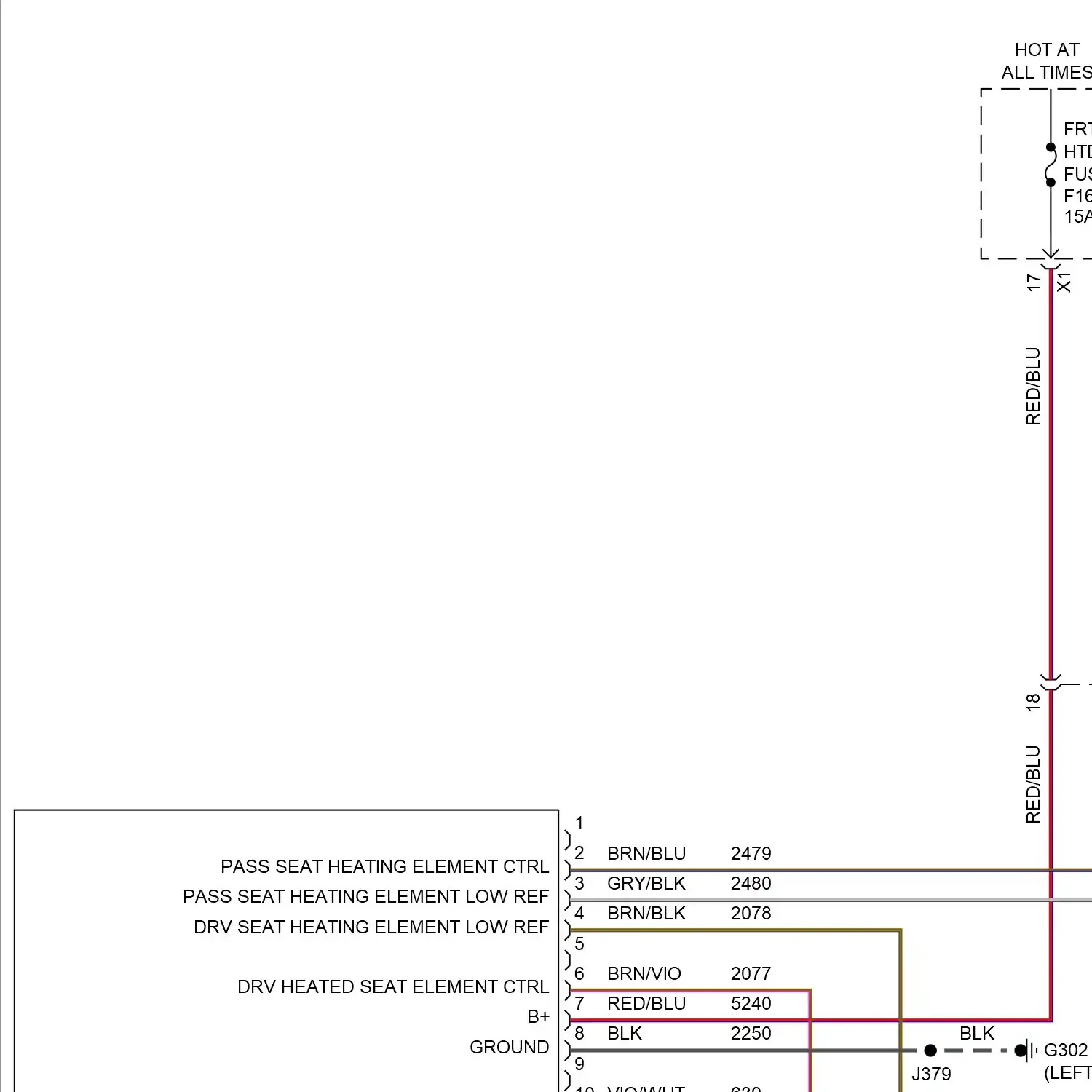

Driver power seat circuit Front heated seats circuit Heated steering wheel circuit Passenger power seat circuit

Electric folding sunroof circuit Sunroof circuit

Power windows circuit

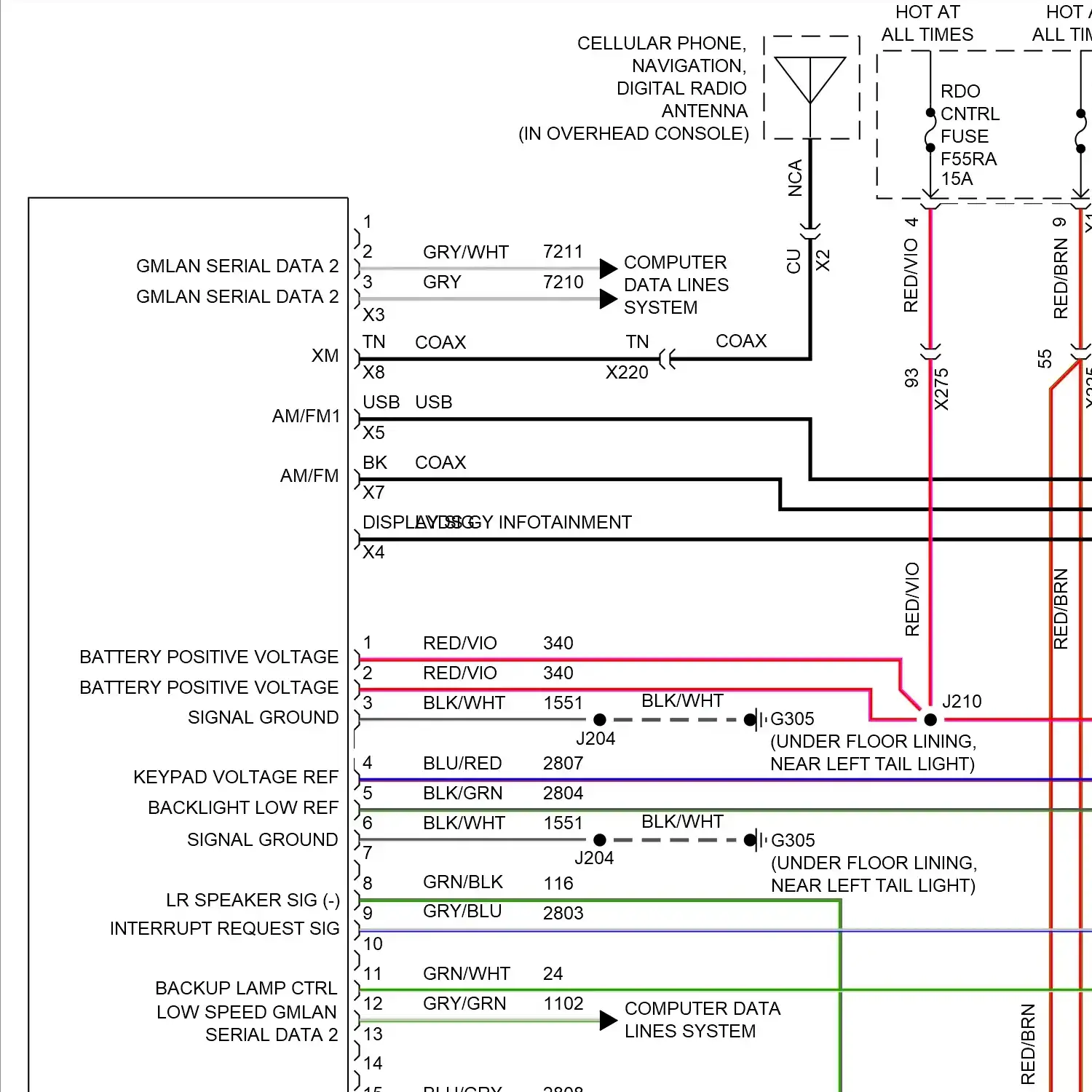

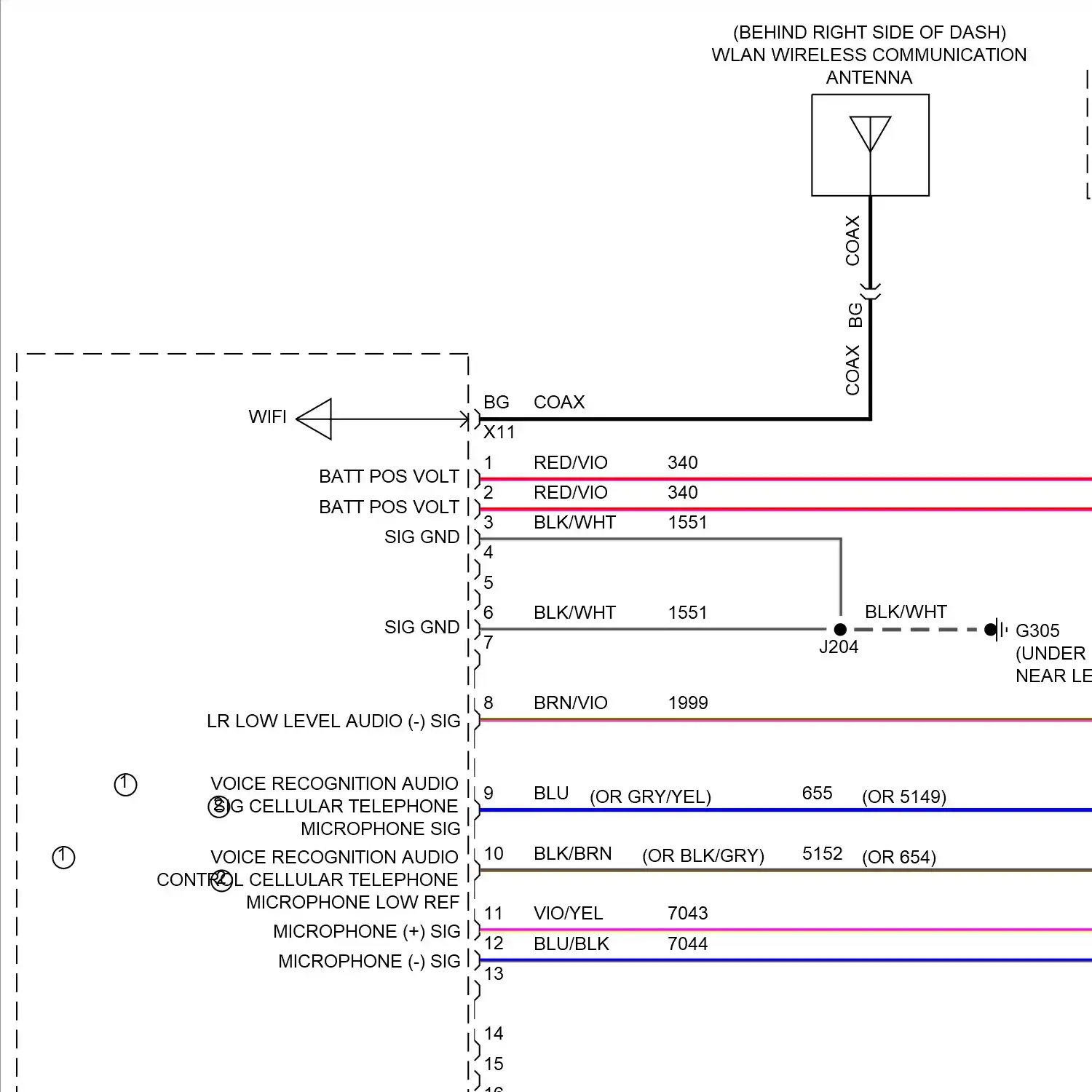

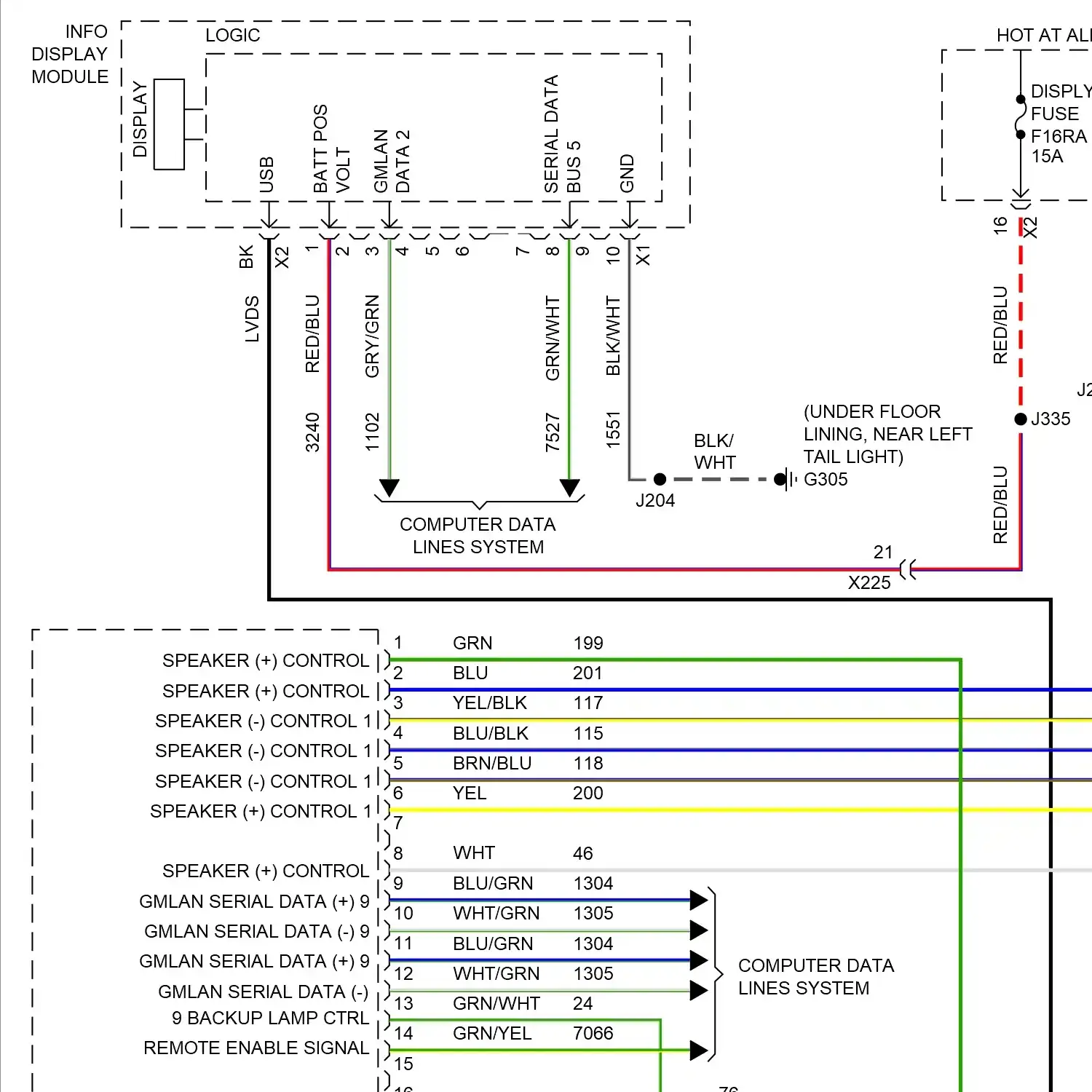

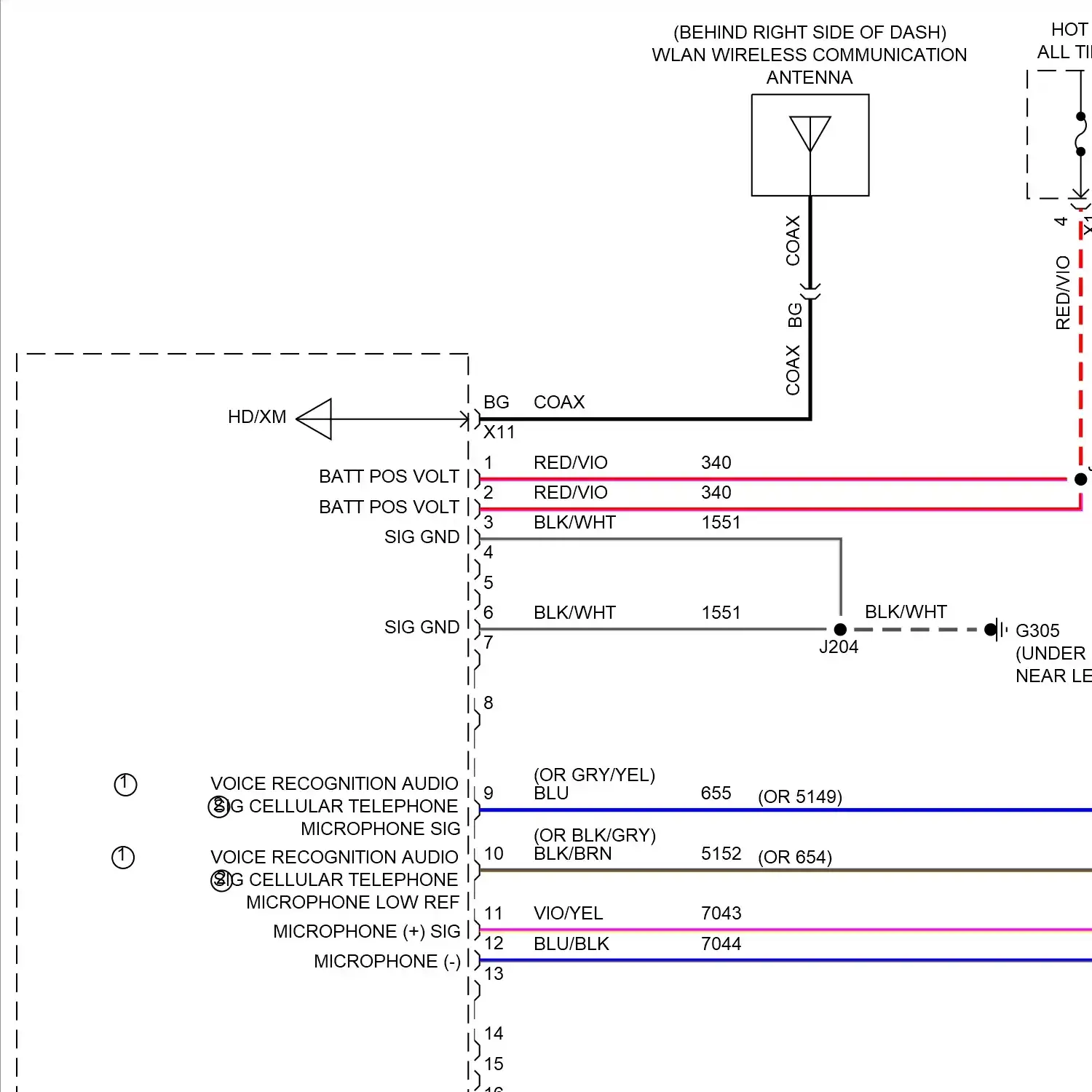

Radio circuit, low level Radio circuit, mid/high level w/ active noise Radio circuit, mid/high level w/o active noise & amplifier Radio circuit, mid/high level w/o active noise w/ amplifier

Park brake system circuit Shift interlock circuit Steering lock circuit

Charging circuit Starting circuit

Supplemental restraints circuit

A/t circuit, 10 speed A/t circuit, 8 speed Rear differential lock circuit

Trunk release circuit

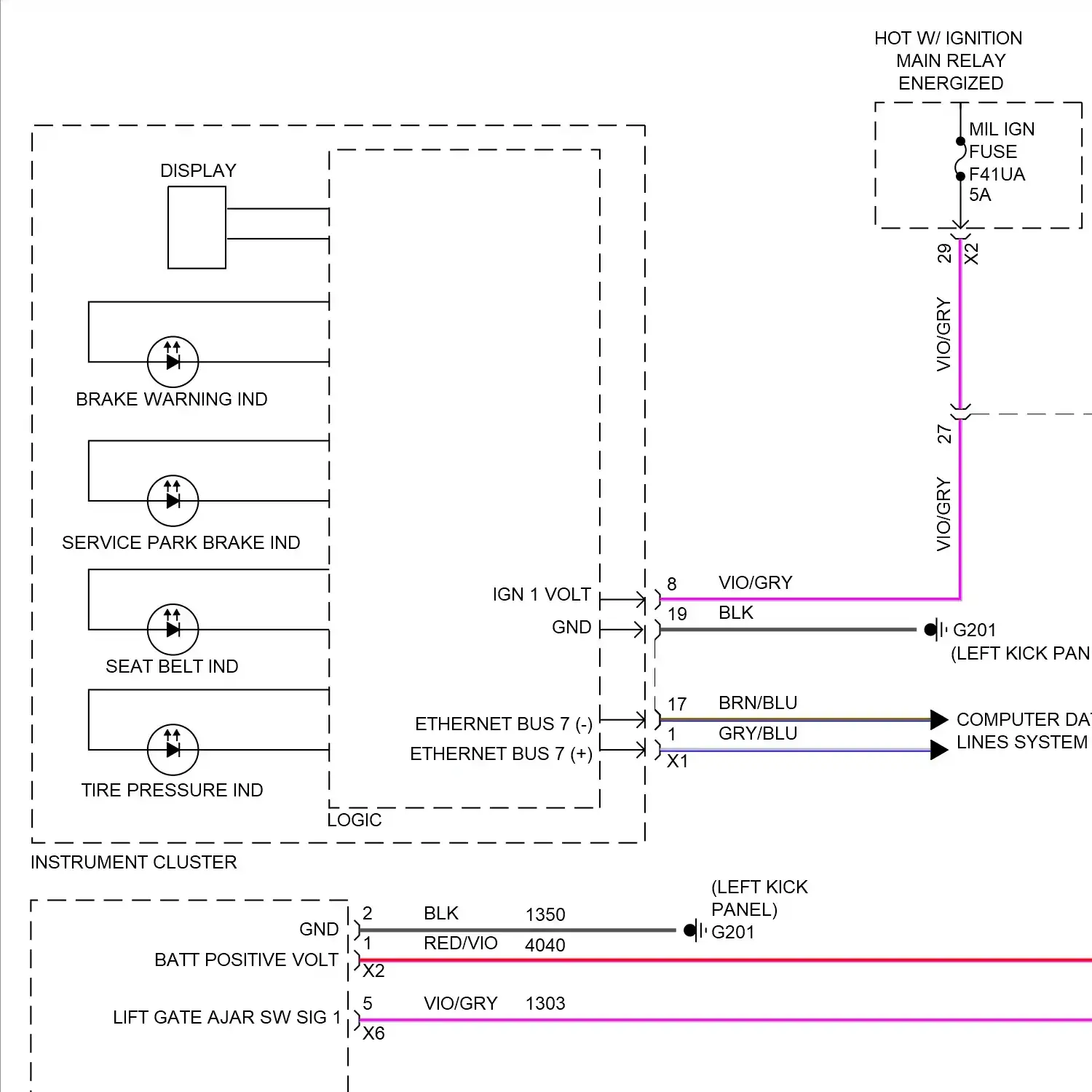

Warning systems circuit

Wiper/washer circuit

ANTI-LOCK BRAKES, EXTERIOR LIGHTS SYSTEMS ANTI-LOCK BRAKES, EXTERIOR LIGHTS SYSTEMS ANTI-LOCK BRAKES SYSTEM AUDIO AMPLIFIER BATTERY POS VOLT BATTERY POSITIVE VOLT BATTERY POSITIVE VOLTAGE COIL CTRL COOLANT PUMP RLY COIL CTRL DOOR LOCK KEY SW UNLOCK SIG DRV DOOR LOCK MTR STATUS SIG DRV DR LOCK SW LCK SIG DRV DR LOCK SW UNLOCK SIG ELECTRONIC POWER STEERING SYSTEM ANTI-LOCK BRAKES, EXTERIOR LIGHTS SYSTEMS GENERATOR FIELD DUTY GENERATOR FIELD DUTY CYCLE SIG HIGH SPEED BUS TERMINATING RESISTOR 1 HIGH SPEED BUS TERMINATING RESISTOR 2 HORN RLY CTRL HORN SW SIG IGNITION COIL 1 IGNITION COIL 2 IGNITION COIL 3 IGNITION COIL 4 IGNITION COIL 5 IGNITION COIL 6 IGNITION COIL 7 IGNITION COIL 8 KEY CAPTURE/ COLUMN LOCK SHIFT POSITION SIG KEY CAPTURE/COLUMN LOCK SHIFT POS SIG LEFT HORN LOCK SIG LOCK STATUS SIG MTR RLY COIL CTRL PARK LOCK SOL CONTROL PARK LOCK SOL CTRL PARK PHASER LOCK CTRL POWERTRAIN RLY COIL CTRL RAP RLY 2 COIL CTRL RAP RLY COIL CTRL REMOTE CONTROL DOOR LOCK RECEIVER REMOTE CTRL DOOR LOCK RECEIVER CTRL HAZARD WARNING SW SIG REVERSE LOCK OUT SIG RIGHT HORN RUN/CRANK RLY COIL CTRL STARTER ENABLE RLY CTRL STEERING COLUMN LOCK MODULE STEERING COLUMN LOCK SIG STEERING COLUMN LOCK STATUS SIG STEERING WHEEL AIR BAG COIL STOP LP RLY COIL CTRL STP LP RLY COIL CTRL W/ ELECTRICAL STEERING COLUMN LOCK W/ REMOTE CONTROL FUEL FILLER DOOR LOCK W/O REMOTE CONTROL FUEL FILLER DOOR LOCK

"CHECK ENGINE" IND CTRL AIR RECIRCULATION DOOR ACTUATOR BLOWER MOTOR BRAKE BOOSTER PUMP MOTOR CAMSHAFT POSITION ACTUATOR SOLENOID VALVE COOLING FAN MOTOR DRIVER BACK SEAT BLOWER MOTOR DRIVER CUSHION SEAT BLOWER MOTOR DRIVER OUTSIDE REAR VIEW MIRROR MOTOR DRIVER SEAT FRONT VERTICAL MOTOR DRIVER SEAT HORIZONTAL MOTOR DRIVER SEAT REAR VERTICAL MOTOR DRIVER SEAT RECLINE MOTOR DRIVER WINDOW MOTOR DRV SEAT BLOWER MOTOR CTRL 1 DRV SEAT VENT MOTOR CTRL 1 ENGINE CONTROL VEHICLE ENGINE CONTROLS SYSTEM ENGINE COOLANT TEMP ENGINE COOLANT TEMPERATURE GAUGE ENGINE IND CTRL ENGINE OIL PRESSURE CONTROL SOLENOID VALVE ENGINE OIL PUMP CTRL ENGINE SPD SIG ENGINE SPEED SIG IGN CTRL 4 ENGINE START/STOP EXHAUST BANK 1 CAMSHAFT POSITION ACTUATOR SOLENOID VALVE EXHAUST BANK 2 CAMSHAFT POSITION ACTUATOR SOLENOID VALVE EXHAUST CAMSHAFT POSITION ACTUATOR SOLENOID VALVE FOLDING TOP HEADER LATCH MOTOR FOLDING TOP MOTOR DOWN CONTROL FOLDING TOP MOTOR UP CONTROL FOLDING TOP PUMP MOTOR FOLDING TOP PUMP/ MOTOR ASSEMBLY INTAKE BANK 1 CAMSHAFT POSITION ACTUATOR PARK LOCK SOLENOID VALVE INTAKE BANK 1 CAMSHAFT POSITION ACTUATOR SOLENOID VALVE INTAKE BANK 2 CAMSHAFT POSITION ACTUATOR PARK LOCK SOLENOID VALVE INTAKE BANK 2 CAMSHAFT POSITION ACTUATOR SOLENOID VALVE INTAKE CAMSHAFT POSITION ACTUATOR SOLENOID VALVE LEFT AIR TEMPERATURE DOOR ACTUATOR LEFT FRONT SHOCK ABSORBER ACTUATOR LEFT HEADLAMP LEVELING ACTUATOR LEFT HEADLAMP LEVELING ACTUATOR LEFT HEADLAMP ASSEMBLY LEFT HIGH BEAM ACTUATOR SOLENOID LEFT HIGH BEAM SOLENOID ACTUATOR LEFT HOOD ACTUATOR HI CTRL LEFT HOOD ACTUATOR LOW CTRL LEFT HOOD HINGE ACTUATOR LEFT HOOD HINGE ACTUATOR HIGH CONTROL LEFT HOOD HINGE ACTUATOR LOW CONTROL LEFT PARK BRAKE ACTUATOR LEFT REAR SHOCK ABSORBER ACTUATOR LEFT REAR WINDOW MOTOR LID MOTOR UNLATCH CTRL LR PARK BRAKE MOTOR APPLY CTRL LR PARK BRAKE MOTOR LOW REF MODE DOOR ACTUATOR PASS SEAT BLOWER MOTOR CTRL 1 PASSENGER BACK SEAT BLOWER MOTOR PASSENGER CUSHION SEAT BLOWER MOTOR PASSENGER OUTSIDE REAR VIEW MIRROR MOTOR PASSENGER SEAT HORIZONTAL MOTOR PASSENGER SEAT RECLINE MOTOR PASSENGER SEAT VERTICAL MOTOR PASSENGER WINDOW MOTOR POWER STEERING MOTOR REVERSE INHIBIT SOLENOID ACTUATOR RIGHT AIR TEMPERATURE DOOR ACTUATOR RIGHT FRONT SHOCK ABSORBER ACTUATOR RIGHT HEADLAMP LEVELING ACTUATOR RIGHT HEADLAMP LEVELING ACTUATOR RIGHT HEADLAMP ASSEMBLY RIGHT HIGH BEAM ACTUATOR SOLENOID RIGHT HOOD ACTUATOR HI CTRL RIGHT HOOD ACTUATOR LOW CTRL RIGHT HOOD HINGE ACTUATOR RIGHT HOOD HINGE ACTUATOR HIGH CTRL RIGHT HOOD HINGE ACTUATOR LOW CTRL RIGHT PARK BRAKE ACTUATOR RIGHT REAR SHOCK ABSORBER ACTUATOR RIGHT REAR WINDOW MOTOR RR PARK BRAKE MOTOR APPLY CTRL RR PARK BRAKE MOTOR LOW REF SKIP SHIFT SOLENOID ACTUATOR STARTER MOTOR SUNROOF MOTOR THROTTLE ACTUATOR TRANSMISSION SHIFT LOCK CONTROL SOLENOID ACTUATOR WINDSHIELD WIPER MOTOR

BK COAX ANTENNA XM SIGNAL CELLULAR PHONE NAVIGATION, DIGITAL RADIO ANTENNA CENTER CONSOLE FRONT KEYLESS ENTRY ANTENNA CENTER CONSOLE REAR KEYLESS ENTRY ANTENNA DRIVER DOOR HANDLE KEYLESS ENTRY ANTENNA LEFT RADIO ANTENNA AMPLIFIER PASSENGER DOOR HANDLE KEYLESS ENTRY ANTENNA REAR COMPARTMENT KEYLESS ENTRY ANTENNA REAR END SPOILER LEFT ANTENNA REAR FASCIA KEYLESS ENTRY ANTENNA REAR WINDOW ANTENNA RIGHT RADIO ANTENNA AMPLIFIER VEHICLE PERFORMANCE GPS ANTENNA WIRELESS COMMUNICATION ANTENNA WLAN WIRELESS COMMUNICATION ANTENNA

KEYPAD BUTTON SIG RADIO KEYPAD BUTTON SIG RADIO VOLUME UP SWITCH SIG RADIO VOLUME DOWN SWITCH SIG TELEMATICS BUTTON ASSEMBLY

CAMERA COAXIAL SIG COAX OG FRONT VISION CAMERA 1 COAXIAL VIDEO SIG REAR VIEW CAMERA VEHICLE PERFORMANCE CAMERA WINDSHIELD FRONT VIEW CAMERA

DATA LINK CONNECTOR

ACCENT LAMP CONTROL MODULE BODY CONTROL MODULE CHASSIS CONTROL MODULE CONTROL MODULE COOLING FAN CONTROL MODULE DRIVER SEAT MEMORY CONTROL MODULE DRIVER SEAT MEMORY CONTROL MODULE LIN BUS 1 ELECTRONIC BRAKE CONTROL MODULE ENGINE CONTROL MODULE ENGINE CONTROL MODULE WAKE-UP RELAY FOLDING TOP CONTROL MODULE FRONT SEAT HEATING CONTROL MODULE FUEL PUMP DRIVER CONTROL MODULE HEADLAMP CONTROL MODULE HEADLAMP CONTROL MODULE LIN BUS 1 HVAC CONTROL MODULE IMMOBILIZER CONTROL MODULE KEYLESS ENTRY CONTROL MODULE LEFT FRONT FASCIA MULTI-FUNCTION LED CONTROL MODULE PARK BRAKE CONTROL MODULE PARKING ASSIST CONTROL MODULE POWER STEERING CONTROL MODULE REAR DIFFERENTIAL CLUTCH CONTROL MODULE RIGHT FRONT FASCIA MULTI-FUNCTION LED CONTROL MODULE STEERING WHEEL HEATING CONTROL MODULE SUSPENSION CONTROL MODULE TELEMATICS COMMUNICATION INTERFACE CONTROL MODULE TRANSMISSION CONTROL MODULE

AUXILIARY UNDERHOOD FUSE BLOCK BATTERY FUSE BLOCK REAR BODY FUSE BLOCK UNDERHOOD AUXILIARY FUSE BLOCK UNDERHOOD AUXILIARY FUSE BOX UNDERHOOD FUSE BLOCK

DRIVER BACK SEAT HEATING ELEMENT DRIVER CUSHION SEAT HEATING ELEMENT DRV SEAT BACK HEATING TEMP SENS SIG DRV SEAT HEATING ELEMENT LOW REF DRV SEAT HEATING TEMP SENS SIG PASS SEAT BACK HEATING TEMP SENS SIG PASS SEAT HEATING ELEMENT CTRL PASS SEAT HEATING ELEMENT LOW REF PASS SEAT HEATING TEMP SENS SIG PASSENGER BACK SEAT HEATING ELEMENT PASSENGER CUSHION SEAT HEATING ELEMENT STEERING WHEEL HEATER

CHARGE INDICATOR CTRL DOOR AJAR INDICATOR CTRL DRIVER SIDE OBJECT DETECTION INDICATOR PASSENGER AIR BAG DISABLED INDICATOR PASSENGER SIDE OBJECT DETECTION INDICATOR SECURITY INDICATOR CTRL HDLP SW PARK LP SIG TRANSMISSION SHIFT LEVER POSITION INDICATOR

BACKLIGHT DIMMING CTRL BACKLIGHT LOW REF BACKUP LAMP CTRL LOW SPEED GMLAN SERIAL DATA 2 BACKUP/ REAR FOG LAMP CENTER CONSOLE CUPHOLDER ACCENT LAMP CENTER CONSOLE FLOOD LAMP CENTER HIGH MOUNTED STOP LAMP COURTESY LAMP SW SIG DOOR LOCKS, INTERIOR LIGHTS, TRUNK, TAILGATE, FUEL DOORS SYSTEMS DRIVER DOOR ACCENT LAMP DRIVER DOOR HANDLE FLOOD LAMP DRIVER DOOR SILL PLATE LAMP INS PANEL LAMP DIMMER SW SIG LEFT BACKUP LAMP LEFT FRONT FASCIA MULTI-FUNCTION LAMP ASSEMBLY LEFT FRONT FLOOR ACCENT LAMP LEFT FRONT LAMP PARK LEFT FRONT PARK LAMP LEFT FRONT SIDE MARKER LAMP LEFT FRONT TURN SIGNAL LAMP LEFT INSTRUMENT PANEL COURTESY LAMP LEFT LICENSE PLATE LAMP LEFT LOWER PARK/ DAYTIME RUNNING LAMP LEFT PARK DAYTIME RUNNING LAMP LEFT REAR SIDE MARKER LAMP LEFT STOP LAMP LEFT STOP/TURN SIGNAL LAMP LEFT SUNSHADE MIRROR LAMP LEFT TAIL LAMP LEFT TAIL LAMP ASSEMBLY LEFT TURN SIGNAL REPEATER LAMP LH PARK LAMP CTRL LIGHTS SYSTEM LR STOP LAMP CTRL MALFUNCTION LAMP IND PASSENGER DOOR ACCENT LAMP PASSENGER DOOR HANDLE FLOOD LAMP PASSENGER DOOR SILL PLATE LAMP REAR COMPARTMENT COURTESY LAMP REAR FOG LAMP CTRL REAR FOG LAMP SW SIG RH PARK LAMP CTRL RIGHT BACKUP LAMP RIGHT FRONT FASCIA MULTI-FUNCTION LAMP ASSEMBLY RIGHT FRONT FLOOR ACCENT LAMP RIGHT FRONT LAMP PARK RIGHT FRONT PARK LAMP RIGHT FRONT SIDE MARKER LAMP RIGHT FRONT TURN SIGNAL LAMP RIGHT FRONT TURN/ PARK LAMP RIGHT INSTRUMENT PANEL COURTESY LAMP RIGHT LICENSE PLATE LAMP RIGHT LOWER PARK/ DAYTIME RUNNING LAMP RIGHT PARK DAYTIME RUNNING LAMP RIGHT PARK LAMP CTRL RIGHT REAR SIDE MARKER LAMP RIGHT STOP LAMP RIGHT STOP/TURN SIGNAL LAMP RIGHT SUNSHADE MIRROR LAMP RIGHT TAIL LAMP RIGHT TAIL LAMP ASSEMBLY RIGHT TURN SIGNAL REPEATER LAMP W/ ECE TAIL, STOP LAMP W/ TAIL, STOP LAMP W/O ECE TAIL, STOP LAMP W/O TAIL, STOP LAMP

AUXILIARY HEATER COOLANT PUMP COOLANT PUMP RLY CTRL FUEL PUMP FUEL PUMP ASSEMBLY SHIELD FUEL PUMP ASSY FUEL PUMP CTRL FUEL PUMP LOW REF FUEL PUMP PRIMARY FUEL PUMP PRIMARY RLY CTRL FUEL PUMP PRIME CTRL HI FUEL PUMP CTRL HI PRESS FUEL PUMP LOW HI PRESSURE FUEL PUMP HIGH PRESSURE FUEL PUMP OIL PUMP COMMAND SIG PUMP HIGH CTRL WINDSHIELD WASHER PUMP

A/C COMPRESSOR CLUTCH RELAY BATTERY SAVER RELAY 1 BATTERY SAVER RELAY 1 ENERGIZED BATTERY SAVER RELAY 2 BRAKE BOOSTER PUMP MOTOR RELAY CHARGE AIR COOLER COOLANT PUMP RELAY DAYTIME RUNNING LAMP RELAY DAYTIME RUNNING LAMPS RELAY ENGINE CONTROLS IGNITION RELAY FOLDING TOP PUMP MOTOR RELAY 1 FOLDING TOP PUMP MOTOR RELAY 2 FOLDING TOP RELAY DOWN CONTROL FOLDING TOP RELAY UP CONTROL FUEL FILL DOOR LOCK RELAY FUEL FILLER DOOR LOCK RELAY HEADLAMP HIGH BEAM RELAY HEADLAMP LOW BEAM RELAY HORN RELAY HOT W/ ENGINE CONTROLS IGNITION RELAY ENERGIZED HOT W/ IGNITION MAIN RELAY ENERGIZED IGNITION MAIN RELAY MTR RELAY COIL CTRL PARK SW SIG RAP RELAY 2 COIL CTRL RAP RELAY COIL CONTROL REAR BODY FUSE BLOCK REAR COMPARTMENT LID UNLATCH RELAY REAR COMPARTMENT LID UNLATCH RELAY REAR DEFOGGER RELAY RELAY CTRL RETAINED ACCESSORY POWER RELAY STARTER ENABLE RELAY CTRL STARTER RELAY WINDSHIELD WASHER PUMP RELAY WINDSHIELD WASHER RELAY CONTROL WINDSHIELD WIPER RELAY WINDSHIELD WIPER SPEED CONTROL RELAY

A/C EVAPORATOR TEMPERATURE SENSOR A/C REFRIGERANT PRESSURE SENSOR ACCELERATOR PEDAL POSITION SENSOR AMBIENT AIR TEMPERATURE SENSOR AMBIENT LIGHT/ SUNLOAD SENSOR BAROMETRIC PRESSURE SENSOR BATTERY CURRENT SENSOR BRAKE BOOSTER VACUUM SENSOR BRAKE PEDAL POSITION SENSOR CAMSHAFT POSITION SENSOR CLUTCH PEDAL POSITION SENSOR CRANKSHAFT POSITION SENSOR CURRENT SENSOR LOW REF CURRENT SENSOR SIG CURRENT SENSOR SUPPLY VOLTAGE DUCT LEFT LOWER AIR TEMPERATURE SENSOR DUCT LEFT UPPER AIR TEMPERATURE SENSOR DUCT RIGHT LOWER AIR TEMPERATURE SENSOR DUCT RIGHT UPPER AIR TEMPERATURE SENSOR ENGINE COOLANT TEMPERATURE SENSOR ENGINE OIL PRESSURE SENSOR ENGINE OIL TEMPERATURE SENSOR EXHAUST BANK 1 CAMSHAFT POSITION SENSOR EXHAUST BANK 2 CAMSHAFT POSITION SENSOR EXHAUST CAMSHAFT POSITION SENSOR FOLDING TOP DOWN POSITION SENSOR FOLDING TOP HEADER LATCH MOTOR LATCHED POSITION SENSOR FOLDING TOP HEADER LATCH MOTOR UNLATCHED POSITION SENSOR FOLDING TOP LUGGAGE BARRIER SENSOR FOLDING TOP POSITION SENSOR CONTROL FOLDING TOP POSITION SENSOR SIG FOLDING TOP STOWAGE COMPARTMENT LID OPEN POSITION SENSOR FOLDING TOP TENSION BOW UP POSITION SENSOR FOLDING TOP UP POSITION SENSOR FUEL LEVEL SENSOR ASSEMBLY FUEL PRESSURE SENSOR FUEL PUMP FUEL PUMP, LEVEL SENSOR ASSEMBLY FUEL PUMP, LEVEL SENSOR ASSEMBLY FUEL RAIL PRESSURE SENSOR FUEL TANK PRESSURE SENSOR HEATED OXYGEN SENSOR 1 HEATED OXYGEN SENSOR 2 HEATED OXYGEN SENSOR BANK 1 SENSOR 1 HEATED OXYGEN SENSOR BANK 1 SENSOR 2 HEATED OXYGEN SENSOR BANK 2 SENSOR 1 HEATED OXYGEN SENSOR BANK 2 SENSOR 2 INTAKE BANK 1 CAMSHAFT POSITION SENSOR INTAKE BANK 2 CAMSHAFT POSITION SENSOR INTAKE CAMSHAFT POSITION SENSOR INTAKE MANIFOLD PRESSURE, AIR TEMPERATURE SENSOR KNOCK SENSOR 1 KNOCK SENSOR #2 LEFT FOLDING TOP HEADER LATCHED POSITION SENSOR LEFT FOLDING TOP STOWAGE COMPARTMENT LID CLOSED POSITION SENSOR LEFT FOLDING TOP TENSION BOW DOWN POSITION SENSOR LEFT FRONT IMPACT SENSOR LEFT FRONT SIDE IMPACT SENSOR LEFT FRONT SUSPENSION POSITION SENSOR LEFT FRONT WHEEL SPEED SENSOR LEFT MIDDLE SIDE IMPACT SENSOR LOW REF LEFT MIDDLE SIDE IMPACT SENSOR SIG LEFT REAR MIDDLE PARKING ASSIST SENSOR LEFT REAR OUTER PARKING ASSIST SENSOR LEFT REAR SIDE IMPACT SENSOR LEFT REAR SUSPENSION POSITION SENSOR LEFT REAR WHEEL SPEED SENSOR LEFT SIDE OBJECT SENSOR MODULE LF IMPACT DISCRIMINATING SENSOR LOW REF LF IMPACT DISCRIMINATING SENSOR SIG LF SIDE IMPACT SENSOR SIG MANIFOLD ABSOLUTE PRESSURE SENSOR MANUAL TRANSMISSION FLUID TEMPERATURE SENSOR MULTI-FUNCTION INTAKE AIR SENSOR PASSENGER PRESENCE SENSOR PASSENGER SEAT BELT TENSION SENSOR PASSENGER SEAT POSITION SENSOR PEDESTRIAN IMPACT DETECTION SENSOR LOW REF PEDESTRIAN IMPACT DETECTION SENSOR SIG PEDESTRIAN PROTECTION SAFING SENSOR MODULE LOW REF PEDESTRIAN PROTECTION SAFING SENSOR MODULE SIG POWER STEERING SHAFT TORQUE SENSOR PRESSURE SENSOR SIG PRIMARY FUEL LEVEL SENSOR REAR DIFFERENTIAL OIL PRESSURE/ TEMPERATURE SENSOR REAR DIFFERENTIAL OIL TEMPERATURE SENSOR RETRACTABLE ROOF SENSOR CONTROL RF IMPACT DISCRIMINATING SENSOR LOW REF RF IMPACT DISCRIMINATING SENSOR SIGNAL RF SIDE IMPACT SENSOR SIG RIGHT FOLDING TOP HEADER LATCHED POSITION SENSOR RIGHT FOLDING TOP STOWAGE COMPARTMENT LID CLOSED POSITION SENSOR RIGHT FOLDING TOP TENSION BOW DOWN POSITION SENSOR RIGHT FRONT IMPACT SENSOR RIGHT FRONT SIDE IMPACT SENSOR RIGHT FRONT SUSPENSION POSITION SENSOR RIGHT FRONT WHEEL SPEED SENSOR RIGHT MIDDLE SIDE IMPACT SENSOR LOW REF RIGHT MIDDLE SIDE IMPACT SENSOR SIG RIGHT REAR MIDDLE PARKING ASSIST SENSOR RIGHT REAR OUTER PARKING ASSIST SENSOR RIGHT REAR SIDE IMPACT SENSOR RIGHT REAR SUSPENSION POSITION SENSOR RIGHT REAR WHEEL SPEED SENSOR RIGHT SIDE OBJECT SENSOR MODULE SECONDARY FUEL LEVEL SENSOR SECONDARY FUEL LEVEL SENSOR FUEL LEVEL SENSOR ASSEMBLY SENSOR LOW REF SENSOR SIGNAL SOFT TOP FRONT LATCH SENSOR SIG 1 SOFT TOP FRONT LATCH SENSOR SIG 2 SOFT TOP LATCH CLOSED SENSOR SIG SOFT TOP LATCH OPEN SENSOR SIG SOFT TOP ROOF DOWN SENSOR SIG SOFT TOP ROOF UP SENSOR SIG SOFT TOP TENSION BOW UP SENSOR SIG SOFT TOP TONNEAU COVER SENSOR LOW REF STEERING WHEEL ANGLE SENSOR SUPERCHARGER INLET PRESSURE SENSOR TRANSMISSION FLUID TEMPERATURE SENSOR TRANSMISSION INPUT SHAFT SPEED SENSOR TRANSMISSION INTERMEDIATE SHAFT SPEED SENSOR TRANSMISSION INTERMEDIATE SPEED SENSOR 1 TRANSMISSION INTERMEDIATE SPEED SENSOR 2 TRANSMISSION OUTPUT SHAFT SPEED SENSOR TRANSMISSION RANGE SENSOR TURBOCHARGER BOOST/INTAKE AIR TEMPERATURE SENSOR UPPER BEAM FRONT PEDESTRIAN IMPACT DETECTION SENSOR WINDSHIELD WASHER FLUID LEVEL SENSOR

CENTER INSTRUMENT PANEL SPEAKER LEFT FRONT DOOR SPEAKER LEFT FRONT TWEETER SPEAKER LEFT REAR TRIM PANEL SPEAKER LEFT REAR WINDOW SHELF SPEAKER RIGHT FRONT DOOR SPEAKER RIGHT FRONT TWEETER SPEAKER RIGHT REAR TRIM PANEL SPEAKER RIGHT REAR WINDOW SHELF SPEAKER SPEAKER CONTROL

ADAPTIVE CRUISE SWITCH BACKUP LAMP SWITCH BRAKE FLUID LEVEL SWITCH CANCEL SWITCH CRUISE SWITCH DELAY SWITCH DRIVER COOLED SEAT SWITCH DRIVER CUSHION, BACK SWITCH DRIVER DOOR LOCK SWITCH DRIVER EXTERIOR DOOR HANDLE SWITCH DRIVER SEAT ADJUSTER SWITCH DRIVER SEAT BELT SWITCH DRIVER SEAT BELT SWITCH DRIVER SEAT BELT BUCKLE DRIVER SEAT MEMORY SWITCH DRIVER WINDOW SWITCH DRV MODE SWITCH SIG ENGINE HOOD SWITCH ENGINE OIL LEVEL SWITCH ENGINE START/STOP SWITCH EXIT SWITCH EXTERIOR REAR COMPARTMENT LID UNLATCH SWITCH FOLDING TOP CONTROL SWITCH FOLDING TOP HEADER LATCH SWITCH SIG FOLDING TOP OPEN SWITCH SIG FOLDING TOP UNLATCH SWITCH SIG HAZARD SWITCH HAZARD WARNING SWITCH HDLP SWITCH OFF SIG HDLP SWITCH OFF SIGNAL HEAD-UP DISPLAY SWITCH HEATED STEERING WHEEL SWITCH HORN SWITCH IGNITION MODE SWITCH INSTRUMENT PANEL DIMMER SWITCH INTERIOR REAR COMPARTMENT LID UNLATCH SWITCH LEFT MANUAL TRANSMISSION SHIFT ANTICIPATE SWITCH LEFT STEERING WHEEL CONTROLS SWITCH LEFT TRANSMISSION MANUAL SHIFT SWITCH LH SIDE LUGGAGE BARRIER LIMIT SWITCH SIG LIFTGATE AJAR SWITCH SIGNAL 1 MEMORY 1 SWITCH MEMORY 2 SWITCH OIL LEVEL SWITCH SIG PARK BRAKE APPLY SWITCH SIG PARK BRAKE APPLY SWITCH VOL REF PARK BRAKE CONTROL SWITCH PARK BRAKE RELEASE SWITCH SIG SWITCH VOL REF PARK BRAKE RELEASE SWITCH SIGNAL PARK BRAKE RELEASE SWITCH VOL REF PARK BRAKE SWITCH SIG PARK BRAKE SWITCH SIGNAL PARK BRAKE SWITCH SUPPLY VOL PARK BRAKE SWITCH SUPPLY VOLTAGE PARK POSITION SWITCH PASSENGER COOLED SEAT SWITCH PASSENGER CUSHION/ BACK SWITCH PASSENGER DOOR LOCK SWITCH PASSENGER EXTERIOR DOOR HANDLE SWITCH PASSENGER SEAT ADJUSTER SWITCH PASSENGER SEAT BELT SWITCH PASSENGER SEAT BELT BUCKLE PASSENGER WINDOW SWITCH RADIO PRESETS STEERING WHEEL CONTROLS SWITCH RADIO VOLUME STEERING WHEEL CONTROLS SWITCH REAR CLOSURE HANDLE SWITCH OPEN SIGNAL REAR DEFOGGER SWITCH REVERSE SWITCH SIG RIGHT MANUAL TRANSMISSION SHIFT ANTICIPATE SWITCH RIGHT STEERING WHEEL CONTROLS SWITCH RIGHT TRANSMISSION MANUAL SHIFT SWITCH SET SWITCH SNRF SWITCH LOW REF STOP SWITCH SUNROOF SWITCH SUNROOF SWITCH SIG SWITCH SIGNAL TAP UP/TAP DOWN SWITCH SIG TRANS TAP DOWN SWITCH SIG TRANSMISSION INTERNAL MODE SWITCH TRANSMISSION MANUAL SHIFT SWITCH TURN SIGNAL/ MULTI-FUNCTION SWITCH VEHICLE STABILITY CONTROL SWITCH WASHER SWITCH WINDSHIELD WIPER/WASHER SWITCH WIPER SWITCH WIPER SWITCH HIGH SIG

A/C COMPRESSOR SOLENOID VALVE BANK 1 VALVE LIFTER OIL SOLENOID VALVE BANK 2 VALVE LIFTER OIL SOLENOID VALVE CYLINDER SHUTOFF SOLENOID 1 CYLINDER SHUTOFF SOLENOID 4 CYLINDER SHUTOFF SOLENOID 6 CYLINDER SHUTOFF SOLENOID 7 EVAP PURGE SOLENOID VALVE CTRL EVAPORATIVE EMISSION PURGE SOLENOID VALVE EVAPORATIVE EMISSION VENT SOLENOID VALVE FOLDING TOP SOLENOID VALVE 1 FOLDING TOP SOLENOID VALVE 2 FOLDING TOP SOLENOID VALVE 3 LEFT CYLINDER DEACTIVATION EXHAUST FLOW CONTROL VALVE LEFT EXHAUST FLOW CONTROL VALVE MODE DOOR CONTROL MODE 1 VALVE POS SENS SIG REAR DIFFERENTIAL CLUTCH SOLENOID VALVE RIGHT CYLINDER DEACTIVATION EXHAUST FLOW CONTROL VALVE RIGHT EXHAUST FLOW CONTROL VALVE SOFT TOP HYDRAULIC PUMP VALVE 1 CONTROL SOFT TOP HYDRAULIC PUMP VALVE 2 CONTROL SOFT TOP HYDRAULIC PUMP VALVE 3 SIG SOL VALVE CTRL SOL VALVE W LOW REF SOL VALVE X LOW REF SOLENOID CTRL BANK 1 SOLENOID VALVE CTRL TCC ON/OFF SOLENOID A CTRL TCC ON/OFF SOLENOID B CTRL TRANSMISSION CONTROL SOLENOID VALVE 1 TRANSMISSION CONTROL SOLENOID VALVE 2 TRANSMISSION CONTROL SOLENOID VALVE 3 TRANSMISSION CONTROL SOLENOID VALVE 4 TRANSMISSION CONTROL SOLENOID VALVE 5 TRANSMISSION CONTROL SOLENOID VALVE 6 TRANSMISSION CONTROL SOLENOID VALVE 7 TRANSMISSION CONTROL SOLENOID VALVE 8 TRANSMISSION CONTROL SOLENOID VALVE 9 TURBOCHARGER BYPASS SOLENOID VALVE TURBOCHARGER WASTEGATE SOLENOID VALVE

BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/ORG WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/RED WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/ORG WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE DRAIN WIRE GREEN LED CTRL GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/ORG WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/ORG WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE IGN PNK LED CTRL WIRE KEYPAD GREEN KEYPAD GREEN LED CTRL KEYPAD RED LED CTRL WIRE KEYPAD RED WIRE LT BLU WIRE LT GRN WIRE LT GRN/WHT WIRE NCA WIRE ORG/ WIRE ORG/BLU WIRE ORG/BRN WIRE ORG/GRN WIRE ORG/GRY WIRE ORG/VIO WIRE ORG/WHT WIRE ORG/YEL WIRE PNK WIRE RED LED CTRL WIRE RED WIRE RED/BLU WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE VIO WIRE VIO/BLK WIRE VIO/BLU WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/ORG WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/ORG WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE YEL WIRE YEL/BLK GRN/BLK WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/ORG WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

2.0L TURBO 2.0L TURBO 3.6L 2.0L TURBO 3.6L 6.2L 2.0L TURBO 3.6L 6.2L, 6.2L SUPERCHARGED 2.0L TURBO, 3.6L W/ EXHAUST SYSTEM, 3.6L 3.6L 6.2L 3.6L VIN S 3.6L, 6.2L, 6.2L SUPERCHARGED 5 VOLT REF 5-VOLT REF 1 5-VOLT REF 2 5-VOLT REFERENCE 6.2L 6.2L VIN 6 6.2L VIN 6 SUPERCHARGED 6.2L VIN 6, 6.2L VIN 7 6.2L VIN 6, 6.2L VIN 7 W/ ELECTRONIC LIMITED SLIP AXLE POSITRACTION 6.2L VIN 7 6.2L VIN 7 W/O ELECTRONIC LIMITED SLIP AXLE POSITRACTION 6.2L VIN 7, VIN 6 6.2L, 6.2L SC 6.2L, 6.2L SUPERCHARGED 6.2L, 6.2L SUPERCHARGED 3.6L 2.0L TURBO 12 VOLT REF (AT LEFT REAR WHEEL (BLUNT (IN EXHAUST SYSTEM (NOT (OR (W/ REMOTE CONTROL A/C CLUTCH RLY CTRL A/C COMPRESSOR CLUTCH A/C PRESS SENS SIG A/C REFRIGERANT PRESSURE SENS SIG ABS IND. ACC IGN VOLT ACC IND ACC LED SIG ACC VOL ACC WAKEUP SERIAL DATA ACCEL PEDAL POS LO REF 1 ACCEL PEDAL POS SIG 1 ACCENT LIGHTING CTRL ACCESSORY IGN VOLT ACCESSORY WAKE UP SERIAL DATA ACCESSORY WAKEUP ACCESSORY WAKEUP SERIAL DATA ACCL PEDAL POS 5 VOLT REF 1 ACCL PEDAL POS 5 VOLT REF 2 ACCL PEDAL POS LOW REF 2 ACCL PEDAL POS SIG 2 ACT CTRL ACT LCK CTRL 2 DR LCK CTRL DR LCK ACT LCK CTRL ACT LCK CTRL 2 DR LCK CTRL DR LCK ACT UNLCK CTRL ACT RCV SIG ACTIVE NOISE CANCELLATION MODULE ACTIVE SIG ACTR LO REF ACTU HI CTRL ACTU LOW CTRL ADAPTIVE FRONT LIGHTING IND AIR BAG AIR BAG IND AIR CONDITIONING SYSTEM AIR TEMP DOOR CONTROL AIR TEMP DOOR CTRL LOW REF AIR TEMP DOOR POS SIG AIR TEMP SENS SIG AIR TEMP SIG AJAR SW SIG AMBIENT AIR TEMP SENS SIG AMBIENT LIGHT SENS SIG AMBIENT LT SENS SIG AMBIENT TEMP SENS LOW REF ANT 1 SIG HI ANT 1 SIG LO ANT 2 SIG HI ANT 2 SIG LO ANT 3 SIG HI ANT 3 SIG LO ANT SIG HI ANT SIG LO ANTI-THEFT SYSTEM APP LOW REF 1 APP LOW REF 2 APP SENS SIG 1 APPLY SW SIG AUDIO SIG + AUTOMATIC LOCKING AUTOMATIC TRANSMISSION ASSEMBLY AUXILIARY AUDIO COMMON SIGNAL AUXILIARY AUDIO INPUT AUXILIARY AUDIO INPUT LOGIC B+ VOLT BACKUP LAMPS CIRCUIT BACKUP LP CTRL BATT POS BATT POS VOL BATT POS VOLT BATT POS VOLT GMLAN SERIAL DATA BATT POS VOLT SW SIG BATT POS VOLTAGE BATT POSITIVE BATT POSITIVE VOLT BATT POSITIVE VOLTAGE BATT SAVER RLY CLOSE CTRL BATT SAVER RLY OPEN CTRL BK COAX BK COAX AM/FM BK LVDS BLOWER MTR SPD CTRL BLWR MTR SPD CTRL BPP SENS LOW REF BPP SENS SIG BRAKE APPLY SENS CTRL BRAKE APPLY SENS LOW REF BRAKE APPLY SENS SIG BRAKE APPLY SW SIG BRAKE PRESSURE MODULATOR BRAKE WARNING IND BRK APPLY SENS CTRL BRK APPLY SENS LOW REF BRK APPLY SENS SIG BRK APPLY SENS VOLT REF BRK FLUID LEVEL SENS SIG BRK FLUID LVL BRK POS SENS 5 VOLT REF BRK POS SENS LO REF BRK POS SENS LOW REF BRK POS SENS SIG BRK POSITION SENS SIG BRK VACUUM SENS LO REF BRK VACUUM SENS SIG BRK VACUUM SENS SIG 5 VOLT REF BRK VACUUM SW SIG BU COAX BU LVDS BUS 3 BUS 5 BUS 9 CAMSHAFT EXHAUST SENS CAVITY SEAL CELLULAR TELEPHONE CENTER CONSOLE ACCESSORY POWER RECEPTACLE CHARGE IND CHARGE IND CTRL CHECK ENG IND CTRL CLUSTER LIN BUS 1 CLUTCH A CTRL CLUTCH APPLY SENS 5 VOLT REF CLUTCH APPLY SENS LOW REF CLUTCH APPLY SENS SIG CLUTCH APPLY SENS SIG BRK POS SENS SIG CLUTCH B CTRL CLUTCH C CTRL CLUTCH E CTRL CLUTCH F CTRL CLUTCH H CTRL CLUTCH RLY CTRL CLUTCH SOL VLV CTRL CLUTCH VLV D CTRL CMPRSR CLUTCH RLY CTRL CO-DRIVER HEATED BACK THERMISTOR LOW REF CO-DRIVER HEATED SEAT THERMISTOR LOW REF COAX BG COAX BG COAXIAL SIGNAL COAX BU COAX OG USB COAX TN COMMON SIGNAL COMMUNICATION ENABLE COMPUTER DATA COMPUTER DATA LINES SYSTEM COOLING FAN CTRL COOLING FAN CTRL RLY SPD SIG COOLING FANS SYSTEM COURTESY LP SW SIG CRANK SENS SIG CRANKSHAFT POS SENS CRANKSHAFT POSI SENS SIG CRANKSHAFT POSI SENS VOLT CRUISE CONTROL SYSTEM CRUISE CTRL SET/ COAST/RES/ACC SW SIG LOW REF CRUISE CTRL SET/COAST/ RES/ACC SW SIG CRUISE IND CRUISE/ETC/TCC BRAKE SIG CRUISE/ETC/TCC BRK SIG CRUISE/ETC/TCC/BRAKE SIG CRUISE/ETC/TCC/BRAKE SIGNAL CTRL 1 CTRL 1 STRG CLMN CTRL 2 CTRL BANK 1 SENS 1 CTRL BANK 1 SENS 2 CTRL CLOSE CTRL OPEN CURRENT SENS SIG CURRENT SENS VOLT REF CUT SHIELD) CYLINDER 1 CYLINDER 2 CYLINDER 3 CYLINDER 4 DATA BUS 1 DATA BUS 2 DATA BUS 4 DATA BUS 12 DATA COMM DATA LINES DEFOGGER SYSTEM DIMMER SW LOW REF DIMMER SW SIG DIMMING CONTROL DIMMING CTRL DIRECT FUEL CYLINDER 1 DIRECT FUEL CYLINDER 2 DIRECT FUEL CYLINDER 3 DIRECT FUEL CYLINDER 4 DIRECT FUEL CYLINDER 5 DIRECT FUEL CYLINDER 6 DISPLAY LOGIC DOME/READING LP CTRL DOOR AJAR IND DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOWN SIG DOWN SW SIG DR LCK ACT LCK CTRL DR LCK ACT UNLCK CTRL DRIVER DOOR LATCH ASSEMBLY DRIVER EXTERIOR DOOR HANDLE ASSEMBLY DRIVER INFORMATION CENTER DISPLAY DRIVER KNEE AIR BAG DRIVER MODE SW SIG DRIVER OUTSIDE REAR VIEW MIRROR GLASS DRIVER OUTSIDE REAR- VIEW MIRROR DRIVER SEAT BELT ANCHOR PRETENSIONER DRIVER SEAT BELT BUCKLE DRIVER SEAT BELT RETRACTOR PRETENSIONER DRV DOOR OPEN SW SIG DRV DR ANT SIG HI DRV DR ANT SIG LO DRV DR HANDLE SW SIG DRV DR LCK SW LCK SIG DRV DR LCK SW UNLCK SIG DRV DR OPEN SW SIG DRV HEATED SEAT ELEMENT CTRL DRV HEATED SEAT THERMISTOR LOW REF DRV KNEE AIR BAG LOW CTRL DRV MIR MTR COMMON CTRL DRV MIR POSITION SENS 5 VOLT REF DRV MIR POSITION SENS LO REF DRV SEAT BELT ANCHOR PRETENSIONER HIGH CTRL DRV SEAT BELT ANCHOR PRETENSIONER LOW CTRL DRV SEAT BELT RETRACTOR PRETENSIONER HIGH CTRL DRV SEAT BELT RETRACTOR PRETENSIONER LOW CTRL DRV SEAT BELT SW LOW REF DRV SEAT BELT SW SIG DRV SEAT SIDE AIR BAG HIGH CTRL DRV SEAT SIDE AIR BAG LOW CTRL DUTY CYCLE SIG ECT SENS SIG ELE VARIABLE DISPLACEMENT CTRL ELE VARIABLE DISPLACEMENT SPLY ELECTRONIC MUFFLERS SYSTEM ENG COOLANT ENG SPD SIG ESC IND ESC OFF IND EVAP CANISTER VENT SOL CTRL EVAP CORE TEMP SENS SIG EXCEPT 2.0L TURBO EXCEPT 3.6L EXCEPT 6.2L SUPERCHARGED 6.2L SUPERCHARGED EXCEPT 6.2L VIN 6 SUPERCHARGED EXH FLOW VLV 1 FEEDBACK SIG EXH FLOW VLV 2 FEEDBACK SIG EXH FLOW VLV CTRL 1 EXH FLOW VLV CTRL 2 EXHAUST CAMSHAFT POS EXHAUST SENS 2 EXHAUST SENS CTRL 2 EXHAUST SOL 2 EXPRESS CLOSE EXPRESS OPEN EXPRESS SIG FEEDBACK SIGNAL FLASH TO PASS FM 2 FORWARD SW SIG FRONT FOOTWELL ACCENT LIGHTING CONTROL FRONT LOW LEVEL FRONT TURN LP FEEDBACK SIG FRONT VERTICAL DWN SW SIG FRONT VERTICAL MTR DWN CTRL FRONT VERTICAL MTR UP CTRL FRONT VERTICAL UP SW SIG FRT TURN LP FEEDBACK SIG FSD SPLY 5 FUEL DR LCK RLY CTRL FUEL GAUGE FUEL INJECTOR 1 FUEL INJECTOR 2 FUEL INJECTOR 3 FUEL INJECTOR 4 FUEL INJECTOR 5 FUEL INJECTOR 6 FUEL INJECTOR 7 FUEL INJECTOR 8 FUEL LINE PRESSURE FUEL PRESSURE LOW REF FUEL PRESSURE SENS SIG FUEL RAIL PRESS SENS FUEL TANK PRESSURE SENS FUEL TANK PRESSURE SENS SIG FUSED CTRL FUSED SPLY 2 FUSED SUPPLY VOLT 5 GAP UP/DOWN SW SIG GMLAN SER DATA GMLAN SERIAL DATA GMLAN SERIAL DATA 2 GMLAN SERIAL DATA - 1 GMLAN SERIAL DATA BUS - 3 GND EXTENSION GROUND DISTRIBUTION SYSTEM GY LVDS USB SERIAL DATA HAZ SW LH TURN SIG HAZ SW RH TURN SIG HAZ SW SIG HAZARD IND HDLP DIMMER SW HI BEAM SIG HDLP HI BEAM RLY CTRL HDLP LOW BEAM RLY CTRL HDLP SW FLASH SIG HDLP SW OFF SIG HDLP SW ON SIG HDLP SW PARK LP SIG HDLP SW PRK LP SIG HEAD PARK HEAD SW LOW REF HEAD SW SIG HEAD-UP DISPLAY HEAD-UP DISPLAY CIRCUIT HEADLAMP LO BEAM RLY CTRL HEADLIGHTS SYSTEM HEATED STEERING WHEEL IND HI BEAM CTRL HI SIG BANK 2 SENS 1 HI SIG BANK 2 SENS 2 HI SPD GMLAN HI SPD GMLAN SERIAL DATA HI SPEED GMLAN HI VOLT CTRL CYLINDER 1 HI VOLT CTRL CYLINDER 2 HI VOLT CTRL CYLINDER 3 HI VOLT CTRL CYLINDER 4 HI VOLT CTRL CYLINDER 5 HI VOLT CTRL CYLINDER 6 HI VOLT CTRL CYLINDER 7 HI VOLT CTRL CYLINDER 8 HI VOLT SPLY CYLINDER 1 HI VOLT SPLY CYLINDER 2 HI VOLT SPLY CYLINDER 3 HI VOLT SPLY CYLINDER 4 HI VOLT SPLY CYLINDER 5 HI VOLT SPLY CYLINDER 6 HI VOLT SPLY CYLINDER 7 HI VOLT SPLY CYLINDER 8 HIGH BEAM ASSIST IND HIGH BEAM IND HIGH HEAT IND HIGH SPD GMLAN HIGH SPEED GMLAN HOOD OPEN HOOD OPEN SW SIG HOOD STATUS B SIG HORIZONTAL MTR FORWARD CTRL HORIZONTAL MTR REARWARD CTRL HORIZONTAL MTR SENS SIG HORNS SYSTEM HOT AT ALL TIMES HUMIDITY SEN SIG HUMIDITY SENS SIG HVAC CONTROLS IGN 1 IGN 1 VOL IGN 1 VOLT IGN CTRL LO REF BANK 1 IGN CTRL LOW REF IGN MODE SW IGN MODE SW CTRL IGN MODE SW MODE CTRL IGN MODE SW VOLT IGN OFF/ACCESSORY IGN VOLT IGNITION 1 IGNITION 1 VOLT IGNITION CTRL 2 IGNITION CTRL 3 IGNITION CTRL 6 IMMOBILIZER CTRL IMMOBILIZER LIN BUS 1 IMMOBILIZER LO REF IMS MODE SW LO REF IMS MODE SW LOW REF IN LUGGAGE COMPT) IN SPD SIG INADVERTENT LOAD CTRL INADVERTENT PWR CTRL IND CTRL IND DIMMING CTRL INFLATABLE RESTRAINT SENSING, DIAGNOSTIC MODULE INFO DISPLAY MODULE INPUT SPD SIG INS PANEL LP DIMMER SW LO REF INSIDE AIR TEMP INSIDE AIR TEMP SENS LOW REF INSIDE AIR TEMP SENS SIG INSIDE REAR VIEW MIRROR INSTRUMENT CLUSTER INSTRUMENT CLUSTER LIN BUS 1 INSTRUMENT CLUSTER LIN BUS 1 GND INSTRUMENT ILLUMINATION CIRCUIT INT LOW OFF INT LOW OFF HIGH INTAKE AIR TEMP SENS SIG INTAKE CAMSHAFT POS INTAKE SENS 1 INTAKE SENS 2 INTAKE SENS CTRL 1 INTAKE SENS CTRL 2 INTAKE SENS LOW REF 1 INTAKE SOL 2 INTERIOR LP CTRL INTERMEDIATE SPD SIG INTERRUPT REQUEST SIG INTR LP CTRL KEY PAD CTRL KEY PAD SIG KEYPAD CTRL KEYPAD DIMMING CTRL KEYPAD LOW REF KEYPAD POWER SIG KEYPAD SIG KEYPAD VOLTAGE REF KM/H IND KNOCK SENS 1 SIG KNOCK SENS 2 SIG KNOCK SENS LOW REF 1 KNOCK SENS LOW REF 2 KNOCK SENS SIG 1 KNOCK SENS SIG 2 LED AMBIENT LIGHTING CTRL 1 LED AMBIENT LIGHTING CTRL 2 LED AMBIENT LIGHTING ENABLE LED BACK LIGHT DIMMING CTRL LED CTRL LED IND LEFT "C" PILLAR) LEFT AUXILIARY AUDIO SIG 2 LEFT FRONT DOME/ READING LAMPS LEFT FRONT FASCIA MULTI- FUNCTION LED LEFT FRONT MOBILE TELEPHONE MICROPHONE LEFT FRONT RADIO VOLUME COMPENSATOR INTERIOR NOISE MICROPHONE LEFT FRONT SEAT SIDE AIR BAG LEFT HEADLAMP ASSEMBLY LEFT HEADLAMP BALLAST LEFT HIGH BEAM HEADLAMP LEFT LOW BEAM HEADLAMP LEFT REAR WINDOW DEFOGGER NOISE FILTER LEFT ROOF RAIL AIR BAG LEFT SUNSHADE LEFT TURN IND LF AUXILIARY AUDIO SIG 2 LF DOOR AJAR SW SIG LF DR AJAR SW SIG LF DRL CTRL LF LO LEVEL AUDIO SIG LF LOW LEVEL AUDIO SIG LF ROOF RAIL AIR BAG HIGH CTRL LF ROOF RAIL AIR BAG LOW CTRL LF SHOCK ABS ACT DECREASE DAMP CTRL LF SHOCK ABS ACT INCREASE DAMP CTRL LF SIDE IMPACT SENSING LOW REF LF STRUT POS SEN LOW REF LF STRUT POS SENS SIG LF STRUT POS LF SUSP POS SENS LOW REF LF SUSP POS SENS SIG LF SUSP POS SENS VOLT REF LF TURN SIG LP CTRL LF WHEEL SPD SENS CTRL LF WHEEL SPD SENS SIG LH DOWN LH EXPRESS LH FRONT DRL CONTROL LH HDLP LO BEAM CTRL LH PARK LP CTRL LH UP LICENSE LP CTRL LID UNLATCH SIG LIFT GATE AJAR SW SIG LIFT GATE AJAR SW SIG 1 LIFTGATE AJAR SW SIG 1 LIFTGATE/REAR COMPT LID MTR UNLATCH CTRL LIN BUS 1 LIN BUS 2 LIN BUS 3 LIN BUS 4 LIN SERIAL LIN SERIAL DATA LIN SERIAL DATA BUS 1 LIN SERIAL DATA BUS 2 LIN SERIAL DATA BUS 3 LIN SERIAL DATA BUS 4 LIN SERIAL DATA BUS 9 LINES SYSTEM LO REF LO SPD LO SPD GMLAN LO SPD GMLAN SERIAL DATA LO SPD GMLAN SERIAL DATA 2 LO SPD SERIAL DATA LOCAL INTERCONNECT NETWORK BUS 12 LOCAL INTERCONNECT NETWORK SERIAL DATA BUS 8 LOCKING RETRACTOR LOW CTRL BANK 1 SENS 1 LOW HEAT IND LOW LEVEL LOW REF LOW REF 2 LOW REF 7 LOW REF BANK 1 LOW REFERENCE LOW SIG BANK 1 SENS 2 LOW SPD GMLAN LOW SPD GMLAN SERIAL DATA LOW SPD GMLAN SERIAL DATA 2 LOW SPEED GMLAN LOW SPEED GMLAN SERIAL DATA LOW SPEED GMLAN SERIAL DATA 2 LOW WASHER FLUID IND CTRL LR ABS ACT DECREASE DAMP CTRL LR ABS ACT INCREASE DAMP CTRL LR LO LEVEL AUDIO SIG LR LOW LEVEL AUDIO SIG + LR MIDDLE PARKING ASSIST SENS SIG LR OUTER PARKING ASSIST SENS SIG LR PARK BRK MTR APPLY CTRL LR PARK BRK MTR LO REF LR STOP LP SW LR STRUT POS LR STRUT POS SENS SIG LR SUSP POS SENS LOW REF LR SUSP POS SENS VOLT REF LR TURN SIG LP CTRL LR WHEEL SPD SENS CTRL LR WHEEL SPD SENS SIG LTD SLIP DIFF SOL HI SIDE CTRL LTD SLIP DIFF SOL LO SIDE CTRL LVDS BK LVDS GY LVDS GY INFOTAINMENT DISPLAY SIG MAF SENS SIG MALFUNCTION IND MANIFOLD ABSOLUTE PRESS MASS AIR FLOW SENS SIG MED HEAT IND MEM SEAT SW SET SIG MEM SW LO REF MEMORY CARD RECEPTACLE MICROPHONE 1 FEEDBACK SIG MICROPHONE 1 SIG MICROPHONE 2 FEEDBACK SIG MICROPHONE 2 SIG MICROPHONE SIG MICROPHONE SIGNAL MID/HIGH LEVEL MIR SIG MIRROR DIMMING MIRRORS SYSTEM MOBILE DEVICE WIRELESS CHARGER MODULE MODE VOLT MODULE LIN BUS 1 MOST SERIAL MPH IND MTR CTRL 1 NAVIGATION DISPLAY NAVIGATION SYSTEM NETWORK 9 NETWORK BUS 1 NETWORK BUS 2 NETWORK BUS 3 NETWORK BUS 12 NOISE CANCELLATION MICROPHONE 1 NOISE CANCELLATION MICROPHONE 1 SIG NOISE CANCELLATION MICROPHONE 2 NOISE CANCELLATION MICROPHONE 2 SIG O/P SPD SIG OBJECT SENS LOW REF OBJECT SENS SUPPLY VOLT OFF IND OIL LEVEL SW SIG OIL LVL SW SIG OIL PMP COMAND SIG OIL LEVEL SW SIG OIL PRESS SENS LOW REF OIL PRESS SENS SIG OIL PRESSURE SENS SIG OIL TEMP SENS SIG ON IND. ON START ONSTAR IND OUTPUT SIG OUTPUT SPD SENS OUTPUT SPD SIG OUTPUT SPEED SIG PARK AUTO PARK AUTO OFF PARK BRAKE APPLY SW SIG PARK BRAKE APPLY SW VOLT REF PARK BRAKE IND PARK BRAKE REL SW SIG PARK BRAKE REL SW VOLT REF PARK BRAKE RELEASE PARK BRAKE SW SIG PARK BRK APPLY SW SIG PARK BRK APPLY SW VOLT REF PARK BRK RELEASE SW SIG PARK BRK RELEASE SW SUPPLY VOLT PARK BRK RELEASE SW VOLT REF PARK BRK SW SIG PARK BRK SW SUPPLY VOLT PARK IND PARK LCK SOL CTRL PARK SW SIG PARK/DAYTIME RUNNING CTRL PASS AIR BAG OFF IND CTRL PASS AIR BAG ON IND CTRL PASS DR ANT SIG HI PASS DR ANT SIG LO PASS DR HANDLE SW SIG PASS DR LCK SW LCK CTRL PASS DR LCK SW UNLCK CTRL PASS IP AIR BAG HIGH CTRL STAGE 1 PASS IP AIR BAG HIGH CTRL STAGE 2 PASS IP AIR BAG LOW CTRL STAGE 1 PASS IP AIR BAG LOW CTRL STAGE 2 PASS KNEE AIR BAG HIGH CTRL PASS KNEE AIR BAG LOW CTRL PASS MIR MTR COMMON CTRL PASS MIR POSITION SENS 5 VOLT REF PASS MIR POSITION SENS LO REF PASS SEAT ADJUSTER SW SIG PASS SEAT BELT ANCHOR PRETENSIONER HIGH CTRL PASS SEAT BELT ANCHOR PRETENSIONER LOW CTRL PASS SEAT BELT IND CTRL PASS SEAT BELT SW LOW REF PASS SEAT BELT SW SIG PASS SEAT SIDE AIR BAG HIGH CTRL PASS SEAT SIDE AIR BAG LOW CTRL PASS SEAT VENT MTR CTRL 1 PASSENGER DOOR LATCH ASSEMBLY PASSENGER EXTERIOR DOOR HANDLE ASSEMBLY PASSENGER INSTRUMENT PANEL AIR BAG PASSENGER KNEE AIR BAG PASSENGER OUTSIDE REAR VIEW MIRROR PASSENGER OUTSIDE REAR VIEW MIRROR GLASS PASSENGER PRESENCE MODULE PASSENGER SEAT BELT ANCHOR PRETENSIONER PASSENGER SEAT BELT RETRACTOR PRETENSIONER PASSIVE START SW 2 LO REF PASSIVE START SW 2 LOW REFERENCE PASSIVE START SW SIG 2 PEDESTRIAN IMPACT DETECTION CONTROL MOD LOW REF PEDESTRIAN IMPACT DETECTION CONTROL MOD SIG PEDESTRIAN PROTECTION IMPACT SENSING MODULE LOW REF PEDESTRIAN PROTECTION IMPACT SENSING MODULE SIG PHONE IND POS SENS 1 VOLTAGE REF POS SENS LOW REF POS SENS LOW REF 1 POSITION SIG 1 POSITION SIG 2 POSITIVE VOLTAGE 3 POWER DISTRIBUTION SYSTEM POWERTRAIN MAIN RLY FUSED SPLY 1 POWERTRAIN MAIN RLY FUSED SUPLY 1 POWERTRAIN MAIN RLY FUSED SUPLY 2 POWERTRAIN MAIN RLY FUSED SUPLY 3 POWERTRAIN SENS BUS PRESS SENS 5 VOLT REF PRESS SENS SIG PRESSURE SENS LO REF PRESSURE SENS SIG PRIMARY FUEL LEVEL SENS SIG PRIMARY FUEL LVL SENS PRIMARY RLY CTRL PRNDL A SIG PRNDL B SIG PRNDL C SIG PRNDL P SIG PRNDL S SIG PURGE SOL CTRL RADIO CONTROLS RADIO VOLUME RADIO VOLUME UP SW SIG RD USB REAR AXLE TEMP SIG REAR CLOSURE HANDLE OPEN SIG REAR COMPARTMENT LID LATCH REAR COMPT LID LP CTRL REAR DEFOG RLY CTRL REAR DEFOGGER GRID REAR DEFOGGER IND REAR TURN LP FEEDBACK SIG REAR VERTICAL DWN SW SIG REAR VERTICAL MTR DOWN CTRL REAR VERTICAL MTR UP CTRL REAR VERTICAL UP SW SIG REARWARD SW SIG RECIRCULATION DOOR CTRL RECIRCULATION DOOR CTRL RECIRCULATION DOOR POS SIG RECLINE FORWARD SW SIG RECLINE MTR FORWARD CTRL RECLINE MTR POS SENS SIG RECLINE MTR REARWARD CTRL RECLINE REARWARD SW SIG RELEASE SW SIG REMOTE ENABLE SIGNAL REMOTE FUN ACT CTRL REMOTE FUN ACT LO REF REMOTE FUN ACT REC SIG REMOTE FUN ACT TRANSMIT SIG RES+ REV SW SIG RF AUXILIARY AUDIO SIG 2 RF DOOR AJAR SW SIG RF DR AJAR RF DRL CTRL RF LO LEVEL AUDIO SIG RF LOW LEVEL AUDIO SIG RF ROOF RAIL AIR BAG HIGH CTRL RF ROOF RAIL AIR BAG LOW CTRL RF SHOCK ABS ACT DECREASE DAMP CTRL RF SHOCK ABS ACT INCREASE DAMP CTRL RF SIDE IMPACT SENSING LOW REF RF SUSP POS SENS LOW REF RF SUSP POS SENS SIG RF SUSP POS SENS VOLT REF RF TURN LP FEEDBACK SIG RF TURN SIG LP CTRL RF WHEEL SPD SENS CTRL RF WHEEL SPD SENS SIG RH DOWN RH EXPRESS RH HDLP LO BEAM CTRL RH PARK LP CTRL RH UP RIGHT AUXILIARY AUDIO SIG 2 RIGHT FRONT DOME/ READING LAMPS RIGHT FRONT FASCIA MULTI- FUNCTION LED RIGHT FRONT MOBILE TELEPHONE MICROPHONE RIGHT FRONT RADIO VOLUME COMPENSATOR INTERIOR NOISE MICROPHONE RIGHT FRONT SEAT SIDE AIR BAG RIGHT HEADLAMP ASSEMBLY RIGHT HEADLAMP BALLAST RIGHT HIGH BEAM HEADLAMP RIGHT LOW BEAM HEADLAMP RIGHT REAR WINDOW DEFOGGER NOISE FILTER RIGHT SUNSHADE RIGHT TURN IND RLY CTRL RLY FUSED SPLY 3 RLY SPD SIG RR ABS ACT DECREASE DAMP CTRL RR ABS ACT INCREASE DAMP CTRL RR DIFF OIL PRESS SENS RR DRIVE MTR HI SIDE CTRL RR DRIVE MTR LOW SIDE CTRL RR LO LEVEL AUDIO SIG RR LOW LEVEL AUDIO SIG + RR MIDDLE PARKING ASSIST SENS SIG RR OUTER PARKING ASSIST SENS SIG RR PARK BRK MTR APPLY CTRL RR PARK BRK MTR LO REF RR STOP LP CTRL RR SUSP POS SENS LOW REF RR SUSP POS SENS SIG RR SUSP POS SENS VOLT REF RR TURN LP FEEDBACK SIG RR TURN LP SIG RR TURN SIG LP CTRL RR WHEEL SPD SENS CTRL RR WHEEL SPD SENS SIG RUN/CRANK IGN 1 VOL RUN/CRANK IGN 1 VOLT RUN/CRANK IGN 1 VOLT 1 RUN/CRANK IGNITION 1 VOLT RUN/CRANK IGNITION 1 VOLTAGE SEAT BELT 2 SEAT BELT IND SEAT POSITION SENS HI REF 2 SEC FUEL LVL SENS SIG SEC IND CTRL SECONDARY FUEL LEVEL SENS SIG SECURITY IND SEEK DOWN SEEK UP SEEK UP MUTE SENS 1 VOLTAGE REF SENS 5 VOLT REF 1 SENS A 9 VOLT REF SENS B 9 VOLT REF SENS CTRL SENS CTRL 1 SENS LO REF SENS LOW REF SENS REPLICATED SIG SENS SENT 1 SIG SENS SIG SENS SIG 2 SER DATA SERIAL DATA SERIAL DATA 2 SERIAL DATA BUS 9 SERIAL DATA BUS 9 GND SERIAL DATA BUS 11 SERIAL DATA COMM ENABLE SERIAL DATA COMMUNICATION ENABLE SERIAL DATA GATEWAY MODULE SERVICE PARK BRAKE IND SET- SHIELD GND SHIFT INTERLOCK SYSTEM SHIFT LCK SOL CTRL SHLD GND SHORTING BAR SIG BANK 1 SENS 2 SIG GND SIG GND MOD SW FEEDBACK SIG SIG GROUND SIG IND SIGNAL GROUND SKIP/SHIFT SOL CTRL SNRF SW DATA 1 SIG SOL CTRL SOL CTRL 1 SOL CTRL 2 SOL CTRL 3 SOL CTRL 4 SOL VLV CTRL SOS IND SOUND SYSTEMS SPARK PLUG SPD SIG SPEEDOMETER IND SPLY VOLT START IND START LED SIG STARTING CIRCUIT STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STATUS SIG STEERING ANGLE SENS LO REF STEERING ANGLE SENS LOW REF STEERING WHEEL AIR BAG STEERING WHL AIR BAG HIGH CTRL STAGE 1 STEERING WHL AIR BAG HIGH CTRL STAGE 2 STEERING WHL AIR BAG LOW CTRL STAGE 1 STEERING WHL AIR BAG LOW CTRL STAGE 2 SW LOW REF SW MOD CTRL X SW MOD CTRL SW MOD CTRL Y SW MOD CTRL BACKUP SW SIG TAC CLOSE TAC OPEN TACHOMETER IND TAP UP/TAP DN SW SIG TAP UP/TAP DOWN SW SIG TCS IND TEMP SENS LOW REF TEMP SENS SIG THROTTLE POS SENS THROTTLE POS SENS LOW THRTL ACTR CTRL CLOSE THRTL ACTR CTRL OPEN THRTL POS SENS 5 VOLT REF THRTL POS SENS SIG TIRE PRESSURE IND TN COAX XM TPS SIG TRACTION CONTROL OFF IND TRACTION CTRL SW SIG TRACTION CTRL SW SIG 1 TRANS CLUTCH G CTRL TRANS CLUTCH H CTRL TRANS FLUID TEMP SENS LOW REF TRANS HI SIDE DRIVER 1 CTRL TRANS HI SIDE DRIVER 1 SIG TRANS HI SIDE DRIVER 2 CTRL TRANS HI SIDE DRIVER 2 SIG TRANS INPUT SPD SENS SW TRANS INPUT SPD SIG HIGH TRANS INTERMEDIATE SPD SIG TRANS INTERNAL MODE SW FEEDBACK SIG TRANS OIL TEMP SENS SIG TRANS PARK/NEUT SIG TRANS PARK/NEUTRAL SIG 1 TRANS RNG SW SIG A TRANS RNG SW SIG B TRANS RNG SW SIG C TRANS RNG SW SIG P TRANS RNG SW SIG S TRANS SENS B 9 VOLT REF TRANS SHIFT INHIBIT SIG TRANS TAP DN SW SIG TRANSMISSION PARK/NEUTRAL SIGNAL 1 TRANSMISSION SHIFT LEVER TRANSMISSIONS SYSTEM TRANSMIT SIG TRUNK, TAILGATE, FUEL DOORS SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEMS TURBOCHARGER INLET TWILIGHT SENTINEL DELAY SIG UNLOCK SIG UP SIG UP SW SIG UP/DOWN SW SIG UPPER LEFT AIR TEMP SENS SIG MODE DOOR CONTROL USB SER DATA USB SERIAL DATA USB USB USB USB INFOTAINMENT DISPLAY SIGNAL USB USB USB USB USB USB SERIAL DATA USED) VEHICLE PERFORMANCE DATA RECORDER VERTICAL MTR POS SENS SIG VERTICAL MTR SENS SIG VOICE RECOGNITION VOICE RECOGNITION AUDIO CONTROL CELLULAR TELEPHONE MICROPHONE LOW REF VOICE RECOGNITION AUDIO SIG VOICE RECOGNITION AUDIO SIG CELLULAR TELEPHONE MICROPHONE LOW REF VOICE RECOGNITION AUDIO SIG CELLULAR TELEPHONE MICROPHONE SIG VOICE RECOGNITION CTRL VOICE RECOGNITION AUDIO SIG VOLT REF W/ ACCENT LAMPS W/ ACTIVE NOISE W/ ACTIVE NOISE CANCELLATION W/ ELECTRONIC BRAKE W/ ELECTRONIC LIMITED SLIP AXLE POSITRACTION W/ FORWARD COLLISION ALERT W/ HEADLAMPS LEVELING W/ HEATED STEERING WHEEL W/ HID W/ HID W/O HID W/ INDUCTIVE PORTABLE WIRELESS DEVICE W/ LOW LEVEL W/ MEMORY W/ MID/HIGH LEVEL W/ MULTI COLOR STANDARD GRAPHIC W/ ONSTAR W/ PERFORMANCE EXHAUST SYSTEM W/ POWER BRAKE W/ POWER OPERATED BRAKE PARKING W/ PREMIUM AUDIO W/ VEHICLE PERFORMANCE DATA RECORDER W/ VEHICLE PERFORMANCE RECORDER W/O ACCENT LAMPS W/O ACTIVE NOISE W/O ACTIVE NOISE CANCELLATION W/O CONTINUOUSLY VARIABLE REAL TIME DAMPING W/O ELECTRONIC BRAKE W/O ELECTRONIC LIMITED SLIP AXLE POSITRACTION W/O FORWARD COLLISION ALERT W/O HEADLAMPS LEVELING W/O HID W/O MEMORY W/O ONSTAR W/O PERFORMANCE EXHAUST SYSTEM W/O POWER OPERATED BRAKE PARKING W/O PREMIUM AUDIO W/O VEHICLE PERFORMANCE DATA RECORDER W/O VEHICLE PERFORMANCE RECORDER WAKE UP SERIAL DATA WAKE-UP WAKE-UP SER DATA WAKEUP SER DATA WASHER SW SIG WHL CTRL WINDSHIELD WASHER RLY CTRL WINDSHIELD WASHER SW SIG WINDSHIELD WIPER SW HIGH SIG WINDSHIELD WIPER SW LOW REFERENCE WINDSHIELD WIPER SW LOW SIG WIPER SW HI SIG WIPER SW LOW SIG WIPER/WASHER SYSTEM WIPER/WASHER SYSTEM WIPER/WASHER SYSTEM
