Wiring Diagrams for Chevrolet Camaro VI (2015-2018)

Active bodyworks circuit

Automatic a/c circuit

2.0l vin x, anti-lock brakes circuit

3.6l vin s, anti-lock brakes circuit

6.2l vin 6, anti-lock brakes circuit

6.2l vin 7, anti-lock brakes circuit

Forced entry circuit Pass-key circuit

Body control modules circuit

Computer data lines circuit

Cooling fan circuit

Cruise control circuit

Defoggers circuit

Electronic muffler circuit

Electronic power steering circuit

Electronic suspension circuit

Wiring diagram engine performance 2.0l vin x

Wiring diagram engine performance 3.6l vin s

Wiring diagram engine performance 6.2l vin 6

Wiring diagram engine performance 6.2l vin 7

Backup lamps circuit Exterior lamps circuit

Ground distribution circuit

Headlights circuit, w/ high intensity discharge Headlights circuit, w/o high intensity discharge

Horn circuit

Head-up display circuit Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Driver"s memory seat circuit Memory mirrors circuit

Blind spot monitoring circuit Navigation circuit, w/ amplifier Navigation circuit, w/o amplifier & active noise Navigation circuit, w/o amplifier w/ active noise Parking assistant circuit Rear view camera circuit

Power distribution circuit

Power door locks circuit

Electrochromic mirror circuit Power mirrors circuit

Driver power seat circuit Front heated seats circuit Heated steering wheel circuit Passenger power seat circuit

Electric folding sunroof circuit Sunroof circuit

Power windows circuit

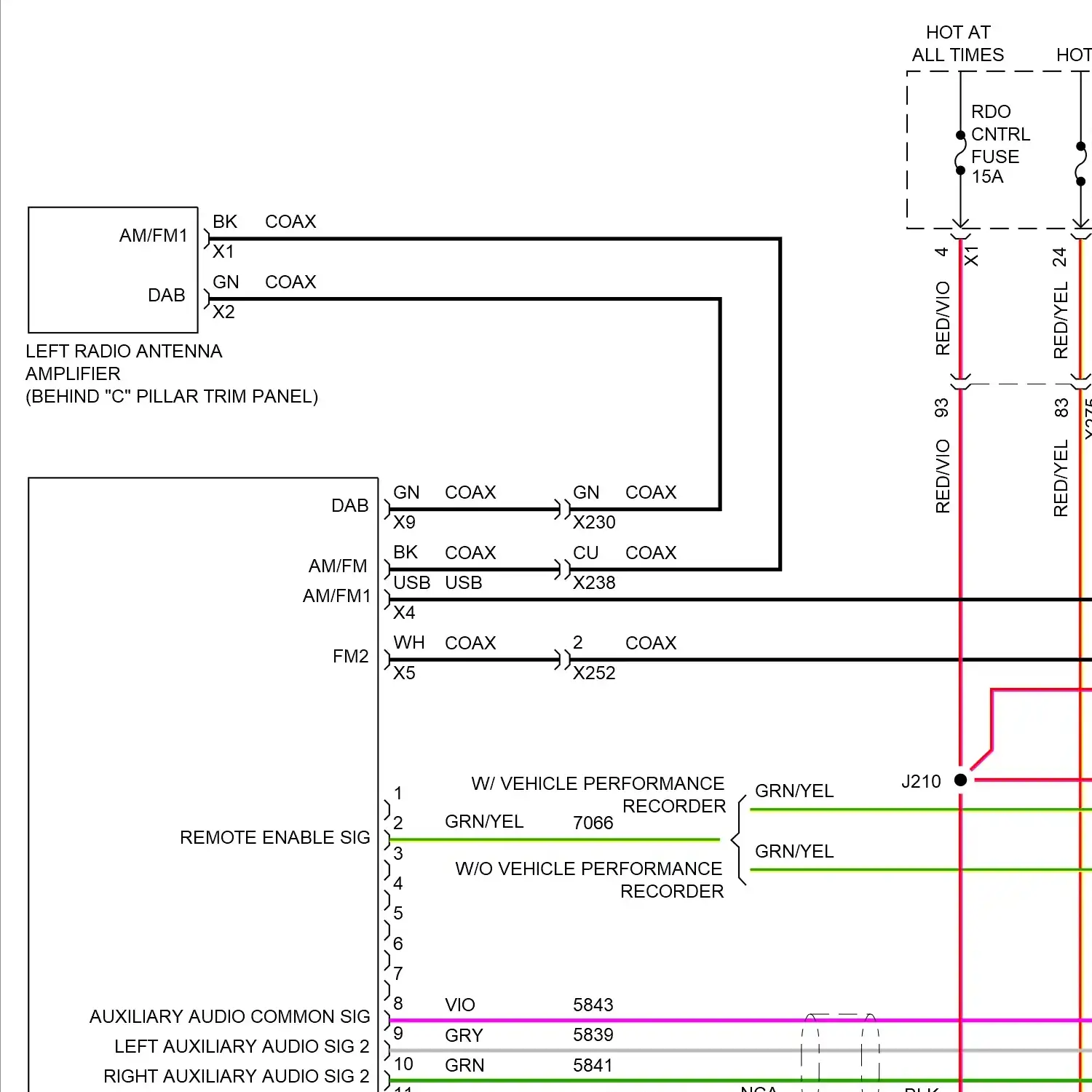

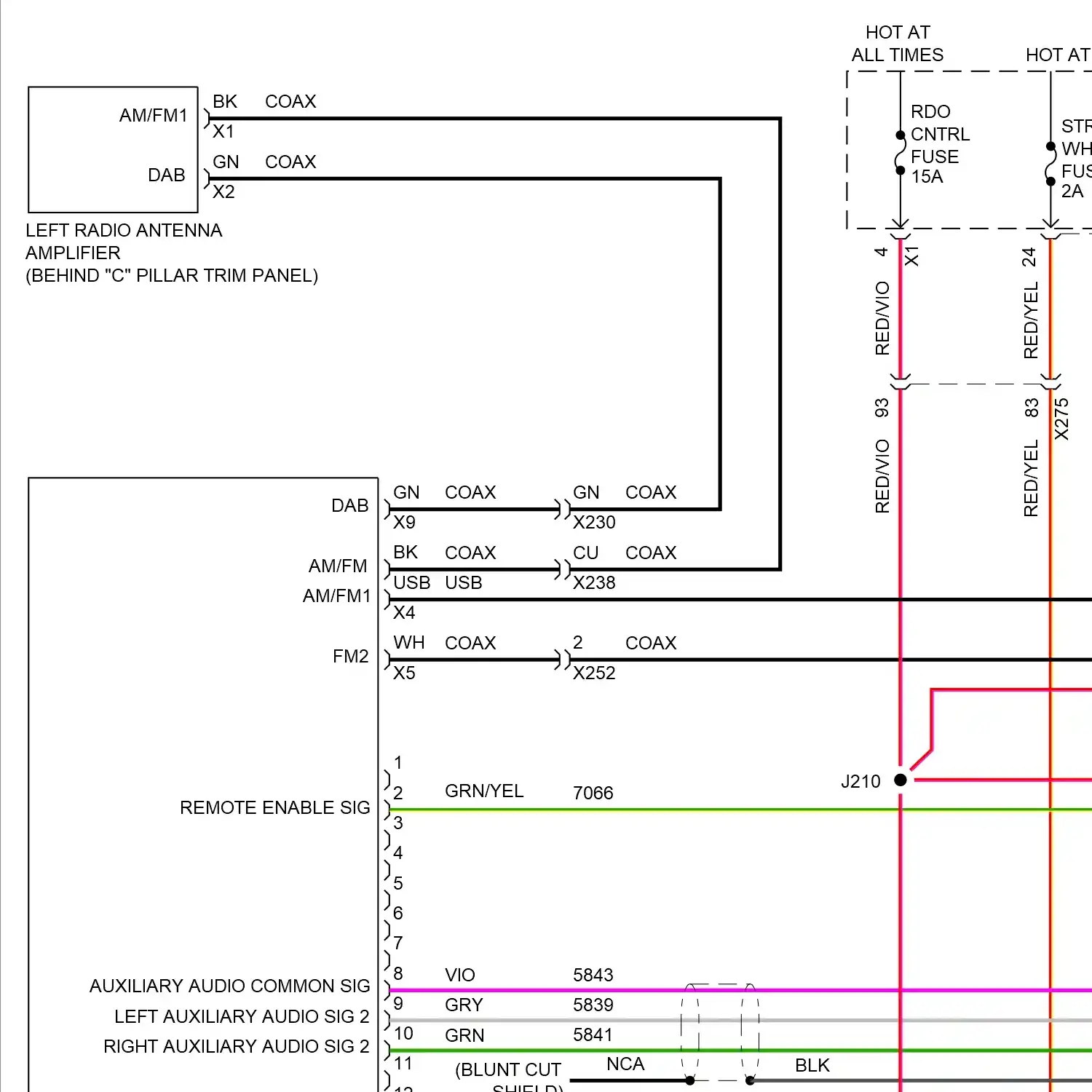

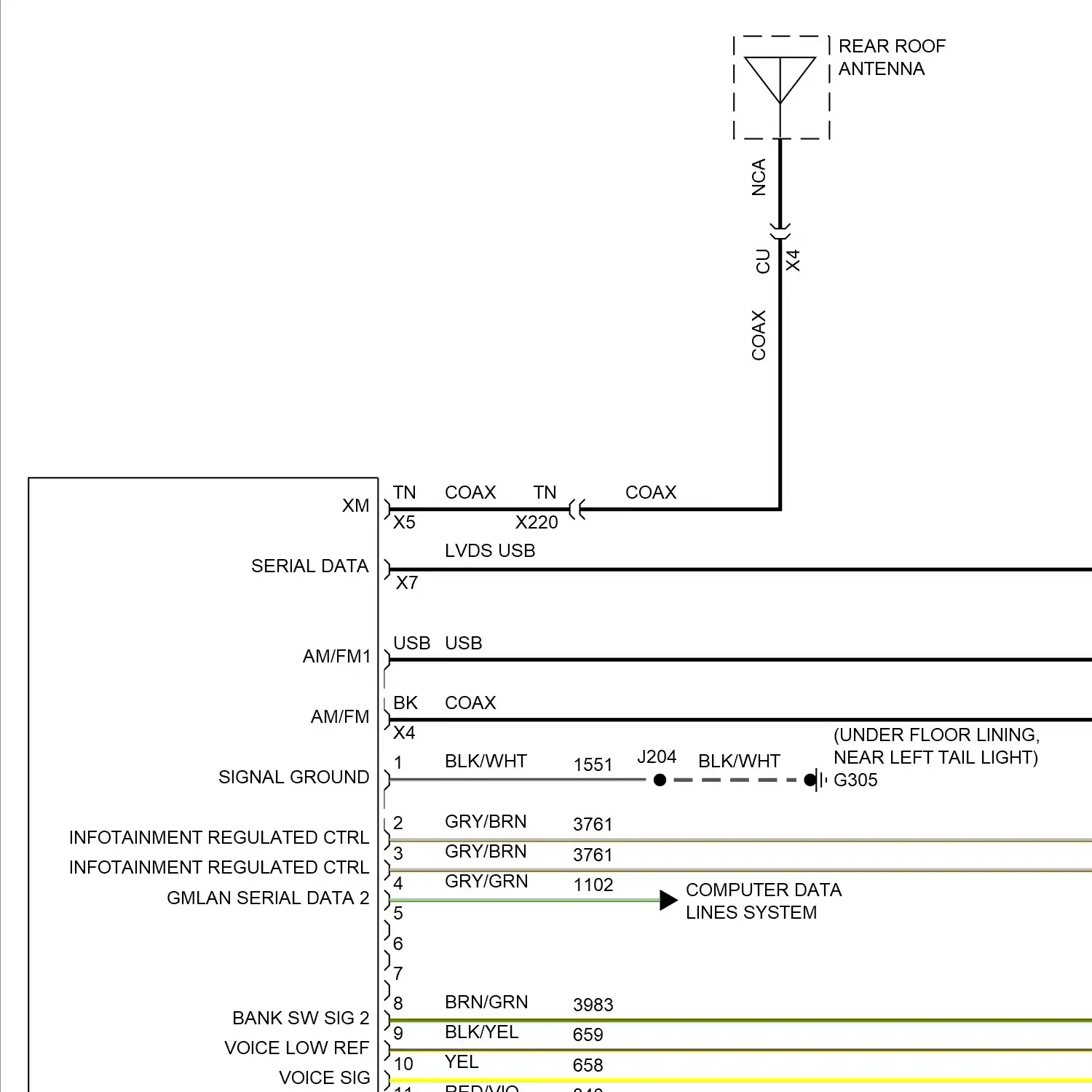

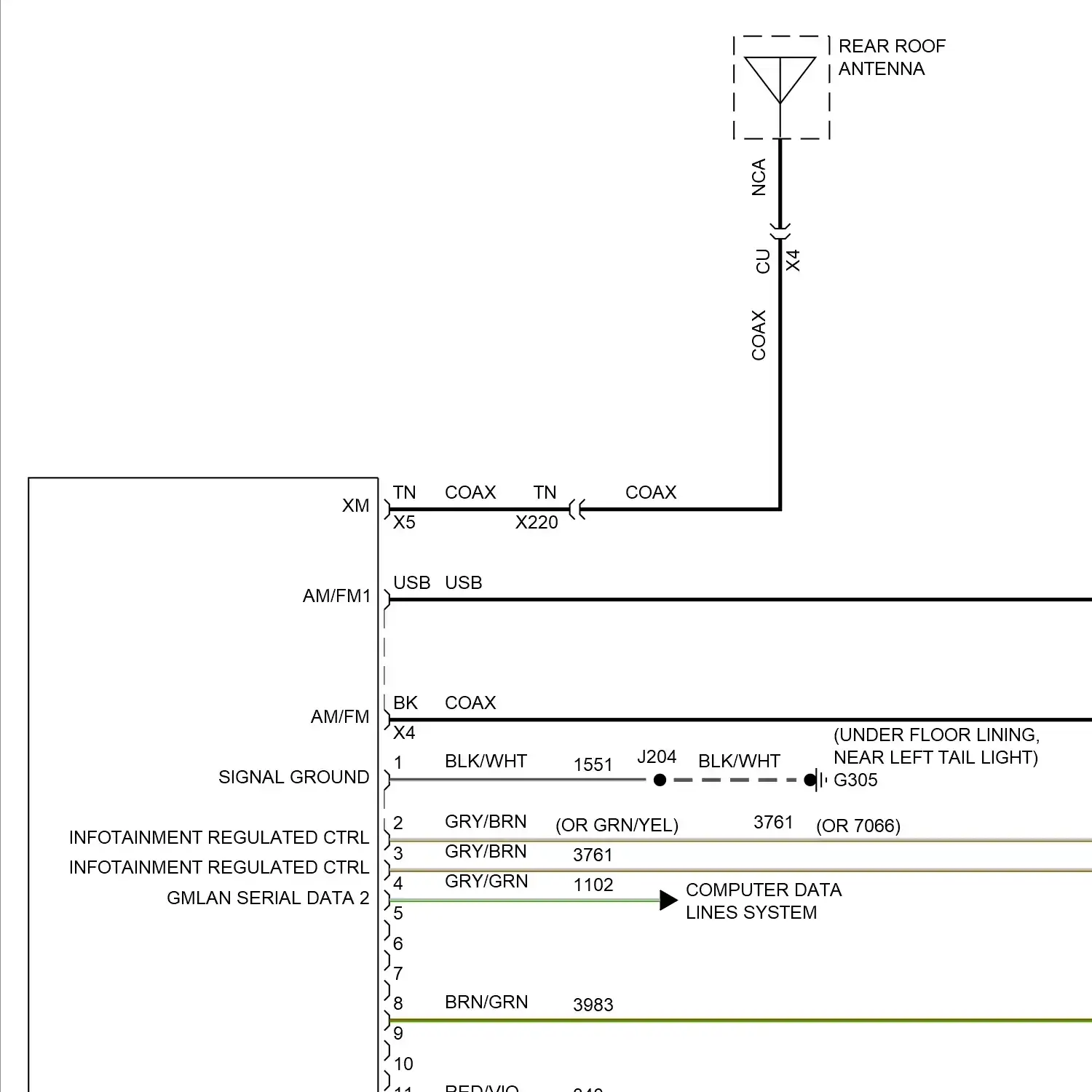

Radio circuit, mid level w/ active noise Radio circuit, mid level w/o active noise Radio circuit, up level w/ amplifier Radio circuit, up level w/o amplifier & active noise Radio circuit, up level w/o amplifier w/ active noise

Park brake system circuit Shift interlock circuit

Charging circuit Starting circuit

Supplemental restraints circuit

A/t circuit, 10 speed A/t circuit, 8 speed Rear differential lock circuit

Trunk release circuit

Warning systems circuit

Wiper/washer circuit

ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES SYSTEM AUDIO AMPLIFIER BATTERY POS VOLTAGE BATTERY POSITIVE VOLT BATTERY POSITIVE VOLTAGE COIL CTRL COOLANT PUMP RLY COIL CTRL DOOR LOCK KEY SW UNLOCK SIG DRV DOOR LOCK MTR DRV DR LOCK SW LCK SIG GENERATOR FIELD DUTY CYCLE SIG HIGH SPEED BUS TERMINATING RESISTOR 1 HIGH SPEED BUS TERMINATING RESISTOR 2 HORN RLY CTRL HORN SW SIG IGNITION COIL 1 IGNITION COIL 2 IGNITION COIL 3 IGNITION COIL 4 IGNITION COIL 5 IGNITION COIL 6 IGNITION COIL 7 IGNITION COIL 8 KEY CAPTURE/ COLUMN LOCK SHIFT POSITION SIG KEY CAPTURE/COLUMN LOCK SHIFT POS SIG KEY CAPTURE/COLUMN LOCK SHIFT POS SIG PASS DR LCK SW LCK CTRL LEFT HORN LOCK SIG MTR RLY COIL CTRL PARK LOCK SOL CONTROL PARK LOCK SOL CTRL PARK PHASER LOCK CTRL SKIP/SHIFT SOL CTRL POWERTRAIN RLY COIL CTRL RAP RLY 2 COIL CTRL RAP RLY COIL CTRL REMOTE CONTROL DOOR LOCK RECEIVER REVERSE LOCK OUT SIG RIGHT HORN RUN/CRANK RLY COIL CTRL STARTER ENABLE RLY CTRL STEERING COLUMN LOCK MODULE STEERING COLUMN LOCK SIG STEERING WHEEL AIR BAG COIL STP LP RLY COIL CTRL W/ AMPLIFIER W/O AMPLIFIER W/ REMOTE CONTROL FUEL FILLER DOOR LOCK W/ REMOTE CONTROL FUEL FILLER DOOR LOCK W/O REMOTE CONTROL FUEL FILLER DOOR LOCK W/O REMOTE CONTROL FUEL FILLER DOOR LOCK

"CHECK ENGINE" IND CTRL ACTUATOR HI CTRL ACTUATOR LOW CTRL AIR RECIRCULATION DOOR ACTUATOR BLOWER MOTOR BRAKE BOOSTER PUMP MOTOR CAMSHAFT POSITION ACTUATOR PARK LOCK SOLENOID VALVE INTAKE BANK 1 CAMSHAFT POSITION ACTUATOR PARK LOCK SOLENOID VALVE INTAKE BANK 2 CAMSHAFT POSITION ACTUATOR SOLENOID VALVE CAMSHAFT POSITION ACTUATOR SOLENOID VALVE EXHAUST BANK 1 CAMSHAFT POSITION ACTUATOR SOLENOID VALVE EXHAUST BANK 2 CAMSHAFT POSITION ACTUATOR SOLENOID VALVE INTAKE BANK 1 CAMSHAFT POSITION ACTUATOR SOLENOID VALVE INTAKE BANK 2 COOLING FAN MOTOR DRIVER BACK SEAT BLOWER MOTOR DRIVER CUSHION SEAT BLOWER MOTOR DRIVER OUTSIDE REAR VIEW MIRROR MOTOR DRIVER SEAT FRONT VERTICAL MOTOR DRIVER SEAT HORIZONTAL MOTOR DRIVER SEAT REAR VERTICAL MOTOR DRIVER SEAT RECLINE MOTOR DRIVER WINDOW MOTOR DRV SEAT VENT MOTOR CTRL 1 ENGINE CONTROLS SYSTEM ENGINE COOLANT TEMP SENS SIG ENGINE COOLANT TEMPERATURE GAUGE ENGINE IND CTRL ENGINE OIL PRESSURE CONTROL SOLENOID VALVE ENGINE SPD SIG ENGINE START/STOP EXHAUST CAMSHAFT POSITION ACTUATOR SOLENOID VALVE FOLDING TOP HEADER LATCH MOTOR FOLDING TOP MOTOR DOWN CONTROL FOLDING TOP MOTOR UP CONTROL FOLDING TOP PUMP MOTOR FOLDING TOP PUMP/ MOTOR ASSEMBLY INTAKE CAMSHAFT POSITION ACTUATOR SOLENOID VALVE LEFT AIR TEMPERATURE DOOR ACTUATOR LEFT ENGINE MOUNT SOLENOID VALVE LEFT FRONT SHOCK ABSORBER ACTUATOR LEFT HIGH BEAM ACTUATOR SOLENOID LEFT HIGH BEAM SOLENOID ACTUATOR LEFT HOOD ACTUATOR HI CTRL LEFT HOOD ACTUATOR HIGH CONTROL LEFT HOOD ACTUATOR LOW CONTROL LEFT HOOD ACTUATOR LOW CTRL LEFT HOOD HINGE ACTUATOR LEFT PARK BRAKE ACTUATOR LEFT REAR SHOCK ABSORBER ACTUATOR LEFT REAR WINDOW MOTOR LF STRUT MOTOR DECREASE DAMP CTRL LF STRUT MOTOR INCREASE DAMP CTRL LIFTGLASS/REAR COMPT LID MOTOR RELEASE CONTROL LOGIC DRIVER BACK SEAT BLOWER MOTOR LOGIC DRIVER CUSHION SEAT BLOWER MOTOR LR PARK BRAKE MOTOR APPLY CTRL LR PARK BRAKE MOTOR LOW REF LR STRUT MOTOR DECREASE DAMP CTRL LR STRUT MOTOR INCREASE DAMP CTRL MODE DOOR ACTUATOR PASS SEAT VENT MOTOR CTRL 1 PASSENGER BACK SEAT BLOWER MOTOR PASSENGER CUSHION SEAT BLOWER MOTOR PASSENGER OUTSIDE REAR VIEW MIRROR MOTOR PASSENGER SEAT HORIZONTAL MOTOR PASSENGER SEAT RECLINE MOTOR PASSENGER SEAT VERTICAL MOTOR PASSENGER WINDOW MOTOR POWER STEERING MOTOR REVERSE INHIBIT SOLENOID ACTUATOR RF STRUT MOTOR DECREASE DAMP CTRL RF STRUT MOTOR INCREASE DAMP CTRL RIGHT AIR TEMPERATURE DOOR ACTUATOR RIGHT ENGINE MOUNT SOLENOID VALVE RIGHT FRONT SHOCK ABSORBER ACTUATOR RIGHT HIGH BEAM ACTUATOR SOLENOID RIGHT HIGH BEAM SOLENOID ACTUATOR RIGHT HOOD ACTUATOR HI CTRL RIGHT HOOD ACTUATOR HIGH CTRL RIGHT HOOD ACTUATOR LOW CTRL RIGHT HOOD HINGE ACTUATOR RIGHT PARK BRAKE ACTUATOR RIGHT REAR SHOCK ABSORBER ACTUATOR RIGHT REAR WINDOW MOTOR RR PARK BRAKE MOTOR APPLY CTRL RR PARK BRAKE MOTOR LOW REF RR STRUT MOTOR DECREASE DAMP CTRL RR STRUT MOTOR INCREASE DAMP CTRL SKIP SHIFT SOLENOID ACTUATOR STARTER MOTOR SUNROOF MOTOR THROTTLE ACTUATOR CTRL CLOSE THROTTLE ACTUATOR CTRL OPEN TRANSMISSION SHIFT LOCK CONTROL SOLENOID ACTUATOR WINDSHIELD WIPER MOTOR

CENTER CONSOLE FRONT KEYLESS ENTRY ANTENNA CENTER CONSOLE REAR KEYLESS ENTRY ANTENNA DRIVER DOOR HANDLE KEYLESS ENTRY ANTENNA LEFT RADIO ANTENNA AMPLIFIER NAVIGATION ANTENNA SIGNAL SPLITTER PASSENGER DOOR HANDLE KEYLESS ENTRY ANTENNA REAR COMPARTMENT KEYLESS ENTRY ANTENNA REAR END SPOILER LEFT ANTENNA REAR FASCIA KEYLESS ENTRY ANTENNA REAR ROOF ANTENNA REAR WINDOW ANTENNA RIGHT RADIO ANTENNA AMPLIFIER VEHICLE PERFORMANCE GPS ANTENNA

TELEMATICS BUTTON ASSEMBLY

CAMERA LO REF CAMERA LOW REF CAMERA SIG 2 FRONT VIEW CAMERA REAR VIEW CAMERA

DATA LINK CONNECTOR

ACCENT LAMP CONTROL MODULE BODY CONTROL MODULE CHASSIS CONTROL MODULE COOLING FAN CONTROL MODULE DRIVER SEAT MEMORY CONTROL MODULE ELECTRONIC BRAKE CONTROL MODULE ENGINE CONTROL MODULE FOLDING TOP CONTROL MODULE FRONT SEAT HEATING CONTROL MODULE FUEL PUMP DRIVER CONTROL MODULE HUMAN MACHINE INTERFACE CONTROL MODULE HVAC CONTROL MODULE IMMOBILIZER CONTROL MODULE KEYLESS ENTRY CONTROL MODULE NAVIGATION CONTROL MODULE PARK BRAKE CONTROL MODULE PARKING ASSIST CONTROL MODULE POWER STEERING CONTROL MODULE REAR DIFFERENTIAL CLUTCH CONTROL MODULE STEERING WHEEL HEATING CONTROL MODULE SUSPENSION CONTROL MODULE TELEMATICS COMMUNICATION INTERFACE CONTROL MODULE TRANSMISSION CONTROL MODULE

ABS FUSE ABS VLV FUSE AC CLTCH FUSE AIR BAG MDL/AOS FUSE AMP FUSE AOS DISPLAY IGN FUSE AUXILIARY UNDERHOOD FUSE BLOCK BATT RVC FUSE BATTERY FUSE BLOCK BCM 1 FUSE BCM 2 FUSE BCM 3 FUSE BCM 4 FUSE BCM 6 FUSE BCM 7 FUSE BCM 8 FUSE BRK VAC PMP FUSE CAMERA FUSE CAMERA MDL FUSE CGM FUSE CNSTR VENT FUSE COIL EVEN FUSE COIL ODD FUSE COOLING FAN FUSE DISPLAY FUSE DISPLY FUSE DLC FUSE DRVR PWR SEAT FUSE ECM 1 FUSE ECM 2 FUSE ECM BATT FUSE ECM IGN FUSE ELSD FUSE EPB FUSE ESCL FUSE EXH VLV AFM FUSE EXH VLV PTSQ FUSE FOLD TOP SOL FUSE FPPM 22 FUSE FRT VENT SEAT 1 FUSE FSCM IGN FUSE FT HVAC FUSE FUEL PUMP FSCM FUSE FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 26 FUSE 55 FUSE 56 HORN FUSE HTD MIR 1 FUSE HTD SEAT FUSE HTD STR WHL FUSE HTD WHL FUSE HVAC/ CNTRL FUSE IP BODY IGN FUSE IP/BODY IGN FUSE ISRVM FUSE LT HI BEAM FUSE LT HID FUSE LT WNDW 1 FUSE MEM FUSE MIL IGN FUSE MIR WNDW MDL FUSE MSM FOLD TOP FUSE ONSTAR FUSE PASS PWR SEAT FUSE PASS WDW FUSE PEPS/ BATT 1 FUSE RDO CNTRL FUSE REAR BODY FUSE BLOCK REAR CLOSR FUSE REAR DEFOG FUSE REC IGN FUSE RGB LTS FUSE RR DRIVE CNTRL MDL FUSE RT HI BEAM FUSE RT HID FUSE RT WNDW 1 FUSE S/ROOF FUSE SADS FUSE SBZA FUSE SHUNT FUSE STEERING WHEEL HEATER FUSE HOLDER STRG WHL FUSE STRTR FUSE TCM BATT FUSE TCM/ IGN FUSE THEFT UGDO FUSE UNDERHOOD AUXILIARY FUSE BLOCK UNDERHOOD AUXILIARY FUSE BOX UNDERHOOD FUSE BLOCK UPA FUSE WLESS CHRGR FUSE WPR FRT FUSE WSW FUSE

DRIVER BACK SEAT HEATING ELEMENT DRIVER CUSHION SEAT HEATING ELEMENT PASSENGER BACK SEAT HEATING ELEMENT PASSENGER CUSHION SEAT HEATING ELEMENT STEERING WHEEL HEATER

DOOR AJAR INDICATOR CTRL DRIVER SIDE OBJECT DETECTION INDICATOR PASSENGER AIR BAG DISABLED INDICATOR PASSENGER SIDE OBJECT DETECTION INDICATOR SECURITY INDICATOR CTRL TRANSMISSION SHIFT LEVER POSITION INDICATOR

ACCENT LAMP CONTROL BACKLIGHT DIMMING CTRL CENTER CONSOLE CUPHOLDER ACCENT LAMP CENTER CONSOLE FLOOD LAMP CENTER HIGH MOUNTED STOP LAMP COURTESY LAMP SW SIG DRIVER DOOR ACCENT LAMP DRIVER DOOR HANDLE FLOOD LAMP DRIVER DOOR SILL PLATE LAMP INS PANEL LAMP DIMMER SW SIG LEFT BACKUP LAMP LEFT FRONT FLOOR ACCENT LAMP LEFT FRONT SIDE MARKER LAMP LEFT FRONT TURN SIGNAL LAMP LEFT INSTRUMENT PANEL COURTESY LAMP LEFT LICENSE PLATE LAMP LEFT LOWER PARK/ DAYTIME RUNNING LAMP LEFT LOWER PARK/DAYTIME RUNNING LAMP LEFT PARK DAYTIME RUNNING LAMP LEFT REAR SIDE MARKER LAMP LEFT STOP/ TURN SIGNAL LAMP LEFT STOP/TURN SIGNAL LAMP LEFT SUNSHADE MIRROR LAMP LEFT TAIL LAMP LEFT TAIL LAMP ASSEMBLY LEFT TURN SIGNAL REPEATER LAMP LIGHTS SYSTEM MALFUNCTION LAMP IND PARK LIGHTS IND PASSENGER DOOR ACCENT LAMP PASSENGER DOOR HANDLE FLOOD LAMP PASSENGER DOOR SILL PLATE LAMP REAR COMPARTMENT COURTESY LAMP RIGHT BACKUP LAMP RIGHT FRONT FLOOR ACCENT LAMP RIGHT FRONT SIDE MARKER LAMP RIGHT FRONT TURN SIGNAL LAMP RIGHT INSTRUMENT PANEL COURTESY LAMP RIGHT LICENSE PLATE LAMP RIGHT LOWER PARK/ DAYTIME RUNNING LAMP RIGHT LOWER PARK/DAYTIME RUNNING LAMP RIGHT PARK DAYTIME RUNNING LAMP RIGHT REAR SIDE MARKER LAMP RIGHT STOP/ TURN SIGNAL LAMP RIGHT STOP/TURN SIGNAL LAMP RIGHT SUNSHADE MIRROR LAMP RIGHT TAIL LAMP RIGHT TAIL LAMP ASSEMBLY RIGHT TURN SIGNAL REPEATER LAMP

CHARGE AIR COOLER COOLANT PUMP CURRENT PUMP SIG FUEL PUMP FUEL PUMP CTRL FUEL PUMP LOW REF FUEL PUMP PRIMARY RLY CTRL HI FUEL PUMP CTRL HI PRESSURE FUEL PUMP HIGH PRESSURE FUEL PUMP OIL PUMP COMMAND SIG WINDSHIELD WASHER PUMP

A/C COMPRESSOR CLUTCH RELAY BATTERY SAVER RELAY 1 BATTERY SAVER RELAY 2 BRAKE BOOSTER PUMP MOTOR RELAY CHARGE AIR COOLER COOLANT PUMP RELAY ENGINE CONTROLS IGNITION RELAY FOLDING TOP PUMP MOTOR RELAY 1 FOLDING TOP PUMP MOTOR RELAY 2 FUEL FILLER DOOR LOCK RELAY HEADLAMP HIGH BEAM RELAY HEADLAMP LOW BEAM RELAY HORN RELAY HOT W/ ENGINE CONTROLS IGNITION RELAY ENERGIZED HOT W/ IGNITION MAIN RELAY ENERGIZED IGNITION MAIN RELAY MTR RELAY COIL CTRL PARK SW SIG POWERTRAIN RELAY COIL CTRL RAP RELAY RAP RELAY 2 RAP RELAY COIL CONTROL REAR COMPARTMENT LID UNLATCH RELAY REAR DEFOGGER RELAY RETAINED ACCESSORY POWER RELAY STARTER ENABLE RELAY CTRL STARTER RELAY WINDSHIELD WASHER PUMP RELAY WINDSHIELD WASHER RELAY CONTROL WINDSHIELD WIPER RELAY WINDSHIELD WIPER SPEED CONTROL RELAY

A/C EVAPORATOR TEMPERATURE SENSOR A/C REFRIGERANT PRESSURE SENSOR ACCELERATOR PEDAL POSITION SENSOR AMBIENT AIR TEMPERATURE SENSOR AMBIENT LIGHT/ SUNLOAD SENSOR BAROMETRIC PRESSURE SENSOR BATTERY CURRENT SENSOR BRAKE BOOSTER VACUUM SENSOR BRAKE PEDAL POSITION SENSOR CAMSHAFT POSITION SENSOR CAMSHAFT POSITION SENSOR EXHAUST BANK 1 CAMSHAFT POSITION SENSOR EXHAUST BANK 2 CAMSHAFT POSITION SENSOR INTAKE BANK 1 CAMSHAFT POSITION SENSOR INTAKE BANK 2 CLUTCH PEDAL POSITION SENSOR CRANKSHAFT POSITION SENSOR CURRENT SENSOR LOW REF CURRENT SENSOR SIG CURRENT SENSOR SUPPLY VOLTAGE DUCT LEFT LOWER AIR TEMPERATURE SENSOR DUCT LEFT UPPER AIR TEMPERATURE SENSOR DUCT RIGHT LOWER AIR TEMPERATURE SENSOR DUCT RIGHT UPPER AIR TEMPERATURE SENSOR ENGINE COOLANT TEMPERATURE SENSOR ENGINE OIL PRESSURE SENSOR ENGINE OIL TEMPERATURE SENSOR EXHAUST CAMSHAFT POSITION SENSOR FOLDING TOP DOWN POSITION SENSOR FOLDING TOP HEADER LATCH MOTOR LATCHED POSITION SENSOR FOLDING TOP HEADER LATCH MOTOR UNLATCHED POSITION SENSOR FOLDING TOP LUGGAGE BARRIER SENSOR FOLDING TOP POSITION SENSOR CONTROL FOLDING TOP POSITION SENSOR SIG FOLDING TOP STOWAGE COMPARTMENT LID OPEN POSITION SENSOR FOLDING TOP TENSION BOW UP POSITION SENSOR FOLDING TOP UP POSITION SENSOR FRONT TONNEAU POSITION SENSOR SIG FUEL LEVEL SENSOR ASSEMBLY FUEL PRESSURE SENSOR FUEL PUMP FUEL PUMP, LEVEL SENSOR ASSEMBLY FUEL PUMP, LEVEL SENSOR ASSEMBLY FUEL RAIL PRESSURE SENSOR FUEL TANK PRESSURE SENSOR HEATED OXYGEN SENSOR 1 HEATED OXYGEN SENSOR 2 HEATED OXYGEN SENSOR BANK 1 SENSOR 1 HEATED OXYGEN SENSOR BANK 1 SENSOR 2 HEATED OXYGEN SENSOR BANK 2 SENSOR 1 HEATED OXYGEN SENSOR BANK 2 SENSOR 2 INTAKE CAMSHAFT POSITION SENSOR INTAKE MANIFOLD PRESSURE, AIR TEMPERATURE SENSOR KNOCK SENSOR 1 KNOCK SENSOR #2 LEFT FOLDING TOP HEADER LATCHED POSITION SENSOR LEFT FOLDING TOP STOWAGE COMPARTMENT LID CLOSED POSITION SENSOR LEFT FOLDING TOP TENSION BOW DOWN POSITION SENSOR LEFT FRONT IMPACT SENSOR LEFT FRONT SIDE IMPACT SENSOR LEFT FRONT SUSPENSION POSITION SENSOR LEFT FRONT WHEEL SPEED SENSOR LEFT REAR MIDDLE PARKING ASSIST SENSOR LEFT REAR OUTER PARKING ASSIST SENSOR LEFT REAR SIDE IMPACT SENSOR LEFT REAR SUSPENSION POSITION SENSOR LEFT REAR WHEEL SPEED SENSOR LEFT SIDE OBJECT SENSOR MODULE LF DISCRIMINATING SENSOR LOW REF LF DISCRIMINATING SENSOR SIG LH LATCH SENSOR RETRACTABLE ROOF OPEN SIG MANIFOLD ABSOLUTE PRESSURE SENSOR MANUAL TRANSMISSION FLUID TEMPERATURE SENSOR MULTI-FUNCTION INTAKE AIR SENSOR PASSENGER PRESENCE SENSOR PASSENGER SEAT BELT TENSION SENSOR PASSENGER SEAT POSITION SENSOR PEDESTRIAN PROTECTION SAFING SENSOR MOD LOW REF PEDESTRIAN PROTECTION SAFING SENSOR MOD SIG PEDESTRIAN PROTECTION SAFING SENSOR MODULE LOW REF PEDESTRIAN PROTECTION SAFING SENSOR MODULE SIG POWER STEERING SHAFT TORQUE SENSOR PRIMARY FUEL LEVEL SENSOR REAR DIFFERENTIAL OIL PRESSURE/ TEMPERATURE SENSOR REAR DIFFERENTIAL OIL TEMPERATURE SENSOR RETRACTABLE ROOF SENSOR CONTROL RF DISCRIMINATING SENSOR LOW REF RF DISCRIMINATING SENSOR SIGNAL RH LATCH SENSOR RETRACTABLE ROOF OPEN SIG RIGHT FOLDING TOP HEADER LATCHED POSITION SENSOR RIGHT FOLDING TOP STOWAGE COMPARTMENT LID CLOSED POSITION SENSOR RIGHT FOLDING TOP TENSION BOW DOWN POSITION SENSOR RIGHT FRONT IMPACT SENSOR RIGHT FRONT SIDE IMPACT SENSOR RIGHT FRONT SUSPENSION POSITION SENSOR RIGHT FRONT WHEEL SPEED SENSOR RIGHT REAR MIDDLE PARKING ASSIST SENSOR RIGHT REAR OUTER PARKING ASSIST SENSOR RIGHT REAR SIDE IMPACT SENSOR RIGHT REAR SUSPENSION POSITION SENSOR RIGHT REAR WHEEL SPEED SENSOR RIGHT SIDE OBJECT SENSOR MODULE ROOF DOOR MODULE TONNEAU CYLINDER EXTENDED HALL SENSOR SECONDARY FUEL LEVEL SENSOR SECONDARY FUEL LEVEL SENSOR FUEL LEVEL SENSOR ASSEMBLY SENSOR LOW REF SENSOR SIGNAL STEERING WHEEL ANGLE SENSOR SUPERCHARGER INLET PRESSURE SENSOR TRANSMISSION FLUID TEMPERATURE SENSOR TRANSMISSION INPUT SHAFT SPEED SENSOR TRANSMISSION INTERMEDIATE SHAFT SPEED SENSOR TRANSMISSION INTERMEDIATE SPEED SENSOR 1 TRANSMISSION INTERMEDIATE SPEED SENSOR 2 TRANSMISSION OUTPUT SHAFT SPEED SENSOR TRANSMISSION RANGE SENSOR TURBOCHARGER BOOST/INTAKE AIR TEMPERATURE SENSOR UPPER BEAM FRONT PEDESTRIAN IMPACT DETECTION SENSOR

CENTER INSTRUMENT PANEL SPEAKER LEFT FRONT DOOR SPEAKER LEFT FRONT SPEAKER LEFT FRONT TWEETER SPEAKER LEFT REAR SPEAKER LEFT REAR TRIM PANEL SPEAKER LEFT REAR WINDOW SHELF SPEAKER RIGHT FRONT DOOR SPEAKER RIGHT FRONT SPEAKER RIGHT FRONT TWEETER SPEAKER RIGHT REAR SPEAKER RIGHT REAR TRIM PANEL SPEAKER SPEAKER CONTROL

BACKUP LAMP SWITCH BANK SWITCH DIM BRAKE FLUID LEVEL SWITCH CANCEL SWITCH CRUISE SWITCH DELAY SWITCH DRIVE MODE SELECT SWITCH DRIVER COOLED SEAT SWITCH DRIVER CUSHION, BACK SWITCH DRIVER DOOR LOCK SWITCH DRIVER EXTERIOR DOOR HANDLE SWITCH DRIVER MODE SELECT SWITCH DRIVER SEAT ADJUSTER SWITCH DRIVER SEAT BELT SWITCH DRIVER SEAT BELT BUCKLE DRIVER SEAT MEMORY SWITCH DRIVER WINDOW SWITCH ENGINE OIL LEVEL SWITCH EXIT SWITCH EXTERIOR REAR COMPARTMENT LID UNLATCH SWITCH FOLDING TOP CONTROL SWITCH FOLDING TOP HEADER LATCH SWITCH SIG FOLDING TOP OPEN SWITCH SIG FOLDING TOP UNLATCH SWITCH SIG HAZARD SWITCH HAZARD WARNING SWITCH HDLP SWITCH OFF SIG HDLP SWITCH OFF SIGNAL HEAD-UP DISPLAY SWITCH HEATED STEERING WHEEL SWITCH HOOD AJAR SWITCH HORN SWITCH IGNITION MODE SWITCH INSTRUMENT PANEL DIMMER SWITCH INTERIOR REAR COMPARTMENT LID UNLATCH SWITCH LEFT MANUAL TRANSMISSION SHIFT ANTICIPATE SWITCH LEFT STEERING WHEEL CONTROLS SWITCH LEFT TRANSMISSION MANUAL SHIFT SWITCH LH SIDE LUGGAGE BARRIER LIMIT SWITCH SIG LIFTGATE AJAR SWITCH SIGNAL 1 MEMORY 1 SWITCH MEMORY 2 SWITCH PARK BRAKE CONTROL SWITCH PARK POSITION SWITCH PASSENGER COOLED SEAT SWITCH PASSENGER CUSHION/ BACK SWITCH PASSENGER DOOR LOCK SWITCH PASSENGER EXTERIOR DOOR HANDLE SWITCH PASSENGER SEAT ADJUSTER SWITCH PASSENGER SEAT BELT SWITCH PASSENGER SEAT BELT BUCKLE PASSENGER WINDOW SWITCH RADIO PRESETS STEERING WHEEL CONTROLS SWITCH RADIO VOLUME STEERING WHEEL CONTROLS SWITCH REAR CLOSURE HANDLE SWITCH OPEN SIGNAL REAR DEFOGGER SWITCH RIGHT MANUAL TRANSMISSION SHIFT ANTICIPATE SWITCH RIGHT STEERING WHEEL CONTROLS SWITCH RIGHT TRANSMISSION MANUAL SHIFT SWITCH SET SWITCH SNRF SWITCH LOW REF STOP SWITCH SUNROOF SWITCH SUNROOF SWITCH DATA 1 SIG SUNROOF SWITCH DATA 2 SIG SUNROOF SWITCH DATA 3 SIG SUNROOF SWITCH DATA 4 SIG SUNROOF SWITCH SIG SWITCH SIGNAL TAP UP/TAP DOWN SWITCH SIG TRACTION CONTROL SWITCH TRANS TAP DOWN SWITCH SIG TRANSMISSION INTERNAL MODE SWITCH TRANSMISSION MANUAL SHIFT SWITCH TURN SIGNAL/ MULTI-FUNCTION SWITCH WASHER SWITCH WINDSHIELD WIPER/WASHER SWITCH WIPER SWITCH WIPER SWITCH HIGH SIG

A/C COMPRESSOR SOLENOID VALVE CYLINDER SHUTOFF SOLENOID 1 CYLINDER SHUTOFF SOLENOID 4 CYLINDER SHUTOFF SOLENOID 6 CYLINDER SHUTOFF SOLENOID 7 EVAPORATIVE EMISSION PURGE SOLENOID VALVE EVAPORATIVE EMISSION VENT SOLENOID VALVE FOLDING TOP SOLENOID VALVE 1 FOLDING TOP SOLENOID VALVE 2 FOLDING TOP SOLENOID VALVE 3 LEFT CYLINDER DEACTIVATION EXHAUST FLOW CONTROL VALVE LEFT EXHAUST FLOW CONTROL VALVE MODE DOOR CONTROL MODE 1 VALVE POS SENS SIG POWER ROOF MODULE ROOF DOOR MODULE PUMP VALVE 2 REAR DIFFERENTIAL CLUTCH SOLENOID VALVE RIGHT CYLINDER DEACTIVATION EXHAUST FLOW CONTROL VALVE RIGHT EXHAUST FLOW CONTROL VALVE ROOF DOOR MODULE PUMP VALVE MANIFOLD ROOF DOOR MODULE VALVE 1 ROOF DOOR MODULE ROOF DOOR MODULE PUMP MANIFOLD VALVE 3 SUPERCHARGER BYPASS SOLENOID VALVE TCC ON/OFF SOLENOID A CTRL TCC ON/OFF SOLENOID B CTRL TRANSMISSION CONTROL SOLENOID VALVE 1 TRANSMISSION CONTROL SOLENOID VALVE 2 TRANSMISSION CONTROL SOLENOID VALVE 3 TRANSMISSION CONTROL SOLENOID VALVE 4 TRANSMISSION CONTROL SOLENOID VALVE 5 TRANSMISSION CONTROL SOLENOID VALVE 6 TRANSMISSION CONTROL SOLENOID VALVE 7 TRANSMISSION CONTROL SOLENOID VALVE 8 TRANSMISSION CONTROL SOLENOID VALVE 9 TURBOCHARGER BYPASS SOLENOID VALVE TURBOCHARGER WASTEGATE SOLENOID VALVE VALVE LIFTER OIL SOLENOID VALVE BANK 1 VALVE LIFTER OIL SOLENOID VALVE BANK 2 WASTEGATE SOLENOID CTRL

BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/ORG WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/RED WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/ORG WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE DRAIN WIRE GREEN LED CTRL GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/ORG WIRE GRN/PPL WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY YEL/ WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/ORG WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE IGN PNK LED CTRL WIRE LT BLU WIRE LT GRN WIRE NCA WIRE ORG/ WIRE ORG/BLU WIRE ORG/BRN WIRE ORG/GRN WIRE ORG/GRY WIRE ORG/VIO WIRE ORG/WHT WIRE ORG/YEL WIRE PNK RUN/CRANK IGN 1 VOLT WIRE PNK WIRE PPL/WHT WIRE RED LED CTRL WIRE RED LED WIRE RED WIRE RED/BLU WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE VIO WIRE VIO/BLK WIRE VIO/BLU WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/ORG WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/ORG WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/LT BLU WIRE YEL/ORG WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

1-VT 2.0L TURBO 2.0L TURBO 3.6L 2.0L TURBO 3.6L 6.2L 2.0L TURBO 3.6L 6.2L, 6.2L SUPERCHARGED 2.0L TURBO 6.2L 3.6L 3.6L 2.0L TURBO 6.2L 3.6L 6.2L 3.6L 6.2L 2.0L TURBO 3.6L, 2.0L TURBO 6.2L, 6.2L SUPERCHARGED 5 VOLT REF 5 VOLT SIG 5 W/O LIMITED SLIP ELECTRONIC AXLE POSITRACTION 5-VOLT REF 1 5-VOLT REF 2 5-VOLT REFERENCE 6.2L 6.2L 2.0L TURBO, 3.6L 6.2L VIN 6 6.2L VIN 6 SUPERCHARGED 6.2L VIN 7 12 VOLT REF (AT LEFT REAR WHEEL (IN EXHAUST SYSTEM (INFO NOT (NOT (W/ REMOTE CONTROL A/C CLUTCH RLY CTRL A/C COMPRESSOR CLUTCH A/C COMPRESSOR CLUTCH RLY CTRL A/C PRESS SENS 5 VOLT REF A/C PRESS SENS SIG A/C REFRIGERANT PRESS SENS SIG A/C REFRIGERANT PRESSURE SENS SIG A/T M/T ABS IND. ACC IGN VOL ACC IGN VOLT ACC IND ACC LED SIG ACC LP CTRL ACC LP CTRL LED AMBIENT LIGHTING CTRL 2 ACC VOLT ACC WAKEUP SERIAL DATA ACCEL PEDAL POS LO REF 1 ACCEL PEDAL POS SIG 1 ACCELERATOR PEDAL POS SIG 1 ACCELERATOR PEDAL POS SIG 2 ACCESSORY VOLT ACCESSORY WAKEUP ACCESSORY WAKEUP SERIAL DATA ACCL PEDAL POS 5 VOLT REF 1 ACCL PEDAL POS 5 VOLT REF 2 ACCL PEDAL POS LOW REF 2 ACCL PEDAL POS SIG 2 ACT CTRL ACT LCK CTRL 2 DR LCK CTRL DR LCK ACT LCK CTRL ACT LCK CTRL 2 DR LCK CTRL DR LCK ACT UNLCK CTRL ACT RCV SIG ACTIVE NOISE CANCELLATION MODULE ACTIVE SIG ACTR LO REF ACTU HI CTRL ACTU LOW CTRL ADAPTIVE FRONT LIGHTING IND ADJUST SENS SIG AIR BAG AIR BAG IND AIR CONDITIONING SYSTEM AIR TEMP DOOR CONTROL AIR TEMP DOOR CTRL LOW REF AIR TEMP DOOR POS SIG AIR TEMP SENS LOW REF AIR TEMP SENS SIG AIR TEMP SIG AJAR SW SIG AMBIENT LIGHT SENS SIG AMBIENT LT SENS SIG ANT 1 SIG HI ANT 1 SIG LO ANT 2 SIG HI ANT 2 SIG LO ANT 3 SIG HI ANT 3 SIG LO ANT SIG HI ANT SIG LO ANTI-THEFT SYSTEM APP LOW REF 1 APP LOW REF 2 APP SENS SIG 1 APPLY SW SIG AUDIO REQUEST SIG AUTOMATIC LOCKING AUTOMATIC TRANSMISSION ASSEMBLY AUXILIARY AUDIO COMMON SIG AUXILIARY AUDIO INPUT AVAILABLE) B+ V B+ VOLT BACKUP LAMPS CIRCUIT BACKUP LP CTRL BANK 1 SENS 2 BANK SW DIM SIG BANK SW SIG 2 BATT POS VOL BATT POS VOLT BATT POS VOLT GMLAN SERIAL DATA BATT POS VOLTAGE BATT POSITIVE BATT POSITIVE VOLT BATT POSITIVE VOLTAGE BK COAX BK COAX AM/FM BK COAX AM/FM USB USB BLOWER MTR SPD CTRL BLWR MTR SPD CTRL BN GPS/CELL BPP SENS LO REF BPP SENS SIG BRAKE PRESSURE MODULATOR BRAKE SIG BRAKE WARNING IND BRK APPLY SENS CTRL BRK APPLY SENS LOW REF BRK APPLY SENS SIG BRK FLUID LEVEL SENS SIG BRK FLUID LVL BRK POS SENS 5 VOLT REF BRK POS SENS LO REF BRK POS SENS LOW REF BRK POS SENS SIG BRK POSITION SENS SIG BRK SW SIG BRK VACUUM SENS LO REF BRK VACUUM SENS SIG BRK VACUUM SENS SIG 5 VOLT REF BRK VACUUM SW SIG BU GPS BUS 3 BUS 5 BUS 9 BUS 10 CAM PHASER W LO REF CAM PHASER X LO REF CAMSHAFT EXHAUST SENS CELLULAR PHONE MICROPHONE CELLULAR TELEPHONE SIG CELLULAR TELEPHONE VOICE SIG CENTER CONSOLE ACCESSORY POWER RECEPTACLE CHARGE IND CHARGE IND CTRL CHARGING IND CHECK ENG IND CTRL CKP SENS RAP SIG CLUTCH A CTRL CLUTCH APPLY SENS 5 VOLT REF CLUTCH APPLY SENS LOW REF CLUTCH APPLY SENS SIG CLUTCH APPLY SENS SIG BRK POS SENS SIG CLUTCH B CTRL CLUTCH C CTRL CLUTCH D CTRL CLUTCH E CTRL CLUTCH RLY CTRL CMPRSR CLUTCH RLY CTRL COAX BK COAX BK AM/FM USB USB COAX BU COAX BU GPS COAX CU COAX GN COAX GN DAB COAX GY GPS/CELL COAX VT GPS/CELL COAX WH COMMUNICATION ENABLE COMPUTER DATA LINES SYSTEM COOLING FAN CNTRL RLY SPD SIG COOLING FAN CTRL COOLING FAN CTRL RLY SPD SIG COOLING FANS SYSTEM COURTESY LP SW SIG CRANK SENS SIG CRANKSHAFT POS SIG CRANKSHAFT POSITION SENS CRUISE CONTROL SYSTEM CRUISE CTRL SET/ COAST/RES/ACC SW SIG LOW REF CRUISE CTRL SET/COAST/ RES/ACC SW SIG CRUISE IND CRUISE/ETC/TCC BRAKE SIG CRUISE/ETC/TCC BRAKE SIGNAL CRUISE/ETC/TCC BRK SIG CRUISE/ETC/TCC/BRAKE SIG CTRL 1 CTRL 2 CTRL CLOSE CTRL CYLINDER 1 CTRL CYLINDER 2 CTRL CYLINDER 3 CTRL CYLINDER 4 CTRL OPEN CURRENT SENS CTRL CURRENT SENS SIG DATA BUS 2 DATA COMM DATA LINES DEFOGGER SYSTEM DIMMER SW LOW REF DIMMER SW SIG DIMMING CTRL DIRECT FUEL CYLINDER 1 DIRECT FUEL CYLINDER 2 DIRECT FUEL CYLINDER 3 DIRECT FUEL CYLINDER 4 DIRECT FUEL CYLINDER 5 DIRECT FUEL CYLINDER 6 DISPLAY LOGIC DISPLAY RESET SIG DOOR AJAR IND DOOR AJAR IND CTRL DOOR LOCKS SYSTEM DOWN SIG DR LCK ACT LCK CTRL DR LCK ACT UNLCK CTRL DRIVER DOOR LATCH ASSEMBLY DRIVER EXTERIOR DOOR HANDLE ASSEMBLY DRIVER INFORMATION CENTER DISPLAY DRIVER KNEE AIR BAG DRIVER MODE SW SIG DRIVER OUTSIDE REAR VIEW MIRROR DRIVER OUTSIDE REAR VIEW MIRROR GLASS DRIVER OUTSIDE REAR VIEW MIRROR GLASS DRIVER OUTSIDE REAR- VIEW MIRROR DRIVER SEAT BELT ANCHOR PRETENSIONER DRIVER SEAT BELT BUCKLE DRIVER SEAT BELT RETRACTOR PRETENSIONER DRV DR ANT SIG HI DRV DR ANT SIG LO DRV DR HANDLE SW SIG DRV DR LCK SW LCK SIG DRV DR LCK SW UNLCK SIG DRV DR OPEN SW SIG DRV HEATED BACK NTC SIG DRV HEATED SEAT ELEMENT CTRL DRV HEATED SEAT ELEMENT LOW REF DRV HEATED SEAT NTC LOW REF DRV HEATED SEAT NTC SIG DRV KNEE MOD HIGH CTRL DRV KNEE MOD LOW CTRL DRV MIR MTR COMMON CTRL DRV MIR POSITION SENS 5 VOLT REF DRV MIR POSITION SENS LO REF DRV MODE SW 5 VOLT REF DRV MODE SW SIG DRV SEAT BELT ANCHOR PRETENSIONER HIGH CTRL DRV SEAT BELT ANCHOR PRETENSIONER LOW CTRL DRV SEAT BELT RETRACTOR PRETENSIONER HIGH CTRL DRV SEAT BELT RETRACTOR PRETENSIONER LOW CTRL DRV SEAT BELT SW LOW REF DRV SEAT BELT SW SIG DRV SIDE IMPACT MOD HIGH CTRL DRV SIDE IMPACT MOD LOW CTRL DUTY CYCLE SIG ECT SENS SIG ELE VARIABLE DISPLACEMENT CTRL ELE VARIABLE DISPLACEMENT SPLY ELECTRONIC MUFFLERS SYSTEM ENG COOLANT ENG SPD SIG ESC IND ESC OFF IND ETRS OUT OF PARK SW 2 SIG ETRS OUT OF PARK SW SIG EVAP CANISTER VENT SOL CTRL EVAP CORE TEMP SENS SIG EXCEPT 6.2L VIN 6 SUPERCHARGED EXH FLAPPER VLV 1 FEEDBACK SIG EXH FLAPPER VLV 2 FEEDBACK SIG EXH FLAPPER VLV CTRL 1 EXH FLAPPER VLV CTRL 2 EXHAUST SENS 2 EXHAUST SENS CTRL 2 EXHAUST SENS LOW REF 1 EXHAUST SOL 2 EXPRESS CLOSE EXPRESS OPEN EXPRESS SIG FLASH TO PASS FORWARD SW SIG FRONT VERTICAL DWN SW SIG FRONT VERTICAL MTR DWN CTRL FRONT VERTICAL MTR UP CTRL FRONT VERTICAL UP SW SIG FUEL GAUGE FUEL INJECTOR 1 FUEL INJECTOR 2 FUEL INJECTOR 3 FUEL INJECTOR 4 FUEL INJECTOR 5 FUEL INJECTOR 6 FUEL INJECTOR 7 FUEL INJECTOR 8 FUEL TANK PRESSURE SENS SIG FUSED CTRL FUSED SPLY 2 FUSED SUPPLY GARAGE DOOR OPENER GEAR SENS SIG 1 GEAR SENS SIG 1 SPLY CYLINDER 2 GEAR SENS SIG 2 GEAR SENS SIG 2 GMLAN SER DATA GMLAN SERIAL GMLAN SERIAL DATA GMLAN SERIAL DATA 2 GMLAN SERIAL DATA - 1 GN COAX DAB GND EXTENSION GROUND DISTRIBUTION SYSTEM GY LVDS USB SERIAL DATA HAZ SW LH TURN SIG HAZ SW RH TURN SIG HAZ SW SIG HAZARD SW SIG HDLP DIMMER SW HI BEAM SIG HDLP HI BEAM RLY CTRL HDLP LOW BEAM RLY CTRL HDLP ON SIG HDLP SW FLASH TO PASS SIG HDLP SW OFF SIG HDLP SW ON SIG HDLP SW PARK LP SIG HDLP SW PRK LP SIG HEAD PARK HEAD SW LOW REF HEAD SW SIG HEAD-UP DISPLAY HEAD-UP DISPLAY CIRCUIT HEADLAMP LO BEAM RLY CTRL HEADLIGHTS SYSTEM HEADUP DISPLAY HEATED STEERING WHEEL IND HI BEAM CTRL HI SIG BANK 2 SENS 1 HI SIG BANK 2 SENS 2 HI SPD GMLAN HI SPD GMLAN SERIAL DATA HI SPD GMLAN SERIAL DATA + HI SPD GMLAN SERIAL DATA - HI VOLT CTRL CYLINDER 1 HI VOLT CTRL CYLINDER 2 HI VOLT CTRL CYLINDER 3 HI VOLT CTRL CYLINDER 4 HI VOLT CTRL CYLINDER 5 HI VOLT CTRL CYLINDER 6 HI VOLT CTRL CYLINDER 7 HI VOLT CTRL CYLINDER 8 HI VOLT SPLY CYLINDER 1 HI VOLT SPLY CYLINDER 2 HI VOLT SPLY CYLINDER 3 HI VOLT SPLY CYLINDER 4 HI VOLT SPLY CYLINDER 5 HI VOLT SPLY CYLINDER 6 HI VOLT SPLY CYLINDER 7 HI VOLT SPLY CYLINDER 8 HIGH BEAM ASSIST IND HIGH BEAM IND HIGH HEAT IND HOOD STATUS B SIG HORIZONTAL MTR FORWARD CTRL HORIZONTAL MTR REARWARD CTRL HORIZONTAL MTR SENS SIG HORNS SYSTEM HOT AT ALL TIMES HUMIDITY SENS SIG HVAC CONTROLS IGN 1 VOL IGN 1 VOLT IGN CTRL LOW REF IGN MODE SW IGN MODE SW VOLT IGNITION 1 IGNITION 1 VOLT IGNITION 1 VOLTAGE IGNITION CTRL 1 IGNITION CTRL 2 IGNITION CTRL 3 IGNITION CTRL 4 IGNITION CTRL 6 IGNITION CTRL LOW REF IMMOBILIZER CTRL IMMOBILIZER LO REF IMS MODE SW LO REF IMS MODE SW LOW REF IN LUGGAGE COMPT) IN SPD SIG INADVERTENT PWR CTRL IND CTRL IND DIMMING CTRL INDUCTION AIR TEMP SENS SIG INFLATABLE RESTRAINT SENSING, DIAGNOSTIC MODULE INFO DISPLAY MODULE INFOTAINMENT REGULATED CTRL INPUT SPD SIG INS PANEL LP DIMMER SW LO REF INSIDE AIR TEMP INSIDE AIR TEMP SENS LOW REF INSIDE AIR TEMP SENS SIG INSIDE REAR VIEW MIRROR INSTRUMENT CLUSTER INSTRUMENT ILLUMINATION CIRCUIT INT LOW OFF INT LOW OFF HIGH INTAKE SENS 1 INTAKE SENS 2 INTAKE SENS CTRL 1 INTAKE SENS CTRL 2 INTAKE SENS LOW REF 1 INTAKE SOL 2 INTERCONNECT NETWORK BUS 12 INTERIOR LP CTRL INTERIOR RELEASE SW INTERMEDIATE SPD SIG KEY PAD CTRL KEY PAD SIG KEYPAD CTRL KEYPAD LOW REF KEYPAD SIG KM/H IND KNOCK SENS LOW REF 1 KNOCK SENS LOW REF 2 KNOCK SENS SIG 1 KNOCK SENS SIG 2 LCD DIMMING SIG LED AMBIENT LIGHTING CTRL 1 LED AMBIENT LIGHTING CTRL 2 LED BACK LIGHT DIMMING CTRL LED CTRL LEFT "C" PILLAR) LEFT AUXILIARY AUDIO SIG 2 LEFT FRONT DOME/ READING LAMPS LEFT FRONT RADIO VOLUME COMPENSATOR INTERIOR NOISE MICROPHONE LEFT FRONT SEAT SIDE AIR BAG LEFT HEADLAMP ASSEMBLY LEFT HEADLAMP BALLAST LEFT HIGH BEAM HEADLAMP LEFT LOW BEAM HEADLAMP LEFT MIDDLE SIDE IMPACT SENSING MOD LOW REF LEFT MIDDLE SIDE IMPACT SENSING MOD SIG LEFT REAR WINDOW DEFOGGER NOISE FILTER LEFT ROOF RAIL AIR BAG LEFT SUNSHADE LEFT TURN IND LEVEL SENS SIG LF DOOR AJAR SW SIG LF DR AJAR LF DR AJAR SW SIG LF HEAD CURTAIN MOD HIGH CTRL LF HEAD CURTAIN MOD LOW CTRL LF LOW LEVEL AUDIO SIG LF SIDE IMPACT SENSING MOD LOW REF LF SIDE IMPACT SENSING MOD SIG LF STRUT POS SENS 5 VOLT REF LF STRUT POS SENS LOW REF LF STRUT POS SENS SIG LF TURN SIG LP CTRL LF WHEEL SPD SENS CTRL LF WHEEL SPD SENS SIG LH AUXILIARY DRL CTRL LH DOWN LH EXPRESS LH HDLP LO BEAM CTRL LH PRK LP CTRL LH UP LICENSE LP CTRL LIFT GATE AJAR SW SIG LIFT GATE AJAR SW SIG 1 LIFT GLASS/LID RELEASE CTRL LIFTGATE AJAR SW SIG 1 LIFTGLASS/REAR COMPT LID INTERIOR RELEASE SIGNAL LIN BUS 1 LIN BUS 2 LIN BUS 3 LIN BUS 4 LIN BUS 12 LIN SERIAL LIN SERIAL DATA LIN SERIAL DATA BUS 1 LIN SERIAL DATA BUS 3 LIN SERIAL DATA BUS 4 LIN SERIAL DATA BUS 9 LINEAR INTERCONNECT NETWORK BUS 8 LO REF LO SPD LO SPD GMLAN LO SPD GMLAN SERIAL DATA LO SPD GMLAN SERIAL DATA 2 LO SPD SERIAL DATA LOCAL INTERCONNECT LOCAL INTERCONNECT NETWORK BUS 1 LOCAL INTERCONNECT NETWORK BUS 3 LOCAL INTERCONNECT NETWORK BUS 4 LOCAL INTERCONNECT NETWORK BUS 8 LOCAL INTERCONNECT NETWORK BUS 9 LOCAL INTERCONNECT NETWORK BUS 11 LOCAL INTERCONNECT NETWORK BUS 12 LOCAL INTERCONNECT NETWORK SER DATA BUS 2 LOCAL INTERCONNECT NETWORK SERIAL DATA BUS 2 LOCAL INTERCONNECT NETWORK SERIAL DATA BUS 8 LOCAL INTERCONNECT NETWORK SERIAL DATA BUS 12 LOCAL INTERCONNECT NETWORK SERIAL DATA BUS 26 LOCKING RETRACTOR LOGIC INSTRUMENT CLUSTER LOW BANK 1 SENS 2 LOW CTRL BANK 1 SENS 1 LOW CTRL BANK 1 SENS 2 LOW HEAT IND LOW REF LOW REF 2 LOW REF BANK 1 LOW REF BANK 2 LOW REFERENCE LOW SIG BANK 1 SENS 2 LOW SPD LOW SPD GMLAN LOW SPD GMLAN SERIAL DATA LOW SPD GMLAN SERIAL DATA 2 LOW SPEED GMLAN LOW SPEED GMLAN SERIAL DATA LOW SPEED GMLAN SERIAL DATA 2 LR CORNER PARK SENS SIG LR LOW LEVEL AUDIO SIG + LR MIDDLE PARK SENS SIG LR PARK BRK MTR APPLY CTRL LR PARK BRK MTR LO REF LR STRUT POS SENS 5 VOLT REF LR STRUT POS SENS LOW REF LR STRUT POS SENS SIG LR TURN SIG LP CTRL LR WHEEL SPD SENS CTRL LR WHEEL SPD SENS SIG LTD SLIP DIFF SOL HI SIDE CTRL LTD SLIP DIFF SOL LO SIDE CTRL LVDS BU USB SERIAL DATA LVDS GY LVDS USB SERIAL DATA MAF SENS SIG MAIN RLY FUSED SPLY 3 MALFUNCTION IND MAP SENS LOW REF MAP SENS SIG MASS AIR FLOW SENS SIG MED HEAT IND MEM SEAT SW SET SIG MEM SW LO REF MEMORY CARD RECEPTACLE MIR SIG MIRROR DIMMING MIRRORS SYSTEM MOBILE DEVICE WIRELESS CHARGER MODULE MODE VOLT MOST CONTROL MOST CTRL MOST SERIAL MTR CTRL 1 MUTE VOICE NAVIGATION AUDIO LOW SIG NAVIGATION SYSTEM NETWORK 1 NETWORK 2 NETWORK 3 NETWORK 4 NETWORK 5 NETWORK 9 NETWORK 10 NETWORK 11 NETWORK BUS 1 NETWORK BUS 2 NETWORK BUS 3 NETWORK BUS 3 LOGIC NETWORK BUS 4 NETWORK BUS 5 NETWORK BUS 8 NETWORK BUS 10 NETWORK BUS 12 NETWORK SERIAL NOISE REDUCTION 1 LOW REF NOISE REDUCTION 2 LOW REF NOISE REDUCTION SIG 1 NOISE REDUCTION SIG 2 NOT USED OFF IND OIL LEVEL SW SIG OIL LVL SW SIG OIL PMP COMAND SIG OIL PMP COMAND SIG OIL LEVEL SW SIG OIL PRESS SENS LOW REF OIL PRESS SENS SIG OIL TEMP SENS SIG ON IND. ONSTAR IND OUTPUT SIG OUTPUT SPD SENS OUTPUT SPD SIG OUTSIDE AMBIENT AIR TEMP SENS SIG OUTSIDE AMBIENT TEMP SENS LOW REF PARK AUTO PARK AUTO OFF PARK BRAKE APPLY SW SIG PARK BRAKE APPLY SW VOLT REF PARK BRAKE IND PARK BRAKE REL SW SIG PARK BRAKE REL SW VOLT REF PARK BRAKE SW SIG PARK BRK APPLY SW SIG PARK BRK APPLY SW VOLT REF PARK BRK RELEASE SW SIG PARK BRK RELEASE SW SUPPLY VOLT PARK BRK RELEASE SW VOLT REF PARK BRK SW SIG PARK BRK SW SUPPLY VOLT PARK LAMPS IND PARK LCK SOL CTRL PARK SENS CTRL PARK SW SIG PASS AIR BAG OFF IND CTRL PASS AIR BAG ON IND CTRL PASS DR ANT SIG HI PASS DR ANT SIG LO PASS DR HANDLE SW SIG PASS DR LCK SW LCK CTRL PASS DR LCK SW UNLCK CTRL PASS HEATED BACK NTC LOW REF PASS HEATED BACK NTC SIG PASS HEATED SEAT ELEMENT CTRL PASS HEATED SEAT ELEMENT LOW REF PASS HEATED SEAT NTC LOW REF PASS HEATED SEAT NTC SIG PASS IP MOD HIGH CTRL STAGE 1 PASS IP MOD HIGH CTRL STAGE 2 PASS IP MOD LOW CTRL STAGE 1 PASS IP MOD LOW CTRL STAGE 2 PASS KNEE MOD HIGH CTRL PASS KNEE MOD LOW CTRL PASS MIR MTR COMMON CTRL PASS MIR POSITION SENS 5 VOLT REF PASS MIR POSITION SENS LO REF PASS SEAT BELT ANCHOR PRETENSIONER HIGH CTRL PASS SEAT BELT ANCHOR PRETENSIONER LOW CTRL PASS SEAT BELT IND CTRL PASS SEAT BELT SW LOW REF PASS SEAT BELT SW SIG PASS SEAT POSITION SW SIG PASS SIDE IMPACT MOD HIGH CTRL PASS SIDE IMPACT MOD LOW CTRL PASSENGER DOOR LATCH ASSEMBLY PASSENGER EXTERIOR DOOR HANDLE ASSEMBLY PASSENGER INSTRUMENT PANEL AIR BAG PASSENGER KNEE AIR BAG PASSENGER OUTSIDE REAR VIEW MIRROR PASSENGER OUTSIDE REAR VIEW MIRROR GLASS PASSENGER OUTSIDE REAR VIEW MIRROR PASSENGER OUTSIDE REAR VIEW MIRROR GLASS PASSENGER PRESENCE MODULE PASSENGER SEAT BELT ANCHOR PRETENSIONER PASSENGER SEAT BELT RETRACTOR PRETENSIONER PASSIVE START SW 2 LO REF PASSIVE START SW SIG 2 PASSIVE START SW SIG 2 LOW REFERENCE PEDESTRIAN PROTECTION IMPACT SENSING MOD LOW REF PEDESTRIAN PROTECTION IMPACT SENSING MOD SIG PEDESTRIAN PROTECTION IMPACT SENSING MODULE LOW REF PEDESTRIAN PROTECTION IMPACT SENSING MODULE SIG PHONE IND POSITION SIG 1 POSITION SIG 2 POWER DISTRIBUTION SYSTEM POWERTRAIN MAIN RLY FUSED SPLY 1 POWERTRAIN MAIN RLY FUSED SPLY 2 PRESS SENS 5 VOLT REF PRESS SENS SIG PRESS SIG PRESSURE SENS LO REF PRESSURE SENS SIG PRIMARY FUEL LEVEL SENS SIG PRIMARY FUEL LVL SENS PRIMARY RLY CTRL PRNDL A SIG PRNDL B SIG PRNDL C SIG PRNDL P SIG PRNDL S SIG PURGE SOL CTRL RADIO CONTROLS RADIO ON SIG RAP SIG REAR AXLE TEMP SIG REAR CLOSURE HANDLE OPEN SIG REAR COMPARTMENT LID LATCH REAR COMPT LID LP CTRL REAR DEFOG RLY CTRL REAR DEFOGGER GRID REAR DEFOGGER IND REAR VERTICAL DWN SW SIG REAR VERTICAL MTR DOWN CTRL REAR VERTICAL MTR UP CTRL REAR VERTICAL UP SW SIG REARWARD SW SIG RECIRCULATION DOOR CTRL RECIRCULATION DOOR CTRL RECIRCULATION DOOR POS SIG RECLINE FORWARD SW SIG RECLINE MTR FORWARD CTRL RECLINE MTR POS SENS SIG RECLINE MTR REARWARD CTRL RECLINE REARWARD SW SIG REGULATED CTRL RELEASE SW SIG REMOTE ENABLE SIG REMOTE FUN ACT CTRL REMOTE FUN ACT LO REF REMOTE FUN ACT REC SIG REMOTE FUN ACT TRANSMIT SIG REMOTE FUNCTION ACT CTRL REP SIG REPLICATED SIG REQUEST SIG RES+ REV SW SIG RF DOOR AJAR SW SIG RF DR AJAR RF HEAD CURTAIN MOD HIGH CTRL RF HEAD CURTAIN MOD LOW CTRL RF LOW LEVEL AUDIO SIG RF SIDE IMPACT SENSING MOD LOW REF RF SIDE IMPACT SENSING MOD SIG RF STRUT POS SENS 5 VOLT REF RF STRUT POS SENS LOW REF RF STRUT POS SENS SIG RF TURN SIG LP CTRL RF WHEEL SPD SENS CTRL RF WHEEL SPD SENS SIG RH AUXILIARY DRL CTRL RH DOWN RH EXPRESS RH HDLP LO BEAM CTRL RH PRK LP CTRL RH UP RIGHT AUXILIARY AUDIO SIG 2 RIGHT FRONT DOME/ READING LAMPS RIGHT FRONT RADIO VOLUME COMPENSATOR INTERIOR NOISE MICROPHONE RIGHT FRONT SEAT SIDE AIR BAG RIGHT HEADLAMP ASSEMBLY RIGHT HEADLAMP BALLAST RIGHT HIGH BEAM HEADLAMP RIGHT LOW BEAM HEADLAMP RIGHT MIDDLE SIDE IMPACT SENSING MOD LOW REF RIGHT MIDDLE SIDE IMPACT SENSING MOD SIG RIGHT REAR WINDOW DEFOGGER NOISE FILTER RIGHT SUNSHADE RIGHT TURN IND RLY CTRL RLY FUSED SPLY 3 RLY SPD SIG RR CORNER PARK SENS SIG RR DIFF OIL PRESS SENS RR DRIVE MTR HI SIDE CTRL RR DRIVE MTR LOW SIDE CTRL RR LOW LEVEL AUDIO SIG + RR MIDDLE PARK SENS SIG RR PARK BRK MTR APPLY CTRL RR PARK BRK MTR LO REF RR STRUT POS SENS 5 VOLT REF RR STRUT POS SENS LOW REF RR STRUT POS SENS SIG RR TURN LP FEEDBACK SIG RR TURN LP SIG RR TURN SIG LP CTRL RR WHEEL SPD SENS CTRL RR WHEEL SPD SENS SIG RUN/CRANK IGN 1 VOL RUN/CRANK IGN 1 VOLT RUN/CRANK IGNITION 1 VOLT RUN/CRANK IGNITION 1 VOLTAGE SEAT BELT SEAT BELT IND SEAT VENT MTR CNTRL SEC FUEL LVL SENS SIG SEC IND CTRL SECONDARY FUEL LEVEL SENS SIG SECURITY IND SEEK DOWN SEEK UP SENS 5 VOLT REF SENS A 9 VOLT REF SENS B 9 VOLT REF SENS COLLECTOR SIG SENS CTRL SENS CTRL 1 SENS LO REF SENS LOW REF SENS LOW REF 1 SENS SIG SENS SIG 1 SENS SIG 2 SER DATA SERIAL DATA SERIAL DATA 2 SERIAL DATA BUS 5 SERIAL DATA BUS 9 SERIAL DATA BUS 10 SERIAL DATA BUS 11 SERIAL DATA COMM ENABLE SERIAL DATA COMMUNICATION ENABLE SERIAL DATA GATEWAY MODULE SERVICE PARK BRAKE IND SET- SHIELD GND EXTENSION SHIFT INTERLOCK SYSTEM SHIFT LCK SOL CTRL SHORTING BAR SIG GND SIG GROUND SIGNAL GROUND SKIP/SHIFT SOL CTRL SMPH IND SNRF SW DATA 1 SIG SNS SIG SOL CTRL SOL CTRL 1 SOL CTRL 2 SOL CTRL 3 SOL CTRL 4 SOS IND SOUND SYSTEMS SPARK PLUG SPD SIG SPEEDOMETER IND SPLY CYLINDER 1 SPLY CYLINDER 3 SPLY CYLINDER 4 SPLY VOLT START IND START LED SIG STARTING CIRCUIT STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STATUS SIG STEERING ANGLE SENS LO REF STEERING ANGLE SENS LOW REF STEERING WHEEL AIR BAG STEERING WHL MOD HIGH CTRL STAGE 1 STEERING WHL MOD HIGH CTRL STAGE 2 STEERING WHL MOD LOW CTRL STAGE 1 STEERING WHL MOD LOW CTRL STAGE 2 SW LOW REF SW SIG TAC CLOSE TAC OPEN TAP UP/TAP DN SW SIG TCS IND TELEPHONE VOICE LOW REF TEMP SENS LOW REF TEMP SENS SIG TEMP SIG THROTTLE POS SENS 5 VOLT REF THROTTLE POS SENS LO REF THRTL ACTR CTRL CLOSE THRTL ACTR CTRL OPEN THRTL POS SENS 5 VOLT REF THRTL POS SENS SIG 1 TIRE PRESSURE IND TN COAX TN COAX XM TPS SIG TRACTION CONTROL OFF IND TRACTION CTRL SW SIG 1 TRANS CLUTCH G CTRL TRANS CLUTCH H CTRL TRANS HI SIDE DRIVER 1 SIG TRANS HI SIDE DRIVER 2 SIG TRANS INTERMEDIATE SPD SIG TRANS OIL TEMP SENS SIG TRANS PARK/NEUT SIG TRANS PARK/NEUTRAL SIG 1 TRANS SENS B 9 VOLT REF TRANS TAP DN SW SIG TRANSMISSION OIL TEMP SENS SIG TRANSMISSION PARK/NEUTRAL SIG 1 TRANSMISSION SHIFT LEVER TRANSMISSIONS SYSTEM TRANSMIT SIG TRUNK, TAILGATE, FUEL DOORS SYSTEM TURBO BYPASS SOL BANK 1 TURBO INTAKE PRESS SENS HI REF BANK 1 TWILIGHT SENTINEL DELAY SIG UNLOCK SIG UP LEVEL MID LEVEL UP SIG UPPER LEFT AIR TEMP SENS SIG MODE DOOR CONTROL USB BK USB RECEPTACLE USB SER DATA USB SERIAL USB SERIAL DATA USB USB USED) VEHICLE PERFORMANCE DATA RECORDER VERTICAL MTR POS SENS SIG VERTICAL MTR SENS SIG VIDEO DISPLAY REQUEST SIG VOICE LOW REF VOICE RECOGNITION AUDIO LOW REF VOICE RECOGNITION AUDIO LOW REF CELLULAR TELEPHONE MICRO LOW REF VOICE RECOGNITION AUDIO SIG VOICE RECOGNITION AUDIO SIG CELLULAR TELEPHONE MICRO SIG VOICE SIG VOLT REF VOLUME DOWN SIG VOLUME UP SIG W/ ACTIVE NOISE CANCELLATION SYSTEM W/O ACTIVE NOISE CANCELLATION SYSTEM W/ ELECTRONIC BRAKE W/ ELECTRONIC OPERATED BRAKES W/ HID W/ LIMITED SLIP ELECTRONIC AXLE POSITRACTION W/ MEMORY W/ MULTI COLOR STANDARD GRAPHIC W/ ONSTAR W/ ONSTAR W/O ONSTAR W/ PERFORMANCE EXHAUST SYSTEM W/ POWER BRAKE W/ POWER OPERATED BRAKE PARKING W/ POWER OPERATED BRAKES W/ VEHICLE PERFORMANCE RECORDER W/ VEHICLE PERFORMANCE RECORDER W/O VEHICLE PERFORMANCE RECORDER W/O CONTINUOUSLY VARIABLE REAL TIME DAMPING W/O HID W/O INFO DISPLAY W/ INFO DISPLAY W/O MEMORY W/O ONSTAR W/O PERFORMANCE EXHAUST SYSTEM W/O PERFORMANCE EXHAUST SYSTEM W/ PERFORMANCE EXHAUST SYSTEM W/O POWER OPERATED BRAKE PARKING W/O POWER OPERATED BRAKES W/O VEHICLE PERFORMANCE RECORDER WAKE UP SERIAL DATA WAKE-UP WAKE-UP SER DATA WAKEUP SER DATA WASHER SW SIG WASTE GATE SOL CTRL WH COAX WHL CTRL WINDSHIELD WASHER RLY CTRL WINDSHIELD WASHER SW SIG WINDSHIELD WIPER SW HIGH SIG WINDSHIELD WIPER SW LOW REFERENCE WINDSHIELD WIPER SW LOW SIG WIPER SW HI SIG WIPER SW LOW SIG WIPER/WASHER SYSTEM WIPER/WASHER SYSTEM WIPER/WASHER SYSTEM
