Horn circuit for Chevrolet Camaro V facelift (2013-2015)

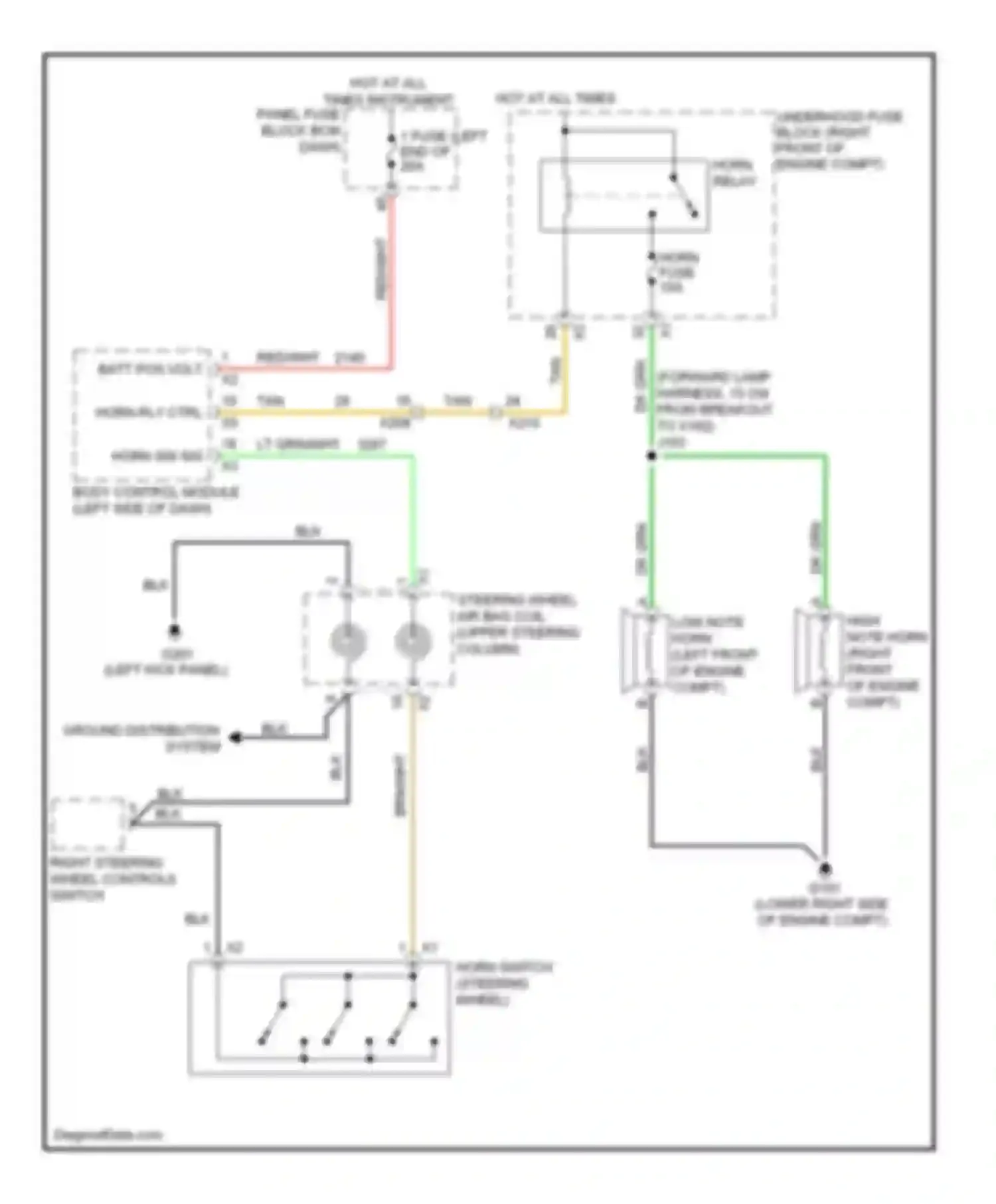

Horn circuit

Get access

BATT POS VOLT BCM 1 FUSE BLK WIRE BODY CONTROL MODULE (LEFT SIDE OF DASH) BRN/WHT WIRE DK GRN WIRE GROUND DISTRIBUTION SYSTEM HIGH NOTE HORN HIGH NOTE HORN (RIGHT FRONT OF ENGINE COMPT) HORN FUSE HORN RELAY HORN RLY CTRL HORN SW SIG HORN SWITCH HORN SWITCH (STEERING WHEEL) HOT AT ALL TIMES HOT AT ALL TIMES INSTRUMENT PANEL FUSE BLOCK BCM 1 FUSE (LEFT END OF DASH) INSTRUMENT PANEL FUSE BLOCK LOW NOTE HORN LOW NOTE HORN (LEFT FRONT OF ENGINE COMPT) LT GRN/WHT WIRE RED/WHT WIRE RIGHT STEERING WHEEL CONTROLS SWITCH STEERING WHEEL AIR BAG COIL STEERING WHEEL AIR BAG COIL (UPPER STEERING COLUMN) STEERING WHEEL) TAN WIRE UNDERHOOD FUSE BLOCK UNDERHOOD FUSE BLOCK (RIGHT FRONT OF ENGINE COMPT)
