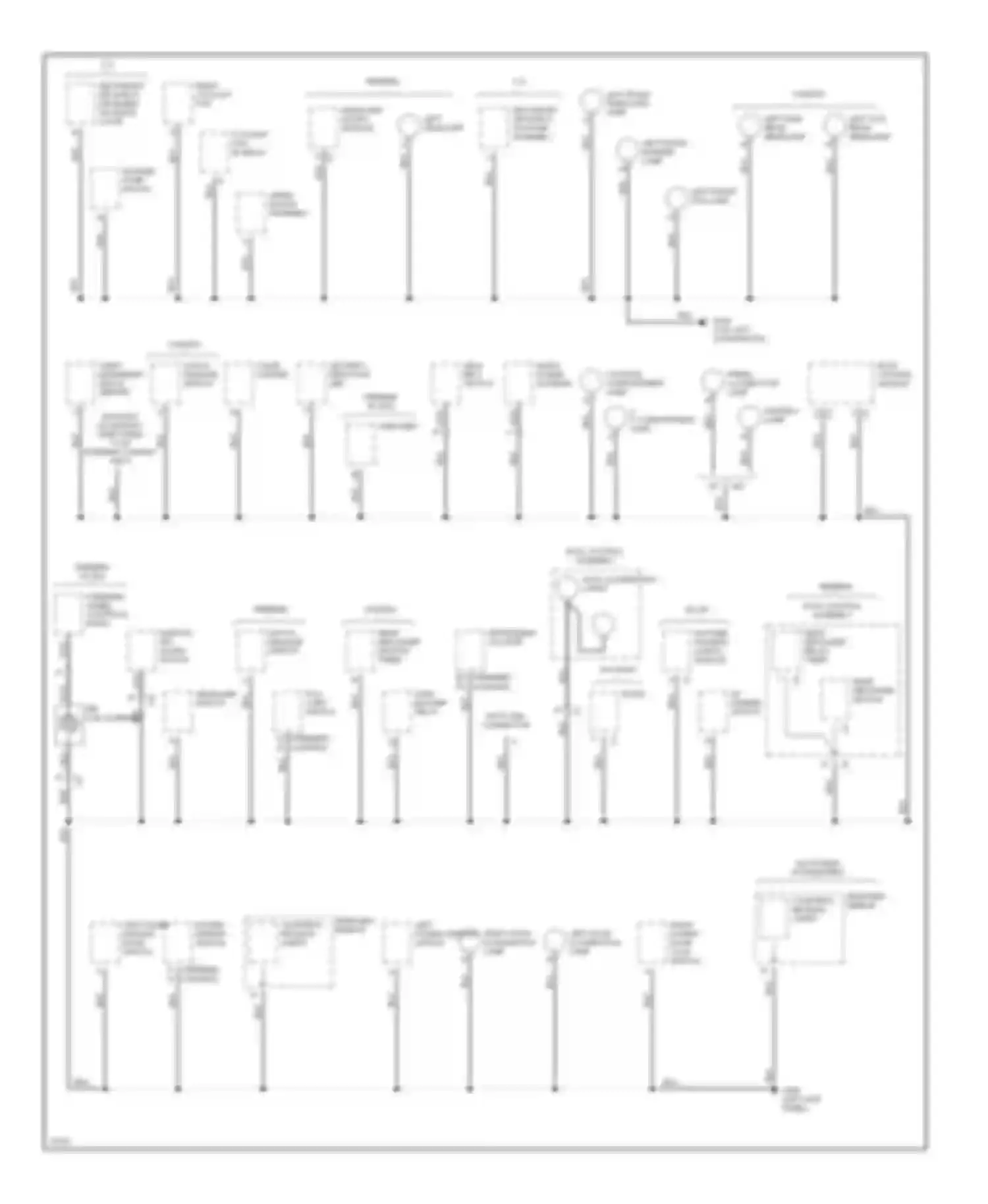

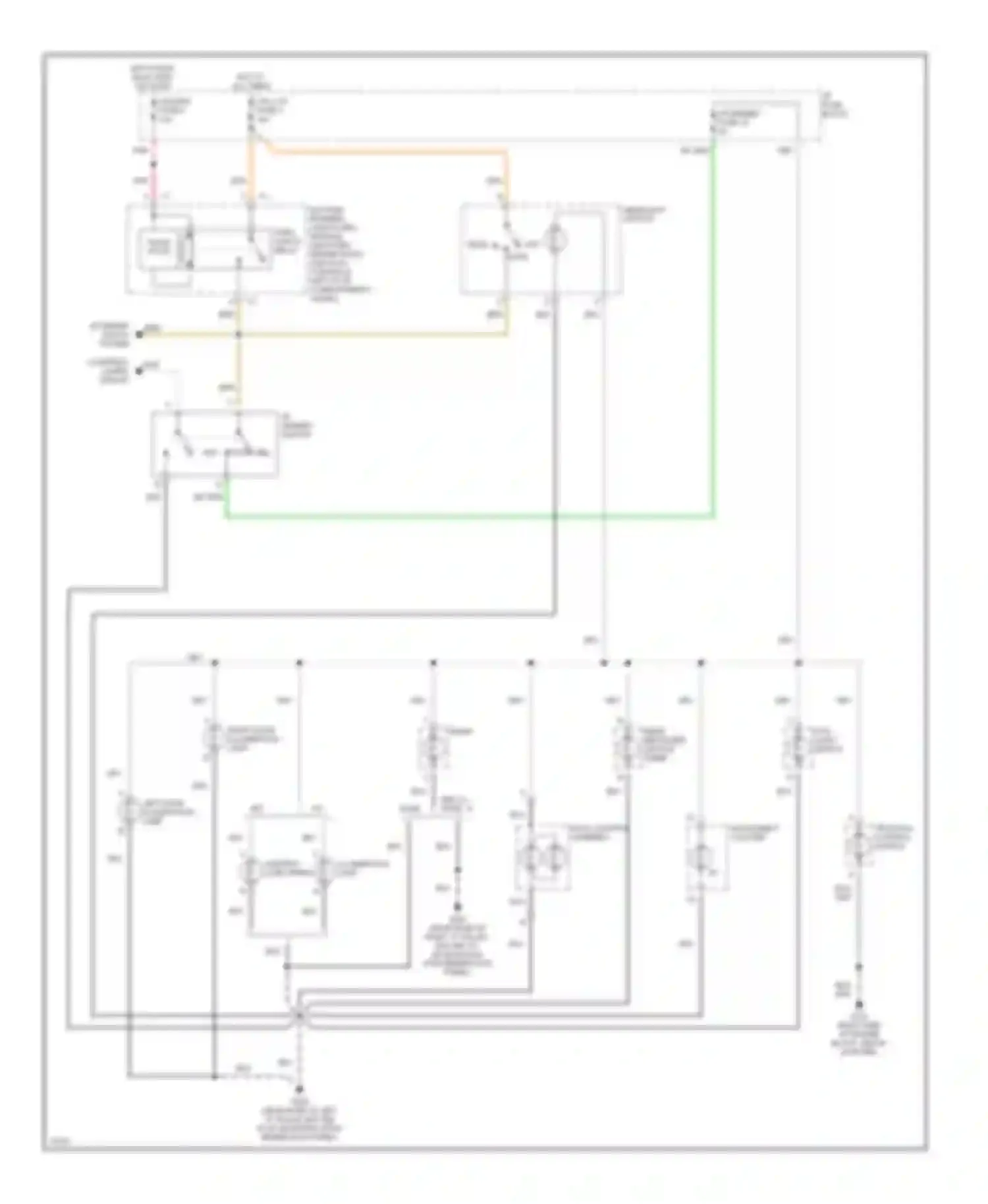

Chevrolet Camaro IV (1992-1998) rear defogger switch/ timer Wiring diagrams

5.7L AMPLIFIER ASHTRAY LAMP AUXILIARY ACCESSORY WIRE TAPED TO I/P HARNESS (CAMARO ONLY) BLK WIRE BODY CONTROL MODULE CAMARO CONSOLE COMPARTMENT LAMP COOLANT FAN 3 RELAY DATA LINK CONNECTOR DAYTIME RUNNING LIGHTS MODULE FIREBIRD FOG LIGHT SWITCH HATCH RELEASE SWITCH HATCH RELEASE SWITCH CIGAR LIGHTER HEADLAMP DOORS MODULE HEADLAMP SWITCH HIGH BLOWER RELAY HVAC CONTROL ASSEMBLY HVAC ILLUMINATION LAMPS I/P COMPARTMENT LAMP I/P DIMMER SWITCH IGNITION KEY ALARM SWITCH INSTRUMENT CLUSTER LEFT DOOR ILLUMINATION LAMP RIGHT DOOR ILLUMINATION LAMP LEFT FRONT FOG LAMP LEFT FRONT MARKER LAMP LEFT FRONT PARK/TURN LAMP LEFT HEADLAMP LEFT HIGH BEAM HEADLAMP LEFT LOW BEAM HEADLAMP LEFT POWER WINDOW SWITCH M/T A/T NCA WIRE POWER MIRROR SWITCH LEFT POWER WINDOW DOOR SWITCH PRNDL ILLUMINATION LAMP RADIO RADIO POWER ANTENNA REAR DEFOGGER RELAY/ TIMER REAR DEFOGGER SWITCH REAR DEFOGGER SWITCH/ TIMER REARVIEW MIRROR COURTESY/ READING LAMPS RIGHT COOLANT FAN RIGHT POWER DOOR LOCK SWITCH SEAT BELT SWITCH SECONDARY AIR INJECT- ION BLEED SOLENOID VALVE SECONDARY AIR INJECT- ION PUMP ASSEMBLY SECURITY INDICATOR LED SIR COIL ASSEMBLY STEERING WHEEL CONTROLS, RADIO THEFT DETERRENT SHOCK SENSOR W/O POWER ACCESSORIES WASHER PUMP MOTOR WIPER MOTOR ASSEMBLY

ASHTRAY LAMP PRNDL ILLUMINATION LAMP BLK WIRE BRN WIRE COURTESY LAMPS CIRCUIT DELCO- BOSE BASE DK GRN WIRE FOG LIGHT SWITCH GAUGES FUSE 9 GRY WIRE HEADLIGHT SWITCH HOT AT ALL TIMES HOT IN RUN, BULB TEST OR START HVAC CONTROL ASSEMBLY I/P DIMMER FUSE 16 I/P DIMMER SWITCH I/P FUSE BLOCK INSTRUMENT CLUSTER LEFT DOOR ILLUMINATION LAMP M/T A/T MAX MIN NCA WIRE OFF HEAD PARK ORG/ WIRE PARK LIGHTS RELAY PNK WIRE RADIO REAR DEFOGGER SWITCH/ TIMER RIGHT DOOR ILLUMINATION LAMP SOLID STATE TAIL LTS FUSE 5 TRACTION CONTROL SWITCH WHT WIRE
