Rear clearance lamps circuit, with dual rear wheels for Chevrolet Cab & Chassis K2500 (1989-2000)

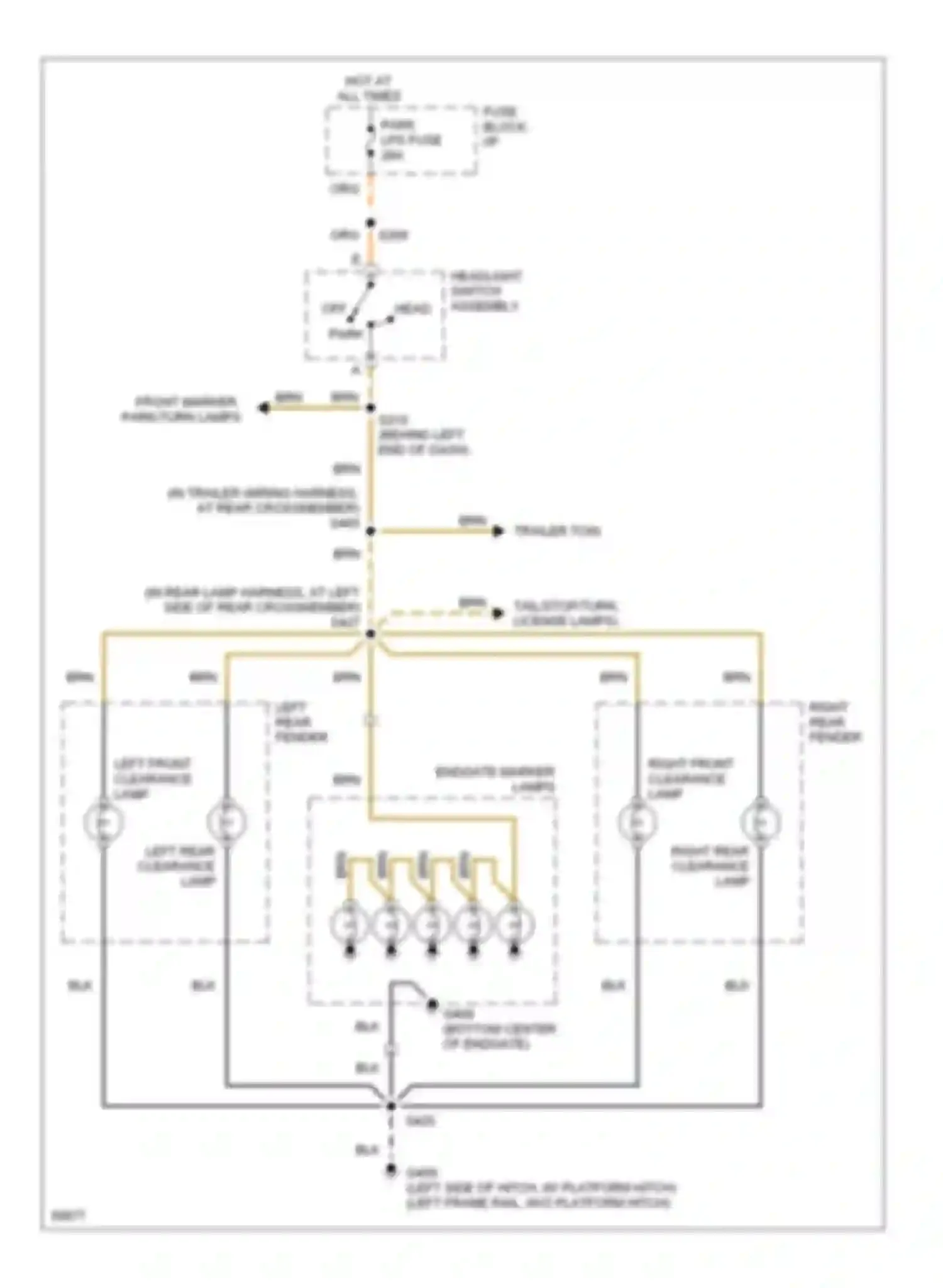

Rear clearance lamps circuit, with dual rear wheels
BLK WIRE
BRN WIRE
ENDGATE MARKER LAMPS
FRONT MARKER, PARK/TURN LAMPS
FUSE BLOCK- I/P
HEAD OFF
HEADLIGHT SWITCH ASSEMBLY
HOT AT ALL TIMES
LEFT FRONT CLEARANCE LAMP
LEFT REAR CLEARANCE LAMP
LEFT REAR FENDER
ORG/ WIRE
PARK
PARK LPS FUSE
RIGHT FRONT CLEARANCE LAMP
RIGHT REAR CLEARANCE LAMP
RIGHT REAR FENDER
TAIL/STOP/TURN, LICENSE LAMPS)
TRAILER TOW
