Chevrolet Cab & Chassis K2500 (1989-2000) clutch start switch (normally,open closes when clutch pedal is Wiring diagrams
This page contains all the electrical diagrams for the component. clutch start switch (normally,open closes when clutch pedal is, in which he is found in the car Chevrolet Cab & Chassis K2500 (1989-2000). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

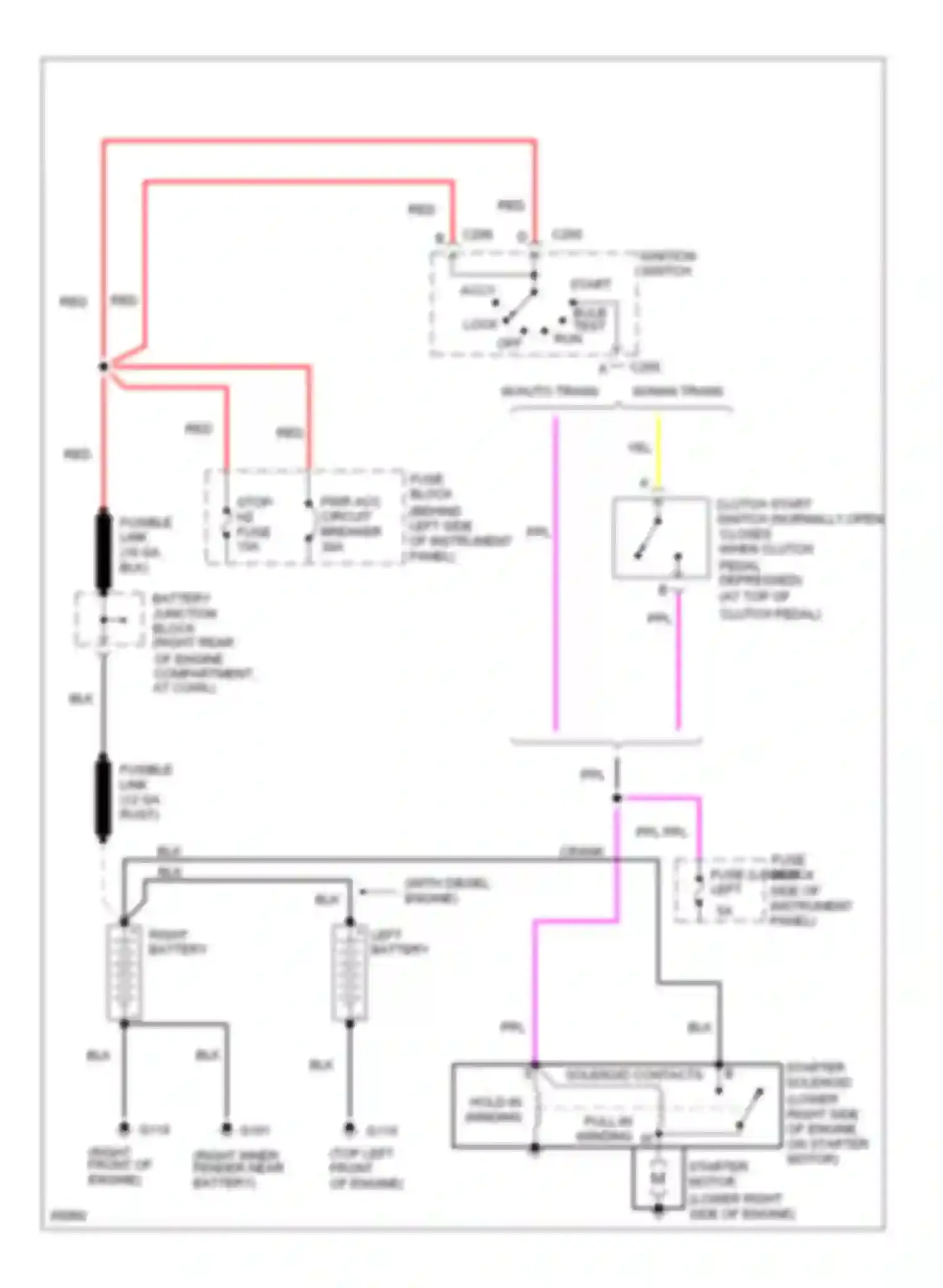

Wiring diagram clutch start switch (normally,open closes when clutch pedal is (1 of 6)
Go to component -> 4.3l (vin z), starting circuit -> CLUTCH START SWITCH (NORMALLY,OPEN CLOSES WHEN CLUTCH PEDAL IS
Wiring diagram clutch start switch (normally,open closes when clutch pedal is (2 of 6)
Go to component -> 5.0l (vin h), starting circuit -> CLUTCH START SWITCH (NORMALLY,OPEN CLOSES WHEN CLUTCH PEDAL IS
Wiring diagram clutch start switch (normally,open closes when clutch pedal is (3 of 6)
Go to component -> 5.7l (vin k), starting circuit -> CLUTCH START SWITCH (NORMALLY,OPEN CLOSES WHEN CLUTCH PEDAL IS
Wiring diagram clutch start switch (normally,open closes when clutch pedal is (4 of 6)
Go to component -> 6.5l (vin p), starting circuit -> CLUTCH START SWITCH (NORMALLY,OPEN CLOSES WHEN CLUTCH PEDAL IS
Wiring diagram clutch start switch (normally,open closes when clutch pedal is (5 of 6)
Go to component -> 6.5l (vin s), starting circuit -> CLUTCH START SWITCH (NORMALLY,OPEN CLOSES WHEN CLUTCH PEDAL IS
Wiring diagram clutch start switch (normally,open closes when clutch pedal is (6 of 6)
Go to component -> 7.4l (vin n), starting circuit -> CLUTCH START SWITCH (NORMALLY,OPEN CLOSES WHEN CLUTCH PEDAL IS
