Chevrolet Cab & Chassis C3500 (1989-2000) right front door lock motor solid state Wiring diagrams
This page contains all the electrical diagrams for the component. right front door lock motor solid state, in which he is found in the car Chevrolet Cab & Chassis C3500 (1989-2000). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

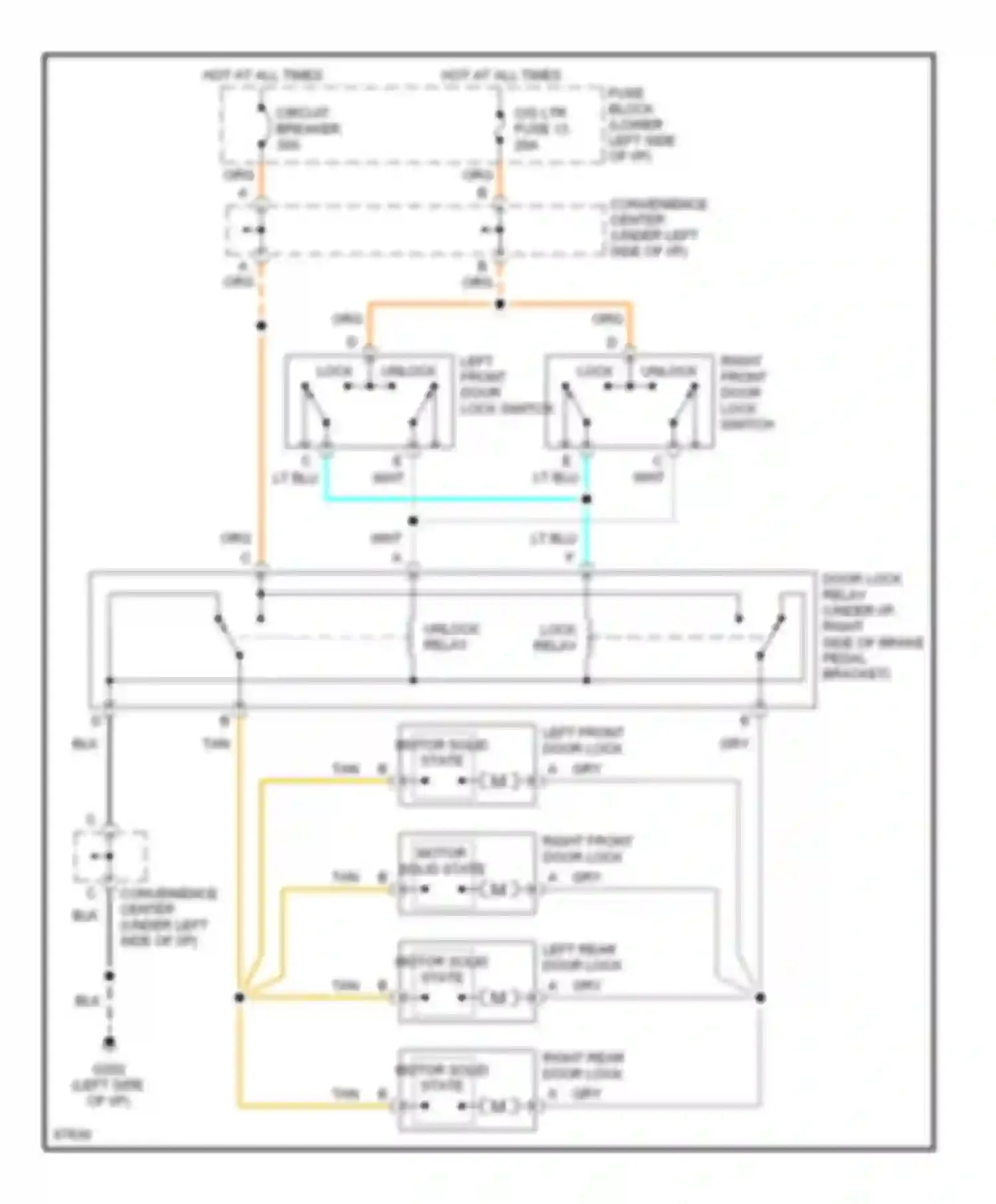

Wiring diagram right front door lock motor solid state (1 of 2)
BLK WIRE
CIG LTR FUSE 13
CIRCUIT BREAKER A
CONVENIENCE CENTER
DOOR LOCK RELAY (UNDER I/P, RIGHT SIDE OF BRAKE PEDAL BRACKET)
FUSE BLOCK
GRY WIRE
HOT AT ALL TIMES
LEFT FRONT DOOR LOCK MOTOR SOLID STATE
LEFT FRONT DOOR LOCK SWITCH
LEFT REAR DOOR LOCK MOTOR SOLID STATE
LOCK UNLOCK
LT BLU WIRE
ORG/ WIRE
RIGHT FRONT DOOR LOCK MOTOR SOLID STATE
RIGHT FRONT DOOR LOCK SWITCH
RIGHT REAR DOOR LOCK MOTOR SOLID STATE
TAN WIRE
UNLOCK LOCK
UNLOCK RELAY LOCK RELAY
WHT WIRE
Go to component -> Door lock circuit, 4 door -> RIGHT FRONT DOOR LOCK MOTOR SOLID STATE

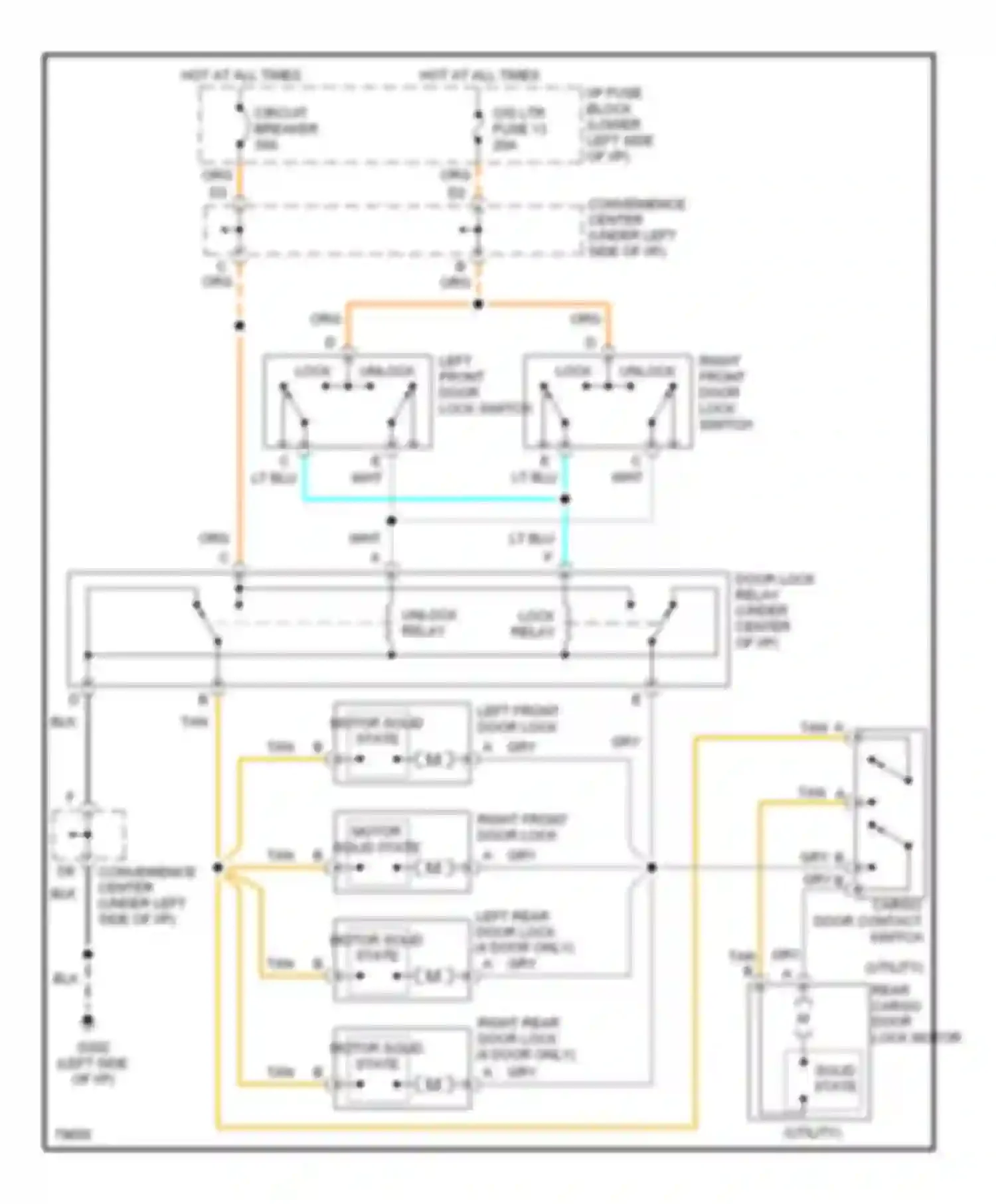

Wiring diagram right front door lock motor solid state (2 of 2)
BLK WIRE
CARGO DOOR CONTACT SWITCH
CIG LTR FUSE 13
CIRCUIT BREAKER A
CONVENIENCE CENTER
DOOR LOCK RELAY (UNDER CENTER OF I/P)
GRY WIRE
HOT AT ALL TIMES
I/P FUSE BLOCK
LEFT FRONT DOOR LOCK MOTOR SOLID STATE
LEFT FRONT DOOR LOCK SWITCH
LEFT REAR DOOR LOCK MOTOR SOLID (4 DOOR ONLY) STATE
LOCK UNLOCK
LT BLU WIRE
ORG/ WIRE
RIGHT FRONT DOOR LOCK MOTOR SOLID STATE
RIGHT FRONT DOOR LOCK SWITCH
RIGHT REAR DOOR LOCK MOTOR SOLID (4 DOOR ONLY) STATE
SOLID STATE
TAN WIRE
UNLOCK LOCK
UNLOCK RELAY LOCK RELAY
UTILITY
WHT WIRE
Go to component -> Door lock circuit, crew cab -> RIGHT FRONT DOOR LOCK MOTOR SOLID STATE
