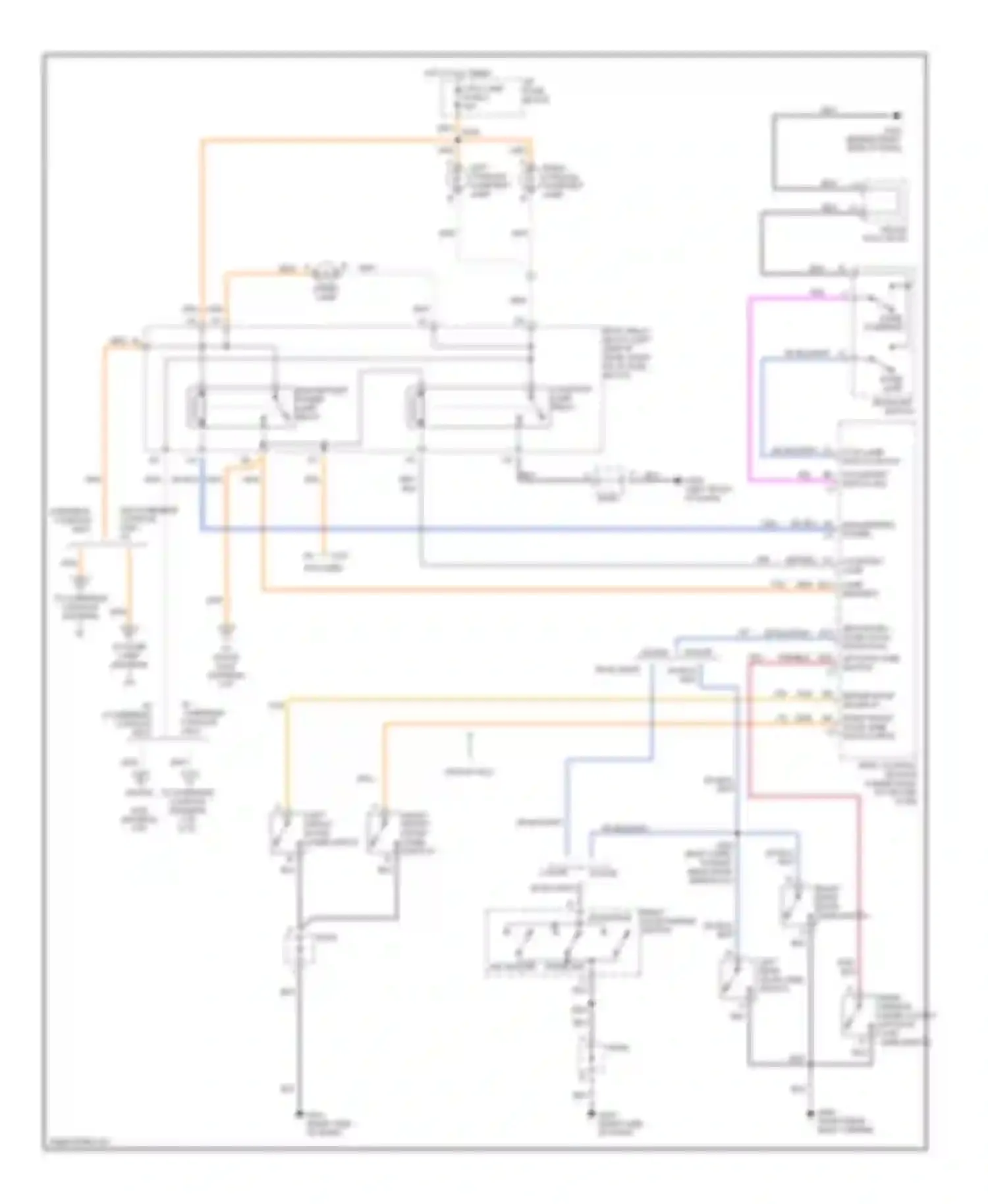

Chevrolet Blazer S15 facelift (1998-2005) right front door jamb switch input Wiring diagram

4-DOOR 2-DOOR BLK WIRE BODY CONTROL MODULE (UNDER DASH, ON HEATER CASE) BODY RELAY BLOCK (LEFT SIDE OF DASH, RIGHT OF I/P FUSE BLOCK) CARGO LAMP COURTESY LAMP COURTESY LAMP RELAY CTSY LAMP FUSE 8 CTSY LAMP SWITCH SIG INT LPS DETENT SWITCH SIG DK BLU WIRE DK BLU/WHT WIRE DOME LAMP DOME OVERRIDE DR HANDLE DRIVER DOOR SW INPUT GRY WIRE GRY/BLK WIRE HEADLAMP SWITCH HOT AT ALL TIMES I/P FUSE BLOCK INADVERTENT POWER INADVERTENT POWER LAMP RELAY KEY BUZZER DOME LMP LAMP REQUEST LEFT CONSOLE COURTESY LAMP LEFT FRONT DOOR JAMB SWITCH LEFT REAR DOOR JAMB SWITCH NOT USED ORG/ WIRE PICKUP ONLY PNK WIRE PNK/BLK WIRE PPL REAR WINDOW WIPER CUTOUT, LIFTGATE AJAR JAMB SWITCH RIGHT CONSOLE COURTESY LAMP RIGHT DOOR HANDLE SWITCH RIGHT FRONT DOOR JAMB SWITCH RIGHT FRONT DOOR JAMB SWITCH INPUT RIGHT REAR DOOR JAMB SWITCH SECONDARY DOOR LATCH SWITCH SIG LIFTGATE JAMB SWITCH SPLICE TAN WIRE TO DOME LAMP (DIAGRAM 2 OF 2) TO OVERHEAD CONSOLE (DIAGRAM 2 OF 2) TO OVERHEAD CONSOLE (DIAGRAM 2 OF 2) TO SPLICE TO SPLICE W/ OVERHEAD CONSOLE ONLY W/O OVERHEAD CONSOLE ONLY W/O OVERHEAD CONSOLE ONLY W/ OVERHEAD CONSOLE ONLY WHT WIRE
