Chevrolet Blazer S15 facelift (1998-2005) inflatable restraint steering wheel module Wiring diagrams
This page contains all the electrical diagrams for the component. inflatable restraint steering wheel module, in which he is found in the car Chevrolet Blazer S15 facelift (1998-2005). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

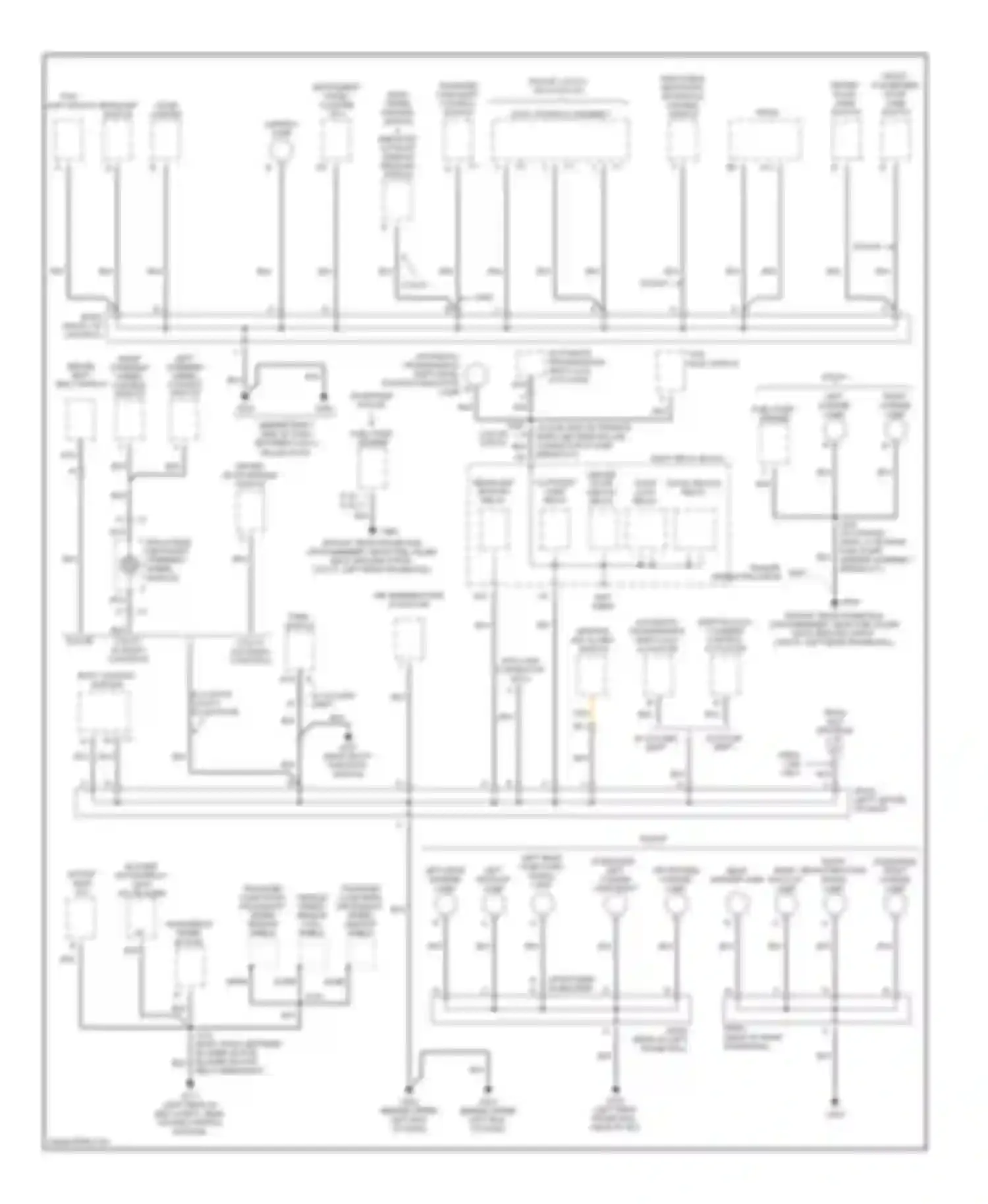

Wiring diagram inflatable restraint steering wheel module (1 of 2)
AIR TEMPERATURE ACTUATOR
ASHTRAY LAMP
AUTOMATIC TRANSMISSION SHIFT LEVEL POSITION INDICATOR LAMP
AUTOMATIC TRANSMISSION SHIFT LOCK ACTUATOR
BARE
BARE BARE
BLK WIRE
BLOWER MOTOR RELAY (MAN A/C) BLOWER MOTOR (MAN A/C)
BODY CONTROL MODULE
BODY RELAY BLOCK
CIGAR LIGHTER
COURTESY LAMP RELAY HEADLAMP GROUND RELAY
CREW CAB ONLY
DATA LINK CONNECTOR (DLC)
DOOR LOCK RELAY DOOR UNLOCK RELAY
DRIVER DOOR JAMB SWITCH
DRIVER DOOR UNLOCK RELAY
ENDGATE/ LIFTGATE WINDOW RELEASE SWITCH
EX 4 DOOR UTILITY W/ LIFTGATE
FOG LAMP SWITCH
FROM
FRONT PASSENGER DOOR JAMB SWITCH
FUEL PUMP/ SENDER
HEADLAMP SWITCH
HVAC CONTROL ASSEMBLY
IGNITION KEY ALARM SWITCH
INFLATABLE RESTRAINT I/P MODULE DISABLE SWITCH
INFLATABLE RESTRAINT STEERING WHEEL MODULE
INSTRUMENT PANEL CLUSTER (IPC)
LEFT LICENSE LAMP
LEFT REAR MARKER LAMP
LEFT REAR PARK/TURN SIGNAL LAMP (FLEETSIDE) LEFT BACK-UP LAMP
LEFT STEERING WHEEL CONTROL SWITCH
NCA WIRE
PARK SWITCH
PICKUP
PICKUP, UTILITY W/O AUTO A/C
RADIO
REAR WIPER/ WASHER SWITCH
RIGHT BACK-UP LAMP
RIGHT LICENSE LAMP
RIGHT REAR PARK/TURN SIGNAL LAMP (FLEETSIDE) RIGHT LICENSE LAMP
RIGHT STEERING WHEEL CONTROL SWITCH DRIVER SEAT BELT SWITCH
SPLICE PACK) DRIVER DOOR HANDLE SWITCH
SPORTSIDE PICKUP
TAN WIRE
TOW/ HAUL SWITCH
TRAILER WIRING PROVISION
TRANSFER CASE FRONT PROPSHAFT SPEED SENSOR SHIELD
TRANSFER CASE SHIFT CONTROL SWITCH
UTILITY
UTILITY W/ RADIO CONTROLS PICKUP
UTILITY W/O RADIO CONTROLS
W/ COLUMN SHIFT
W/ FLOOR SHIFT W/ COLUMN SHIFT
WHT WIRE
WINDSHIELD WIPER MOTOR
Go to component -> Ground distribution circuit (2 of 3) -> INFLATABLE RESTRAINT STEERING WHEEL MODULE

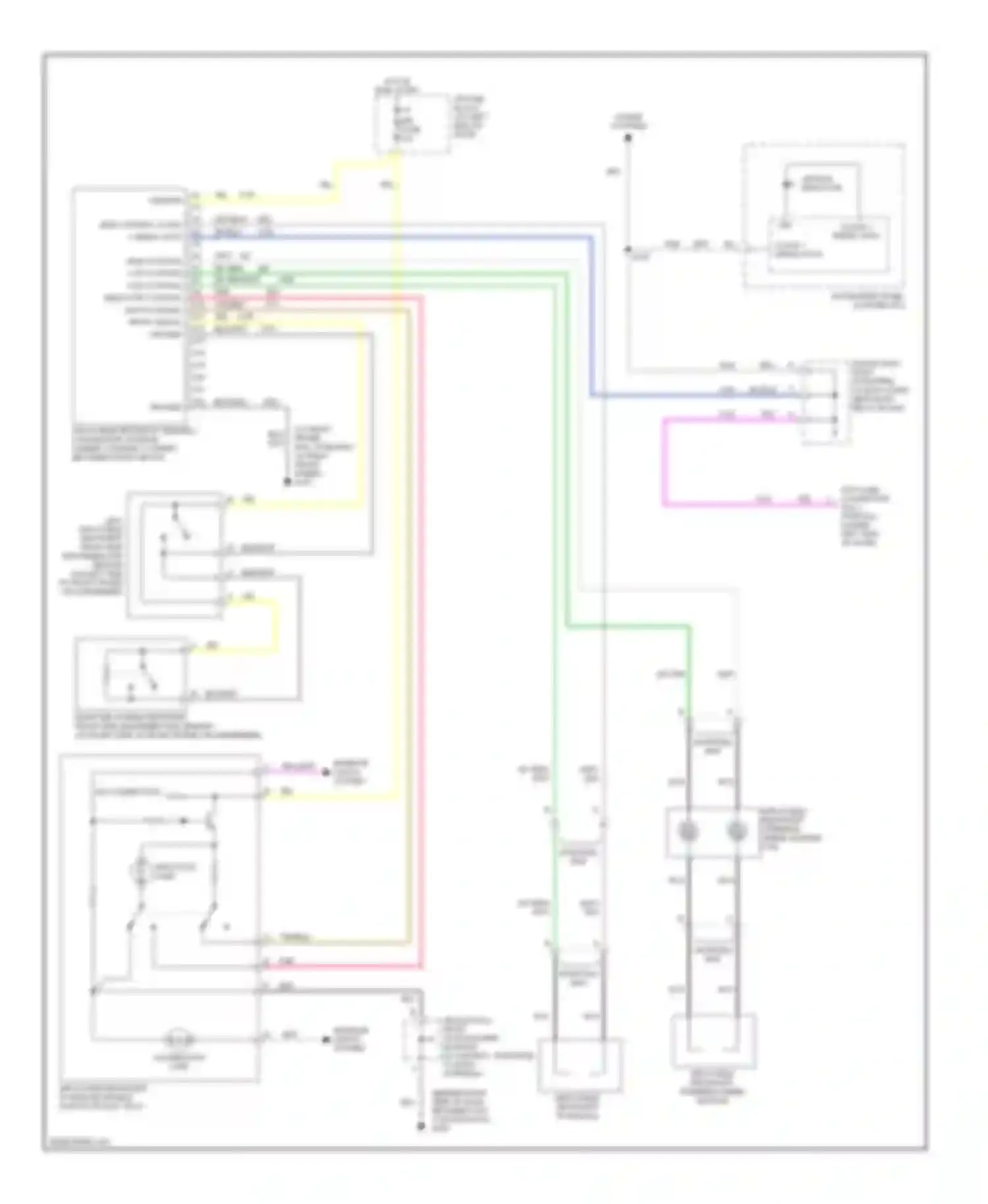

Wiring diagram inflatable restraint steering wheel module (2 of 2)
AIR BAG INDICATOR
BLK WIRE
BLK/WHT WIRE
CLASS 2 SERIAL DATA
DATA LINK CONNECTOR (DLC) (PARTIAL) (UNDER LEFT SIDE OF DASH)
DK BLU WIRE
DK GRN WIRE
DK GRN/WHT WIRE
GROUND
GRY WIRE
HIGH CONTROL CLASS 2 SERIAL DATA
HOT IN RUN, START
I/P FUSE BLOCK (ON LEFT END OF DASH)
IGN
IGNITION
ILLUMINATION LAMP
INDICATOR LAMP
INFLATABLE RESTRAINT I/P MODULE
INFLATABLE RESTRAINT IP MODULE DISABLE SWITCH (PICKUP ONLY)
INFLATABLE RESTRAINT STEERING WHEEL MODULE
INFLATABLE RESTRAINT STEERING WHEEL MODULE COIL
INSTRUMENT PANEL CLUSTER (IPC)
NCA WIRE
PNK WIRE
PPL
PPL/WHT WIRE
SHORTING BAR
SIR FUSE
SOUND SYSTEMS
SPLICE PACK
TAN/BLK WIRE
WHT WIRE
WHT/BLK WIRE
YEL WIRE
Go to component -> Supplemental restraints circuit -> INFLATABLE RESTRAINT STEERING WHEEL MODULE
