Rear glass release circuit for Chevrolet Blazer S15 (1994-1998)

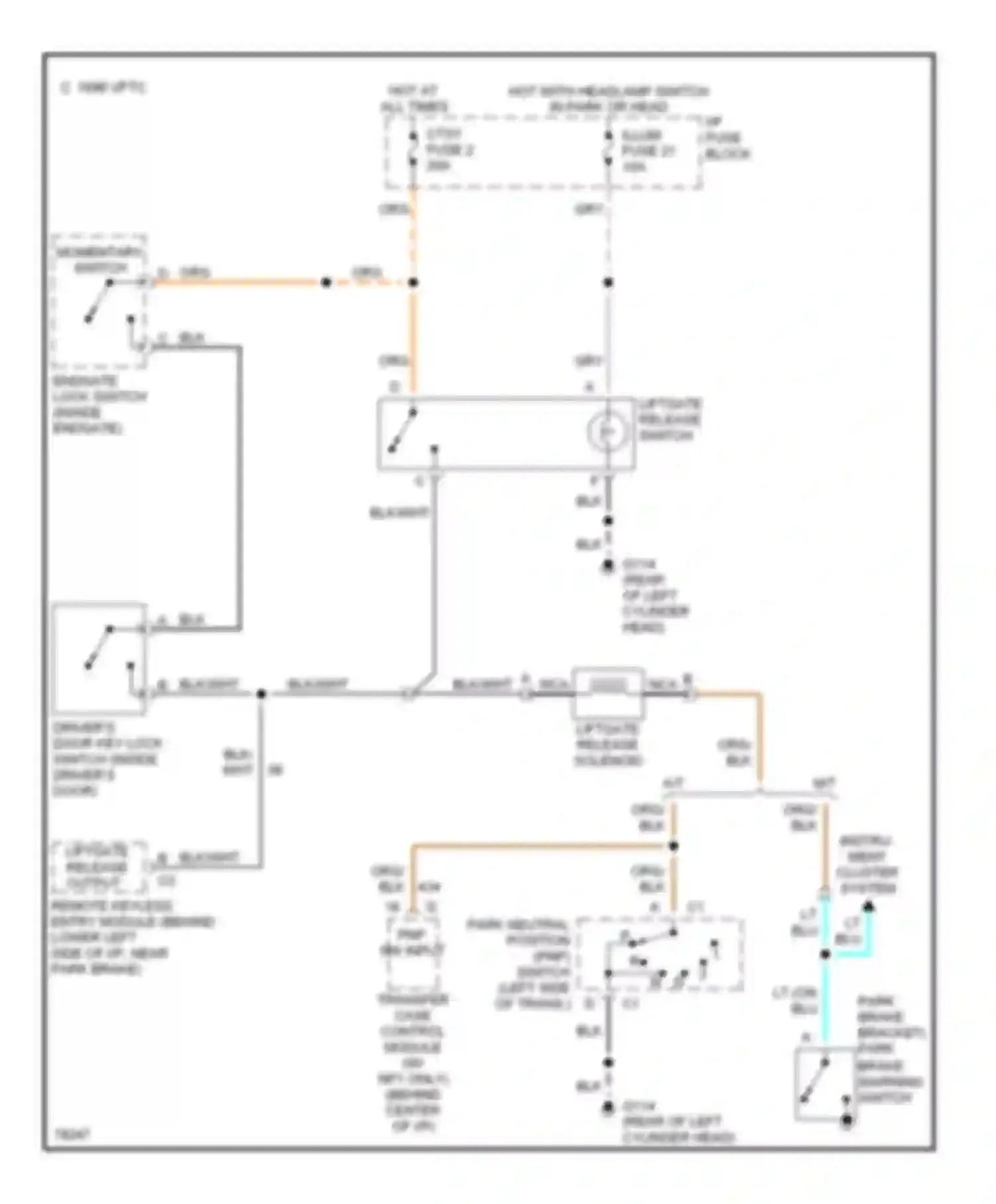

Rear glass release circuit
1996 VFTC
A/T
BLK WIRE
BLK/WHT WIRE
BLU WIRE
CTSY FUSE 2
DRIVER'S DOOR KEY LOCK SWITCH (INSIDE DRIVER'S DOOR)
ENDGATE LOCK SWITCH (INSIDE ENDGATE)
GRY WIRE
HOT AT ALL TIMES
HOT WITH HEADLAMP SWITCH IN PARK OR HEAD
I/P FUSE BLOCK
ILLUM FUSE 21
INSTRU- MENT CLUSTER SYSTEM
LIFTGATE RELEASE OUTPUT
LIFTGATE RELEASE SOLENOID
LIFTGATE RELEASE SWITCH
LT (ON PARK BRAKE BRACKET) PARK BRAKE WARNING SWITCH
LT LT
M/T
MOMENTARY SWITCH
NCA WIRE
ORG/ WIRE
PARK NEUTRAL POSITION (PNP) SWITCH (LEFT SIDE OF TRANS.)
PNP SW INPUT
REMOTE KEYLESS ENTRY MODULE (BEHIND LOWER LEFT SIDE OF I/P, NEAR PARK BRAKE)
TRANSFER CASE CONTROL MODULE (W/
WHT WIRE
