Chevrolet Blazer III facelift (2022-2024) underhood fuse block rear wiper relay Wiring diagram
This page shows the only wiring diagram for the component.underhood fuse block rear wiper relay, which is found in the car Chevrolet Blazer III facelift (2022-2024). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

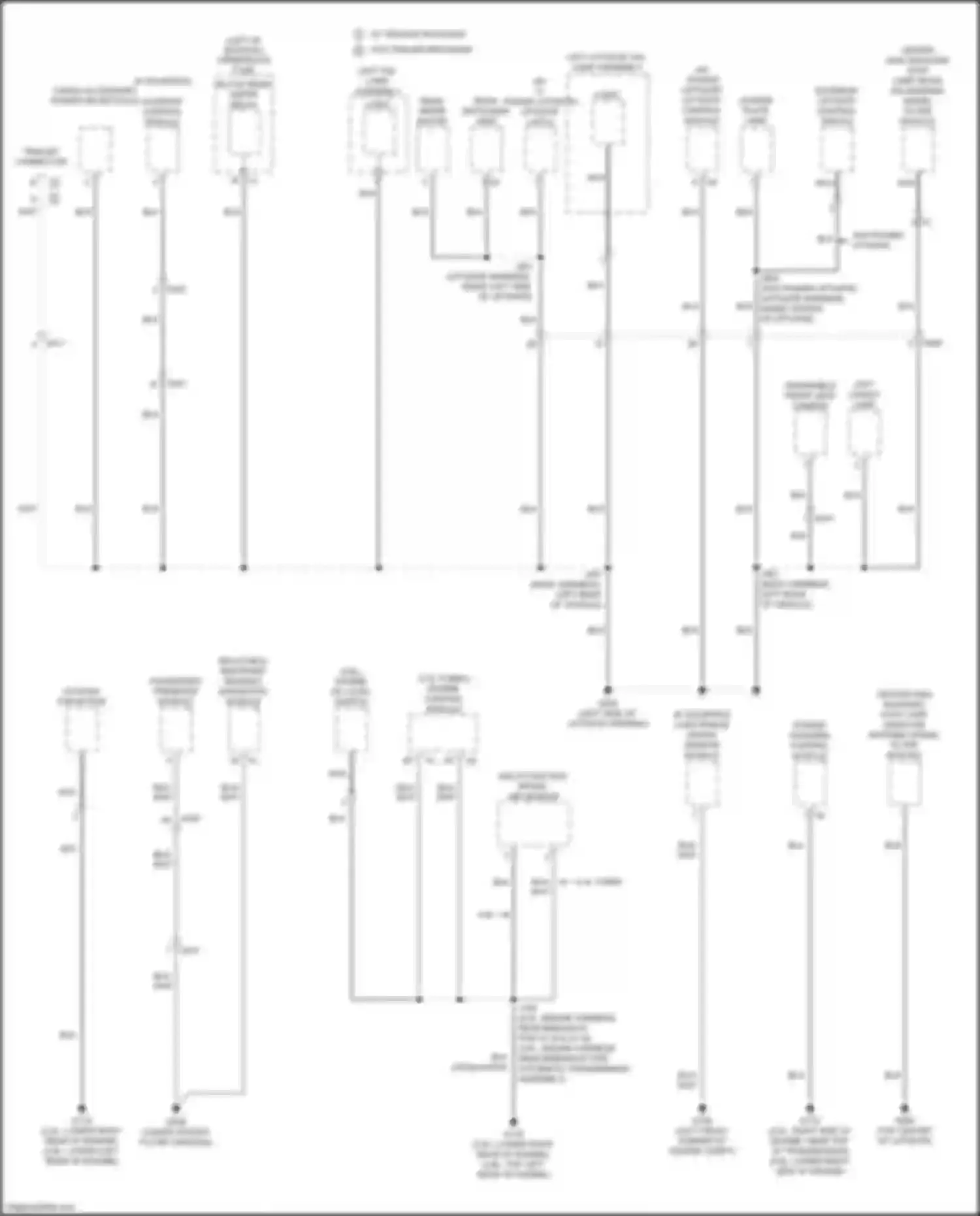

Wiring diagram underhood fuse block rear wiper relay (1 of 1)
2.0L TURBO
3.6L
BLK WIRE
CARGO ACCESSORY POWER RECEPTACLE
CENTER HIGH MOUNTED STOP LAMP RADIO AM ANTENNA SIGNAL FILTER MODULE
COOLING FAN MOTOR
ENGINE CONTROL MODULE
ENGINE OIL LEVEL SWITCH
EXTERIOR LIFTGATE CONTROL SWITCH
INFLATABLE RESTRAINT SENSING, DIAGNOSTIC MODULE
LEFT CARGO LAMP
LEFT LIFTGATE TAIL LAMP ASSEMBLY
LEFT OF BATTERY)
LEFT TAIL LAMP ASSEMBLY
LICENSE PLATE LAMP
LIFTGATE CONTROL MODULE
LIFTGATE LATCH
LOGIC
LONG RANGE RADAR SENSOR MODULE
MULTI-FUNCTION INTAKE AIR SENSOR
NCA WIRE
PASSENGER PRESENCE MODULE
POWER STEERING CONTROL MODULE
REAR DEFOGGER GRID
REAR WIPER MOTOR
SUNROOF CONTROL MODULE
TRAILER CONNECTOR
UNDERHOOD FUSE BLOCK REAR WIPER RELAY
W/ POWER LIFTGATE
W/ TRAILER PROVISION
W/O POWER LIFTGATE
W/O TRAILER PROVISION
WHT WIRE
WINDSHIELD FRONT VIEW CAMERA
Go to component -> Ground distribution circuit (6 of 6) -> UNDERHOOD FUSE BLOCK REAR WIPER RELAY
