Chevrolet Blazer III facelift (2022-2024) rearward ctrl Wiring diagram
This page shows the only wiring diagram for the component.rearward ctrl, which is found in the car Chevrolet Blazer III facelift (2022-2024). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

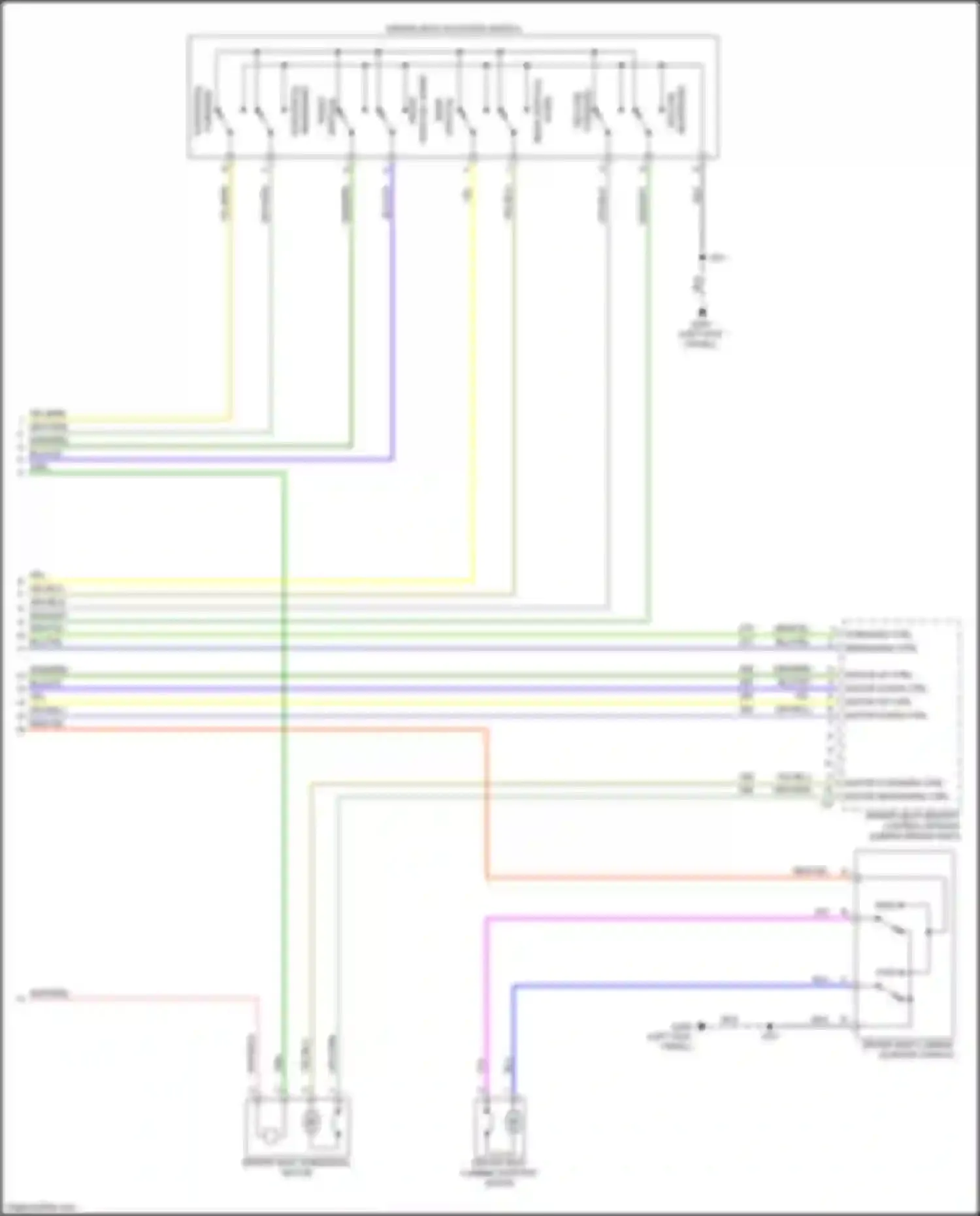

Wiring diagram rearward ctrl (1 of 1)
BLK WIRE
BLU WIRE
BLU/VIO WIRE
BLU/YEL WIRE
DOWN
DRIVER SEAT ADJUSTER SWITCH
DRIVER SEAT HORIZONTAL MOTOR
DRIVER SEAT LUMBAR SUPPORT MOTOR
DRIVER SEAT LUMBAR SUPPORT SWITCH
DRIVER SEAT MEMORY CONTROL MODULE
FORWARD CTRL
FORWARD/
FRONT
GRN WIRE
GRN/BRN WIRE
GRN/GRY WIRE
GRN/YEL WIRE
GRY/BLK WIRE
GRY/BLU WIRE
GRY/GRN WIRE
HORIZONTAL
MOTOR DOWN CTRL
MOTOR FORWARD CTRL
MOTOR REARWARD CTRL
MOTOR UP CTRL
REAR
REAR VERTICAL
REARWARD
REARWARD CTRL
RECLINE
RED/YEL WIRE
RWD
VERTICAL DOWN
VERTICAL UP
VIO WIRE
WHT/RED WIRE
YEL WIRE
YEL/BLU WIRE
YEL/BRN WIRE
Go to component -> Driver"s memory seat circuit (2 of 2) -> REARWARD CTRL
