Chevrolet Beretta I (1987-1996) daytime rear running lts defogger module control, wiper/ washer sw Wiring diagram
This page shows the only wiring diagram for the component.daytime rear running lts defogger module control, wiper/ washer sw, which is found in the car Chevrolet Beretta I (1987-1996). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

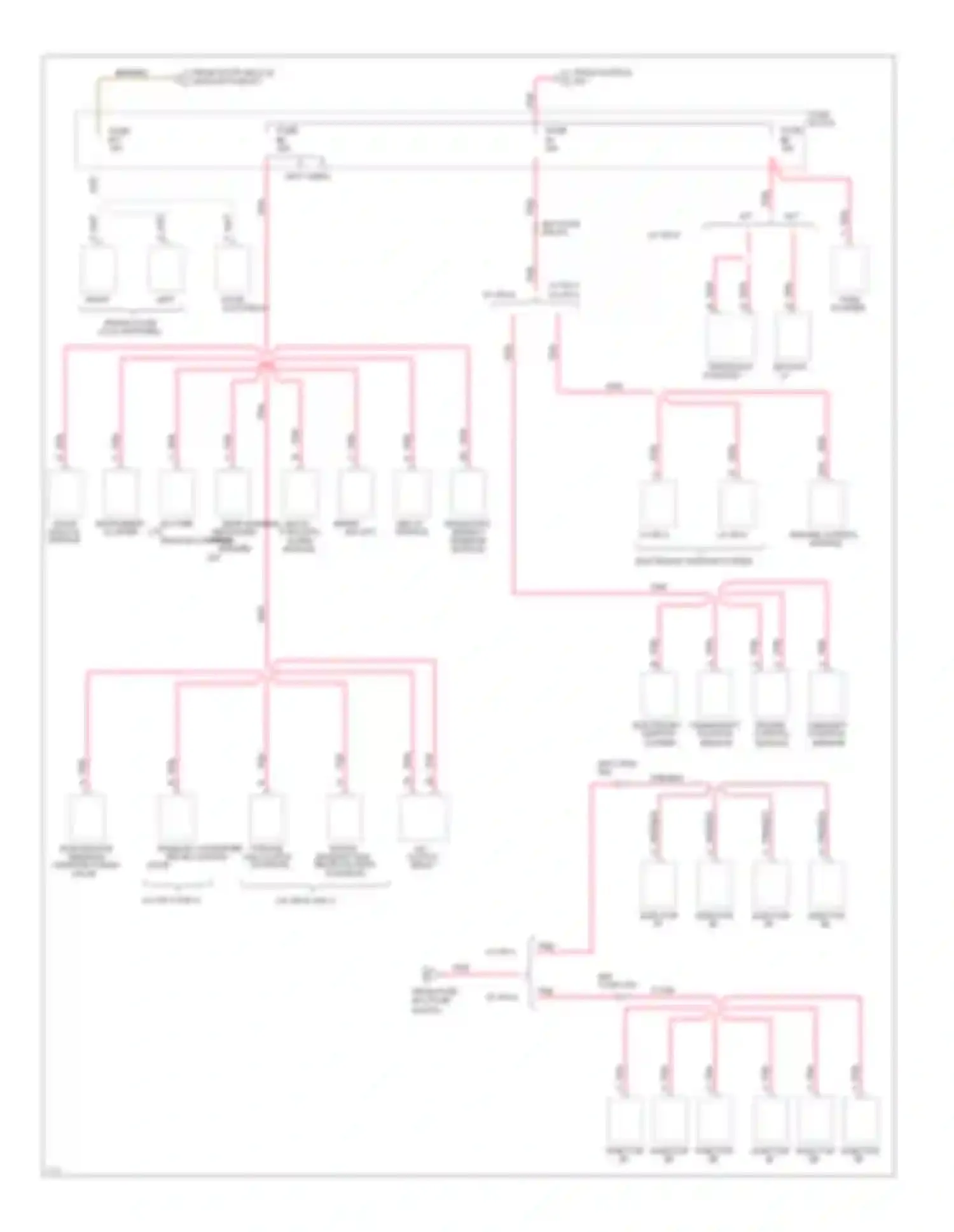

Wiring diagram daytime rear running lts defogger module control, wiper/ washer sw (1 of 1)
A/C CLUTCH RELAY
A/T
ABS LP MODULE
B/H CONN
B/H CONN PIN A
B/H CONN PIN D PNK PNK WIRE
BACK/UP LT SW
BRAKE SW (A/T)
BRN/BLK WIRE
CAMSHAFT ENGINE POSITION CONTROL MODULE SENSOR
CRANKSHAFT ELECTRONIC POSITION IGNITION SYSTEM SENSOR
DAYTIME REAR RUNNING LTS DEFOGGER MODULE CONTROL, WIPER/ WASHER SW
DIAGNOSTIC ENERGY RESERVE MODULE
DIGITAL
ELECTRONIC IGNITION SYSTEM
ENGINE CONTROL MODULE
EVAPORATIVE EMISSION CANISTER PURGE VALVE
EXHAUST GAS RECIRCULATION SOLENOID
FROM DOOR UNLOCK MODULE FUSE #11
FROM FUSE #16 (FUSE BLOCK)
FROM IGNITION SW
FRONT DOOR LOCK SWITCHES
FUSE 1
FUSE 17
FUSE 5
FUSE 9
FUSE BLOCK
INJECTOR INJECTOR #1 #2
INJECTOR INJECTOR #3 #4
INJECTOR INJECTOR INJECTOR #1 #3 #5
INJECTOR INJECTOR INJECTOR #6 #2 #4
INSTRUMENT DOOR CLUSTER UNLOCK MODULE
LEFT DOOR LOCK RELAY
M/T
MULTI-FUNCTION ALARM MODULE
PNK WIRE
PNK/BLK WIRE
RIGHT
TORQUE EXHAUST CONVERTER GAS CLUTCH RECIRCULATION SOLENOID VALVE
TRANSAXLE POSITION SW
TURN FLASHER
WHT WIRE
Go to component -> Power distribution circuit (3 of 3) -> DAYTIME REAR RUNNING LTS DEFOGGER MODULE CONTROL, WIPER/ WASHER SW
