Car Wiring Diagrams for Charging circuit for Chevrolet Aveo I facelift (2006-2012)

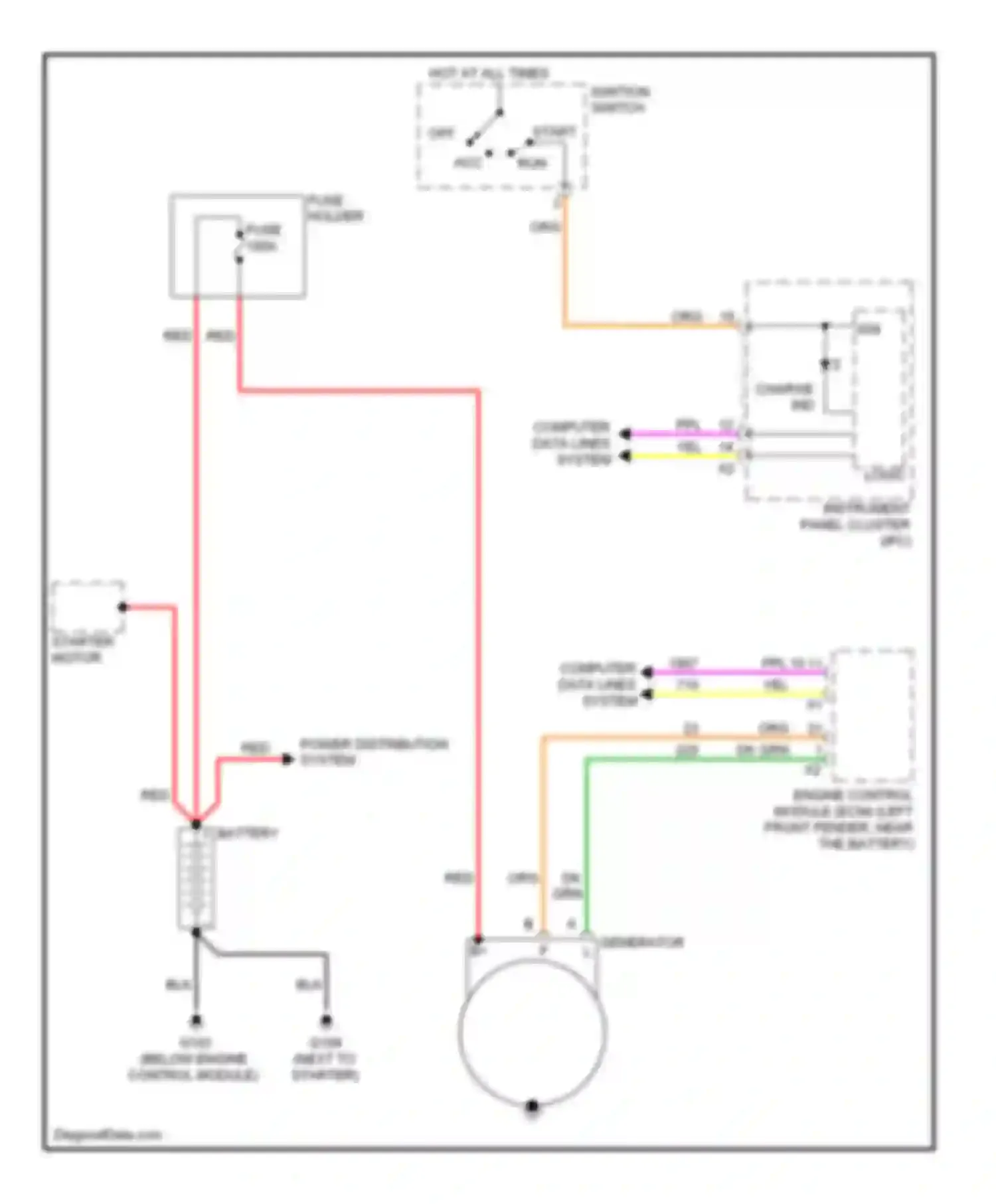

12 14 PPL BATTERY BLK WIRE CHARGE IND COMPUTER DATA LINES SYSTEM DK GRN WIRE ENGINE CONTROL MODULE (ECM) (LEFT FRONT FENDER, NEAR THE BATTERY) FUSE FUSE HOLDER GENERATOR GRN WIRE HOT AT ALL TIMES IGN IGNITION SWITCH INSTRUMENT PANEL CLUSTER (IPC) LOGIC OFF ORG/ WIRE POWER DISTRIBUTION SYSTEM PPL 10 11 RED WIRE RUN WIRE STARTER MOTOR YEL WIRE
