Cadillac XT4 I (2018-2023) w/ deluxe interior lamp package Wiring diagram
This page shows the only wiring diagram for the component.w/ deluxe interior lamp package, which is found in the car Cadillac XT4 I (2018-2023). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

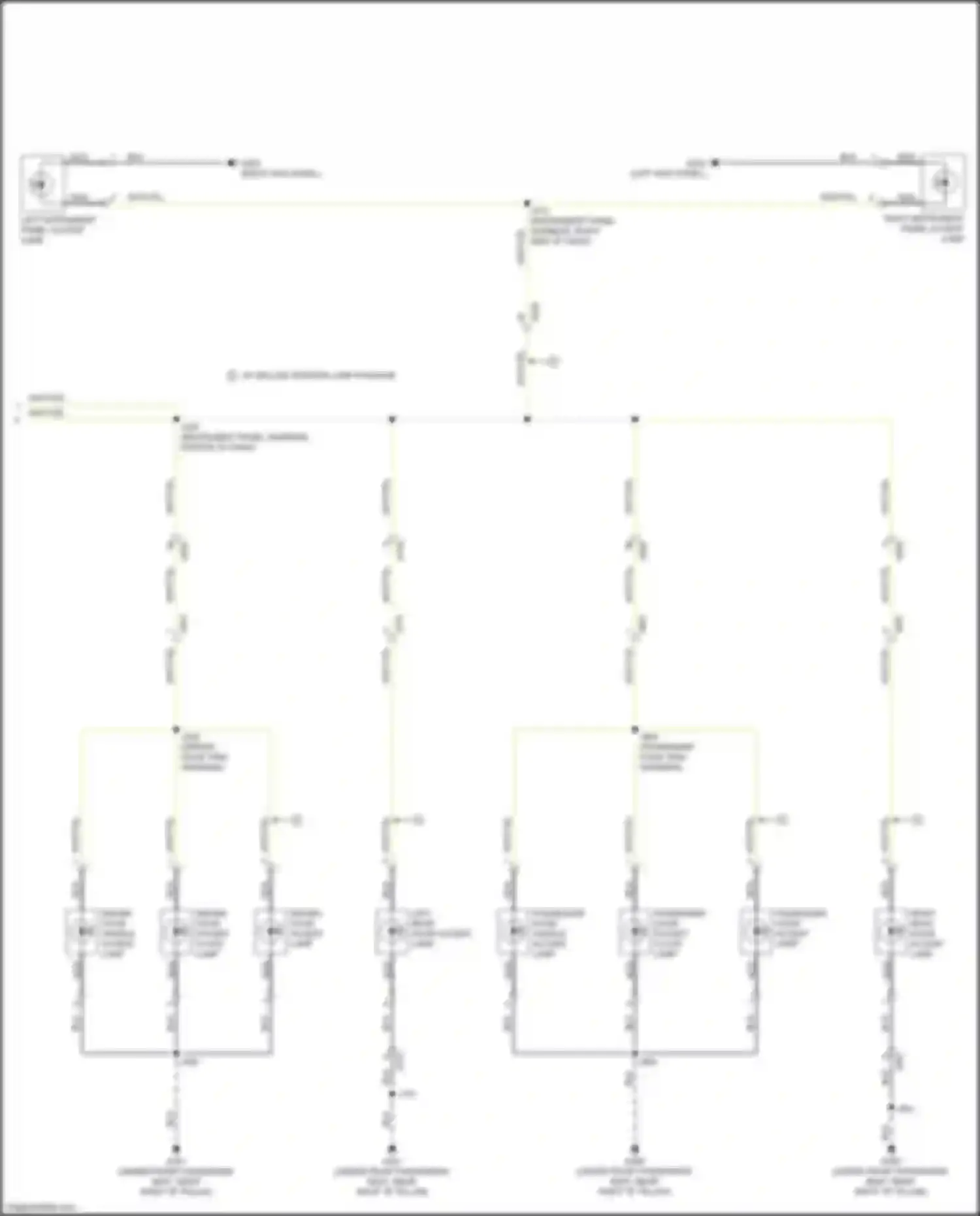

Wiring diagram w/ deluxe interior lamp package (1 of 1)
BLK WIRE
DRIVER DOOR ACCENT LAMP
DRIVER DOOR HANDLE ACCENT LAMP
DRIVER DOOR POCKET FLOOD LAMP
LEFT INSTRUMENT PANEL ACCENT LAMP
LEFT REAR DOOR ACCENT LAMP
NCA WIRE
PASSENGER DOOR ACCENT LAMP
PASSENGER DOOR HANDLE ACCENT LAMP
PASSENGER DOOR POCKET FLOOD LAMP
RIGHT INSTRUMENT PANEL ACCENT LAMP
RIGHT REAR DOOR ACCENT LAMP
W/ DELUXE INTERIOR LAMP PACKAGE
WHT/YEL WIRE
Go to component -> Courtesy lamps circuit (4 of 4) -> W/ DELUXE INTERIOR LAMP PACKAGE
