Cadillac SRX II (2009-2012) center high liftgate mounted courtesy stop lamp lamp Wiring diagram
This page shows the only wiring diagram for the component.center high liftgate mounted courtesy stop lamp lamp, which is found in the car Cadillac SRX II (2009-2012). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

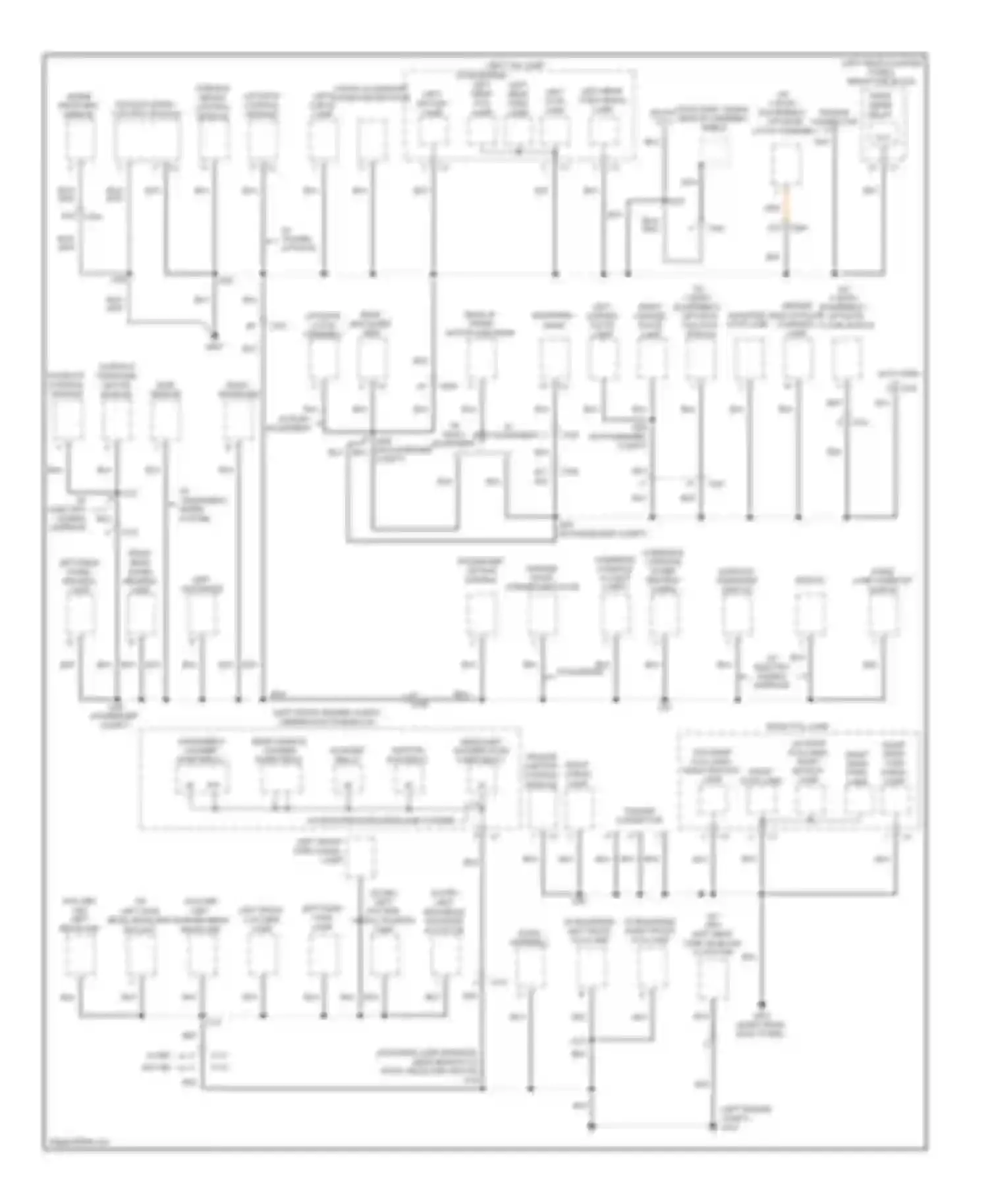

Wiring diagram center high liftgate mounted courtesy stop lamp lamp (1 of 1)
BLK WIRE
BLUNT CUT)
CARGO ACCESSORY POWER RECEPTACLE
CENTER HIGH LIFTGATE MOUNTED COURTESY STOP LAMP LAMP
DOME LAMP SUNROOF SWITCH SWITCH
FULE PUMP, SIGNAL SENSOR ASSEMBLY SHIELD
IGNITION STARTER RUN RELAY RELAY
INSIDE REARVIEW MIRROR
KEYLESS ENTRY CONTROL MODULE
LEFT BACKUP LAMP
LEFT CARGO LAMP
LEFT FRONT TURN SIGNAL LAMP
LEFT LICENSE PLATE LAMP
LEFT REAR DOME/ READING LAMP
LEFT REAR TURN SIGNAL LAMP
LEFT SUNSHADE
LIFTGATE CONTROL MODULE
LIFTGATE LATCH ASSEMBLY
NCA WIRE
ORG/ WIRE
OVERHEAD CONSOLE ACCENT LAMPS
OVERHEAD CONSOLE DOME/ READING LAMPS
PARKING BRAKE CONTROL MODULE
PASSENGER GARAGE AIR BAG DOOR DISABLE OPENER INDICATOR
REAR (IF EQUIPPED) WIPER AUDIO MOTOR AMPLIFIER
REAR DEFOGGER GRID
REAR WINDOW WASHER PUMP RELAY
REAR WIPER RELAY
RIGHT LICENSE PLATE LAMP
RIGHT REAR DOME/ READING LAMP
RIGHT SUNSHADE
RIGHT TAIL LAMP
SUNROOF CONTROL MODULE
SUNROOF SUNSHADE MOTOR RAIN MODULE SENSOR
SUNROOF SUNSHADE SWITCH
TRAILER CONNECTOR
W/ BODY EQUIPMENT
W/ ELECTRIC SLIDING SUNROOF
W/ HID W/O HID
W/ HIGH PRESSURE HEADLAMP WASHER
W/ POWER LIFTGATE
W/ W/O BODY BODY EQUIPMENT EQUIPMENT
W/ WINDSHIELD WIPER SYSTEM
WHT WIRE
WINDSHIELD WASHER PUMP RELAY
Go to component -> Ground distribution circuit (2 of 4) -> CENTER HIGH LIFTGATE MOUNTED COURTESY STOP LAMP LAMP
