Cadillac SRX I (2003-2009) rear auxiliary blower motor switch Wiring diagrams
This page contains all the electrical diagrams for the component. rear auxiliary blower motor switch, in which he is found in the car Cadillac SRX I (2003-2009). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

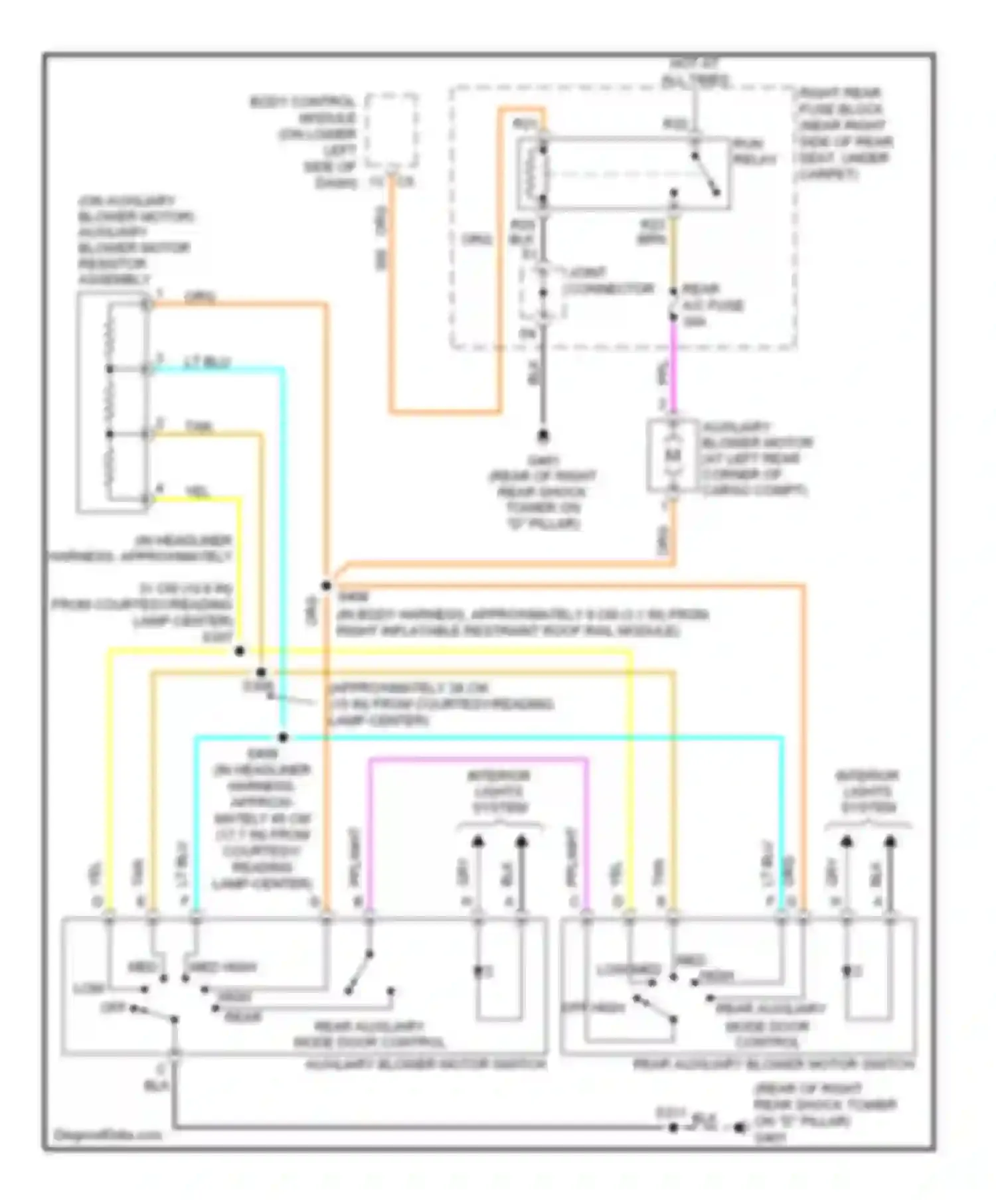

rear auxiliary blower motor switch wiring diagram (1 of 2)
31 CM (10.6 IN) FROM COURTESY/READING LAMP-CENTER)
AUXILIARY BLOWER MOTOR (AT LEFT REAR CORNER OF CARGO COMPT)
AUXILIARY BLOWER MOTOR SWITCH
BLK WIRE
BODY CONTROL MODULE (ON LOWER LEFT SIDE OF DASH)
BRN WIRE
GRY WIRE
HIGH REAR
HOT AT ALL TIMES
JOINT CONNECTOR
LOW OFF
LT BLU WIRE
MED
MED HIGH
MED LOW MED HIGH
OFF HIGH REAR AUXILIARY MODE DOOR CONTROL
ORG/ WIRE
PPL
PPL/WHT WIRE
REAR A/C FUSE
REAR AUXILIARY BLOWER MOTOR SWITCH
REAR AUXILIARY MODE DOOR CONTROL
RELAY CARPET)
RIGHT REAR FUSE BLOCK (NEAR RIGHT SIDE OF REAR SEAT, UNDER
RUN WIRE
TAN WIRE
YEL WIRE
Go to component -> Auxiliary blower circuit -> REAR AUXILIARY BLOWER MOTOR SWITCH
rear auxiliary blower motor switch wiring diagram (2 of 2)
AIR QUALITY SENSOR (AQS) RIGHT COOLING FAN HORN ASSEMBLY
AUTOMATIC LEVEL CONTROL (ALC) COMPRESSOR
BLK WIRE
CENTER COURTESY/ READING LAMP REAR COURTESY/ READING LAMP
ELECTRONIC SUSPENSION CONTROL (ESC) MODULE
FAN S/P RELAY
FRONT COURTESY/ READING LAMP
FRONT HEADLAMP LEVELING SENSOR
FUEL PUMP RELAY IGN MAIN RELAY HEADLAMP WASH RELAY
FUEL PUMP, SENDER ASSEMBLY
GRN WIRE
IF EQUIPPED (IN SUNROOF HARNESS, APPROXIMATELY 15 CM (5.9 IN)
INSIDE REAR VIEW MIRROR (ISRVM)
JOINT CONNECTOR
LCK RELAY
LEFT FRONT HIGH BEAM LEFT PARK LAMP
LEFT FRONT LOW BEAM LEFT FRONT MARKER LAMP LEFT PARK LAMP
LEFT FRONT TURN SIGNAL LAMP RIGHT FRONT TURN SIGNAL LAMP RIGHT FRONT FOG LAMP
LEFT SUNSHADE
MECHANICAL CONTENT
REAR AUXILIARY BLOWER MOTOR SWITCH
REAR AUXILIARY POWER OUTLET
REAR BODY CONTROL MODULE (RBCM)
REAR DEFOG RELAY
REAR SEAT MODULE
REAR WASH RELAY LEFT FRONT FOG LAMP STARTER RELAY
REAR WIPER/ WASHER SWITCH
RELAY
REMOTE CONTROL DOOR LOCK RECEIVER (RCDLR)
RIGHT FRONT HIGH BEAM
RIGHT FRONT MARKER LAMP RIGHT FRONT LOW BEAM RIGHT PARK LAMP
RIGHT PARK LAMP
RIGHT SUNSHADE
RIGHT TAIL LAMP ASSEMBLY
RUN WIRE
SPARE RELAY
SUNROOF CONTROL MODULE
THEFT DETERRENT ALARM
UNLOCK RELAY
VENT FORCED AIR
W/ 5-BAND, DIGITAL AUDIO
W/ AUTO RECIRCU- LATING AIR FILTER
W/ AUTOMATIC HEADLAMP CONTROL LEVELING SYSTEM
W/ CHASSIS CONTINUOUSLY VARIABLE REAL TIME DAMPING MAGNETO RHEOLOGICAL
W/ HID W/ HID, AUTOMATIC HEADLAMP CONTROL LEVELING SYSTEM
W/ REAR SEAT FLEXIBLE CONFIGU- RATION
W/ THEFT DETERRENT SYSTEM, THATCHAM ELECTRICAL
W/ THEFT DETERRENT SYSTEM, THATCHAM ELECTRICAL, MECHANICAL CONTENT
W/ TRAILER PROVISIONS
W/O HID, AUTOMATIC HEADLAMP CONTROL LEVELING SYSTEM
WHT WIRE
Go to component -> Ground distribution circuit (2 of 4) -> REAR AUXILIARY BLOWER MOTOR SWITCH
