Cadillac SRX I (2003-2009) off high rear auxiliary mode door control Wiring diagram
This page shows the only wiring diagram for the component.off high rear auxiliary mode door control, which is found in the car Cadillac SRX I (2003-2009). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

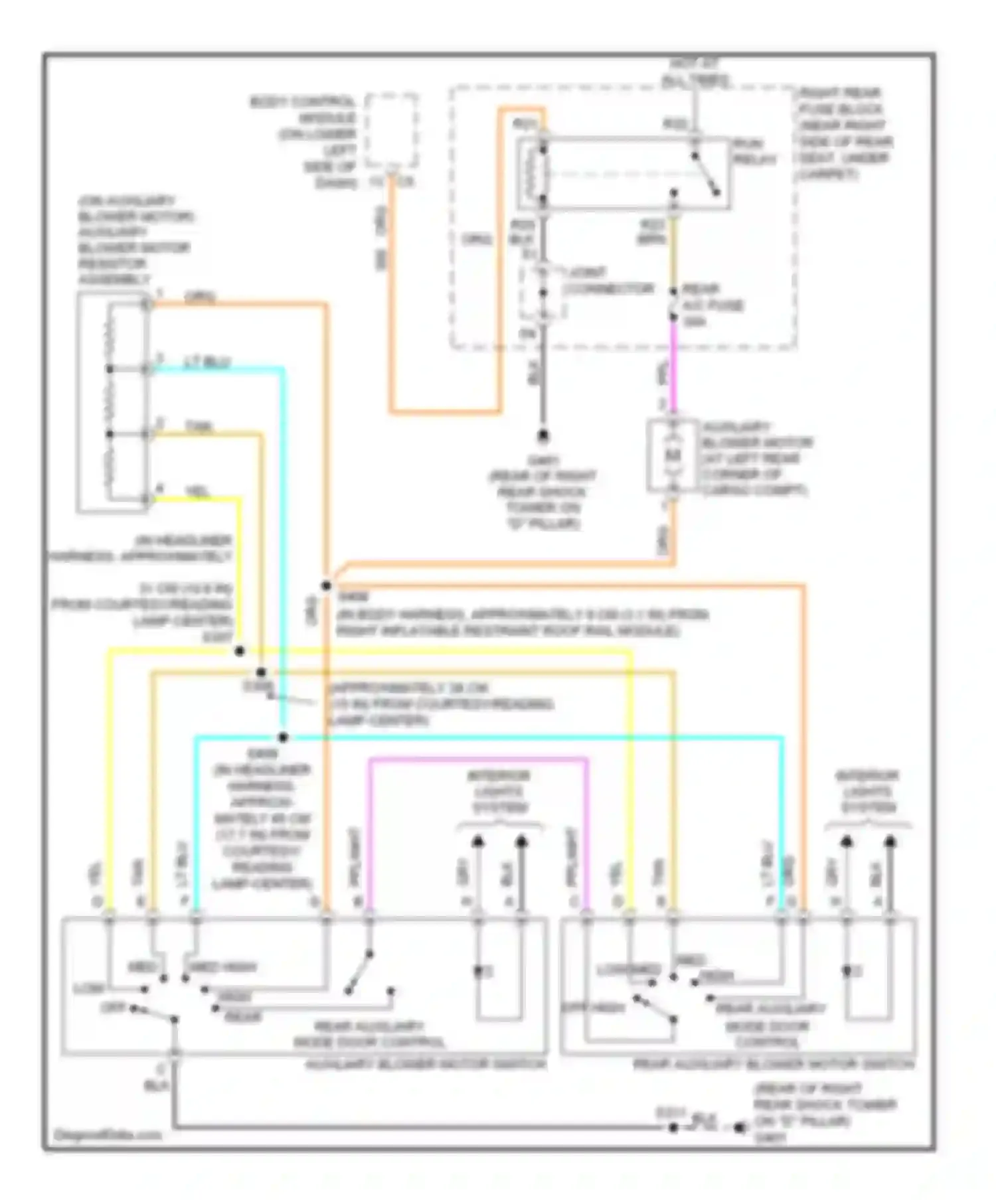

Wiring diagram off high rear auxiliary mode door control (1 of 1)
31 CM (10.6 IN) FROM COURTESY/READING LAMP-CENTER)
AUXILIARY BLOWER MOTOR (AT LEFT REAR CORNER OF CARGO COMPT)
AUXILIARY BLOWER MOTOR SWITCH
BLK WIRE
BODY CONTROL MODULE (ON LOWER LEFT SIDE OF DASH)
BRN WIRE
GRY WIRE
HIGH REAR
HOT AT ALL TIMES
JOINT CONNECTOR
LOW OFF
LT BLU WIRE
MED
MED HIGH
MED LOW MED HIGH
OFF HIGH REAR AUXILIARY MODE DOOR CONTROL
ORG/ WIRE
PPL
PPL/WHT WIRE
REAR A/C FUSE
REAR AUXILIARY BLOWER MOTOR SWITCH
REAR AUXILIARY MODE DOOR CONTROL
RELAY CARPET)
RIGHT REAR FUSE BLOCK (NEAR RIGHT SIDE OF REAR SEAT, UNDER
RUN WIRE
TAN WIRE
YEL WIRE
Go to component -> Auxiliary blower circuit -> OFF HIGH REAR AUXILIARY MODE DOOR CONTROL
