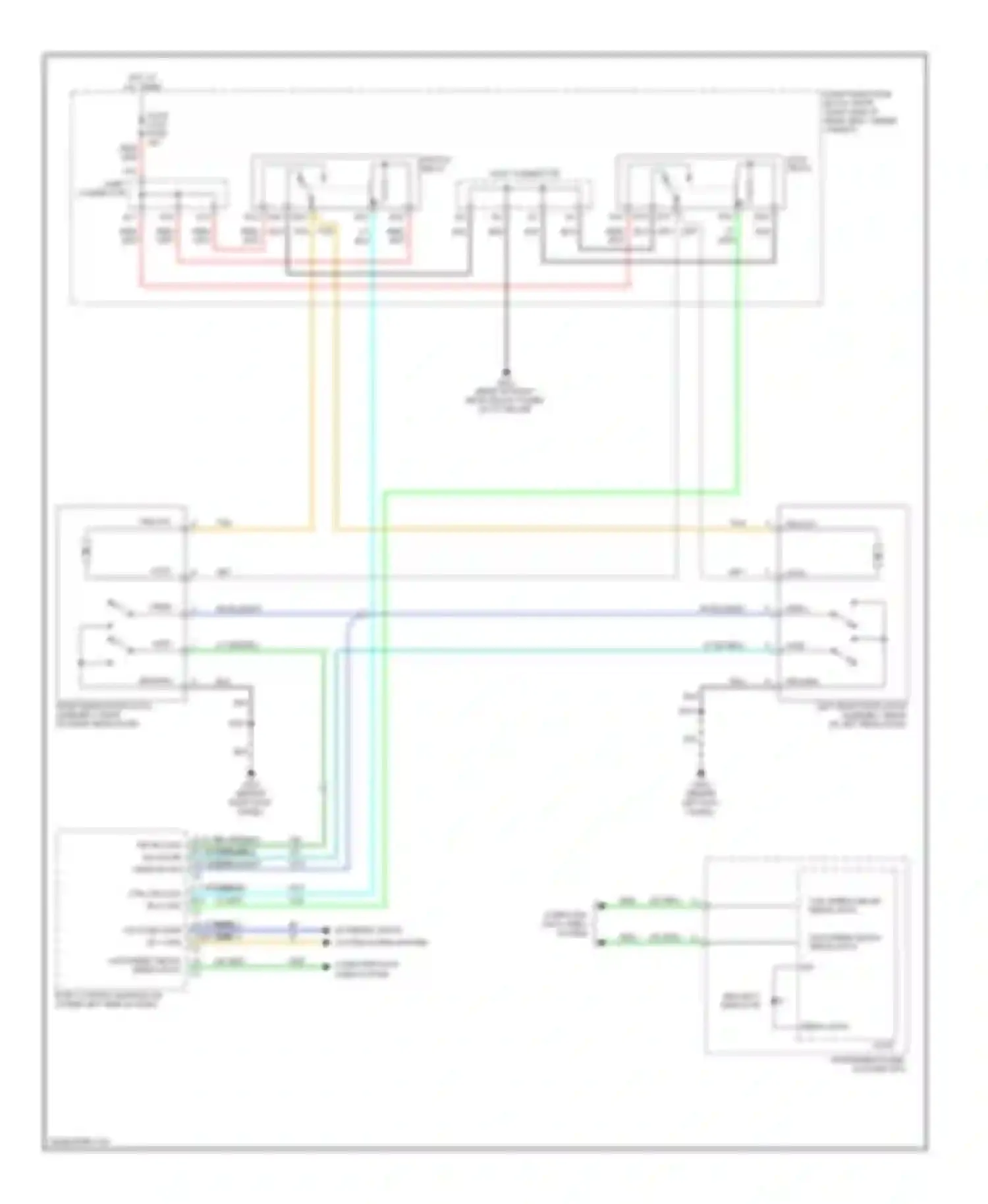

Cadillac SRX I (2003-2009) 14 15 16 rt rr dr ajar sw sig lt rr dr ajar sw sig dr open sw sig Wiring diagram

14 15 16 RT RR DR AJAR SW SIG LT RR DR AJAR SW SIG DR OPEN SW SIG 24 18 PARK LAMP SUPPLY VOLTAGE HORN RLY CTRL 9 7 DR UNLOCK RLY CTRL DR LOCK RLY CTRL AJAR BLK WIRE BLU WIRE BODY CONTROL MODULE (ON LOWER LEFT SIDE OF DASH) COMPUTER DATA LINES SYSTEM DK BLU WIRE DK BLU/WHT WIRE DK GRN WIRE DK GRN/BLK WIRE DOOR LOCK FUSE EXTERIOR LIGHTS SYSTEM HORNS SYSTEM GRN WIRE GROUND GRY WIRE HOT AT ALL TIMES IGN INSTRUMENT PANEL CLUSTER (IPC) JOINT CONNECTOR LEFT REAR DOOR LATCH ASSEMBLY (REAR OF LEFT REAR DOOR) LOCK LOCK RELAY LOGIC LOW SPEED GMLAN SERIAL DATA LT BLU WIRE LT BLU/BLK WIRE LT GRN WIRE LT GRN/BLK WIRE RED WIRE RIGHT REAR DOOR LATCH ASSEMBLY (REAR OF RIGHT REAR DOOR) RIGHT REAR FUSE BLOCK (NEAR RIGHT SIDE OF REAR SEAT, UNDER CARPET) SECURITY INDICATOR SERIAL DATA TAN WIRE UNLOCK UNLOCK RELAY WHT WIRE
