Cadillac Lyriq I (2022-2024) hybrid/ electric vehicle battery pack communication module Wiring diagram
This page shows the only wiring diagram for the component.hybrid/ electric vehicle battery pack communication module, which is found in the car Cadillac Lyriq I (2022-2024). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

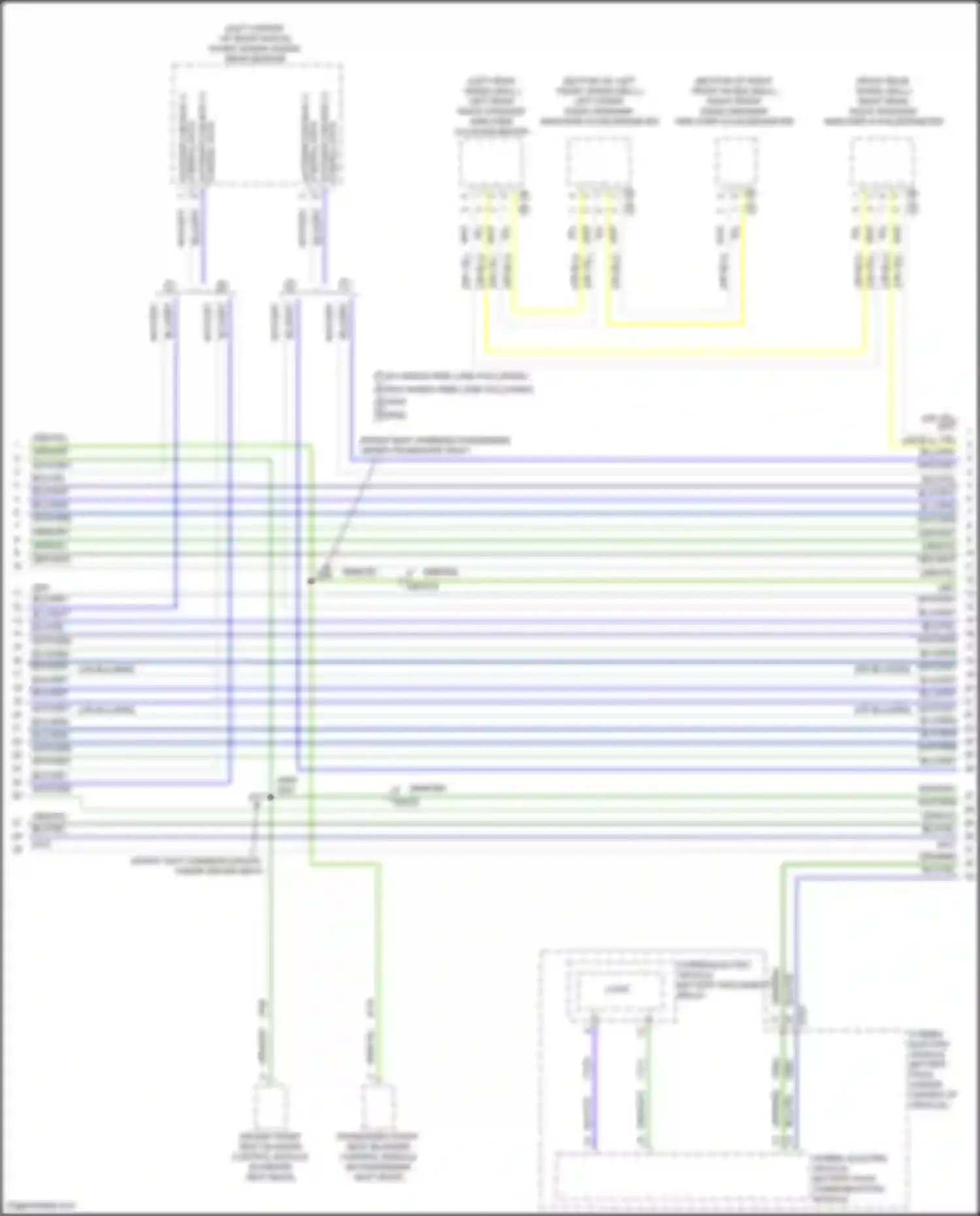

Wiring diagram hybrid/ electric vehicle battery pack communication module (1 of 1)
AUTOSAR CAN BUS
BLU/GRN WIRE
BLU/GRY WIRE
BLU/VIO WIRE
BLU/WHT WIRE
BLU/YEL WIRE
DRIVER FRONT SEAT BLADDER CONTROL MODULE
GRN WIRE
GRN/BRN WIRE
GRN/GRY WIRE
GRN/VIO WIRE
GRN/WHT WIRE
GRN/YEL WIRE
GRY WIRE
GRY/WHT WIRE
HYBRID/ ELECTRIC VEHICLE BATTERY PACK
HYBRID/ ELECTRIC VEHICLE BATTERY PACK COMMUNICATION MODULE
HYBRID/ELECTRIC VEHICLE BATTERY DISCONNECT RELAY
LEFT FRONT RADIO SPEAKER AMPLIFIER ACCELEROMETER
LEFT REAR RADIO SPEAKER AMPLIFIER ACCELEROMETER
LOGIC
PASSENGER FRONT SEAT BLADDER CONTROL MODULE
RIGHT FRONT RADIO SPEAKER AMPLIFIER ACCELEROMETER
RIGHT REAR RADIO SPEAKER AMPLIFIER ACCELEROMETER
RWD
SHORT RANGE RADAR REAR SENSOR
W/ HANDS FREE LANE FOLLOWING
W/O HANDS FREE LANE FOLLOWING
WHT WIRE
WHT/GRN WIRE
WHT/GRY WIRE
YEL WIRE
Go to component -> Computer data lines circuit (5 of 12) -> HYBRID/ ELECTRIC VEHICLE BATTERY PACK COMMUNICATION MODULE
