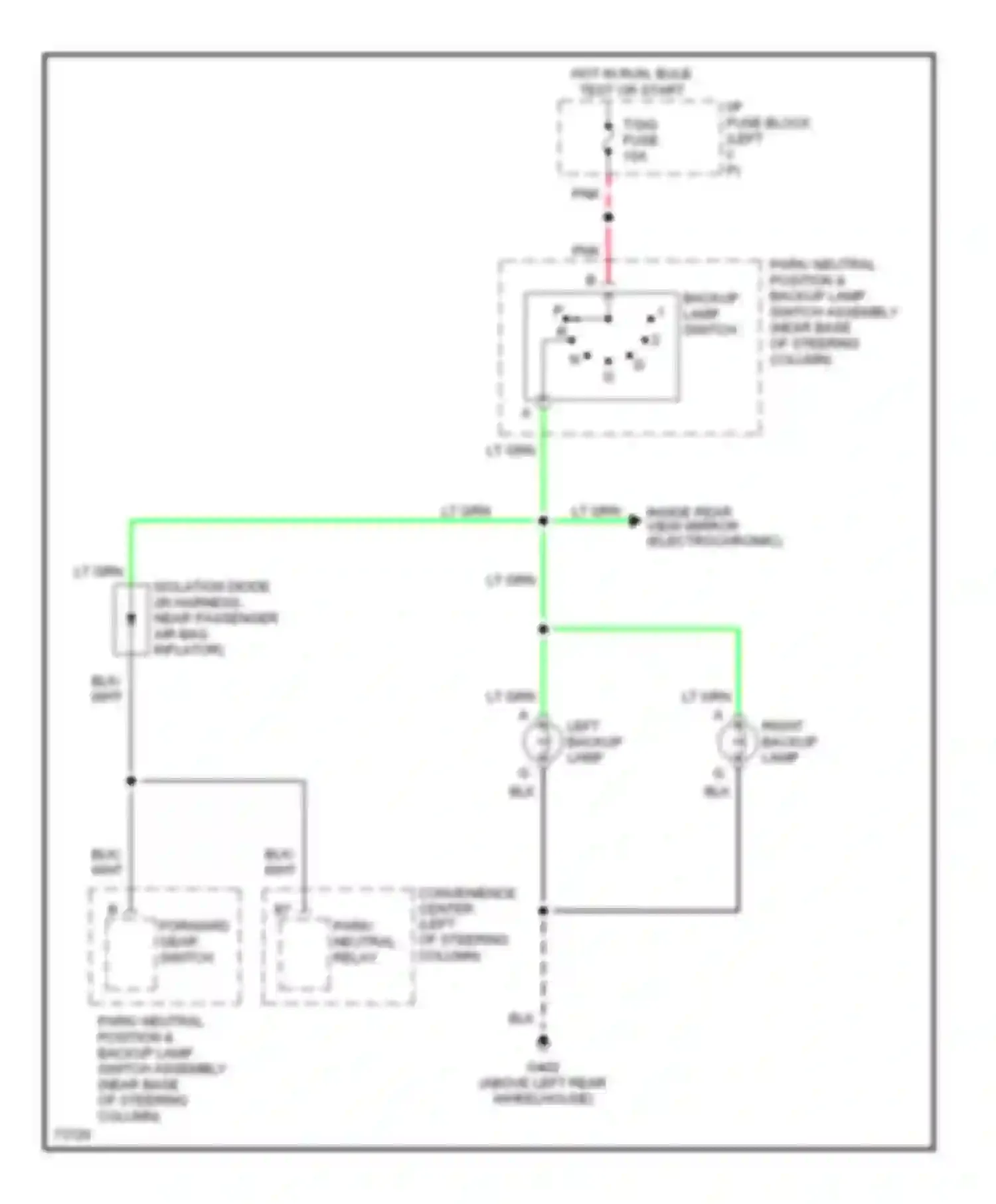

Back-up lamps circuit for Cadillac Fleetwood II (1993-1996)
Back-up lamps circuit
BACKUP LAMP SWITCH
BLK WIRE
CONVENIENCE CENTER (LEFT OF STEERING COLUMN)
FORWARD GEAR SWITCH
HOT IN RUN, BULB TEST OR START
I/P FUSE BLOCK (LEFT I/P)
INSIDE REAR VIEW MIRROR (ELECTROCHROMIC)
ISOLATION DIODE (IN HARNESS, NEAR PASSENGER AIR BAG INFLATOR)
LEFT BACKUP LAMP
LT GRN WIRE
PARK/ NEUTRAL RELAY
PNK WIRE
RIGHT BACKUP LAMP
T/SIG FUSE
WHT WIRE
