Cadillac DTS I (2005-2011) pnk vent express open sig Wiring diagram
This page shows the only wiring diagram for the component.pnk vent express open sig, which is found in the car Cadillac DTS I (2005-2011). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

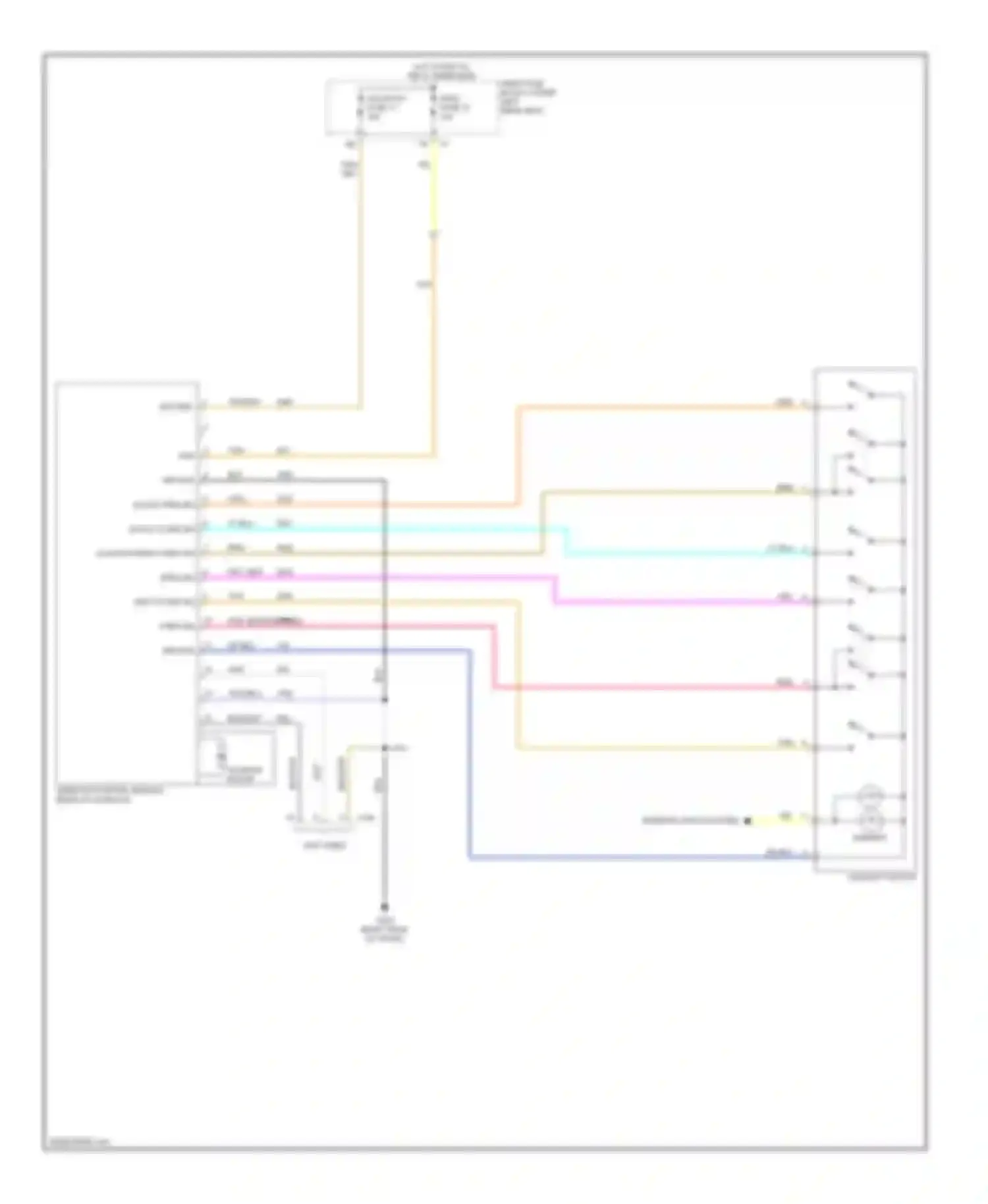

Wiring diagram pnk vent express open sig (1 of 1)
BATTERY
BLK WIRE
BLK/WHT WIRE
BRN WIRE
BRN/WHT WIRE
DIMMING
DK BLU WIRE
FUSE 33
GLASS CLOSE SIG
GLASS EXPRESS OPEN SIG
GLASS OPEN SIG
GROUND
GRY WIRE
HOT W/ RAP-HC RELAY ENERGIZED
LT BLU WIRE
ORG/ WIRE
PNK VENT EXPRESS OPEN SIG WIRE
PNK WIRE
PPL
PPL VENT OPEN SIG
RAP
REAR FUSE BLOCK (UNDER LEFT REAR SEAT)
SUN ROOF FUSE 17
SUNROOF CONTROL MODULE (REAR OF SUNROOF)
SUNROOF MOTOR
SUNROOF SWITCH
TAN WIRE
TAN/GRY WIRE
VENT CLOSE SIG
WHT WIRE
WHT/BLU WIRE
YEL WIRE
Go to component -> Power top/sunroof circuit -> PNK VENT EXPRESS OPEN SIG WIRE
