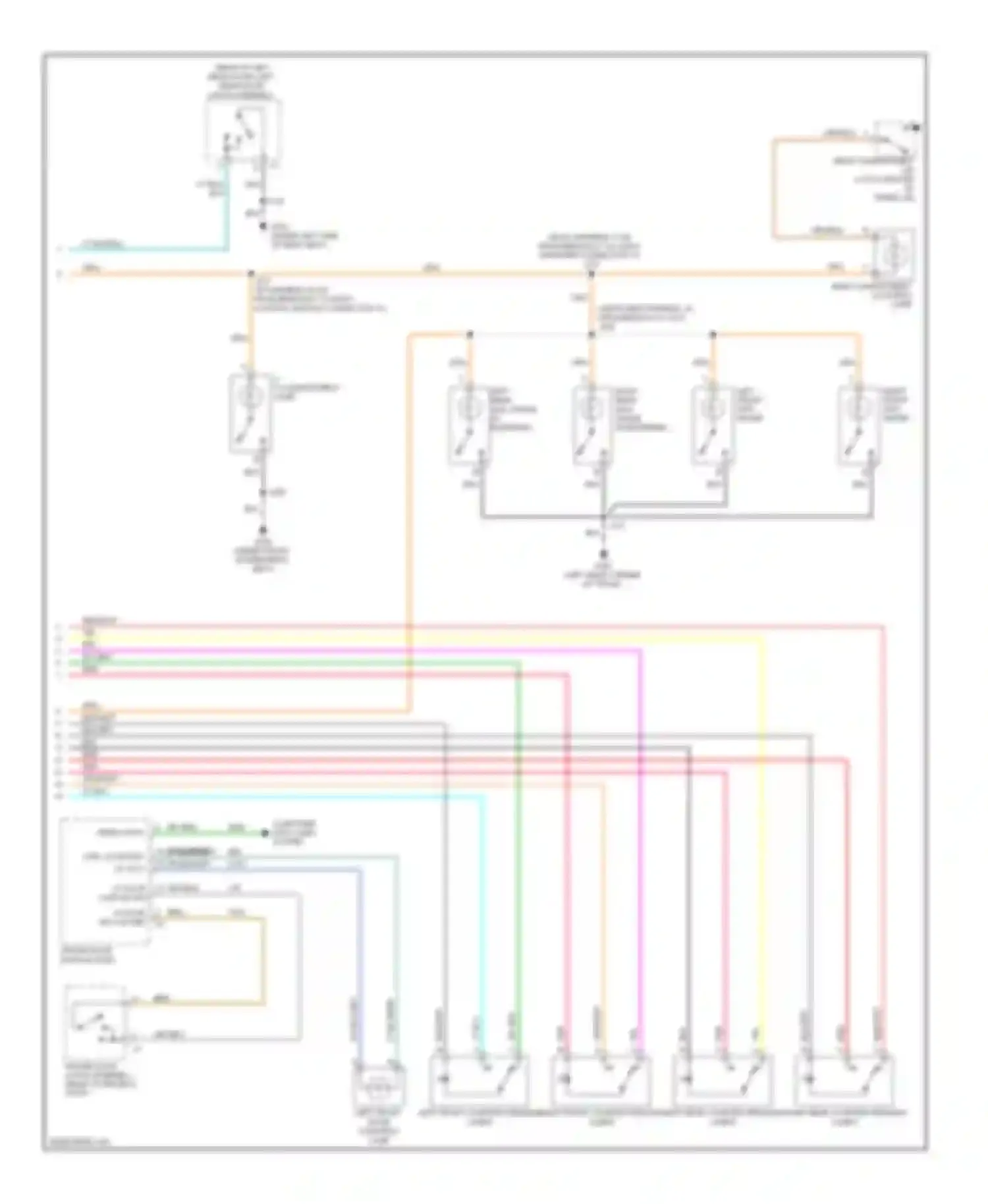

Cadillac DTS I (2005-2011) left rear courtesy/reading lamps Wiring diagram

15 10 COURTESY LP CTRL COURTESY LP VOLT BLK WIRE BLK/GRY WIRE BLK/WHT WIRE BRN WIRE COMPUTER DATA LINES SYSTEM DK BLU/GRY WIRE DK GRN WIRE DRIVER DOOR LATCH ASSEMBLY (REAR OF DRIVER'S DOOR) DRIVER DOOR MODULE (DDM) GRY/BLK WIRE I/P COMPARTMENT LAMP LEFT FRONT COURTESY/READING LAMPS LEFT FRONT DOOR COURTESY LAMP LEFT FRONT SUN- SHADE LEFT REAR COURTESY/READING LAMPS LEFT REAR SUN- SHADE (IF EQUIPPED) LF DOOR AJAR SW SIG LF DOOR SW LOW REF LT BLU WIRE LT BLU/BLK WIRE LT BLU/RED WIRE ORG/ WIRE ORG/BLK WIRE ORG/WHT WIRE PNK WIRE PPL REAR COMPARTMENT COURTESY LAMP REAR COMPARTMENT LID LATCH (CENTER OF TRUNK LID) RED WIRE RED/WHT WIRE RIGHT FRONT COURTESY/READING LAMPS RIGHT FRONT SUN- SHADE RIGHT REAR COURTESY/READING LAMPS RIGHT REAR SUN- SHADE (IF EQUIPPED) SERIAL DATA YEL WIRE
