Cadillac CTS II (2007-2014) drl rt fuse Wiring diagrams
This page contains all the electrical diagrams for the component. drl rt fuse, in which he is found in the car Cadillac CTS II (2007-2014). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram drl rt fuse (1 of 2)
11 12 1137 103 LIGHT SENSOR SIG HDLMPS ON
16 11 23 RLY CTRL RLY, IND CTRL DRL SPLY VOLT
23 16 1970 233 HDLP RLY CTRL PARK BRAKE SW SIG
AMBIENT LIGHT/ SUNLOAD SENSOR (TOP CENTER OF DASH)
BALLAST
BLK WIRE
BLK/WHT WIRE
BODY CONTROL MODULE (BCM) (CENTER OF DASH,
BRN WIRE
COMPUTER DATA LINES SYSTEM
DK BLU WIRE
DK GRN WIRE
DK GRN/WHT WIRE
DRL
DRL LO BEAM RELAY
DRL RT FUSE
DRL/LT LO BEAM FUSE
FOG
FOG LAMPS INDICATOR
FOR REAR HEADLIGHT LEVELING SENSOR)
FRONT FOG LAMP RELAY
FRT FOG FUSE
GMLAN SERIAL DATA
HEAD
HI BEAM RELAY
HIGH BEAM INDICATOR
HIGH BEAM SOLENOID
HIGH BEAM SOLENOID BALLAST
HOT AT ALL TIMES
HVAC CONTROL MODULE (CENTER OF DASH)
INSTRUMENT PANEL CLUSTER (IPC)
LEFT DAYTIME RUNNING LAMP,
LEFT FRONT FOG LAMP
LEFT FRONT STRUT TOWER)
LEFT HEADLAMP ASSEMBLY
LINES SYSTEM COMPUTER DATA
LO REF
LOGIC
LT DRL RELAY
LT GRN/BLK WIRE
LT HI BEAM FUSE
OFF AUTO PARK
ORG/ WIRE
ORG/BLK WIRE
PARK BRAKE SWITCH (ON PARK BRAKE ASSEMBLY)
PNK/WHT WIRE
PPL
PPL LOW BEAM SPLY VOLT
RIGHT DAYTIME RUNNING LAMP
RIGHT FRONT FOG LAMP
RIGHT HEADLAMP ASSEMBLY
RT DRL RELAY
RT HI BEAM FUSE
RT LO LT LO BEAM BEAM FUSE FUSE
SERIAL DATA
TAN WIRE
TURN SIGNAL/ MULTI-FUNCTION SWITCH
UNDERHOOD FUSE BLOCK (RIGHT FRONT OF ENGINE COMPT)
WHT WIRE
WSW/DRL FUSE
YEL WIRE
Go to component -> Headlamps circuit, with high intensity discharge -> DRL RT FUSE

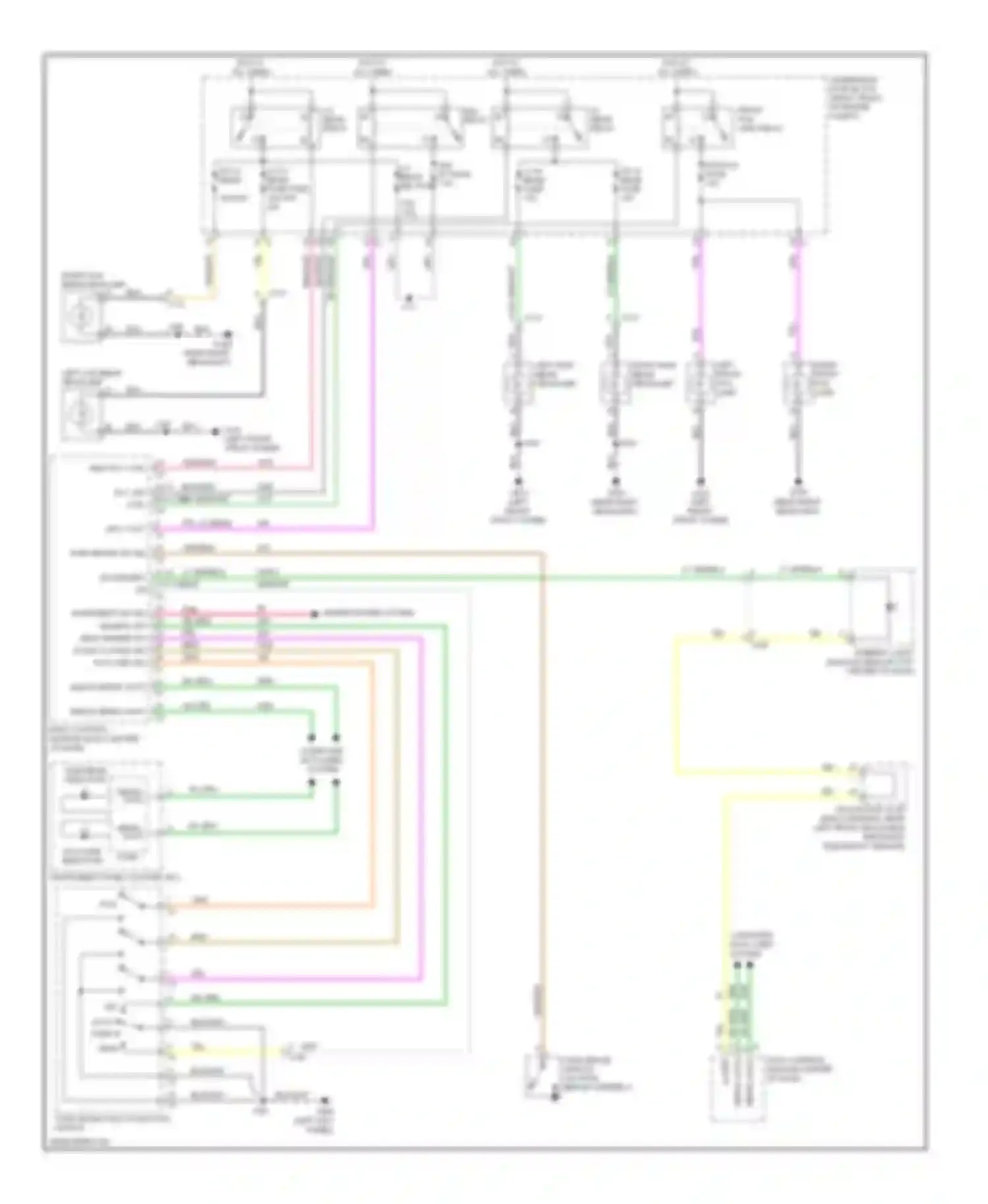

Wiring diagram drl rt fuse (2 of 2)
11 12 1137 103 LIGHT SENSOR SIG HDLMPS ON
16 11 RLY CTRL RLY, IND CTRL
AMBIENT LIGHT/ SUNLOAD SENSOR (TOP CENTER OF DASH)
BLK WIRE
BLK/WHT WIRE
BODY CONTROL MODULE (BCM) (CENTER OF DASH,
BRN WIRE
COMPUTER DATA LINES SYSTEM
DK GRN WIRE
DK GRN/WHT WIRE
DRL RELAY
DRL RT FUSE
FOG
FOG LAMP INDICATOR
FRONT FOG LAMP RELAY
FRT FOG FUSE
GMLAN SERIAL DATA
GRY WIRE
HDLP RLY CTRL
HEAD
HI BEAM RELAY
HIGH BEAM INDICATOR
HOT AT ALL TIMES
HVAC CONTROL MODULE (CENTER OF DASH)
INSTRUMENT PANEL CLUSTER (IPC)
LEFT FRONT FOG LAMP
LEFT FRONT STRUT TOWER)
LEFT HIGH BEAM HEADLAMP
LEFT LOW BEAM HEADLAMP
LO BEAM DRL FUSE
LO BEAM RELAY
LO REF
LOGIC
LT GRN/BLK WIRE
LT HI BEAM FUSE
LT LO RT LO BEAM BEAM FUSE FUSE
OFF AUTO PARK
ORG/ WIRE
ORG/BLK WIRE
PARK BRAKE SW SIG
PARK BRAKE SWITCH (ON PARK BRAKE ASSEMBLY)
PNK/WHT WIRE
PPL
PPL LO BEAM SPLY VOLT
RIGHT FRONT FOG LAMP
RIGHT HIGH BEAM HEADLAMP
RIGHT LOW BEAM HEADLAMP
RT HI BEAM FUSE
SERIAL DATA
TAN/WHT WIRE
TURN SIGNAL/ MULTI-FUNCTION SWITCH
UNDERHOOD FUSE BLOCK (RIGHT FRONT OF ENGINE COMPT)
WHT WIRE
WIPER/WASHER SYSTEM
YEL WIRE
Go to component -> Headlamps circuit, without high intensity discharge -> DRL RT FUSE
