Starting circuit, w/ start-stop system for Cadillac CTS-V III (2013-2019)

BATT POS BATTERY BATTERY FUSE BLOCK BATTERY SENSOR MODULE BLK WIRE BLK/BLU WIRE BLU WIRE BLU/VIO WIRE BUS 23 CNSTR VENT FUSE COMPUTER DATA LINES SYSTEM COOL SIG ECM IGN FUSE FUSE 6 GRN/YEL WIRE GROUND DISTRIBUTION SYSTEM HOT AT ALL TIMES HOT W/ IGNITION MAIN RELAY ENERGIZED LO REF 1 LOGIC MSM FUSE REAR BODY FUSE BLOCK RED WIRE RED/GRN WIRE RED/WHT WIRE SER DATA START/STOP CAPACITOR (NEAR BATTERY TRAY) START/STOP CAPACITOR CONTROL MODULE (LEFT SIDE OF LUGGAGE COMPT) STARTER MOTOR STARTER PINION SOLENOID ACTUATOR RELAY STARTER RELAY STRTR 2 FUSE STRTR FUSE TEMP SIG UNDERHOOD AUXILIARY FUSE BLOCK UNDERHOOD FUSE BLOCK VIO/GRN WIRE VOLT YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/GRN WIRE YEL/VIO WIRE

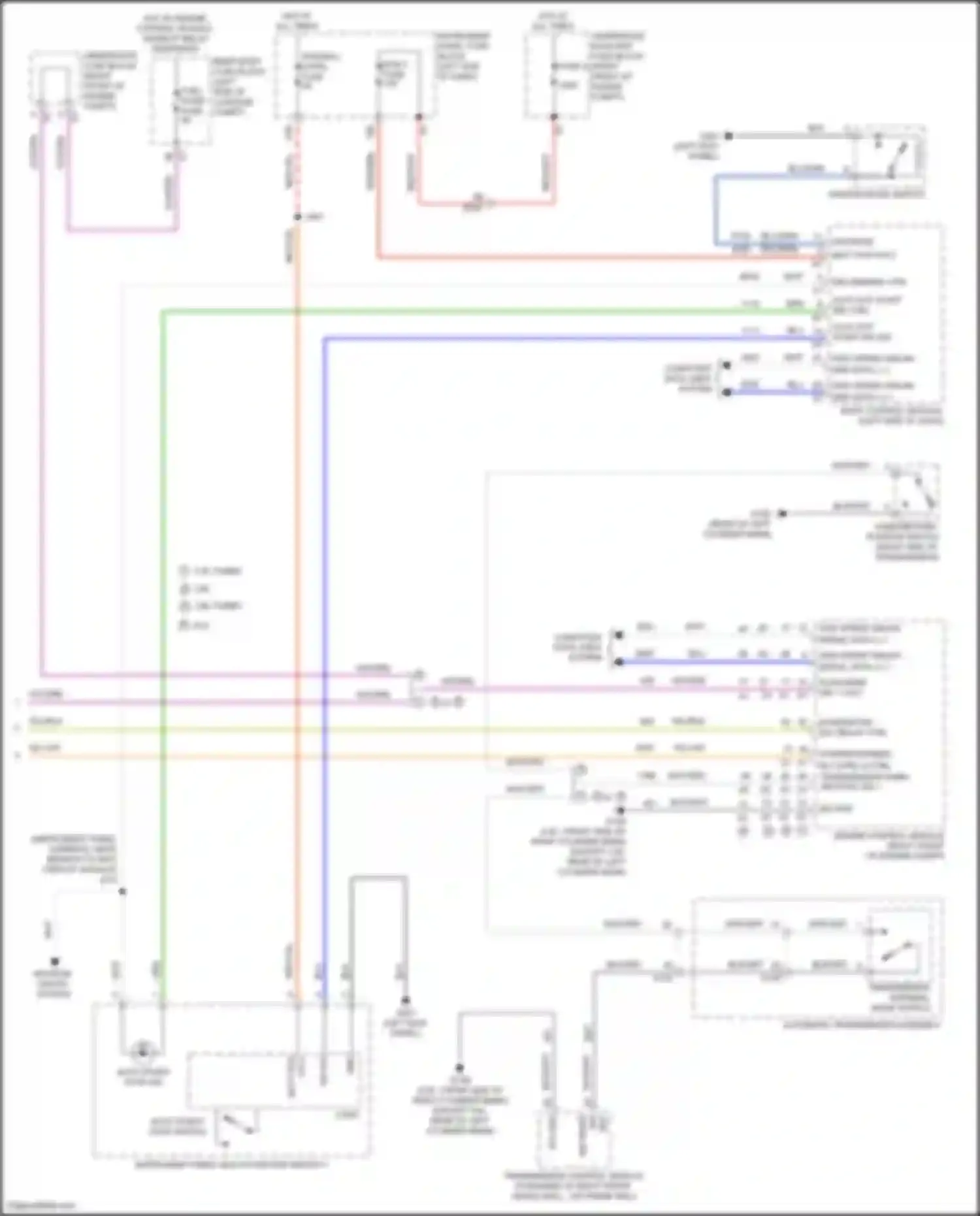

2.0L TURBO 3.6L 6.2L AUTO START STOP IND AUTO START/ STOP SWITCH AUTO STP START IND CTRL AUTO STP START SW SIG AUTOMATIC TRANSMISSION ASSEMBLY BATT POS BATT POS VOLT BCM 5 FUSE BLK WIRE BLK/GRY WIRE BLK/WHT WIRE BLU WIRE BLU/GRN WIRE BODY CONTROL MODULE (LEFT SIDE OF DASH) COMPUTER DATA LINES SYSTEM ENGINE CONTROL MODULE FUEL PUMP FUSE FUSE 3 GRN WIRE HIGH SPEED GMLAN SER DATA (+) 1 HIGH SPEED GMLAN SERIAL DATA (-) (1) HOT AT ALL TIMES HOT W/ ENGINE CONTROL MODULE WAKEUP RELAY ENERGIZED IGN MODE SW IGNITION MODE SWITCH IMS MODE IND DIMMING CTRL INSTRUMENT PANEL FUSE BLOCK INSTRUMENT PANEL MULTI-FUNCTION SWITCH 1 LOGIC PARK/NEUTRAL POSITION SWITCH REAR BODY FUSE BLOCK RED/BRN WIRE RED/WHT WIRE RED/YEL WIRE REF RUN/CRANK IGN 1 VOLT SIG GND STARTER ENABLE RLY (PPEI 3) CTRL STARTER PIN SOL RELAY CTRL STR/WHL/ CNTRL FUSE SW (LO) SW SIG TRANSMISSION CONTROL MODULE TRANSMISSION INTERNAL MODE SWITCH TRANSMISSION PARK/ NEUTRAL SIG 1 UNDERHOOD AUXILIARY FUSE BLOCK UNDERHOOD FUSE BLOCK VIO/GRN WIRE VOLT WHT WIRE WHT/GRY WIRE YEL/BLK WIRE YEL/VIO WIRE
