Cadillac CT5 I (2019-2024) driver front side door window regulator motor Wiring diagrams
This page contains all the electrical diagrams for the component. driver front side door window regulator motor, in which he is found in the car Cadillac CT5 I (2019-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram driver front side door window regulator motor (1 of 10)
Go to component -> Anti-theft circuit (1 of 4) -> DRIVER FRONT SIDE DOOR WINDOW REGULATOR MOTOR
Wiring diagram driver front side door window regulator motor (2 of 10)
Go to component -> Computer data lines circuit (9 of 10) -> DRIVER FRONT SIDE DOOR WINDOW REGULATOR MOTOR
Wiring diagram driver front side door window regulator motor (3 of 10)
Go to component -> Courtesy lamps circuit (1 of 3) -> DRIVER FRONT SIDE DOOR WINDOW REGULATOR MOTOR
Wiring diagram driver front side door window regulator motor (4 of 10)
Go to component -> Ground distribution circuit (5 of 7) -> DRIVER FRONT SIDE DOOR WINDOW REGULATOR MOTOR
Wiring diagram driver front side door window regulator motor (5 of 10)
Go to component -> Instrument cluster circuit (2 of 3) -> DRIVER FRONT SIDE DOOR WINDOW REGULATOR MOTOR
Wiring diagram driver front side door window regulator motor (6 of 10)
Go to component -> Power distribution circuit (6 of 8) -> DRIVER FRONT SIDE DOOR WINDOW REGULATOR MOTOR
Wiring diagram driver front side door window regulator motor (7 of 10)
Go to component -> Power door locks circuit (1 of 4) -> DRIVER FRONT SIDE DOOR WINDOW REGULATOR MOTOR
Wiring diagram driver front side door window regulator motor (8 of 10)
Go to component -> Power windows circuit (1 of 2) -> DRIVER FRONT SIDE DOOR WINDOW REGULATOR MOTOR

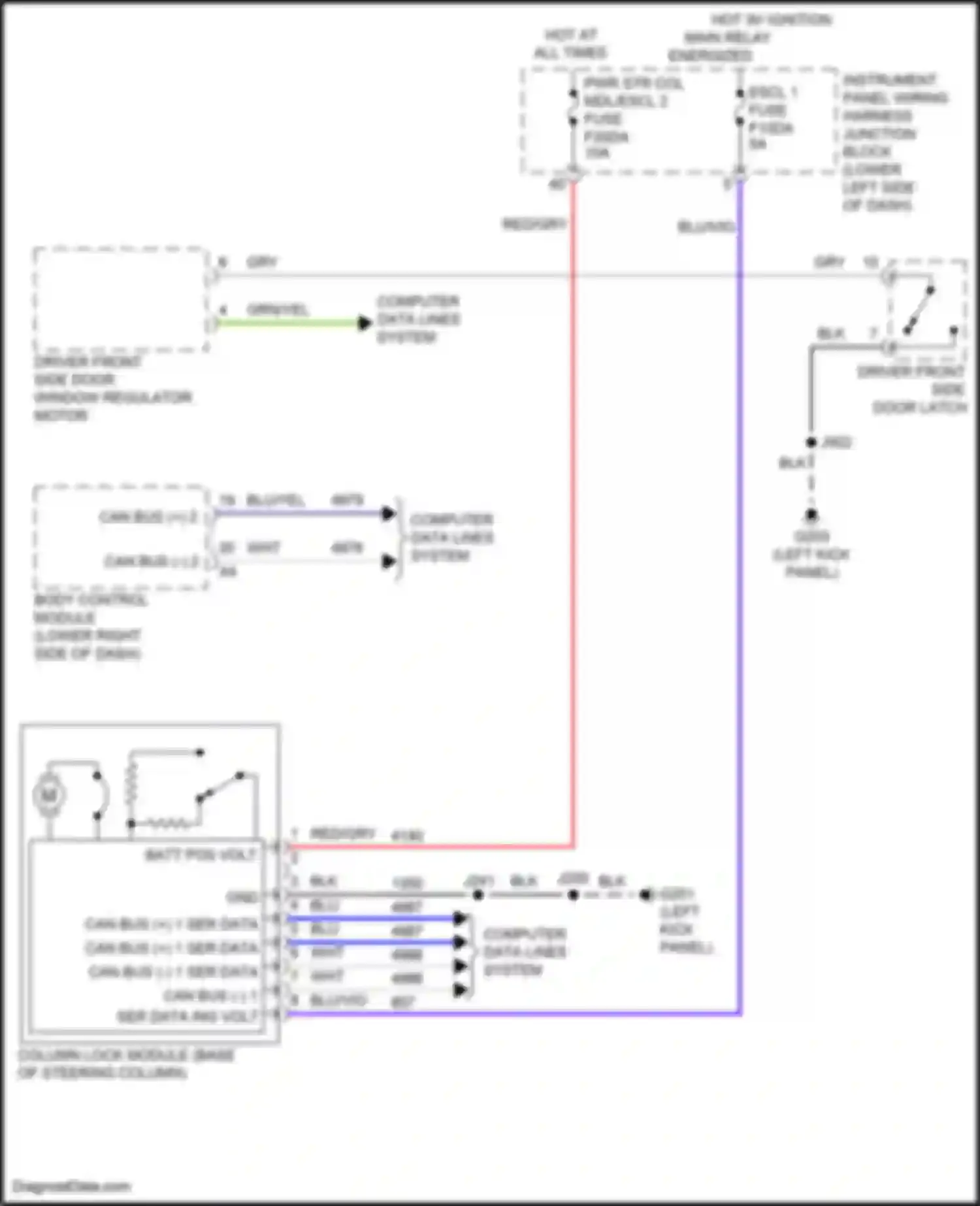

Wiring diagram driver front side door window regulator motor (9 of 10)
Go to component -> Steering lock circuit -> DRIVER FRONT SIDE DOOR WINDOW REGULATOR MOTOR
Wiring diagram driver front side door window regulator motor (10 of 10)
Go to component -> Warning systems circuit (1 of 2) -> DRIVER FRONT SIDE DOOR WINDOW REGULATOR MOTOR
