Cadillac CT4-V I (2019-2024) right sound quality exhaust control valve actuator Wiring diagrams

This page contains all the electrical diagrams for the component. right sound quality exhaust control valve actuator, in which he is found in the car Cadillac CT4-V I (2019-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

Wiring diagram right sound quality exhaust control valve actuator (1 of 3)

Wiring diagram right sound quality exhaust control valve actuator for Cadillac CT4-V I (2019-2024)

Get access

BATT POS VOLT BLK WIRE BLU/GRY WIRE CAN BUS (+) SER DATA COMPUTER DATA LINES SYSTEM EXH FLAPPER VLV 3 FEEDBACK SIGNAL EXH FLAPPER VLV 4 FEEDBACK SIG EXH FLOW CTRL VLV 2 FUEL PUMP POWER CONTROL MODULE GRN/VIO WIRE GRY WIRE HOT AT ALL TIMES HOT W/ IGNITION MAIN RELAY ENERGIZED INSTRUMENT PANEL WIRING HARNESS FUSE BLOCK LEFT SOUND QUALITY EXHAUST CONTROL VALVE ACTUATOR REAR BODY WIRING HARNESS JUNCTION BLOCK RED/VIO WIRE RIGHT SOUND QUALITY EXHAUST CONTROL VALVE ACTUATOR VIO/GRY WIRE WHT WIRE YEL WIRE

Go to component: -> Electronic muffler circuit -> RIGHT SOUND QUALITY EXHAUST CONTROL VALVE ACTUATOR

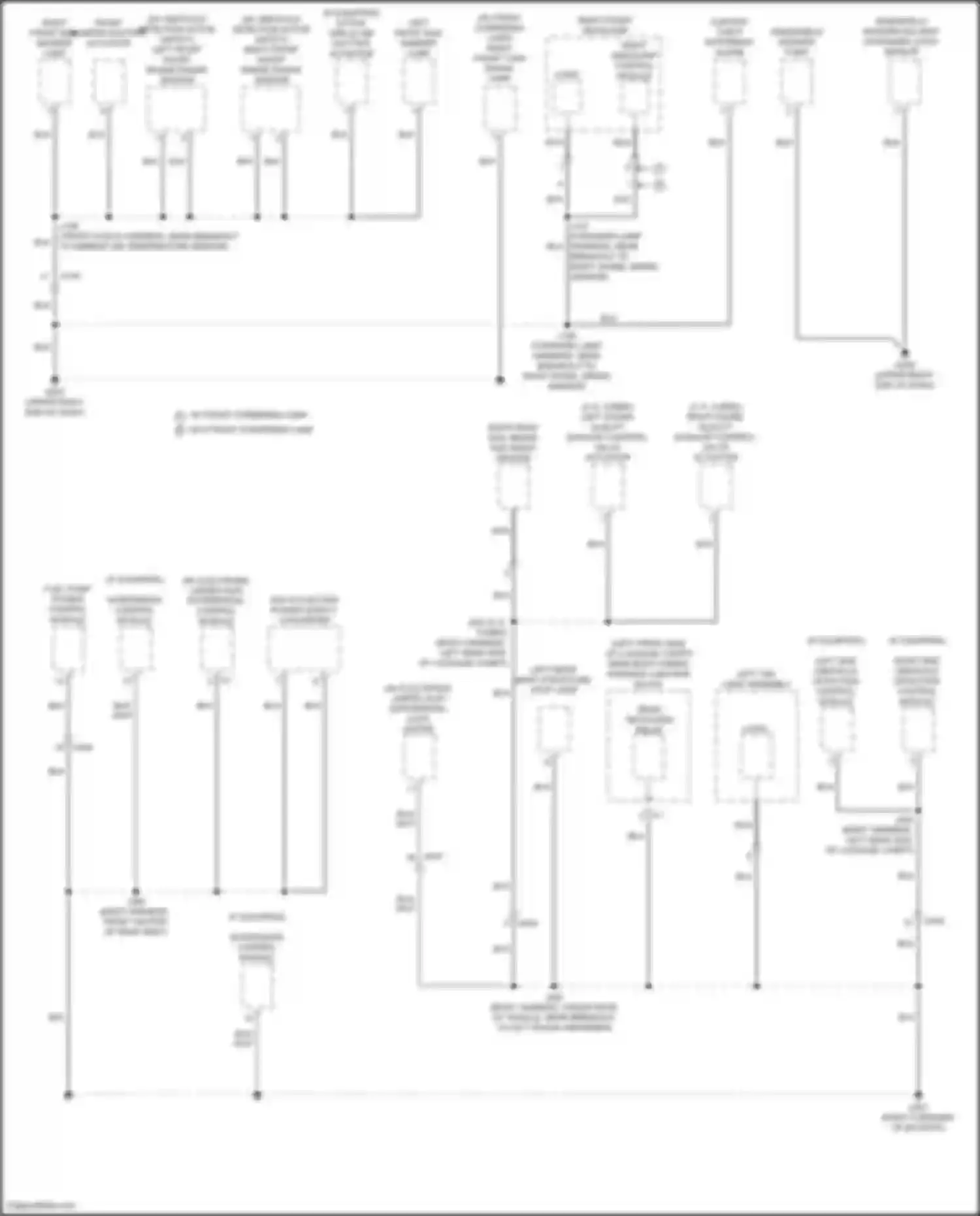

Wiring diagram right sound quality exhaust control valve actuator (2 of 3)

Wiring diagram right sound quality exhaust control valve actuator for Cadillac CT4-V I (2019-2024)

Get access

2.7L TURBO ACTIVE GRILLE AIR SHUTTER ACTUATOR BLK WIRE CONTENT THEFT DETERRENT ALARM DIFFERENTIAL CONTROL MODULE DIFFERENTIAL LOCK MOTOR FRONT BUMPER SHUTTER ACTUATOR FUEL PUMP POWER CONTROL MODULE J402 (2.7L TURBO) LEFT FRONT SHORT RANGE RADAR SENSOR LEFT FRONT SIDE MARKER LAMP LEFT REAR BODY STRUCTURE STOP LAMP LEFT SIDE OBSTACLE DETECTION CONTROL MODULE LEFT SOUND QUALITY EXHAUST CONTROL VALVE ACTUATOR LEFT TAIL LAMP ASSEMBLY LOGIC MULTI-FUNCTION POWER SUPPLY CONVERTER NCA WIRE REAR BODY WIRING HARNESS JUNCTION BLOCK REAR DEFOGGER RELAY RIGHT FRONT HEADLAMP RIGHT FRONT SHORT RANGE RADAR SENSOR RIGHT FRONT SIDE MARKER LAMP RIGHT FRONT TURN SIGNAL LAMP RIGHT HEADLAMP CONTROL MODULE RIGHT REAR DISC BRAKE PAD WEAR SENSOR RIGHT SIDE OBSTACLE DETECTION CONTROL MODULE RIGHT SOUND QUALITY EXHAUST CONTROL VALVE ACTUATOR SUSPENSION CONTROL MODULE WHT WIRE WINDSHIELD WASHER PUMP WINDSHIELD WASHER SOLVENT CONTAINER LEVEL SENSOR

Go to component: -> Ground distribution circuit (1 of 6) -> RIGHT SOUND QUALITY EXHAUST CONTROL VALVE ACTUATOR

Wiring diagram right sound quality exhaust control valve actuator (3 of 3)

Wiring diagram right sound quality exhaust control valve actuator for Cadillac CT4-V I (2019-2024)

Get access

2.7L TURBO AIR CONDITIONING COMPRESSOR RELAY AUTOMATIC TRANSMISSION AUTOMATIC TRANSMISSION AUXILIARY FLUID PUMP BRAKE SYSTEM CONTROL MODULE BRAKE MASTER CYLINDER CONTENT THEFT DETERRENT ALARM ENGINE CONTROL MODULE ENGINE CONTROLS IGNITION RELAY ENGINE RESTART RELAY FROM IGNITION MAIN RELAY (DIAGRAM 2 OF 8) GEAR SHIFT CONTROL MODULE GRN/VIO WIRE HORN RELAY INSTRUMENT PANEL CLUSTER CONTROL MODULE LEFT SOUND QUALITY EXHAUST CONTROL VALVE ACTUATOR NCA WIRE NOT USED RED/BRN WIRE RED/WHT WIRE RIGHT SOUND QUALITY EXHAUST CONTROL VALVE ACTUATOR STARTER RELAY TRANSMISSION CONTROL MODULE VIO/BLK WIRE VIO/GRN WIRE VIO/GRY WIRE W/O WINDSHIELD HEAD-UP DISPLAY WINDSHIELD WASHER PUMP RELAY WINDSHIELD WIPER RELAY

Go to component: -> Power distribution circuit (3 of 8) -> RIGHT SOUND QUALITY EXHAUST CONTROL VALVE ACTUATOR
