Buick Rendezvous I (2001-2007) ppl cruise release wiring diagram
This page shows the only wiring diagram for the component.ppl cruise release, which is found in the car Buick Rendezvous I (2001-2007). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

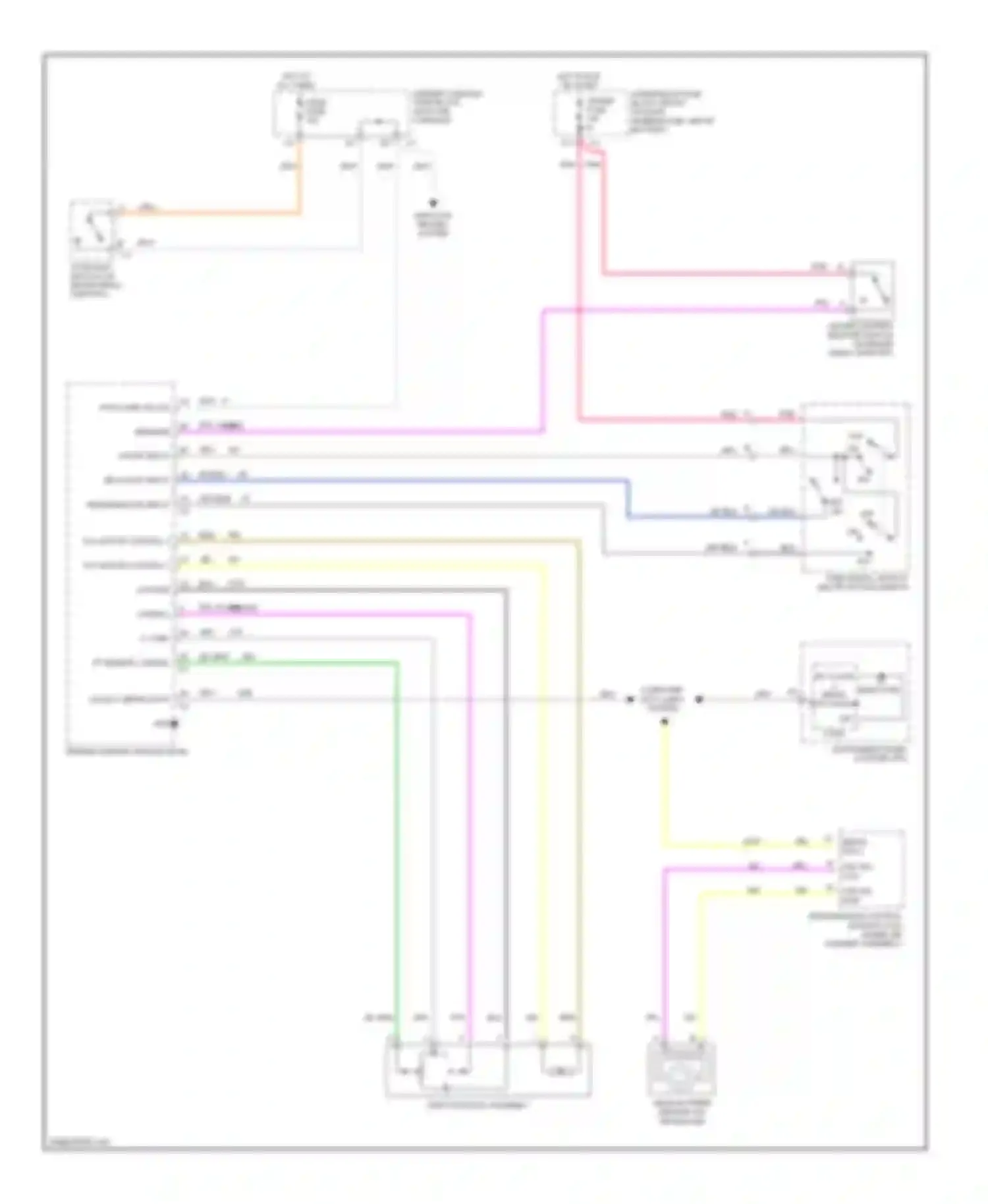

ppl cruise release wiring diagram (1 of 1)
5 V REF C
ANTI-LOCK BRAKES SYSTEM
BLK WIRE
BRN WIRE
CENTER CONSOLE FUSE BLOCK (IN FLOOR CONSOLE)
CLASS 2 SERIAL DATA
COMPUTER DATA LINES SYSTEM
CRUISE CONTROL RELEASE SWITCH (ON BRAKE PEDAL SUPPORT)
CRUISE FUSE
DK BLU WIRE
DK GRN WIRE
ENGINE CONTROL MODULE (ECM)
GRY WIRE
GRY/BLK WIRE
HOT AT ALL TIMES
HOT IN RUN OR START
HZDFL FUSE
IGN LOGIC
INSTRUMENT PANEL CLUSTER (IPC)
IPC CLASS 2 SERIAL DATA CRUISE INDICATOR
LOW REF
OFF ON
ON/OFF INPUT
ORG/ WIRE
PNK PNK WIRE
PNK WIRE
PPL
PPL CRUISE RELEASE
PPL TP SENSOR 2 SIGNAL
PPL VSS SIG LOW
R/A
RESUME/ACCEL INPUT
SERIAL DATA
SET SW OFF
SET/COAST INPUT
STOP LAMP SW SIG
STOPLIGHT SWITCH (ON BRAKE PEDAL SUPPORT)
TAC MOTOR CONTROL-1
TAC MOTOR CONTROL-2
THROTTLE BODY ASSEMBLY
TP SENSOR 1 SIGNAL
TRANSMISSION CONTROL MODULE (TCM) (INSIDE AIR CLEANER ASSEMBLY)
TURN SIGNAL SWITCH/ MULTIFUNCTION SWITCH
UNDERHOOD FUSE BLOCK (FRONT OF RIGHT WHEELHOUSE, ABOVE BATTERY)
VEHICLE SPEED SENSOR (ON TRANSAXLE)
VSS SIG HIGH
WHT WIRE
YEL WIRE
Go to component -> 3.6l vin 7, cruise control circuit -> PPL CRUISE RELEASE
