Buick Rendezvous I (2001-2007) front passenger back heated seat pad Wiring diagram
This page shows the only wiring diagram for the component.front passenger back heated seat pad, which is found in the car Buick Rendezvous I (2001-2007). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

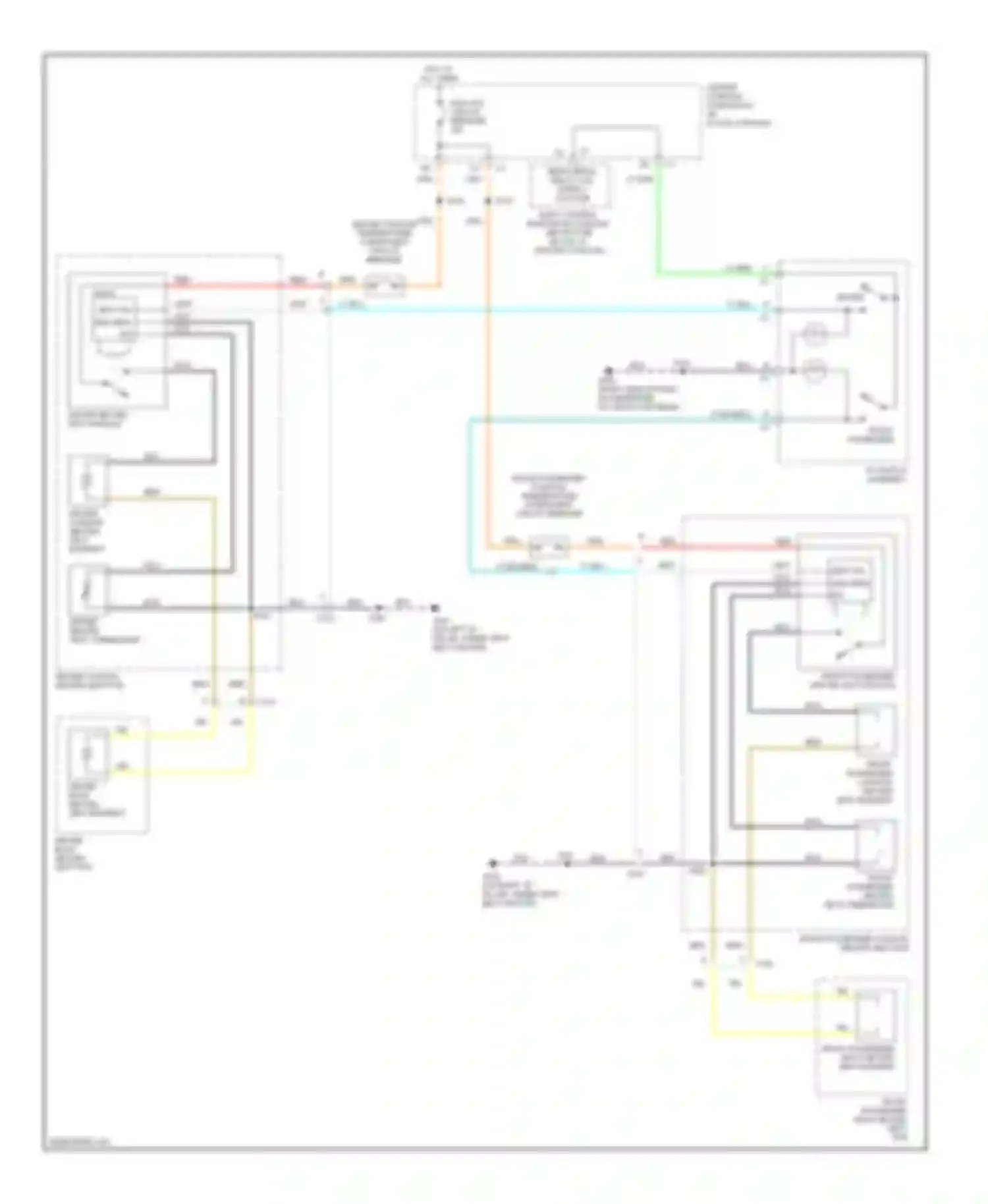

Wiring diagram front passenger back heated seat pad (1 of 1)
BLK WIRE
BODY CONTROL MODULE (IN CONSOLE, ABOVE FUSE BLOCK, IN CENTER CONSOLE)
BRN WIRE
CENTER CONSOLE FUSE BLOCK (IN FLOOR CONSOLE)
DRIVER BACK HEATED SEAT ELEMENT
DRIVER BACK HEATED SEAT PAD
DRIVER CUSHION HEATED SEAT ELEMENT
DRIVER CUSHION HEATED SEAT PAD
DRIVER HEATED SEAT MODULE
DRIVER HEATED SEAT THERMISTOR
DRIVER POSITIVE TEMPERATURE COEFFICIENT CIRCUIT BREAKER
FRONT PASSENGER
FRONT PASSENGER BACK HEATED SEAT ELEMENT
FRONT PASSENGER BACK HEATED SEAT PAD
FRONT PASSENGER CUSHION HEATED SEAT ELEMENT
FRONT PASSENGER CUSHION HEATED SEAT PAD
FRONT PASSENGER HEATED SEAT MODULE
FRONT PASSENGER HEATED SEAT THERMISTOR
FRONT PASSENGER POSITIVE TEMPERATURE COEFFICIENT CIRCUIT BREAKER
HOT AT ALL TIMES
I/P SWITCH ASSEMBLY
LOGIC
LT BLU WIRE
LT BLU/BLK WIRE
LT GRN WIRE
NCA WIRE
ORG/ WIRE
PWR STS CIRCUIT BREAKER
REAR DEFOG RELAY COIL SUPPLY VOLTAGE
RED WIRE
SEAT SIG GND SENS SIG
WHT WIRE
YEL WIRE
Go to component -> Heated seats circuit -> FRONT PASSENGER BACK HEATED SEAT PAD
