Buick Rendezvous I (2001-2007) driver outside rearview mirror up/ down motor Wiring diagram
This page shows the only wiring diagram for the component.driver outside rearview mirror up/ down motor, which is found in the car Buick Rendezvous I (2001-2007). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

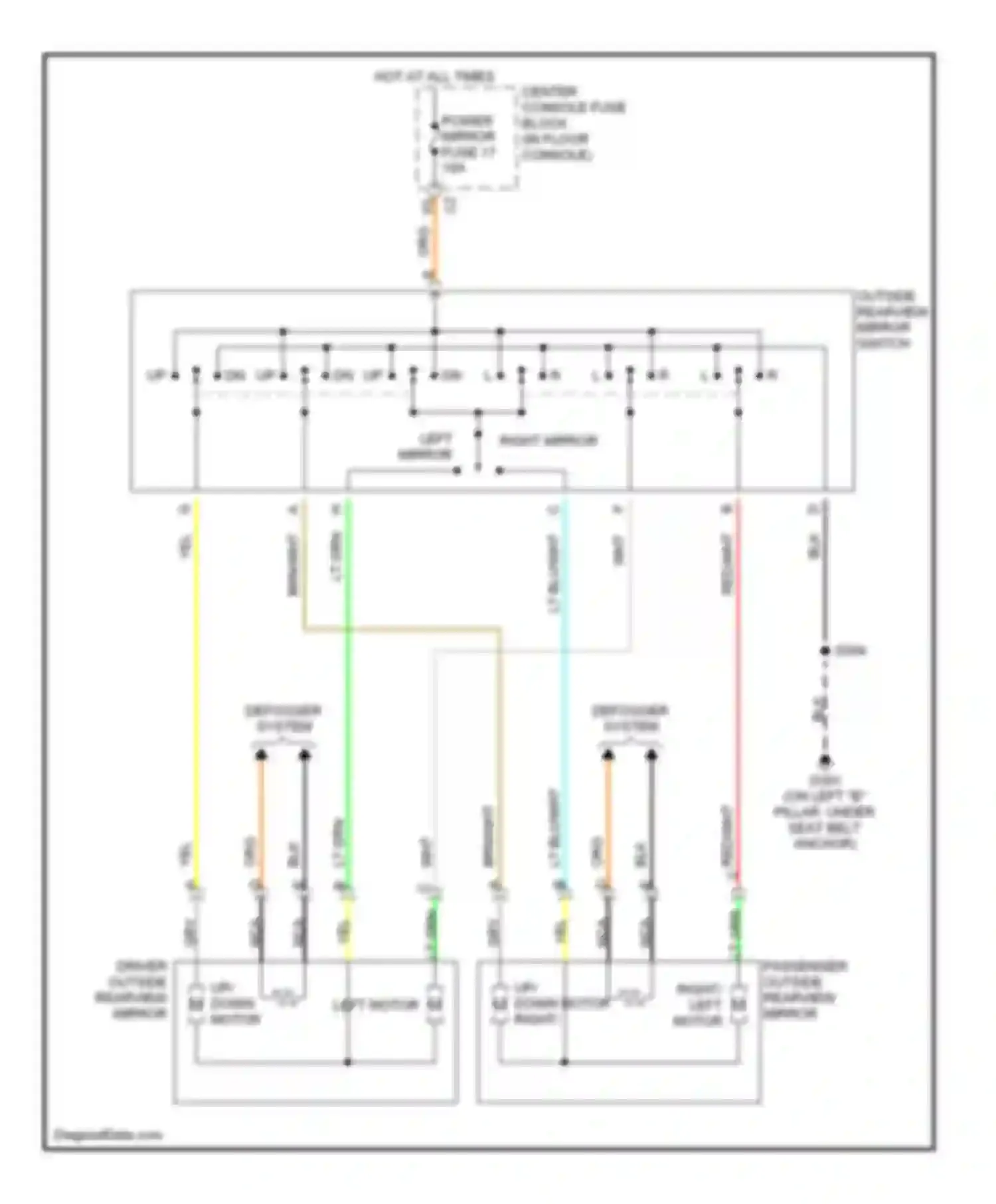

Wiring diagram driver outside rearview mirror up/ down motor (1 of 1)
BLK WIRE
BRN/WHT WIRE
CENTER CONSOLE FUSE BLOCK (IN FLOOR CONSOLE)
DEFOGGER SYSTEM
DRIVER OUTSIDE REARVIEW MIRROR UP/ DOWN MOTOR
GRY WIRE
HOT AT ALL TIMES
LEFT MIRROR RIGHT MIRROR
LT BLU/WHT WIRE
LT GRN WIRE
NCA WIRE
ORG/ WIRE
OUTSIDE REARVIEW MIRROR SWITCH
PASSENGER OUTSIDE REARVIEW MIRROR RIGHT/ LEFT MOTOR
POWER MIRROR FUSE 17
RED/WHT WIRE
UP DN
UP DN UP
UP/ DOWN MOTOR RIGHT/ LEFT MOTOR
WHT WIRE
YEL WIRE
Go to component -> Power mirrors circuit -> DRIVER OUTSIDE REARVIEW MIRROR UP/ DOWN MOTOR
