Buick Rendezvous I (2001-2007) 39 27 34 49 9 39 a/c clu rly ctrl a/c press sig Wiring diagram
This page shows the only wiring diagram for the component.39 27 34 49 9 39 a/c clu rly ctrl a/c press sig, which is found in the car Buick Rendezvous I (2001-2007). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

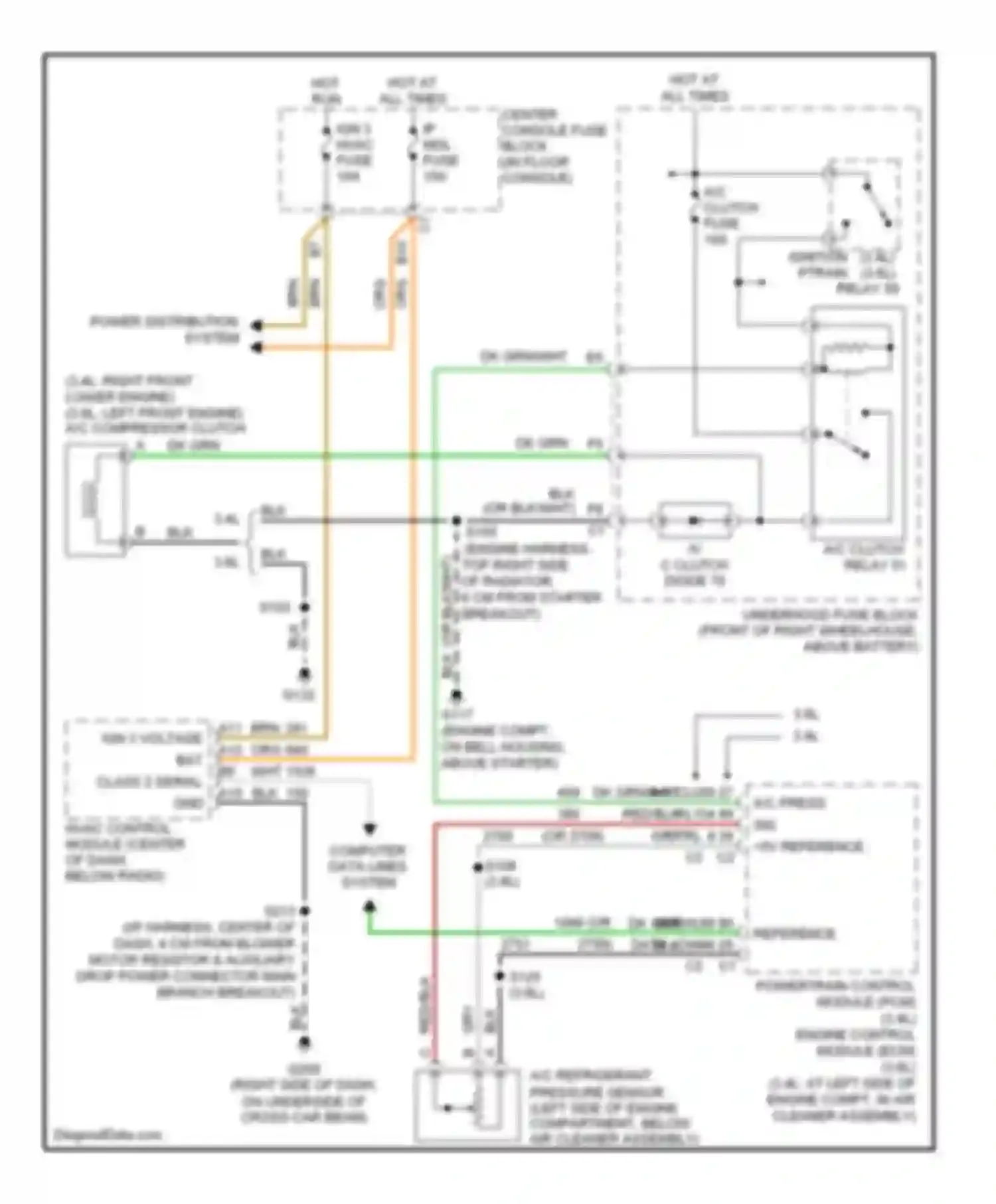

Wiring diagram 39 27 34 49 9 39 a/c clu rly ctrl a/c press sig (1 of 1)
1049 (OR 2759)
3.4L
3.6L
3.6L 3.4L
39 27 34 49 9 39 A/C CLU RLY CTRL A/C PRESS SIG
58 80 48 25 SERIAL DATA LOW REFERENCE
A/C CLUTCH DIODE 70
A/C CLUTCH FUSE
A/C CLUTCH RELAY 51
BLK WIRE
BRN WIRE
CENTER CONSOLE FUSE BLOCK (IN FLOOR CONSOLE)
COMPUTER DATA LINES SYSTEM
DK GRN WIRE
DK GRN/WHT WIRE
GRY WIRE
HOT AT ALL TIMES
HOT IN
HVAC CONTROL MODULE (CENTER OF DASH, BELOW RADIO)
IGN 3 HVAC FUSE
IGN 3 VOLTAGE BAT CLASS 2 SERIAL GND
IGNITION PTRAIN (3.4L) (3.6L)
IP MDL FUSE
ORG/ WIRE
POWER DISTRIBUTION SYSTEM
RED/BLK WIRE
RELAY 59
RUN WIRE
UNDERHOOD FUSE BLOCK (FRONT OF RIGHT WHEELHOUSE, ABOVE BATTERY)
WHT WIRE
Go to component -> Compressor circuit, with auto a/c -> 39 27 34 49 9 39 A/C CLU RLY CTRL A/C PRESS SIG
