Wiring Diagrams for Buick Regal VI (2017-2020)

Active bodyworks circuit

Automatic a/c circuit

Anti-lock brakes circuit

Forced entry circuit, w/o passive keyless entry Forced entry circuit, w/ passive keyless entry Pass-key circuit

Body control modules circuit

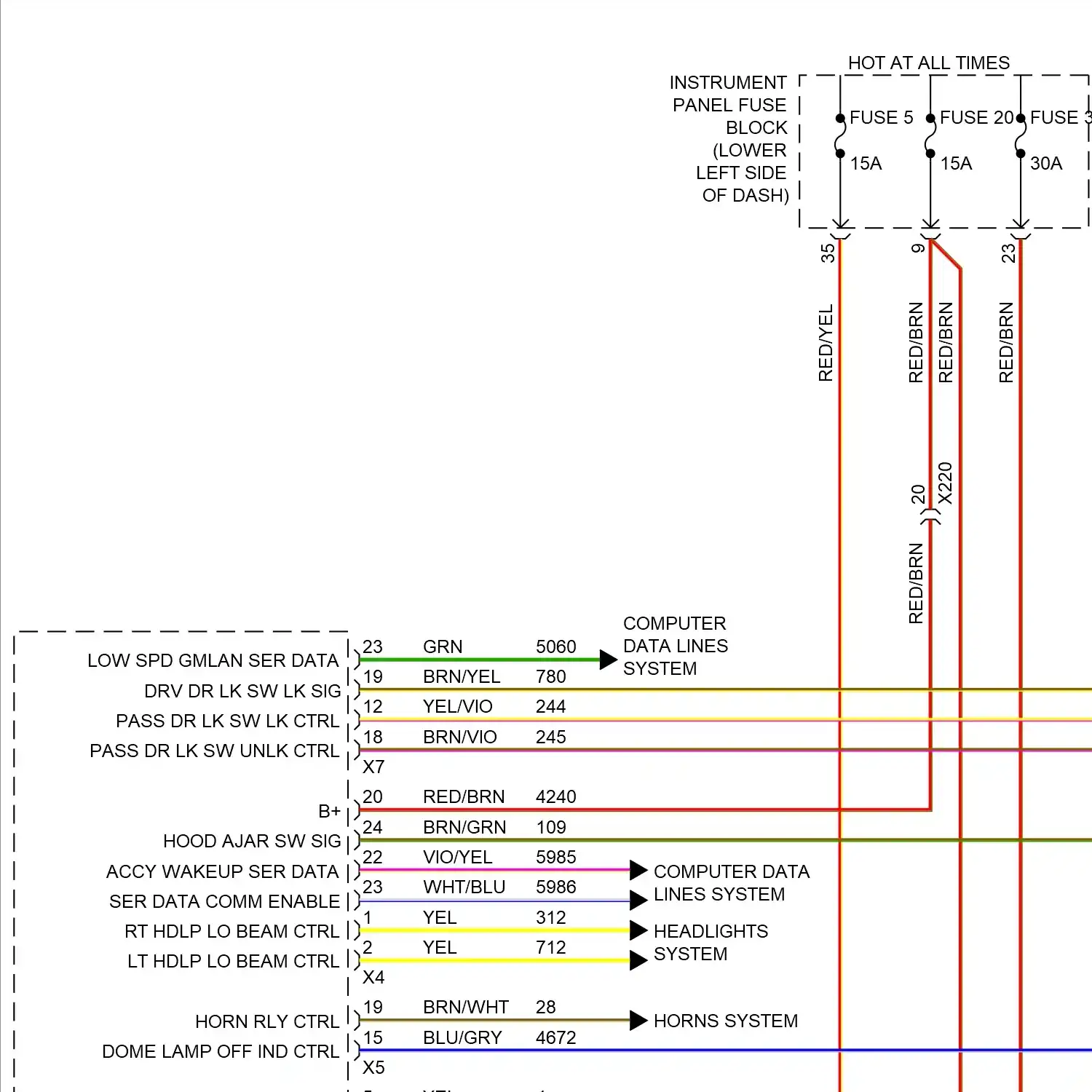

Computer data lines circuit

Cooling fan circuit

Cruise control circuit

Defoggers circuit

Electronic power steering circuit

Electronic suspension circuit

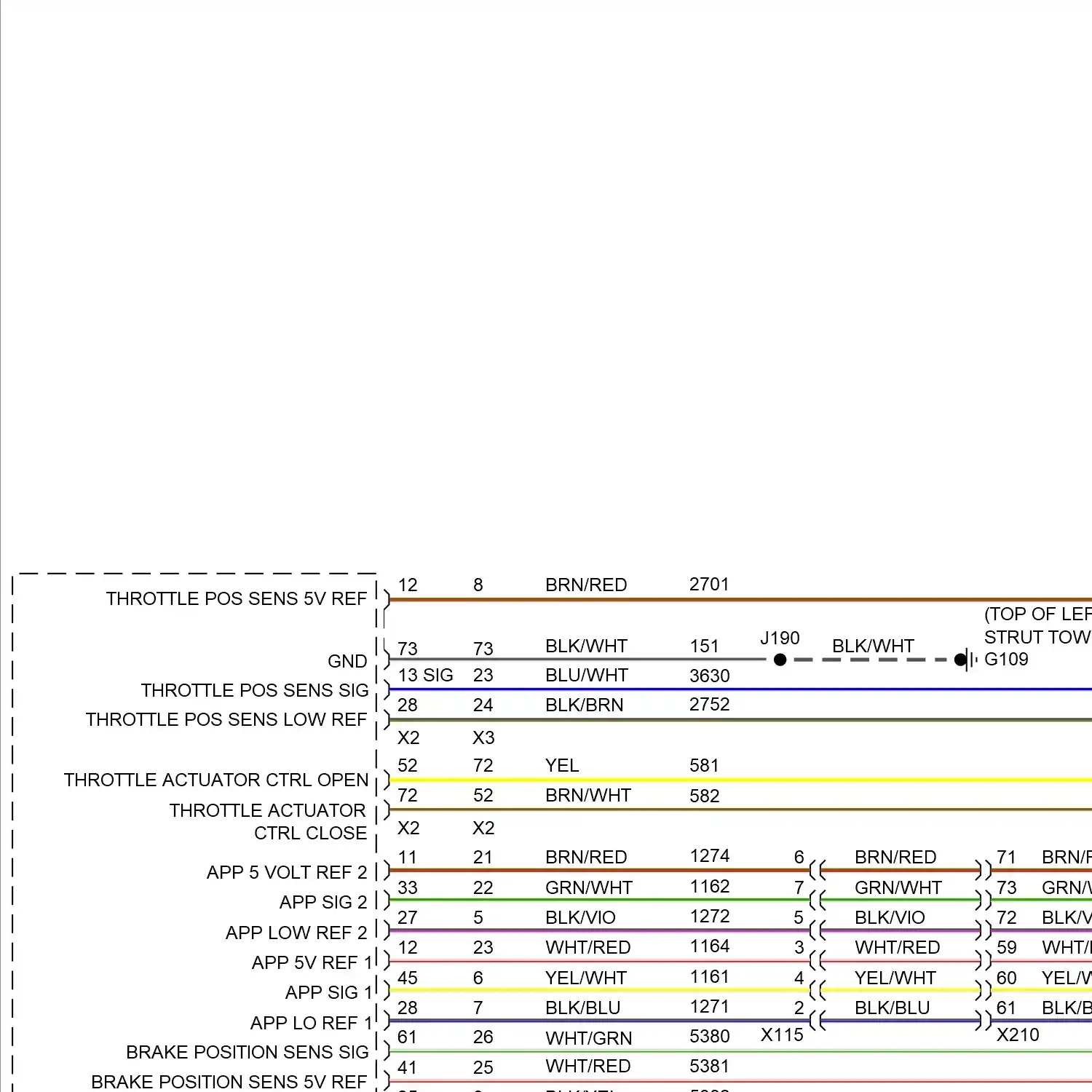

Wiring diagram engine performance 2.0l vin x

Wiring diagram engine performance 3.6l vin s

Backup lamps circuit Exterior lamps circuit

Ground distribution circuit

Adaptive front lighting circuit Headlamps circuit, w/ halogen headlamps Headlamps circuit, w/o halogen headlamps

Horn circuit

Collision avoidance circuit Head-up display circuit Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Driver"s memory seat circuit Memory mirrors circuit Passenger"s memory seat circuit

Blind spot monitoring circuit Lane departure warning circuit Navigation circuit, mid/high level w/ active noise Navigation circuit, mid/high level w/o active noise & amplifier Navigation circuit, mid/high level w/o active noise w/ amplifier Navigation circuit, up level w/ active noise Navigation circuit, up level w/o active noise & amplifier Navigation circuit, up level w/o active noise w/ amplifier Parking assistant circuit Rear view camera circuit

Power distribution circuit

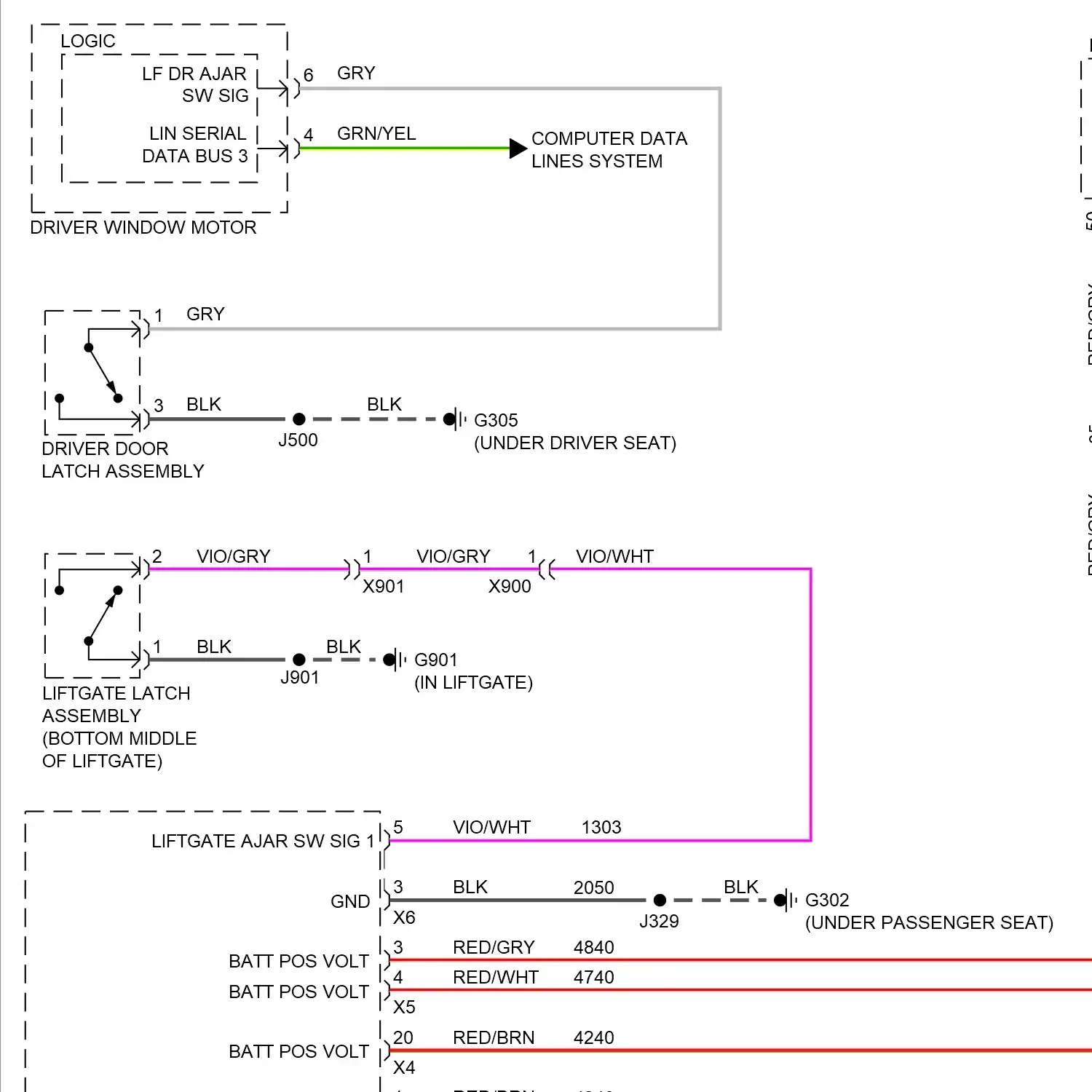

Power door locks circuit, w/o passive keyless entry Power door locks circuit, w/ passive keyless entry

Electrochromic mirror circuit Power mirrors circuit

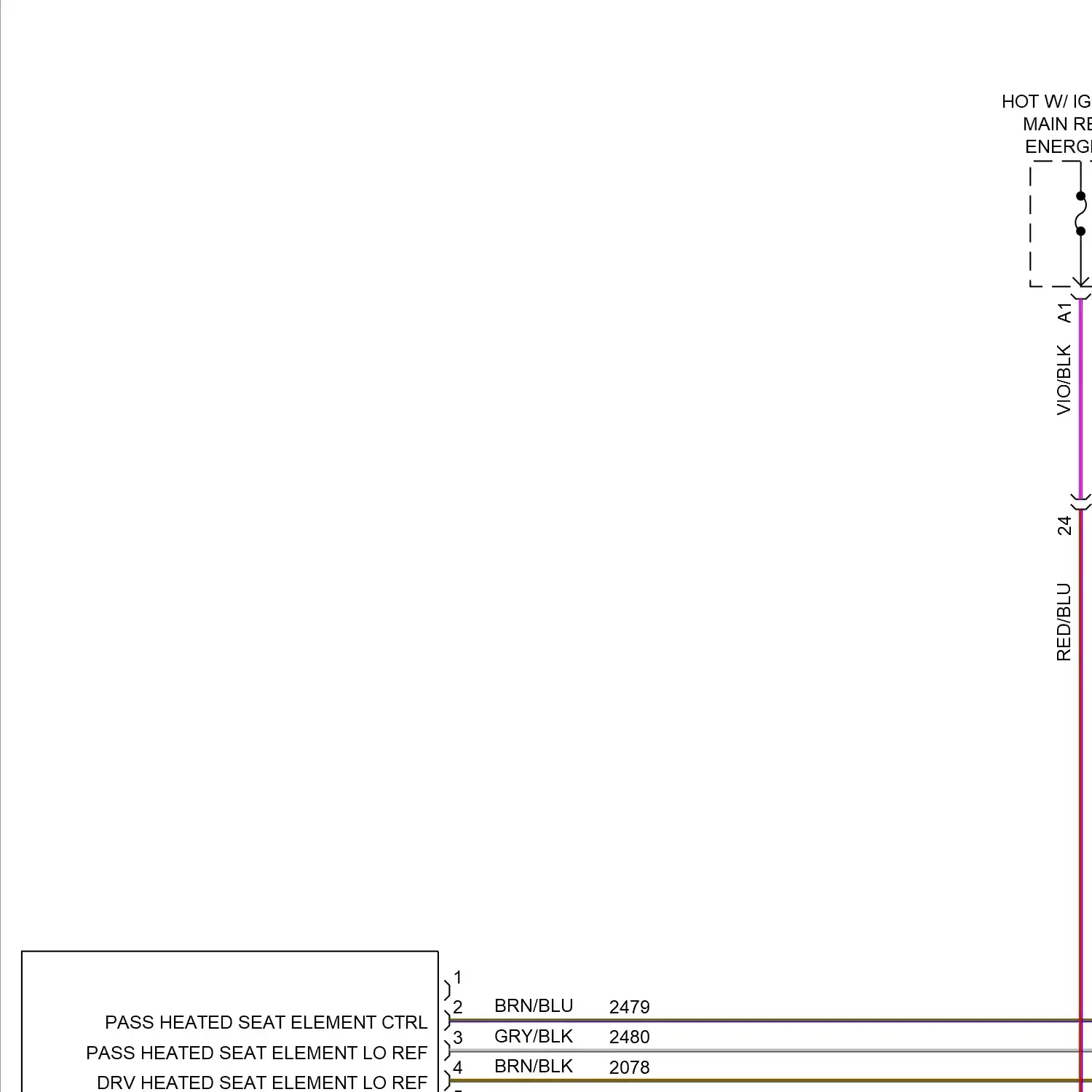

Driver power seat circuit Driver"s lumbar circuit, 2-way Driver"s lumbar circuit, 4-way Front heated seats circuit, w/o ventilation Front heated seats circuit, w/ ventilation Heated steering wheel circuit Passenger power seat circuit Passenger"s lumbar circuit, 2-way Passenger"s lumbar circuit, 4-way Rear folding seat circuit

Power top/sunroof circuit, w/o transparent glass fixed Power top/sunroof circuit, w/ transparent glass fixed

Power windows circuit

Radio circuit, low level Radio circuit, mid/high level w/ active noise Radio circuit, mid/high level w/o active noise & amplifier Radio circuit, mid/high level w/o active noise w/ amplifier Radio circuit, mid level Radio circuit, up level w/ active noise Radio circuit, up level w/o active noise & amplifier Radio circuit, up level w/o active noise w/ amplifier

Park brake system circuit Shift interlock circuit

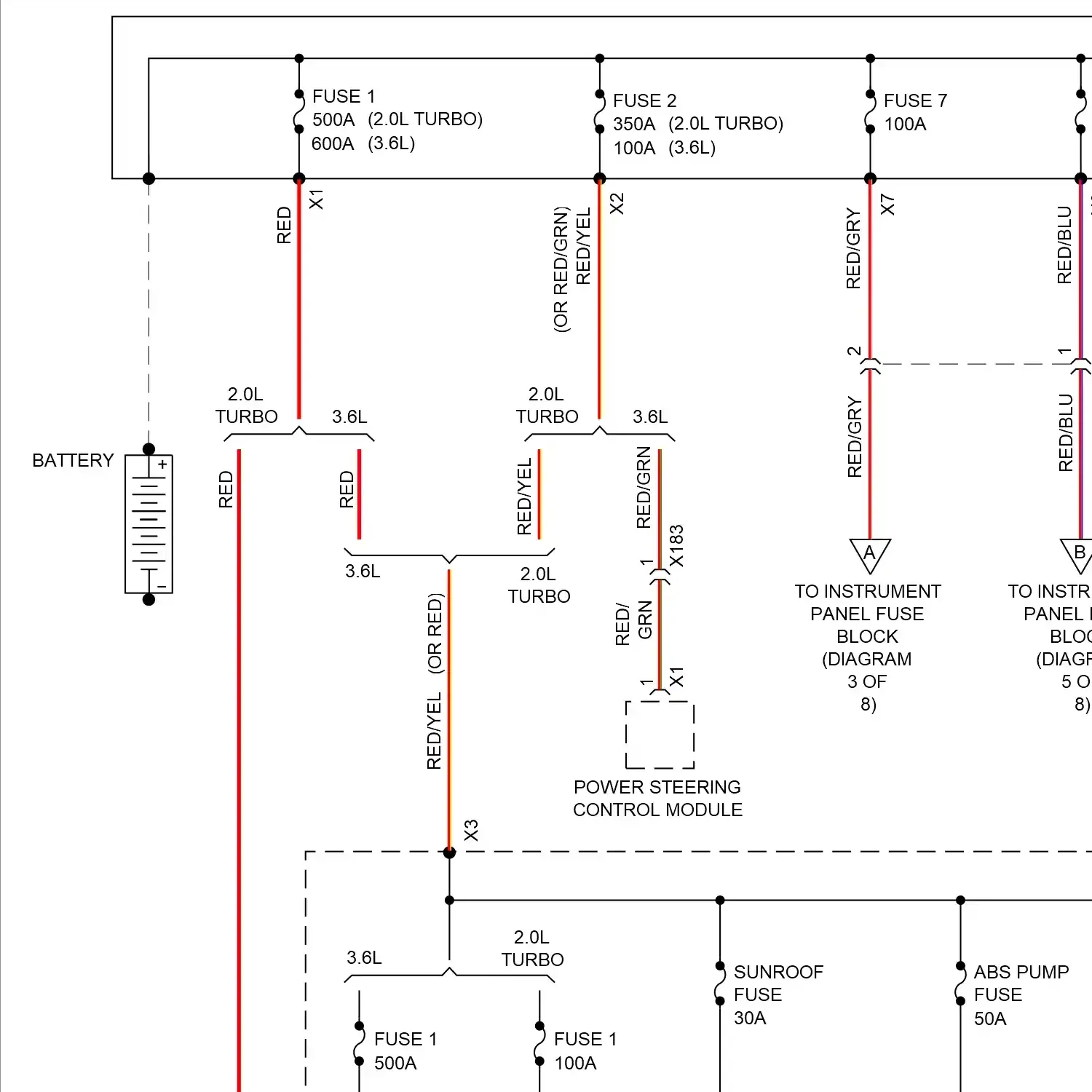

Charging circuit Starting circuit

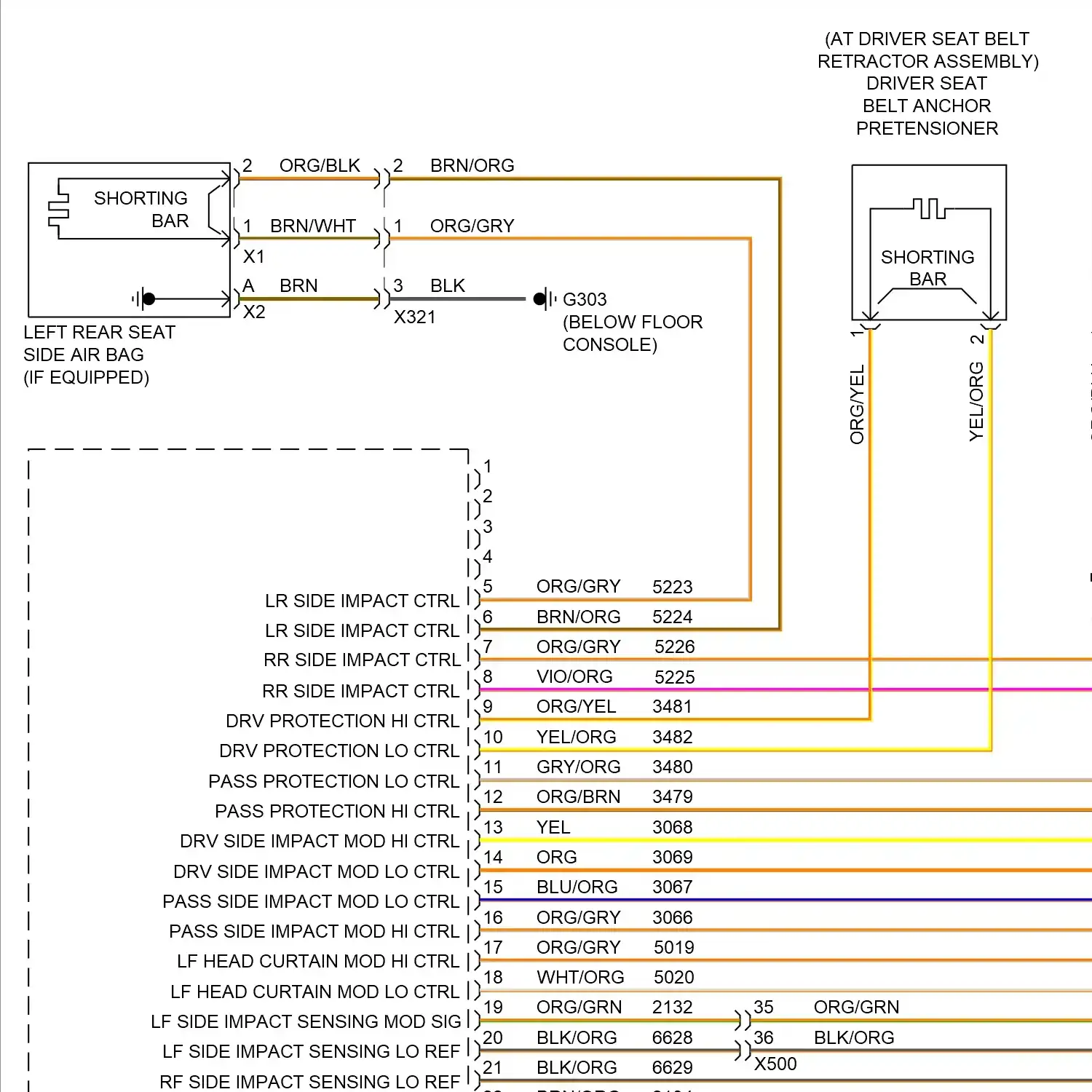

Supplemental restraints circuit

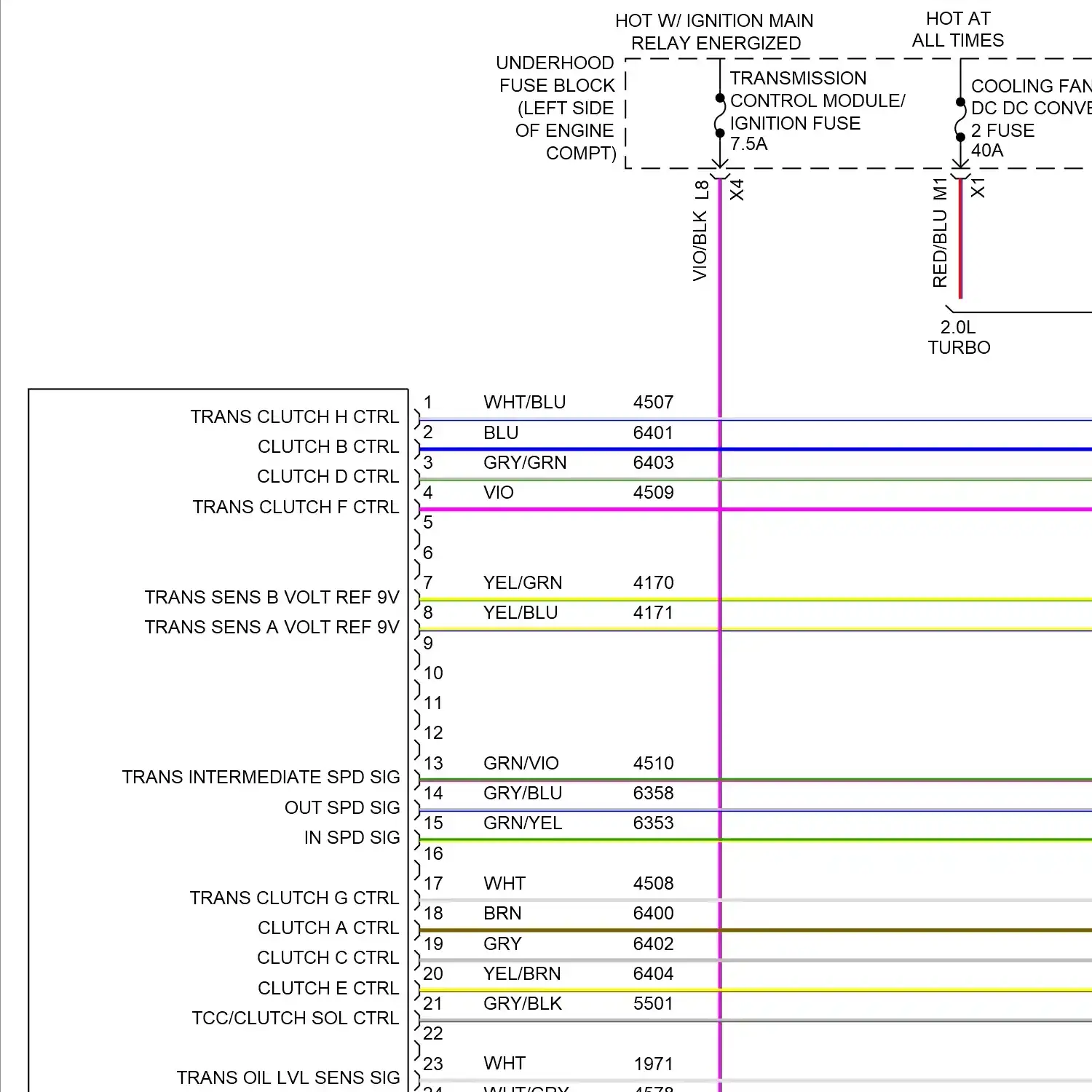

A/t circuit Rear differential lock circuit

Liftgate release circuit Power liftgate circuit

Warning systems circuit

Wiper/washer circuit

(BATTERY HARNESS, ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES SYSTEMS ANTI-LOCK BRAKES, CRUISE CONTROL, EXTERIOR LIGHTS SYSTEMS ANTI-LOCK BRAKES, ELECTRONIC SUSPENSION SYSTEMS AUDIO AMPLIFIER BATTERY POSITIVE VOLT BATTERY POSITIVE VOLTAGE COIL CONTROL CRUISE CONTROL, ANTI-LOCK BRAKES, EXTERIOR LIGHTS SYSTEMS DOOR LOCK DOOR LOCK IND DRV DR LOCK SW UNLOCK SIG GENERATOR FIELD DUTY CYCLE SIG HIGH SPEED BUS TERMINATING RESISTOR HORN RLY CTRL HORN SW SIG IGNITION COIL 1 IGNITION COIL 2 IGNITION COIL 3 IGNITION COIL 4 IGNITION COIL 5 IGNITION COIL 6 KEY CAPTURE/COLUMN LOCK SHIFT POS SIG KEY CAPTURE/COLUMN LOCK SHIFT POSITION SIGNAL LEFT HORN LOCK SOL PARK LOCK SOL CTRL PARK PHASER LOCK CTRL PASS DR LOCK SW UNLOCK CTRL POWERTRAIN RLY COIL CTRL RAP RLY 2 COIL CTRL RAP RLY COIL CTRL REMOTE CONTROL DOOR LOCK RECEIVER RESISTOR SIG 1 RIGHT HORN RLY COIL CTRL RR WIPER MTR RLY COIL CTRL RUN/CRANK RLY COIL CTRL SHIFT LOCK SOL CTRL STARTER ENABLE RLY CTRL STARTER PINION SOL RLY CTRL STARTER RLY CTRL STEERING WHEEL AIR BAG COIL STEERING WHEEL RESISTOR SIG 1 STOP LP RLY COIL CTRL STP LP RLY COIL CTRL WINDSHIELD WIPER MTR RLY COIL CTRL

"CHECK ENGINE" IND CTRL (ENGINE HARNESS, (RIGHT SIDE OF ENGINE ACTUATOR HI CTRL ACTUATOR HIGH CTRL ACTUATOR LO REF ACTUATOR LOW CTRL AIR RECIRCULATION DOOR ACTUATOR BLOWER MOTOR BLOWER MOTOR CONTROL BLWR MOTOR SPD CTRL CHECK ENGINE IND CNTRL COOLING FAN MOTOR DOOR LOCK ACTUATOR LOCK CTRL DOOR LOCK ACTUATOR LOCK CTRL 2 DRIVER BACK SEAT BLOWER MOTOR DRIVER CUSHION SEAT BLOWER MOTOR DRIVER OUTSIDE REAR VIEW MIRROR MOTOR DRIVER SEAT FRONT VERTICAL MOTOR DRIVER SEAT HORIZONTAL MOTOR DRIVER SEAT REAR VERTICAL MOTOR DRIVER SEAT RECLINE MOTOR DRIVER WINDOW MOTOR DRV SEAT VENT MOTOR CTRL 1 ENGINE CONTROLS SYSTEM ENGINE COOLANT ENGINE COOLANT TEMP SENS SIG ENGINE COOLANT TEMPERATURE GAUGE ENGINE COOLANT TEMPERATURE IND ENGINE CTRL SENS LOW REF ENGINE OIL PRESSURE CONTROL SOLENOID VALVE ENGINE START/ STOP ENGINE START/STOP EXHAUST CAMSHAFT POSITION ACTUATOR SOLENOID VALVE EXHAUST CAMSHAFT POSITION ACTUATOR SOLENOID VALVE BANK 1 EXHAUST CAMSHAFT POSITION ACTUATOR SOLENOID VALVE BANK 2 FUEL FILL DOOR LOCK ACTUATOR INTAKE CAMSHAFT POSITION ACTUATOR PARK LOCK SOLENOID VALVE BANK 1 INTAKE CAMSHAFT POSITION ACTUATOR PARK LOCK SOLENOID VALVE BANK 2 INTAKE CAMSHAFT POSITION ACTUATOR SOLENOID VALVE INTAKE CAMSHAFT POSITION ACTUATOR SOLENOID VALVE BANK 1 INTAKE CAMSHAFT POSITION ACTUATOR SOLENOID VALVE BANK 2 LEFT AIR TEMPERATURE DOOR ACTUATOR LEFT COOLING FAN MOTOR LEFT FRONT SHOCK ABSORBER ACTUATOR LEFT FRONT SHOCK ABSORBER ACTUATOR SHIELD LEFT HEADLAMP LEVELING ACTUATOR LEFT HOOD ACTUATOR HI CTRL LEFT HOOD ACTUATOR LOW CTRL LEFT HOOD HINGE ACTUATOR LEFT PARK BRAKE ACTUATOR LEFT REAR FOLDING SEAT MOTOR LEFT REAR SHOCK ABSORBER ACTUATOR LEFT REAR SHOCK ABSORBER ACTUATOR SHIELD LEFT REAR WINDOW MOTOR LH HOOD ACTUATOR HI CTRL LH HOOD ACTUATOR LO CTRL LOGIC DRIVER WINDOW MOTOR LOGIC PASSENGER WINDOW MOTOR MODE DOOR ACTUATOR MOTOR LOW REF PASS SEAT VENT MOTOR CTRL 1 PASSENGER BACK SEAT BLOWER MOTOR PASSENGER CUSHION SEAT BLOWER MOTOR PASSENGER OUTSIDE REAR VIEW MIRROR MOTOR PASSENGER SEAT FRONT VERTICAL MOTOR PASSENGER SEAT HORIZONTAL MOTOR PASSENGER SEAT REAR VERTICAL MOTOR PASSENGER SEAT RECLINE MOTOR PASSENGER WINDOW MOTOR POWER STEERING MOTOR REAR WIPER MOTOR REMOTE FUNCTION ACTUATOR CTRL RH HOOD ACTUATOR HI CTRL RH HOOD ACTUATOR LO CTRL RIGHT AIR TEMPERATURE DOOR ACTUATOR RIGHT COOLING FAN MOTOR RIGHT FRONT SHOCK ABSORBER ACTUATOR RIGHT FRONT SHOCK ABSORBER ACTUATOR SHIELD RIGHT HEADLAMP LEVELING ACTUATOR RIGHT HOOD ACTUATOR HI CTRL RIGHT HOOD ACTUATOR LOW CTRL RIGHT HOOD HINGE ACTUATOR RIGHT PARK BRAKE ACTUATOR RIGHT REAR FOLDING SEAT MOTOR RIGHT REAR SHOCK ABSORBER ACTUATOR RIGHT REAR SHOCK ABSORBER ACTUATOR SHIELD RIGHT REAR WINDOW MOTOR RR PARK BRK MOTOR LO REF STARTER MOTOR SUNROOF SUNSHADE MOTOR MODULE THROTTLE ACTUATOR CTRL CLOSE THROTTLE ACTUATOR CTRL OPEN TRANSMISSION SHIFT LOCK CONTROL SOLENOID ACTUATOR WINDSHIELD WIPER MOTOR

BK COAX AM/FM ANTENNA SIG CENTER CONSOLE FRONT KEYLESS ENTRY ANTENNA CENTER CONSOLE REAR KEYLESS ENTRY ANTENNA DRIVER DOOR HANDLE KEYLESS ENTRY ANTENNA LEFT QUARTER WINDOW ANTENNA LEFT RADIO ANTENNA AMPLIFIER PASSENGER DOOR HANDLE KEYLESS ENTRY ANTENNA RADIO ANTENNA AMPLIFIER REAR COMPARTMENT KEYLESS ENTRY ANTENNA REAR END SPOILER ANTENNA REAR FASCIA KEYLESS ENTRY ANTENNA REAR ROOF ANTENNA REAR WINDOW ANTENNA RIGHT RADIO ANTENNA AMPLIFIER W/ NAVIGATION ANTENNA SIGNAL SPLITTER W/ NAVIGATION ANTENNA SIGNAL SPLITTER W/O NAVIGATION ANTENNA SIGNAL SPLITTER W/O NAVIGATION ANTENNA SIGNAL SPLITTER

PUSH BUTTON PUSH BUTTON START ACTIVE SIG PUSH BUTTON START SIG RADIO KEYPAD BUTTON SIG RADIO KEYPAD BUTTON SIGNAL

CAMERA SIG 2 CAMERA SIGNAL 2 FRONT VIEW CAMERA MODULE REAR VIEW CAMERA REAR VIEW CAMERA CIRCUIT

DATA LINK CONNECTOR TRAILER CONNECTOR

ACTIVE SAFETY CONTROL MODULE BLOWER MOTOR CONTROL MODULE BODY CONTROL MODULE DRIVER SEAT BOLSTER MEMORY CONTROL MODULE DRIVER SEAT MEMORY CONTROL MODULE ELECTRONIC BRAKE CONTROL MODULE ENGINE CONTROL MODULE ENGINE CONTROL MODULE FUSE ENGINE CONTROL MODULE/ IGNITION FUSE ENGINE CONTROL MODULE/IGNITION FUSE FUEL PUMP DRIVER CONTROL MODULE HEADLAMP CONTROL MODULE HUMAN MACHINE INTERFACE CONTROL MODULE HVAC CONTROL MODULE IMMOBILIZER CONTROL MODULE KEYLESS ENTRY CONTROL MODULE KEYLESS ENTRY CONTROL MODULE FUSE LEFT HEADLAMP CONTROL MODULE LEFT HEADLAMP/ CORNERING LAMP CONTROL MODULE LEFT HEADLAMP/CORNERING LAMP CONTROL MODULE LIFTGATE CONTROL MODULE LOGIC TRANSMISSION CONTROL MODULE AUTOMATIC TRANSMISSION ASSEMBLY MEMORY CONTROL MODULE FUSE PARKING ASSIST CONTROL MODULE PASSENGER SEAT BOLSTER MEMORY CONTROL MODULE PASSENGER SEAT MEMORY CONTROL MODULE POWER STEERING CONTROL MODULE REAR DIFFERENTIAL CLUTCH CONTROL MODULE RIGHT HEADLAMP CONTROL MODULE RIGHT HEADLAMP/ CORNERING LAMP CONTROL MODULE RIGHT HEADLAMP/CORNERING LAMP CONTROL MODULE SEAT HEATING CONTROL MODULE STEERING WHEEL HEATING CONTROL MODULE SUNROOF CONTROL MODULE SUSPENSION CONTROL MODULE TELEMATICS COMMUNICATION INTERFACE CONTROL MODULE TRANSMISSION CONTROL MODULE TRANSMISSION CONTROL MODULE AUTOMATIC TRANSMISSION ASSEMBLY TRANSMISSION CONTROL MODULE/ ENGINE CONTROL MODULE FUSE TRANSMISSION CONTROL MODULE/ IGNITION FUSE TRANSMISSION CONTROL MODULE/IGNITION FUSE

A/C HEV FUSE ABS PUMP FUSE AEROSHUTTER FUSE ALL WHEEL DRIVE DAMPING CONTROL FUSE AUTO HEADLAMP LEVELING FUSE BATTERY FUSE BLOCK CANISTER VENT/VIDEO PROCESSING MODULE FUSE COIL FUSE COOLING FAN FUSE COOLING FAN/ DC DC CONVERTER 2 FUSE COOLING FAN/DC DC CONVERTER 2 FUSE DC DC CONVERTER 1 FUSE DRIVER POWER SEAT FUSE EMPTY FUSE FOG LAMP FUSE FRONT HEATED SEATS FUSE FRONT WIPERS FUSE FUEL MODULE FUSE FUSE 1 FUSE 1 FUSE 2 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE 12 FUSE 13 FUSE 14 FUSE 15 FUSE 16 FUSE 17 FUSE 18 FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 27 FUSE 28 FUSE 30 FUSE 31 FUSE 32 FUSE 33 FUSE 34 FUSE 35 FUSE 36 FUSE 37 FUSE 38 FUSE 39 FUSE 40 FUSE 41 FUSE 42 FUSE 74 HEADLAMP LEVELING FUSE HEATED MIRRORS FUSE HEATED STEERING WHEEL FUSE HEATED WINDSHIELD FUSE HORN FUSE IGNITION COILS FUSE INSTRUMENT PANEL FUSE BLOCK INSTRUMENT PANEL/ IGNITION FUSE INSTRUMENT PANEL/IGNITION FUSE LEFT HIGH-BEAM HEADLAMPS FUSE LEFT LED LAMPS FUSE MALFUNCTION INDICATOR LAMP/ SHIFT SOLENOID FUSE MALFUNCTION INDICATOR LAMP/SHIFT SOLENOID FUSE PASSENGER POWER SEAT FUSE POWERTRAIN OFF ENGINE FUSE RDCM FUSE REAR BODY FUSE BLOCK REAR CLOSURE FUSE REAR HEATED SEATS FUSE REAR VISION CAMERA/ VENTILATION FUSE REAR VISION CAMERA/VENTILATION FUSE REAR WINDOW DEFOGGER FUSE REAR WIPER FUSE RIGHT LED LAMP/ RIGHT HEADLAMPS FUSE RIGHT LED LAMP/ RIGHT HIGH-BEAM HEADLAMPS FUSE SEAT LUMBAR FUSE SHUNT FUSE STARTER FUSE STARTER PINION FUSE STEERING COLUMN LOCK FUSE SUN- SHADE FUSE SUNROOF FUSE TPIM MOTOR GENERATOR/TPIM FUSE UNDERHOOD FUSE BLOCK WASHER PUMP FUSE

CORNERING HEADLIGHT SYSTEM MALFUNCTION IND

DRIVER BACK SEAT HEATING ELEMENT DRIVER CUSHION SEAT HEATING ELEMENT HEATER RLY CTRL PASSENGER BACK SEAT HEATING ELEMENT PASSENGER CUSHION SEAT HEATING ELEMENT STEERING WHEEL HEATER

DRIVER SIDE OBJECT DETECTION INDICATOR INDICATOR DIMMING CTRL PASSENGER SIDE OBJECT DETECTION INDICATOR TRANSMISSION SHIFT LEVER POSITION INDICATOR

BACKUP LAMP CONTROL BACKUP LAMP CTRL BACKUP LAMP DTRL CENTER HIGH MOUNTED STOP LAMP DOME LAMP OFF IND CTRL DOME LAMP OFF IND CTRL COMPUTER COMMAND RIDE TOUR LED CTRL DRIVER DOOR ACCENT LAMP DRIVER DOOR HANDLE FLOOD LAMP DRIVER DOOR POCKET FLOOD LAMP EXTERIOR LIGHTS SYSTEM WIPER/WASHER SYSTEM FRONT FOG LAMP IND FRONT FOG LAMP SW SIG FRONT TURN LAMP FEEDBACK SIG FRT FOG LAMP RLY CTRL HDLP HI BEAM RLY CTRL FRT FOG LAMP RLY CTRL HDLP SW PARK LAMP SIG HIGH BEAM LAMP IND INSTRUMENT PANEL ACCENT LAMP INSTRUMENT PANEL COMPARTMENT LAMP INSTRUMENT PANEL LAMP DIMMER SW SIG INTERIOR LAMP CTRL LED BACKLIGHT DIMM CTRL LEFT BACKUP LAMP LEFT CORNERING LAMP LEFT FRONT FLOOR ACCENT LAMP LEFT FRONT FOG LAMP LEFT FRONT SIDE MARKER LAMP LEFT INNER TAIL- LAMP LEFT LICENSE PLATE LAMP LEFT REAR DOOR HANDLE FLOOD LAMP LEFT REAR TURN SIGNAL LAMP LEFT STOP/ TURN SIGNAL LAMP LEFT SUNSHADE MIRROR LAMP LEFT TAIL/ STOP LAMP LEFT TURN SIGNAL REPEATER LAMP LIGHTS) LR STOP LAMP CTRL PASSENGER DOOR ACCENT LAMP PASSENGER DOOR HANDLE FLOOD LAMP PASSENGER DOOR POCKET FLOOD LAMP RADIO BACKLIGHT CTRL RADIO BACKLIGHT LOW REF RADIO DISPLAY BACKLIGHT DIMMING CTRL RADIO DISPLAY BACKLIGHT LO REF RADIO DISPLAY BACKLIGHT LOW REFEREN REAR COMPARTMENT COURTESY LAMP REAR COMPARTMENT LID LAMP CTRL LOW SPD GMLAN SER DATA REAR FOG LAMP IND RF TURN LAMP FEEDBACK SIG RIGHT BACKUP LAMP RIGHT CORNERING LAMP RIGHT FRONT FLOOR ACCENT LAMP RIGHT FRONT FOG LAMP RIGHT FRONT SIDE MARKER LAMP RIGHT LICENSE PLATE LAMP RIGHT REAR DOOR HANDLE FLOOD LAMP RIGHT REAR TURN SIGNAL LAMP RIGHT STOP/ TURN SIGNAL LAMP RIGHT SUNSHADE MIRROR LAMP RIGHT TAIL/ STOP LAMP RIGHT TURN SIGNAL REPEATER LAMP RR STOP LAMP CTRL COMPUTER COMM RIDE SPORT LED CTRL

AUXILIARY HEATER COOLANT PUMP CURRENT PUMP SIG DRIVER SEAT LUMBAR/ BOLSTER PUMP FUEL PUMP FUEL PUMP CTRL FUEL PUMP PRIMARY RLY CTRL HIGH PRESSURE FUEL PUMP OIL PUMP COMAND SIG OIL PUMP COMMAND SIG PASSENGER SEAT LUMBAR/ BOLSTER PUMP WINDSHIELD WASHER PUMP

A/C COMPRESSOR CLUTCH RELAY AUXILIARY HEATER COOLANT PUMP RELAY BATTERY SAVER RELAY 1 ENGINE CONTROLS IGNITION RELAY FOG LAMP RELAY CONTROL FRONT FOG LAMP RELAY HEADLAMP HIGH BEAM RELAY HORN RELAY HOT W/ BATTERY SAVER RELAY 1 ENERGIZED HOT W/ ENGINE CONTROLS IGNITION RELAY ENERGIZED HOT W/ IGNITION MAIN RELAY ENERGIZED HOT W/ RETAINED ACCESSORY POWER RELAY ENERGIZED IGNITION MAIN RELAY LEFT HEADLAMP LOW BEAM RELAY LEFT HEADLAMP RELAY CTRL LIFTGATE UNLATCH RELAY POWERTRAIN RELAY COIL CTRL RAP RELAY RAP RELAY COIL CTRL REAR BODY FUSE BLOCK IGNITION MAIN RELAY REAR DEFOGGER RELAY REAR WINDOW WASHER PUMP RELAY REAR WIPER RELAY RELAY CONTROL RELAY CTRL RETAINED ACCESSORY POWER RELAY RH HEADLAMP RELAY CONTROL RIGHT HEADLAMP LOW BEAM RELAY STARTER PINION SOLENOID ACTUATOR RELAY STARTER RELAY UNDERHOOD FUSE BLOCK WINDSHIELD WIPER RELAY WINDSHIELD WASHER PUMP RELAY WINDSHIELD WIPER RELAY WINDSHIELD WIPER SPEED CONTROL RELAY

A/C EVAPORATOR TEMPERATURE SENSOR A/C REFRIGERANT PRESSURE SENSOR ACCELERATOR PEDAL POSITION SENSOR AMBIENT AIR TEMPERATURE SENSOR AMBIENT LIGHT/ SUNLOAD SENSOR BATTERY SENSOR MODULE BRAKE BOOSTER VACUUM SENSOR BRAKE PEDAL POSITION SENSOR CRANKSHAFT POSITION SENSOR DUCT LEFT LOWER AIR TEMPERATURE SENSOR DUCT LEFT UPPER AIR TEMPERATURE SENSOR DUCT RIGHT LOWER AIR TEMPERATURE SENSOR DUCT RIGHT UPPER AIR TEMPERATURE SENSOR ENGINE COOLANT TEMPERATURE SENSOR ENGINE OIL PRESSURE SENSOR EXHAUST CAMSHAFT POSITION SENSOR FRONT SUSPENSION HEIGHT SENSOR FUEL PRESSURE SENSOR FUEL PRESSURE, TEMPERATURE SENSOR FUEL PUMP, LEVEL SENSOR ASSEMBLY FUEL TANK PRESSURE SENSOR HANDS-FREE LIFTGATE SENSOR CONTROL MODULE HANDS-FREE LIFTGATE SENSOR LAMP HEATED OXYGEN SENSOR 1 HEATED OXYGEN SENSOR 2 HEATED OXYGEN SENSOR BANK 1 SENSOR 1 HEATED OXYGEN SENSOR BANK 1 SENSOR 2 HEATED OXYGEN SENSOR BANK 2 SENSOR 1 HEATED OXYGEN SENSOR BANK 2 SENSOR 2 INTAKE CAMSHAFT POSITION SENSOR KNOCK SENSOR 1 KNOCK SENSOR #2 LEFT CORNERING LAMP LED TEMPERATURE SENSOR LEFT FRONT IMPACT SENSOR LEFT FRONT MIDDLE PARKING ASSIST SENSOR LEFT FRONT OUTER PARKING ASSIST SENSOR LEFT FRONT SIDE IMPACT SENSOR LEFT FRONT SUSPENSION POSITION SENSOR LEFT FRONT WHEEL SPEED SENSOR LEFT HEADLAMP HIGH BEAM LED TEMPERATURE SENSOR LEFT HEADLAMP LOW BEAM LED TEMPERATURE SENSOR LEFT LIFTGATE OBJECT SENSOR LEFT REAR MIDDLE PARKING ASSIST SENSOR LEFT REAR OUTER PARKING ASSIST SENSOR LEFT REAR SIDE IMPACT SENSOR LEFT REAR WHEEL SPEED SENSOR LEFT SIDE OBJECT SENSOR MODULE LONG RANGE RADAR SENSOR MODULE LOWER HANDS-FREE LIFTGATE SENSOR MANIFOLD ABSOLUTE PRESSURE SENSOR MULTI-FUNCTION INTAKE AIR SENSOR MULTIFUNCTION INTAKE AIR SENSOR PASSENGER SEAT BELT TENSION SENSOR PEDESTRIAN PROTECTION SAFING SENSOR MODULE LOW REF PEDESTRIAN PROTECTION SAFING SENSOR MODULE SIG PRIMARY FUEL LEVEL SENSOR REAR SUSPENSION HEIGHT SENSOR REAR SUSPENSION POSITION SENSOR RIGHT CORNERING LAMP LED TEMPERATURE SENSOR RIGHT FRONT IMPACT SENSOR RIGHT FRONT MIDDLE PARKING ASSIST SENSOR RIGHT FRONT OUTER PARKING ASSIST SENSOR RIGHT FRONT SIDE IMPACT SENSOR RIGHT FRONT SUSPENSION POSITION SENSOR RIGHT FRONT WHEEL SPEED SENSOR RIGHT HEADLAMP HIGH BEAM LED TEMPERATURE SENSOR RIGHT HEADLAMP LOW BEAM LED TEMPERATURE SENSOR RIGHT LIFTGATE OBJECT SENSOR RIGHT REAR MIDDLE PARKING ASSIST SENSOR RIGHT REAR OUTER PARKING ASSIST SENSOR RIGHT REAR SIDE IMPACT SENSOR RIGHT REAR WHEEL SPEED SENSOR RIGHT SIDE OBJECT SENSOR MODULE SECONDARY FUEL LEVEL SENSOR SENSOR CTRL 2 SENSOR SIGNAL TRANSMISSION FLUID TEMPERATURE SENSOR TRANSMISSION INPUT SHAFT SPEED SENSOR TRANSMISSION INPUT/INTERMEDIATE SHAFT SPEED SENSOR TRANSMISSION INTERMEDIATE SHAFT SPEED SENSOR TRANSMISSION OUTPUT SHAFT SPEED SENSOR TURBOCHARGER BOOST/INTAKE AIR TEMPERATURE SENSOR UPPER BEAM FRONT PEDESTRIAN IMPACT DETECTION SENSOR UPPER HANDS-FREE LIFTGATE SENSOR WINDSHIELD TEMPERATURE, INSIDE MOISTURE SENSOR

CENTER INSTRUMENT PANEL SPEAKER LEFT FRONT DOOR SPEAKER LEFT FRONT TWEETER SPEAKER LEFT REAR DOOR SPEAKER RIGHT FRONT DOOR SPEAKER RIGHT FRONT TWEETER SPEAKER RIGHT REAR DOOR SPEAKER SUBWOOFER SPEAKER

A/C SWITCH ADAPTIVE CRUISE SWITCH AUTO SWITCH AUTOMATIC TRANSMISSION ASSEMBLY TRANSMISSION INTERNAL MODE SWITCH BRAKE FLUID LEVEL SWITCH CENTER CONSOLE MULTI-FUNCTION SWITCH DELAY SWITCH DRIVER DOOR LOCK SWITCH DRIVER EXTERIOR DOOR HANDLE SWITCH DRIVER HEATED SEAT SWITCH DRIVER SEAT ADJUSTER SWITCH DRIVER SEAT BACK SIDE BOLSTER ADJUSTER SWITCH DRIVER SEAT BELT SWITCH DRIVER SEAT BELT BUCKLE DRIVER SEAT LUMBAR SUPPORT SWITCH DRIVER SEAT MEMORY SWITCH DRIVER WINDOW/ OUTSIDE REAR VIEW MIRROR SWITCH DRIVER WINDOW/OUTSIDE REAR VIEW MIRROR SWITCH ENGINE HOOD SWITCH ENGINE OIL LEVEL SWITCH ENGINE START/STOP SWITCH EXIT SWITCH FORWARD COLLISION WARNING SWITCH FRONT FOG LIGHT SWITCH HAZARD WARNING SWITCH HEAD-UP DISPLAY SWITCH HEADLAMP SWITCH HEATED STEERING WHEEL SWITCH HEATED STEERING WHEEL SWITCH LED HOOD AJAR SWITCH SIGNAL HORN SWITCH IGNITION MODE SWITCH INSTRUMENT PANEL LAMP DIMMER SWITCH LOW REFERENCE INTERIOR LIFTGATE CONTROL SWITCH LANE DEPARTURE WARNING DISABLE SWITCH LEFT FRONT WINDOW DOWN SWITCH LEFT FRONT WINDOW EXPRESS SWITCH LEFT FRONT WINDOW UP SWITCH LEFT REAR EXTERIOR DOOR HANDLE SWITCH LEFT REAR EXTERIOR DOOR HANDLE ASSEMBLY LEFT REAR FOLDING SEAT CONTROL SWITCH LEFT REAR WINDOW DOWN SWITCH LEFT REAR WINDOW EXPRESS SWITCH LEFT REAR WINDOW SWITCH LEFT REAR WINDOW UP SWITCH LEFT STEERING WHEEL CONTROLS SWITCH LEFT TEMPERATURE CONTROL SWITCH LIFTGATE AJAR SWITCH SIGNAL 1 LIFTGATE CLOSE SWITCH LIFTGATE HANDLE SWITCH LOCKOUT SWITCH LOGIC DRIVER WINDOW/OUTSIDE REAR VIEW MIRROR SWITCH LOGIC LEFT REAR WINDOW SWITCH LOGIC RIGHT REAR WINDOW SWITCH LOGIC RIGHT STEERING WHEEL CONTROLS SWITCH LOWER AIR OUTLET SWITCH MAX WINDSHIELD DEFROST SWITCH MEMORY 1 SWITCH MEMORY 2 SWITCH PARK BRAKE CONTROL SWITCH PARK POSITION SWITCH PARKING ASSIST DISABLE SWITCH PASS DR LOCK SWITCH LOCK CTRL PASSENGER DOOR LOCK SWITCH PASSENGER EXTERIOR DOOR HANDLE SWITCH PASSENGER HEATED SEAT SWITCH PASSENGER SEAT ADJUSTER SWITCH PASSENGER SEAT BACK SIDE BOLSTER ADJUSTER SWITCH PASSENGER SEAT BELT SWITCH PASSENGER SEAT BELT BUCKLE PASSENGER SEAT LUMBAR SUPPORT SWITCH PASSENGER SEAT MEMORY ADJUSTER SWITCH PASSENGER SEAT MEMORY SWITCH PASSENGER WINDOW SWITCH REAR DEFOGGER SWITCH RECIRCULATION SWITCH RIGHT FRONT WINDOW DOWN SWITCH RIGHT FRONT WINDOW EXPRESS SWITCH RIGHT FRONT WINDOW UP SWITCH RIGHT LOGIC STEERING WHEEL CONTROLS SWITCH RIGHT REAR EXTERIOR DOOR HANDLE SWITCH RIGHT REAR EXTERIOR DOOR HANDLE ASSEMBLY RIGHT REAR FOLDING SEAT CONTROL SWITCH RIGHT REAR WINDOW DOWN SWITCH RIGHT REAR WINDOW EXPRESS SWITCH RIGHT REAR WINDOW SWITCH RIGHT REAR WINDOW UP SWITCH RIGHT STEERING WHEEL CONTROLS SWITCH RIGHT TEMPERATURE CONTROL SWITCH SET SWITCH SPORT SWITCH START/ STOP SWITCH SWITCH CTRL SWITCH SIG 2 SYNC SWITCH TOUR SWITCH TRACTION CONTROL IND TRACTION CONTROL SWITCH OFF IND TRACTION CONTROL SWITCH TRANSMISSION INTERNAL MODE SWITCH TRANSMISSION MANUAL SHIFT SWITCH TRANSMISSION SHIFT LEVER TRANSMISSION MANUAL SHIFT SWITCH TURN SIGNAL/ MULTI-FUNCTION SWITCH UPPER AIR OUTLET SWITCH WASHER SWITCH WINDSHIELD DEFROST SWITCH WINDSHIELD WASHER FLUID LEVEL SWITCH WINDSHIELD WIPER SWITCH WINDSHIELD WIPER/WASHER SWITCH

A/C COMPRESSOR SOLENOID VALVE AUTOMATIC TRANSMISSION ACCUMULATOR SOLENOID VALVE DRIVER SEAT LUMBAR SUPPORT VALVE ASSEMBLY EVAPORATIVE EMISSION PURGE SOLENOID VALVE EVAPORATIVE EMISSION VENT SOLENOID VALVE PASSENGER SEAT LUMBAR SUPPORT VALVE ASSEMBLY REAR DIFFERENTIAL CLUTCH SOLENOID VALVE TRANSMISSION CONTROL SOLENOID VALVE 1 TRANSMISSION CONTROL SOLENOID VALVE 2 TRANSMISSION CONTROL SOLENOID VALVE 3 TRANSMISSION CONTROL SOLENOID VALVE 4 TRANSMISSION CONTROL SOLENOID VALVE 5 TRANSMISSION CONTROL SOLENOID VALVE 6 TRANSMISSION CONTROL SOLENOID VALVE 7 TRANSMISSION CONTROL SOLENOID VALVE 8 TRANSMISSION CONTROL SOLENOID VALVE 9 TRANSMISSION CONTROL SOLENOID VALVE 10 TURBOCHARGER BYPASS SOLENOID VALVE TURBOCHARGER WASTEGATE SOLENOID VALVE VALVE LIFTER OIL SOLENOID VALVE BANK 1 VALVE LIFTER OIL SOLENOID VALVE BANK 2

(OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/ORG WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/ORG WIRE BLU/RED WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/ORG WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/ORG WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE KEYPAD GREEN KEYPAD RED LED CONTROL WIRE KEYPAD RED WIRE LT BLU WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE ORG/BRN WIRE ORG/GRN WIRE ORG/GRY WIRE ORG/VIO WIRE ORG/WHT WIRE ORG/YEL WIRE PPL/WHT WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/BRN RED/BRN WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE VIO WIRE VIO/BLK WIRE VIO/BLU WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/ORG WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/ORG WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/ORG WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

1-BK 1-BN 1-YE 2-BK 2-BN 2-WAY 4-WAY 2-YE COAX 2.0L 2.0L TURBO 2.0L TURBO 3.6L 2.0L TURBO 3.6L W/ FRONT PARKING ASSIST 2.0L TURBO W/ LINK 5 REAR AXLE 3.6L 3.6L 2.0L 3.6L 3.6L 5 VOLT REF 8 SPEED 8 WAY 9 SPEED 9 SPEED A/T 8 SPEED A/T 73 13 SIG GND (BODY HARNESS, (DRIVER SEAT HARNESS, (FLOOR CONSOLE HARNESS, (FRONT FASCIA HARNESS (HEADLINER HARNESS, (HVAC HARNESS, (INSTRUMENT PANEL HARNESS, (LEFT REAR DOOR HARNESS, (LEFT REAR WHEEL (LIFTGATE HARNESS, (REAR FASCIA HARNESS, (RIGHT REAR DOOR HARNESS, (TOP OF A/C COMPRESSOR A/C COMPRESSOR CLUTCH A/C COMPRESSOR CLUTCH RLY CTRL A/C COMPRSR A/C IND A/C REFRIGERANT PRESS SENS SIG AAT SENS SIG ABS IND. ABSOLUTE PRESS SENS SIG ACC IGN VOLT ACC LED SIG ACC WAKEUP ACC WAKEUP SER DATA ACC WAKEUP SERIAL DATA ACCESSORY WAKEUP ACCESSORY WAKEUP SER DATA ACCESSORY WAKEUP SERIAL DATA ACCUMULATOR SOL ACCY IGN VOLT ACCY WAKEUP SER DATA ACT SIG ACTIVE BODYWORKS SYSTEM ACTIVE NOISE CANCELLATION MODULE ACTIVE SIG ADAPTIVE CRUISE CTRL GAP UP/DOWN SW SIG AFL IND AFTER BOIL AFTER BOIL HTR RLY CTRL AIR BAG IND AIR BAG OFF IND CTRL AIR BAG ON IND CTRL AIR CONDITIONING SYSTEM AIR INLET DR STEPPER MTR CTRL 1 AIR INLET DR STEPPER MTR CTRL 2 AIR INLET DR STEPPER MTR CTRL 3 AIR INLET DR STEPPER MTR CTRL 4 AIR PRESS SIG AIR TEMP SENS LOW REF AIR TEMP SENS SIG AIR TEMPERATURE SENS SIG AJAR SW SIG 1 AJAR SW SIG 2 AJAR SW SIG 3 ALERT LED CTRL AMBIENT LIGHT SENS SIG AMBIENT LIGHT SENS SIG 1 1 BATT POS VOLT AMBIENT LT SENS SIG ANTI-THEFT SYSTEM ANTI-THEFT SYSTEM CRUISE CONTROL SYSTEM APP 5 VOLT REF 2 APP LOW REF 1 APP LOW REF 2 ATT SENS SIG AUDIO LOW REF AUDIO SIG + AUTO IND AUTO PARK AUTOMATIC LEVEL CTRL POS AUTOMATIC LEVEL CTRL POS SENS LOW REF AUTOMATIC TRANSMISSION ASSEMBLY AUXILIARY AUDIO COMMON SIG AUXILIARY AUDIO INPUT AUXILIARY AUDIO SCREEN 2 AUXILIARY DETECTION SIG B+ CTRL B+ VOLT BACKUP LP CTRL BACKUP LP CTRL RUN/CRANK IGN 1 VOLT BANK 1 SENS 1 BAT POS VOLT BATT POS BATT POS VOLT BATT POSI VOLT BATT POSITIVE VOL BATT POSITIVE VOLT BK COAX BK COAX INFOTAINMENT DISPLAY SIG BK LVDS INFOTAINMENT DISPLAY SIG BK USB BK USB USB SERIAL DATA BLOWER MTR SPD CTRL BN GPS/CELL BOLSTER SW SIG BPP SENS SIG BRAKE APPLY SEN LOW REF BRAKE APPLY SENS CTRL BRAKE APPLY SENS SIG BRAKE IND BRAKE POSITION SENS LOW REF BRAKE POSITION SENS SIG BRAKE PRESSURE MODULATOR BRAKE WARNING IND BRK APPLY BRK APPLY SENS CTRL BRK APPLY SENS LO REF BRK APPLY SENS LOW REF BRK APPLY SENS SIG BRK FLUID LEVEL SENS SIG BRK FLUID LEVEL SENS SIG PARK BRK RELEASE SW VOLT REF BRK POS BRK POS SENS BRK POS SENS LOW REF BRK POS SENS SIG BRK VACUUM BRK VACUUM SENS SIG BUS 5 BUS 10 BUS 12 CAM LOW REF CAM PHASER W LOW REF CAM PHASER X LOW REF CAM SIG 2- CAN BUS HI 3 CAN BUS HI SER DATA CAN BUS HIGH 3 SERIAL DATA CAN BUS HIGH SERIAL DATA CAN BUS LO 3 CAN BUS LO 3 CAN BUS HI 3 CAN BUS LO SER DATA CAN BUS LO SER DATA CAN BUS HI SER DATA CAN BUS LOW 3 SERIAL DATA CAN BUS LOW SERIAL DATA CARGO ACCESSORY POWER RECEPTACLE CELL PHONE SIG CELLULAR MICRO LOW REF CELLULAR MICRO SIG CELLULAR MICROPHONE SIG CELLULAR PHONE MICROPHONE CELLULAR TELEPHONE LO REF CELLULAR TELEPHONE SIG CELLULAR VOICE LO REF CELLULAR VOICE SIG CENTER CONSOLE ACCESSORY POWER RECEPTACLE CENTER DISPLAY CHARGE IND CHARGE IND CTRL CHARGING CIRCUIT CIRCUIT BREAKER 1 CLOSURE ANT SIG HI CLOSURE ANT SIG LO CLUTCH A CTRL CLUTCH B CTRL CLUTCH C CTRL CLUTCH D CTRL CLUTCH E CTRL CLUTCH RLY CTRL COAX BK COAX BK GPS COAX BN COAX CU COAX CU USB SERIAL DATA COAX CU XM COAX CU XM/HD COAX VT CELL 1 COAX WH COAX YE COAX YE DISPLAY SIG COAX WH COLLISION ALERT INDICATORS COM CTRL COMM ENABLE COMM SIG COMMON CTRL COMMUNICATION ENABLE COMPUTER COMM RIDE TOUR LED CTRL HDLP HI BEAM RLY CTRL COMPUTER DATA LINES COMPUTER DATA LINES SYSTEM COOLING FAN COOLING FAN CTRL SIG COOLING FANS SYSTEM COURTESY LAMPS SW SIG COURTESY LP SW SIG CPS REPLICATED SIG CRUISE CONTROL SYSTEM CRUISE IND CRUISE/ETC/TCC BRAKE SIG CRUISE/ETC/TCC BRK SIG CTRL CYLINDER 1 CTRL CYLINDER 2 CTRL CYLINDER 3 CTRL CYLINDER 4 CTRL SIG CU COAX CU COAX XM CURRENT ADJUST SIG DATA BUS 1 DATA BUS 2 DATA BUS 3 DATA BUS 4 DATA BUS 8 DATA BUS 9 DATA BUS 11 DATA BUS 12 DATA BUS 13 DATA BUS 18 DATA BUS 19 DATA BUS 21 DEFEAT SW SIG DEFOGGER SYSTEM DET SIG DIM SIG DIMM SW SIG DIMMER SW LOW REF DIMMING CTRL DISPLACEMENT CTRL DISPLACEMENT SPLY DISPLAY RESET SIG DISPLAY SIG + DOME LP OFF IND CTRL DOOR AJAR IND DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOWN SIG DOWN UP DR LK ACT LK CTRL DR LK ACT LK CTRL 2 DR LK ACT UNLK CTRL DR LK ACTR UNLCK CTRL DRIVER DOOR LATCH ASSEMBLY DRIVER EXTERIOR DOOR HANDLE ASSEMBLY DRIVER INFORMATION CENTER DISPLAY DRIVER KNEE AIR BAG DRIVER OUTSIDE REAR VIEW MIRROR GLASS DRIVER OUTSIDE REAR- VIEW MIRROR DRIVER SEAT BELT ANCHOR PRETENSIONER DRIVER SEAT BELT RETRACTOR PRETENSIONER DRIVER SEAT SIDE AIR BAG DRV DR ANT SIG HI DRV DR ANT SIG LO DRV DR HANDLE SW SIG DRV DR LK SW LK SIG DRV DR LK SW UNLK SIG DRV DR LK/ DRV HEATED BACK NTC LO REF DRV HEATED BACK NTC SIG DRV HEATED SEAT ELEMENT CTRL DRV HEATED SEAT ELEMENT LO REF DRV HEATED SEAT NTC LO REF DRV HEATED SEAT NTC SIG DRV PROTECTION HI CTRL DRV PROTECTION LO CTRL DRV SEAT BELT PRET HI CTRL DRV SEAT BELT PRET LO CTRL DRV SEAT BELT SW LO REF DRV SEAT BELT SW SIG DRV SIDE IMPACT MOD HI CTRL DRV SIDE IMPACT MOD LO CTRL DUTY CYCLE SIG DUTY SIG CYCLE ECT SENS SIG ELECTROCHROMIC MIRROR CIRCUIT ELECTRONIC SUSPENSION SYSTEM ENG CTRL SENS ENG CTRL SENS LO REF ENG CTRL SENS LOW REF 2 ESC IND ESC OFF IND EVAP CORE TEMP SENS SIG EVAP CTRL EXCEPT UP LEVEL EXHAUST SENS 2 EXHAUST SENS CTRL 1 EXHAUST SENS CTRL 2 EXHAUST SENS LOW REF 1 EXHAUST SOL 2 EXPRESS CLOSE EXPRESS DOWN EXPRESS OPEN EXPRESS UP FACE SW SIG FORWARD COLLISION ALERT LED CTRL FORWARD SW SIG FR WINDSHIELD WIP SW HI SIG FRONT AXLE LEVEL SENS FRONT AXLE LEVEL SENS LOW REF FRONT OBJECT FRONT OBJECT SENS CTRL 2 FRONT OVERHEAD CONSOLE ASSEMBLY FRONT VERTICAL DOWN SW SIG FRONT VERTICAL DWN SW SIG FRONT VERTICAL MTR DOWN CTRL FRONT VERTICAL MTR DWN CTRL FRONT VERTICAL MTR UP CTRL FRONT VERTICAL UP SW SIG FRT BLOWER FRT FOG LMP SW SIG FRT PRK LH CRNR SENS FRT PRK LH MID SENS FRT PRK LH/RH/MID SENS FRT PRK RH CRNR SENS FRT PRK RH MID SENS FRT PRK SENS LO REF FSD CTRL FT TURN LP FEEDBACK SIG FUEL GAUGE FUEL INJECTOR 1 FUEL INJECTOR 2 FUEL INJECTOR 3 FUEL INJECTOR 4 FUEL INJECTOR 5 FUEL INJECTOR 6 FUEL LINE PRESS SENS SIG GAP UP/DOWN SW SIG GARAGE DOOR OPENER GMLAN SER DATA GMLAN SERIAL GMLAN SERIAL DATA GMLAN SERIAL DATA 2 GMLAN SERIAL DATA - 1 GND SOLAR SENS LOW REF GPS/CELL 2 GPS/CELL SIG GROUND DISTRIBUTION SYSTEM GY HUD SIG HANDSFREE PRO LP CTRL HATCHBACK COAX HATCHBACK/ WAGON HAZ LED DIMMING SIG HAZ SW LH TURN SIG HAZ SW RH TURN SIG HAZARD LED DIMMING SIG HAZARD LED DIMMING SIGNAL HAZARD SW LEFT TURN SIG HAZARD SW RH TURN SIG HAZARD SW SIG HDLP DIMM SW HI BEAM SIG HDLP DIMMER SW HI BEAM SIG HDLP SW FLASH TO PASS SIG HDLP SW HDLPS OFF SIG CTRL HDLP SW OFF SIG CTRL HDLP SW ON SIG HDLP SW PARK LP SIG HEAD OFF HEAD-UP DISPLAY HEAD-UP DISPLAY CIRCUIT HEADLIGHTS SYSTEM HEATED STEERING WHEEL IND HI CTRL SIG HI FTP HI LO INT HI SIG HI SIG BANK 2 SENS 1 HI SIG BANK 2 SENS 2 HI SPD GMLAN HIGH BEAM IND HIGH HEAT IND HIGH SPD GMLAN HIGH SPEED GMLAN HIGH VOLT CTRL CYL 1 HIGH VOLT CTRL CYL 2 HIGH VOLT CTRL CYL 3 HIGH VOLT CTRL CYL 4 HIGH VOLT CTRL CYL 5 HIGH VOLT CTRL CYL 6 HOOD AJAR SW SIG HOOD OPEN HOOD OPEN SW SIG HORIZONTAL MTR FORWARD CTRL HORIZONTAL MTR REARWARD CTRL HORIZONTAL MTR SENS SIG HORIZONTAL POS MTR SENS SIG HORNS SYSTEM HOS HTR LOW CTRL BANK 1 SENS 2 HOT AT ALL TIMES HS GMLAN - HTD OXYGEN SENS GND HTR LOW CTRL BANK 1 SENS 1 HTR LOW CTRL BANK 1 SENS 2 HTR LOW CTRL BANK 2 SENS 1 HTR LOW CTRL BANK 2 SENS 2 HTR RLY CTRL HUD SIG HUD SW LOW REF HUD SW SIG HUMIDITY SENS SIG HUMIDITY TEMP SENS SIG HVAC CONTROLS HVAC MTR CTRL LOWER LEFT AIR TEMP SENS SIG HVAC MTR SPLY VOLT IGN 1 VOLT IGN 3 VOLT IGN MODE SW IGN MODE SW ACC LED SIG IGN MODE SW CTRL BACKUP IGN MODE SW MODE CTRL IGN MODE SW MODE CTRL BACKUP IGN MODE SW MODE CTRL BACKUP HUMIDITY SENS SIG IGN MODE SW ST LED SIG IGN MODE SW VOLT IGN SW MODE CTRL BACKUP IGNITION CTRL 1 IGNITION CTRL 2 IGNITION CTRL 3 IGNITION CTRL 4 IMMOBILIZER CTRL IMMOBILIZER LO REF IMS MODE CTR BACKUP IMS MODE SW LO CTRL IMS MODE SW LO REF IMS MODE SW LOW REF IMS MODE SW LOW REF ENG CTRL SENS LO REF IMS MODE VOLT IN LUGGAGE COMPT) IN SPD SIG INADVERTENT PWR CTRL IND CTRL IND DIMMING CTRL INDUCTION AIR TEMP SENS SIG INFLATABLE RESTRAINT SENSING, DIAGNOSTIC MODULE INFO DISPLAY MODULE INFO REGULATED CTRL INFORTAINMENT REGULATED CTRL INFOTAINMENT CTRL INFOTAINMENT REG CTRL INFOTAINMENT REGULATED CTRL INPUT SPD SIG INSIDE AIR TEMP SENS SIG INSIDE REAR VIEW MIRROR INSIDE STEERING WHEEL) INSTRUMENT CLUSTER INT ANT 1 SIG HI INT ANT 1 SIG LO INT ANT 2 SIG HI INT ANT 2 SIG LO INT ANT 3 SIG HI INT ANT 3 SIG LO INTAKE SENS 1 INTAKE SENS 2 INTAKE SENS CTRL 1 INTAKE SENS CTRL 2 INTAKE SENS LOW REF 1 INTAKE SENS LOW REF 2 INTR LP DEFEAT SW SIG KEY SW SIG KM/H MPH IND KNOCK SENS LOW REF 1 KNOCK SENS LOW REF 2 KNOCK SENS SIG 1 KNOCK SENS SIG 2 LADDER SIG 1 LANE DEPARTURE LANE DEPARTURE WARNING DISABLE SW LANE DEPARTURE WARNING DISABLE SW SIG LANE DEPARTURE WARNING IND LANE KEEPING ASSIST IND LATCH MTR CLOSE LATCH MTR OPEN LCD DIMMING SIG LED AMBIENT LIGHTING CTRL 1 LED AMBIENT LIGHTING CTRL 2 LED BACK LIGHT DIMMING CONTROL LOW SPD GMLAN SER DATA LED BACK LIGHT DIMMING CTRL LED CONTROL LED CTRL LED DISABLE SIG LEFT AUXILIARY AUDIO SIG 2 LEFT FRONT RADIO VOLUME COMPENSATOR INTERIOR NOISE MICROPHONE LEFT FRONT STRUT TOWER) LEFT HEADLAMP ASSEMBLY LEFT HEADLAMP COOLING FAN LEFT HEADLAMP MULTI-FUNCTION LED LEFT HIGH BEAM HEADLAMP LEFT HIGH BEAM INNER HEADLAMP LEFT HIGH BEAM OUTER HEADLAMP LEFT HIGH SEAT HEAT IND LEFT LIFTGATE TAILLAMP ASSEMBLY LEFT LIFTGATE TAILLAMP ASSEMBLY LOGIC LEFT LOW BEAM HEADLAMP LEFT LOW BEAM/HIGH BEAM SPOT HEADLAMP LEFT LOW SEAT HEAT IND LEFT MED SEAT HEAT IND LEFT REAR DOOR LATCH ASSEMBLY LEFT REAR EXTERIOR DOOR HANDLE ASSEMBLY LEFT REAR RADIO VOLUME COMPENSATOR INTERIOR NOISE MICROPHONE LEFT REAR SEAT SIDE AIR BAG LEFT REAR WINDOW DEFOGGER NOISE FILTER LEFT ROOF RAIL AIR BAG LEFT ROOF RAIL DOME/ READING LAMPS LEFT SUNSHADE LEFT TAILLAMP ASSEMBLY LEFT TAILLAMP ASSEMBLY LOGIC LEFT TURN IND LEFT UP LF DAMP SERVO CTRL LF DISCRIMINATING SENS LO REF LF DISCRIMINATING SENS SIG LF DR AJAR LF DR AJAR SW SIG LF DRL CONTROL LF DRL CTRL LF HEAD CURTAIN MOD HI CTRL LF HEAD CURTAIN MOD LO CTRL LF LO LEVEL AUDIO SIG LF LOW LEVEL AUDIO REF LF LOW LEVEL AUDIO SIG LF SIDE IMPACT SENSING LO REF LF SIDE IMPACT SENSING MOD SIG LF TURN SIG LP CTRL LF WHEEL DAMP ACCEL LOW REF LR WHEEL DAMP ACCEL LOW REF LF WHEEL DAMP ACCEL SIG LF WHEEL SPD SENS CTRL LF WHEEL SPD SENS SIG LH FT TURN SIG LP CTRL LH HDLP LO BEAM CNTL LH HDLP LO BEAM CTRL LH HDLP RLY CTRL LH PARK LP CTRL LH PARK LP CTRL RH FT TURN SIG LP CTRL LH REAR STOP LP CTRL LH SIDE OBJECT DETC LED CTRL LIFT GLASS/REAR COMPT LID MTR RELEASE CTRL LIFT GLASS/TRUNK RELS CTRL LIFTGATE AJAR SW SIG 1 LIFTGATE LATCH ASSEMBLY LIN BUS 12 LIN DATA BUS 8 LIN SER LIN SER DATA BUS 3 LIN SER DATA BUS 4 LIN SER DATA BUS 11 LIN SER DATA BUS 21 LIN SERIAL LIN SERIAL BUS 4 LIN SERIAL DATA BUS 1 LIN SERIAL DATA BUS 2 LIN SERIAL DATA BUS 3 LIN SERIAL DATA BUS 4 LIN SERIAL DATA BUS 5 LIN SERIAL DATA BUS 10 LIN SERIAL DATA BUS 11 LIN SERIAL DATA BUS 12 LO REF LO REF 2 LO SIG LO SPD LO SPD GMLAN LO SPD GMLAN SER DATA LO SPD GMLAN SER DATA 2 LO SPD GMLAN SERIAL DATA LO SPD GMLAN SERIAL DATA 2 LO SPEED GMLAN LOCAL INTERCONN ECT NETWORK BUS 12 LOCAL INTERCONNECT LOCAL INTERCONNECT NETWORK BUS 8 LOCAL INTERCONNECT NETWORK BUS 13 GND LOCAL INTERCONNECT NETWORK SERIAL DATA BUS 2 LOCAL INTERCONNECT NETWORK SERIAL DATA BUS 3 LOCAL INTERCONNECT NETWORK SERIAL DATA BUS 4 LOCAL INTERCONNECT NETWORK SERIAL DATA BUS 18 LOCAL INTERCONNECT NETWORK SERIAL DATA BUS 21 LOCAL NETWORK SERIAL DATA BUS 1 LOCAL NETWORK SERIAL DATA BUS 2 LOCAL NETWORK SERIAL DATA BUS 3 LOCKOUT IND LOG MODE RLY CLOSE CTRL LOG MODE RLY OPEN CTRL LOGIC ILL LOGIC INSIDE REAR VIEW MIRROR LOGIC INSTRUMENT CLUSTER LOGIC LEFT HEADLAMP MULTI-FUNCTION LED LOGIC RIGHT HEADLAMP MULTI-FUNCTION LED LOW CTRL LOW HEAT IND LOW LEVEL MID/HIGH LEVEL 2.0L TURBO 3.6L LOW OIL PRESSURE IND LOW REF LOW REF 2 LOW REF 3 LOW REF BANK 1 LOW REF BANK 2 LOW REFERENCE LOW SIG BANK 1 SENS 2 LOW SIG BANK 2 SENS 1 LOW SPD LOW SPD GMLAN LOW SPD GMLAN SER DATA LOW SPD GMLAN SER DATA 2 LOW SPD GMLAN SERIAL DATA LOW SPD GMLAN SERIAL DATA 2 LOW SPEED LOW SPEED GMLAN LOW SPEED GMLAN SERIAL DATA LOW SPEED GMLAN SERIAL DATA 2 LOW SPEED GMLAN SERIAL DATA LIN BUS 8 LOW TIRE PRESSURE IND LOW WASHER FLUID IND CTRL LOWER AIR OUTLET IND LOWER AIR TEMP SENS SIG LOWER RIGHT AIR TEMP SENS SIG LR CRNR OBJ SENS SIG LR DAMP SERVO CTRL LR DOWN CTRL LR DR AJAR SW SIG LR DR HDL SW SIG LR LO LEVEL AUDIO SIG LR LOW LEVEL AUDIO REF LR LOW LEVEL AUDIO SIG + LR MID OBJ SENS SIG LR PARK BRK MTR APPLY CTRL LR PARK BRK MTR APPLY CTRL GND LR PARK BRK MTR LO REF LR PARK BRK MTR LOW REF LR SIDE IMPACT CTRL LR SIDE IMPACT LO REF LR SIDE IMPACT MOD SIG LR UP CTRL LR WHEEL DAMP ACCEL SIG LR WHEEL SPD SENS CTRL LT AUD SIG 2 LT HDLP LO BEAM CTRL LUMBAR SEAT SW ANALOG SIG LUMBAR SW HI REF LVDS BU USB SERIAL DATA LVDS GY LVDS GY DISPLAY SIG MAF SENS SIG MAIN RLY FUSED SPLY 3 MAIN RLY FUSED SPLY 5 MALFUNCTION IND MAP SENS LOW REF MAP SENS SIG MASS AIR FLOW SENS SIG MAX WINDSHIELD DEFROST IND MED HEAT IND MEM SEAT SW SET SIG MEM SW LO REF MEM SW LOW REF MICROPHONE 1 LOW REF MICROPHONE 1 SIG MICROPHONE 2 LOW REF MICROPHONE 2 SIG MICROPHONE 3 LOW REF MICROPHONE 3 SIG MICROPHONE 4 RTN MICROPHONE 4 SIG MICROPHONE SIG MID LEVEL HMI MID/HIGH LEVEL LOW LEVEL MID LEVEL MID/HIGH, LOW LEVEL MIRROR DIMMING MIRRORS SYSTEM MOBILE DEVICE WIRELESS CHARGER MODULE MOD STAGE 1 HI CTRL MOD STAGE 1 LO CTRL MODE DR STEPPER MTR CTRL 1 MODE DR STEPPER MTR CTRL 2 MODE DR STEPPER MTR CTRL 3 MODE DR STEPPER MTR CTRL 4 MOST CONTROL MOST CTRL MOST SER MOST SERIAL MTR OPEN MTR PARK SW SIG MTR RELEASE CTRL 2 MTR STATUS NAVIGATION DISPLAY CTRL NAVIGATION DISPLAY DIMMING CONTROL NAVIGATION SYSTEM NETWORK BUS 2 NETWORK BUS 18 NETWORK SERIAL DATA BUS 9 NOISE REDUCTION MICRO 1 LO REF NOISE REDUCTION MICRO 1 SIG NOISE REDUCTION MICRO 2 LO REF NOISE REDUCTION MICRO 2 SIG NOISE REDUCTION MICRO 3 LO REF NOISE REDUCTION MICRO 3 SIG NOISE REDUCTION MICRO 4 RTN NOISE REDUCTION MICRO 4 SIG NOT USED OBJ SENS CTRL OBJ SENS LO REF OBJ SENS SIG OFF HEAD AUTO PARK OG COAX OIL LEVEL IND OIL LEVEL SW SIG OIL PRESS SENS LOW REF OIL PRESS SENS SIG ON SIG ON/OFF SW SIG ONE COLOR GRAPHIC ONE COLOR GRAPHIC MULTI COLOR STANDARD GRAPHIC W/ NGI VERSION 3.0 OPEN/CLOSE SW OUT SPD SIG OUTPUT SPD SIG PARK BRAKE APPLY SW SIG PARK BRAKE APPLY SW VOL REF PARK BRAKE IND PARK BRAKE RELEASE SW SIG PARK BRAKE RELEASE SW VOL REF PARK BRAKE SW SIG PARK BRAKE SW SPLY VOLT PARK BRK APPLY SW SIG PARK BRK APPLY SW VOLT REF PARK BRK RELEASE SW PARK BRK RELEASE SW SIG PARK BRK RELEASE SW VOLT REF PARK BRK SW SIG PARK BRK SW SPLY PARK BRK SW SUPPLY VOLT PARK IND PARK LAMPS IND PARK LK SOL CTRL PARK/NEUTRAL SG 1 PARKING ASSIST DISABLE IND PARKING ASSIST IND PASS DR ANT SIG HI PASS DR ANT SIG LO PASS DR HANDLE SW SIG PASS DR LK SW LK CTRL PASS DR LK SW UNLK CTRL PASS HEATED BACK NTC LO REF PASS HEATED BACK NTC SIG PASS HEATED SEAT ELEMENT CTRL PASS HEATED SEAT ELEMENT LO REF PASS HEATED SEAT NTC LO REF PASS HEATED SEAT NTC SIG PASS KNEE MOD HI CTRL PASS KNEE MOD LO CTRL PASS MEMORY PASS PROTECTION HI CTRL PASS PROTECTION LO CTRL PASS SEAT BELT PRET HI CTRL PASS SEAT BELT PRET LO CTRL PASS SEAT BELT SW LO REF PASS SEAT BELT SW SIG PASS SIDE IMPACT MOD HI CTRL PASS SIDE IMPACT MOD LO CTRL PASS STAGE 1 HI CTRL PASS STAGE 1 LO CTRL PASS STAGE 2 HI CTRL PASS STAGE 2 LO CTRL PASSENGER AIR BAG OFF IND PASSENGER AIR BAG ON IND PASSENGER DOOR HARNESS) PASSENGER DOOR LATCH ASSEMBLY PASSENGER EXTERIOR DOOR HANDLE ASSEMBLY PASSENGER INSTRUMENT PANEL AIR BAG PASSENGER KNEE AIR BAG PASSENGER OUTSIDE REAR VIEW MIRROR PASSENGER OUTSIDE REAR VIEW MIRROR GLASS PASSENGER PRESENCE MODULE PASSENGER SEAT BELT ANCHOR PRETENSIONER PASSENGER SEAT BELT IND PASSENGER SEAT BELT RETRACTOR PRETENSIONER PASSENGER SEAT SIDE AIR BAG PASSIVE START SW 2 LOW REF PASSIVE START SW SIG 2 PEDESTRIAN PROTECTION IMPACT LO REF PEDESTRIAN PROTECTION IMPACT SENSING MODULE LOW REF PEDESTRIAN PROTECTION IMPACT SENSING MODULE SIG PEDESTRIAN PROTECTION IMPACT SIG PEDESTRIAN PROTECTION SENS LO REF PEDESTRIAN PROTECTION SENS SIG PHASER INTAKE SOL 1 PHASER INTAKE SOL 2 PHASER W LOW REF PHASER X LOW REF PHASER Y LOW REF PHASER Z LOW REF POS SIG 1 POS SIG 2 POWER DISTRIBUTION SYSTEM POWER SOUNDER CONTENT THEFT DETERRENT ALARM MODULE POWER SOUNDER CONTENT THEFT DETERRENT ALARM MODULE LOGIC POWER SUPPLY TRANSFORMER POWERTRAIN MAIN RLY FUSED SPLY 1 POWERTRAIN MAIN RLY FUSED SPLY 2 POWERTRAIN MAIN RLY FUSED SPLY 3 PRESS SENS LOW REF PRESS SENS SIG PRESSURE SENS SIG PULSED VOLT REF PURGE SOL CTRL RADIO CONTROLS RADIO DISPLAY DIAGNOSTIC SIG RADIO DISPLAY DIMM CTRL RADIO DISPLAY LO VOLT SIG RADIO DISPLAY TOUCH REQUEST SIG RADIO KEYPAD CTRL RADIO KEYPAD DIMM CTRL RADIO KEYPAD DIMMING CONTROL RADIO KEYPAD DIMMING CTRL RADIO KEYPAD GND RTN RADIO KEYPAD GROUND RETURN RADIO KEYPAD GROUND RTN RADIO KEYPAD LO REF RADIO KEYPAD LOW REF RADIO KEYPAD LOW REFERENCE RADIO KEYPAD POWER SIG RADIO KEYPAD POWER SIGNAL RADIO KEYPAD VOLT REF RADIO KEYPAD VOLTAGE REF RADIO KEYPAD VOLTAGE REFERENCE RADIO LOW REF RADIO VOLUME DOWN SIG RADIO VOLUME DOWN SIGNAL RADIO VOLUME UP SIG RADIO VOLUME UP SIGNAL REAR CLOSURE HANDLE SW OPEN SIG REAR CLOSURE SHUT FACE SW LED CTRL REAR COMPT LID LP CTRL REAR DEFOG RLY CTRL REAR DEFOGGER GRID REAR DEFOGGER IND REAR DOME READING LAMPS REAR DOME/READING LAMPS REAR LICENSE LP CTRL REAR PARK ASSIST REAR PARK ASSIST LED DISABLE SIG REAR RADIO VOLUME COMPENSATOR INTERIOR NOISE MICROPHONE REAR VERTICAL DOWN SW SIG REAR VERTICAL DWN SW SIG REAR VERTICAL MTR DOWN CTRL REAR VERTICAL MTR UP CTRL REAR VERTICAL UP SW SIG REAR WINDOW DEFOGGER CAPACITOR REAR WINDOW WIPER SW SIG REARWARD SW SIG RECIRCULATION IND RECLINE FORWARD SW SIG RECLINE FWD RECLINE MTR FORWARD CTRL RECLINE MTR POS SENS SIG RECLINE MTR REARWARD CTRL RECLINE REARWARD SW SIG RECLINE RWD RECOGNITION AUDIO LOW REF RECOGNITION AUDIO SIG REFLECTED LED DISP DIMMING CTRL REFLECTED LED DISPLAY DIMMING CTRL REGAL SPORTBACK REGAL TOURX REMOTE ENABLE SIG REMOTE FUNCTION ACT CTRL REMOTE FUNCTION ACT LOW REF REMOTE FUNCTION ACTR TRANS SIG REPLICATED SIG REQUEST SIG RES+ RF DAMP SERVO CTRL RF DISCRIMINATING SENS LO REF RF DISCRIMINATING SENS SIG RF DR AJAR SW SIG RF DRL CONTROL RF HEAD CURTAIN MOD HI CTRL RF HEAD CURTAIN MOD LO CTRL RF LO LEVEL AUDIO SIG RF LOW LEVEL AUDIO REF RF LOW LEVEL AUDIO SIG RF SIDE IMPACT SENSING LO REF RF SIDE IMPACT SENSING MOD SIG RF TURN SIG LP CTRL RF WHEEL DAMP ACCEL LOW REF RF WHEEL DAMP ACCEL SIG RF WHEEL SPD SENS CTRL RF WHEEL SPD SENS SIG RFA LOW REF RFA RECEIVE SIG RFA TRANSMIT SIG RH FT TURN LP FEEDBACK SIG RH HDLP LO BEAM CNTL RH HDLP LO BEAM CTRL RH HDLP RLY CTRL RH PARK LP CTRL RH SIDE OBJECT DETC LED CTRL RIGHT AUXILIARY AUDIO SIG 2 RIGHT FRONT DRL CONTROL RIGHT FRONT RADIO VOLUME COMPENSATOR INTERIOR NOISE MICROPHONE RIGHT HEADLAMP ASSEMBLY RIGHT HEADLAMP COOLING FAN RIGHT HEADLAMP MULTI-FUNCTION LED RIGHT HIGH BEAM HEADLAMP RIGHT HIGH BEAM INNER HEADLAMP RIGHT HIGH BEAM OUTER HEADLAMP RIGHT HIGH SEAT HEAT IND RIGHT INNER TAILLAMP RIGHT LIFTGATE TAILLAMP RIGHT LIFTGATE TAILLAMP ASSEMBLY RIGHT LOW BEAM HEADLAMP RIGHT LOW BEAM/HIGH BEAM SPOT HEADLAMP RIGHT LOW SEAT HEAT IND RIGHT MED SEAT HEAT IND RIGHT REAR DOOR LATCH ASSEMBLY RIGHT REAR EXTERIOR DOOR HANDLE ASSEMBLY RIGHT REAR RADIO VOLUME COMPENSATOR INTERIOR NOISE MICROPHONE RIGHT REAR SEAT SIDE AIR BAG RIGHT REAR WINDOW DEFOGGER NOISE FILTER RIGHT ROOF RAIL AIR BAG RIGHT ROOF RAIL DOME/ READING LAMPS RIGHT SIDE OF RADIATOR) RIGHT SUNSHADE RIGHT TAILLAMP ASSEMBLY RIGHT TURN IND RLY CTRL RLY FUSED SPLY 5 RPM IND RR CLOSURE HANDLE SW OPEN SIG RR CLOSURE OPEN RR CRNR OBJ SENS SIG RR DAMP SERVO CTRL RR DOWN CTRL RR DR AJAR SW SIG RR DR HDL SW SIG RR LICENSE LP CTRL RR LO LEVEL AUDIO SIG RR LOW LEVEL AUDIO REF RR LOW LEVEL AUDIO SIG + RR MID OBJ SENS SIG RR PARK ASSIST LED DISABLE SIG RR PARK BRK MTR APPLY CTRL RR PARK BRK MTR LOW REF RR PRK ASSIST DISABLE SIG RR SIDE IMPACT CTRL RR SIDE IMPACT LO REF RR SIDE IMPACT MOD SIG RR STOP LP CTRL RR UP CTRL RR WHEEL SPD SENS CTRL RR WHEEL SPD SENS SIG RR WIND WASHER RLY CTRL RR WIPER SW SIG RT AUD SIG 2 RT HDLP LO BEAM CTRL RUN/CRANK IGN 1 VOLT RUN/CRANK IGNITION 1 VOLT SCREEN 2 SEAT BELT IND SEATS SYSTEM SEC IND CTRL SECURITY IND SECURITY IND CTRL SEEK DOWN SEEK DOWN SEEK UP SEEK SEEK UP DOWN SEEK UP SEL RIGHT SENS COLLECTOR SIG SENS CTRL SENS CTRL 2 SENS HI REF BANK 1 SENS LO REF SENS LO REF 2 SENS LOW SENS LOW REF SENS LOW REF 1 SENS SIG SENS SIG 1 SENS SIG 2 SER DATA SER DATA BUS 4 SER DATA BUS 12 SER DATA BUS 21 SER DATA COMM ENABLE SERIAL DATA SERIAL DATA 2 SERIAL DATA BUS 1 SERIAL DATA BUS 2 SERIAL DATA BUS 5 SERIAL DATA BUS 10 SERIAL DATA BUS 10 LOW SPD GMLAN SERIAL DATA 2 SERIAL DATA BUS 11 SERIAL DATA COMM ENABLE SERIAL DATA COMMUNICATION ENABLE SERIAL DATA GATEWAY MODULE SERVICE PARK BRAKE IND SET- SET/COAST/RESUME SW SIG SET/COAST/RESUME/ ACCELERATE SW SHIELD GND SHIFT INTERLOCK, TRANSMISSIONS SYSTEMS SHIFT SEL SW SIG SHIFT SELECT SW PER SIG SHORTING BAR SIG 3 SIG GND SKIP/SHIFT SOL CTRL SOL CTRL SOL CTRL 1 SOL CTRL 2 SOLAR SENS SOLAR SENS LOW REF SOUND SYSTEMS SOUND SYSTEMS CRUISE CONTROL SYSTEM SOURCE VOICE SPARK PLUG SPD SIG SPLY CYL 1 SPLY CYL 2 SPLY CYL 3 SPLY CYL 4 SPLY CYL 5 SPLY CYL 6 SPLY CYLINDER 1 SPLY CYLINDER 2 SPLY CYLINDER 3 SPLY CYLINDER 4 SPLY VOLT PPL LOW REF SPORT IND SPORT LED CTRL SPORT MODE SW SIG START LED SIG START SIG START STOP IND STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING WHEEL AIR BAG STEERING WHEEL SIG 1 STEERING WHEEL) SW 2 LO REF SW 2 LOW REF SW DATA 1 SW DOWN SIG SW DRV DOWN SIG SW DRV EXP SIG SW DRV UP SIG SW EXPRESS SIG SW HIGH SIG SW LED CTRL SW OPEN SIG SW SIG SW SIG 1 SW SIG 2 SW UP SIG SYNC IND TAP UP/TAP DOWN SW SIG TCC/CLUTCH SOL CTRL TEMP DR STEPPER MTR CTRL 1 TEMP DR STEPPER MTR CTRL 2 TEMP DR STEPPER MTR CTRL 3 TEMP DR STEPPER MTR CTRL 4 TEMP DR STEPPER MTR PASS CTRL 1 TEMP DR STEPPER MTR PASS CTRL 2 TEMP DR STEPPER MTR PASS CTRL 3 TEMP DR STEPPER MTR PASS CTRL 4 TEMP SENS SIG TEMP SIG THROTTLE POS SENS LOW REF THROTTLE POS SENS SIG TIRE PRESSURE IND TOUCH REQUEST SIG TOUR IND TOUR LED CTRL TPS LOW REF TPS SIG TRACTION CTRL TRACTION CTRL SW SIG 1 TRACTION IND TRACTION OFF IND TRANS CLUTCH F CTRL TRANS CLUTCH G CTRL TRANS CLUTCH H CTRL TRANS HI SIDE DRV 1 SIG TRANS HI SIDE DRV 2 SIG TRANS INTERMEDIATE SPD SIG TRANS OIL LVL SENS SIG TRANS OIL TEMP SENS LO REF TRANS OIL TEMP SENS SIG TRANS POS TRANSMISSION PARK/NEUTRAL SIG 1 TRANSMISSION SHIFT LEVER TRANSMISSIONS SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM TURBO BYPASS SOL BANK 1 U PHASE UNLOCK SIG UP DISPLAY UP DOWN UP DOWN SIG UP LEFT UP LEVEL MID LEVEL UP/DOWN SW SIG UPPER AIR OUTLET IND UPPER LEFT AIR TEMP SENS SIG UPPER RIGHT AIR TEMP SENS SIG USB BK USB BK USB SERIAL DATA USB RECEPTACLE USB SERIAL USB USB V PHASE VEH ANTI-THEFT SYS IMMOBILIZER CTRL 12 VOLT REF VEH ANTI-THEFT SYS IMMOBILIZER LO REF LIN SERIAL DATA VENT MTR CTRL 1 VERTICAL MTR POS SENS SIG VERTICAL MTR SENS SIG VERTICAL POS MTR SENS SIG VOICE AUDIO LOW REF VOICE AUDIO REF VOICE AUDIO SIG VOICE LOW VOICE LOW REF VOICE RECOGNITION AUDIO LOW REF VOICE RECOGNITION AUDIO REF VOICE RECOGNITION AUDIO SIG VOICE RECOGNITION AUDIO SIGNAL VOICE REF VOICE SIG VOICE SIG INFORTAINMENT REGULATED CTRL VOICE SIGNAL VOL SEEK UP VOL VOL VOLT 2 VOLT REF VOLUME DOWN VOLUME DOWN SEEK UP VOLUME SEEK DOWN UP VOLUME UP W PHASE W/ 4-LINK REAR AXLE W/ 5-LINK REAR AXLE W/ ACTIVE NOISE W/ BRAKE PREFILL INTEGRATED BRAKE ASSIST W/ DRIVER INFO ENHANCED DISPLAY W/O DRIVER INFO ENHANCED DISPLAY W/ FRONT SEAT VENTILATION W/ FRONT, REAR PARK ASSIST 3.6L 2.0L TURBO W/ HALOGEN W/ HALOGEN HEADLAMPS W/ HALOGEN HEADLAMPS W/ LED HEADLAMPS W/ HALOGEN HEADLAMPS W/ LED HEADLAMPS HATCHBACK WAGON W/ HEAD W/ HEAD UP DISPLAY W/ HEAD-UP DISPLAY W/O HEAD-UP DISPLAY W/ KEEP ASSIST LANE ACTIVE SAFETY W/ LED W/ LED HEADLAMPS W/ LINK 4 REAR AXLE W/ LINK 5 REAR AXLE W/ LT SENSITIVE MIRROR I/S R/V W/ MANUAL STEERING WHEEL HEAT W/ MEMORY W/ MEMORY W/O MEMORY W/ MULTI COLOR STANDARD GRAPHIC W/ NAVIGATION W/ NGI VERSION 3.0 W/O NGI VERSION 3.0 W/ OBSTACLE DETECTION ENHANCED SIDE ACTIVE SAFETY W/ ONE COLOR GRAPHIC W/ MULTI COLOR STANDARD GRAPHIC W/ ONSTAR W/ POWER LIFT GATE W/ SUNROOF GLASS W/ TRAILER PROVISIONS W/ TRANSPARENT GLASS FIXED W/O ACTIVE NOISE W/O CONTINUOUSLY VARIABLE REAL TIME DAMPING W/O HEAD-UP DISPLAY W/O HEAD-UP DISPLAY W/ HEAD-UP DISPLAY W/O INDUCTIVE PORTABLE WIRELESS DEVICE CHARGER W/O MEMORY W/O MEMORY 4-WAY W/O MEMORY W/ MEMORY W/O NGI VERSION 3.0 W/O ONSTAR W/O SUNROOF W/O TRAILER PROVISIONS W/O TRANSPARENT GLASS FIXED W/O WINDSHIELD HEAD-UP DISPLAY WAGON COAX WAGON HATCHBACK WARNING IND CTRL WASHER SW SIG WASTEGATE SOL CTRL WH COAX WHL HI CTRL WINDSCREEN TEMP SENS SIG WINDSHIELD DEFROST IND WINDSHIELD WASHER RLY CTRL WINDSHIELD WASHER SW SIG WINDSHIELD WIPER MTR PRK SW SIG WINDSHIELD WIPER SW HI SIG WINDSHIELD WIPER SW LO REF WINDSHIELD WPR SW LO SIG WIPER LOW REF WIPER SW HI SIG WIPER SW LO SIG WIPER/ WASHER SYSTEM WIPER/WASHER SYSTEM WIRELESS SYS CHARGE IND CTRL YE COAX DISPLAY SIG YE COAX DISPLAY SIG WH COAX YE DISPLAY SIG
