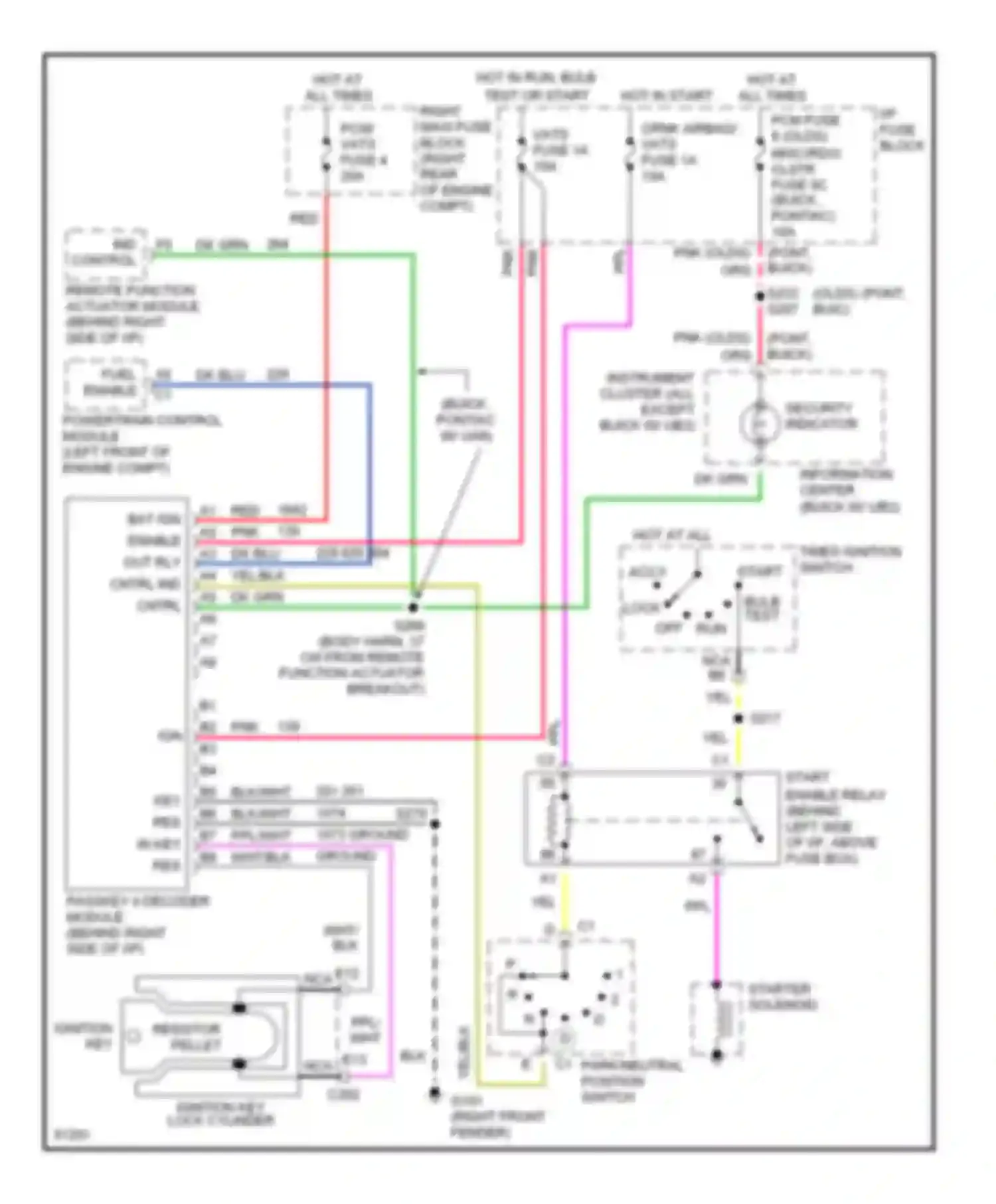

Buick LeSabre VII (1992-1999) 251 251 1074 1073 ground ground key res in key res in Wiring diagram

1642 139 PNK 229 625 264 WIRE 251 251 1074 1073 GROUND GROUND KEY RES IN KEY RES IN BAT IGN ENABLE OUT RLY CNTRL IND CNTRL BLK WIRE BLK/WHT WIRE BUICK PONTIAC BULB TEST LOCK OFF CRNK AIRBAG/ VATS DK BLU WIRE DK GRN WIRE ENABLE RELAY (BEHIND LEFT SIDE OF I/P, ABOVE FUSE BOX) FUEL ENABLE HOT AT ALL TIMES HOT AT ALL TIMES IGNITION SWITCH ACCY HOT IN RUN, BULB TEST OR START HOT IN START I/P FUSE BLOCK IGNITION KEY IGNITION KEY LOCK CYLINDER IND CONTROL INFORMATION CENTER INSTRUMENT CLUSTER (ALL EXCEPT NCA WIRE ORG/ WIRE PARK/NEUTRAL POSITION SWITCH PASSKEY II DECODER MODULE (BEHIND RIGHT SIDE OF I/P) PCM FUSE 8 (OLDS) MISC/RDO/ CLSTR PCM/ VATS FUSE 4 PNK (OLDS) (PONT, BUICK) WIRE PNK IGN WIRE PNK WIRE POWERTRAIN CONTROL MODULE (LEFT FRONT OF ENGINE COMPT) PPL PPL/ RESISTOR PELLET PPL/WHT WIRE RED WIRE REMOTE FUNCTION ACTUATOR MODULE (BEHIND RIGHT SIDE OF I/P) RIGHT MAXI FUSE BLOCK (RIGHT REAR OF ENGINE COMPT) RUN WIRE SECURITY INDICATOR STARTER SOLENOID VATS WHT WIRE WHT/BLK WIRE YEL WIRE YEL/BLK WIRE
