Buick LaCrosse II facelift (2013-2016) power steering shaft torque sensor Wiring diagrams
This page contains all the electrical diagrams for the component. power steering shaft torque sensor, in which he is found in the car Buick LaCrosse II facelift (2013-2016). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram power steering shaft torque sensor (1 of 2)
1 2 3 4 5 6 DATA (-) DATA (-) DATA (+) DATA (+) VOLT GND
1 2 BATTERY GND
ANTI-LOCK BRAKES SYSTEM
AUTOMATIC TRANSMISSION ASSEMBLY
BATTERY FUSE BLOCK (TOP OF BATTERY)
BLK WIRE
BLU WIRE
BLU/RED WIRE
BLU/YEL WIRE
BRN WIRE
COMPUTER DATA LINES
COMPUTER DATA LINES SYSTEM
CONTROL SOLENOID VALVE ASSEMBLY
DATA (+) DATA (-) SPLY VOLT
DK BLU WIRE
DK BLU/YEL WIRE
DRIVER INFORMATION CENTER DISPLAY
ELECTRONIC BRAKE CONTROL MODULE (LEFT SIDE OF ENGINE COMPT)
FUSE
GRN WIRE
GRN/BRN WIRE
HOT AT ALL TIMES
INSTRUMENT CLUSTER
LOGIC
LT GRN WIRE
POWER STEERING CONTROL MODULE (LOWER LEFT SIDE OF DASH)
POWER STEERING MOTOR
POWER STEERING SHAFT TORQUE SENSOR
RED/YEL WIRE
SENS SIG SENS RTN
STEERING ANGLE SENSOR (BASE OF STEERING COLUMN)
SYSTEM
TRANSMISSION CONTROL MODULE (TCM) 2.4L 3.6L
TRANSMISSION OUTPUT SHAFT SPEED SENSOR
W/ ADAPTIVE CRUISE CONTROL
WHT WIRE
WHT/DK BLU WIRE
WHT/YEL WIRE
YEL WIRE
YEL/BLK WIRE
Go to component -> Electronic power steering circuit, with belt drive -> POWER STEERING SHAFT TORQUE SENSOR

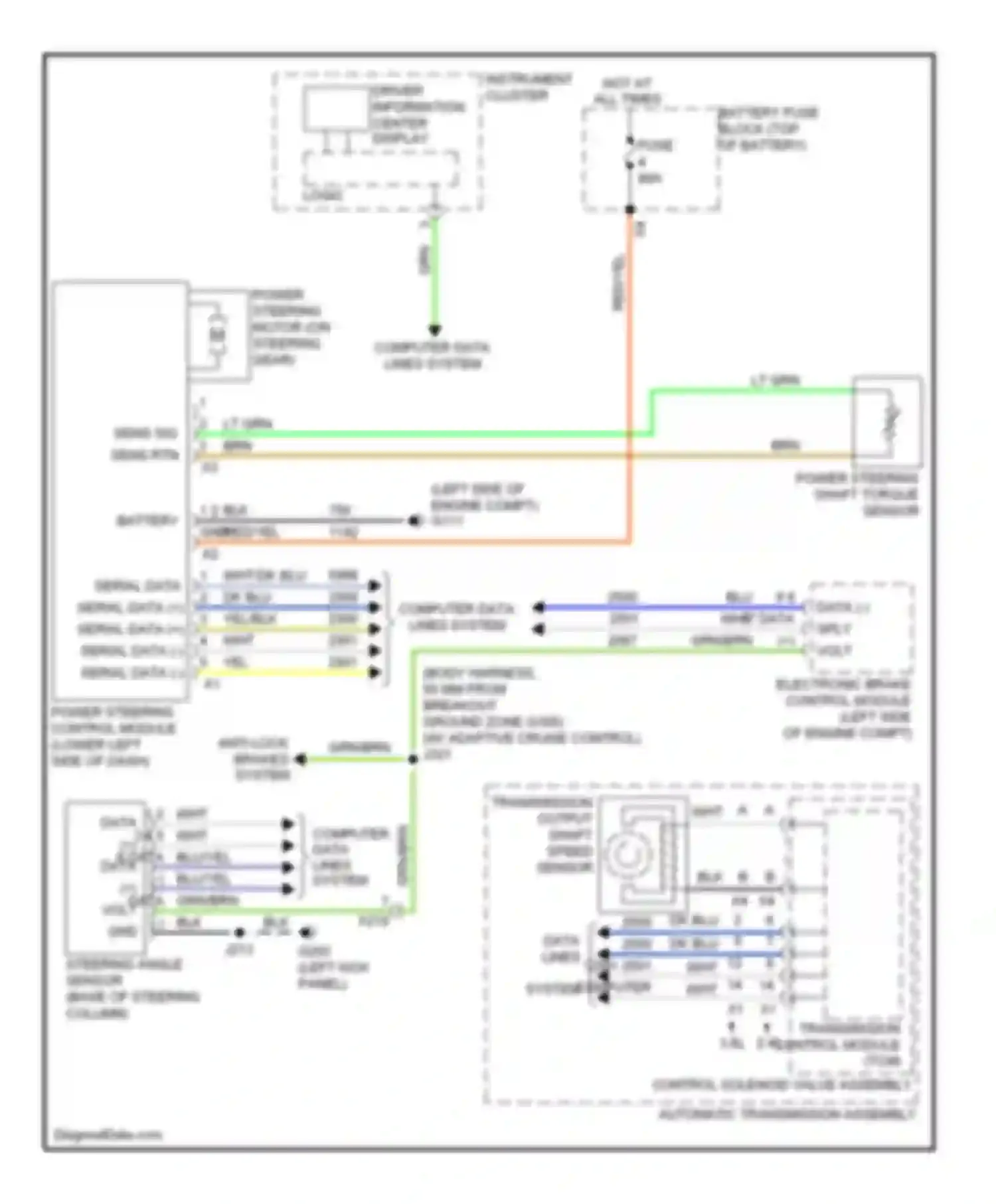

Wiring diagram power steering shaft torque sensor (2 of 2)
1 2 3 4 5 6 DATA (-) DATA (-) DATA (+) DATA (+) VOLT GND
1 2 GND BATTERY
2.4L 3.6L
2500 2500 2501 2501 COMPUTER DATA LINES
9 8 17 DATA + DATA - SPLY VOLT
ANTI-LOCK BRAKES SYSTEM
AUTOMATIC TRANSMISSION ASSEMBLY
BATTERY FUSE BLOCK (TOP OF BATTERY)
BLK WIRE
BLU WIRE
BLU/YEL WIRE
BRN WIRE
COMPUTER DATA LINES
COMPUTER DATA LINES SYSTEM
CONTROL SOLENOID VALVE ASSEMBLY
DK BLU WIRE
DRIVER INFORMATION CENTER DISPLAY
ELECTRONIC BRAKE CONTROL MODULE (LEFT SIDE OF ENGINE COMPT)
FUSE
GRN WIRE
GRN/BRN WIRE
HOT AT ALL TIMES
INSTRUMENT CLUSTER
LOGIC
LT GRN WIRE
POWER STEERING CONTROL MODULE (LOWER LEFT SIDE OF DASH)
POWER STEERING MOTOR (ON STEERING GEAR)
POWER STEERING SHAFT TORQUE SENSOR
RED/YEL WIRE
SENS SIG SENS RTN
STEERING ANGLE SENSOR (BASE OF STEERING COLUMN)
SYSTEM
TRANSMISSION CONTROL MODULE (TCM)
TRANSMISSION OUTPUT SHAFT SPEED SENSOR
W/ ADAPTIVE CRUISE CONTROL
WHT WIRE
WHT/DK BLU WIRE
YEL WIRE
YEL/BLK WIRE
Go to component -> Electronic power steering circuit, without variable effort or belt drive -> POWER STEERING SHAFT TORQUE SENSOR
