Buick LaCrosse II (2009-2013) 52 59 42 56 46 45 batt + volt lo spd fan rly ctrl hi spd fan rly ctrl Wiring diagram
This page shows the only wiring diagram for the component.52 59 42 56 46 45 batt + volt lo spd fan rly ctrl hi spd fan rly ctrl, which is found in the car Buick LaCrosse II (2009-2013). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

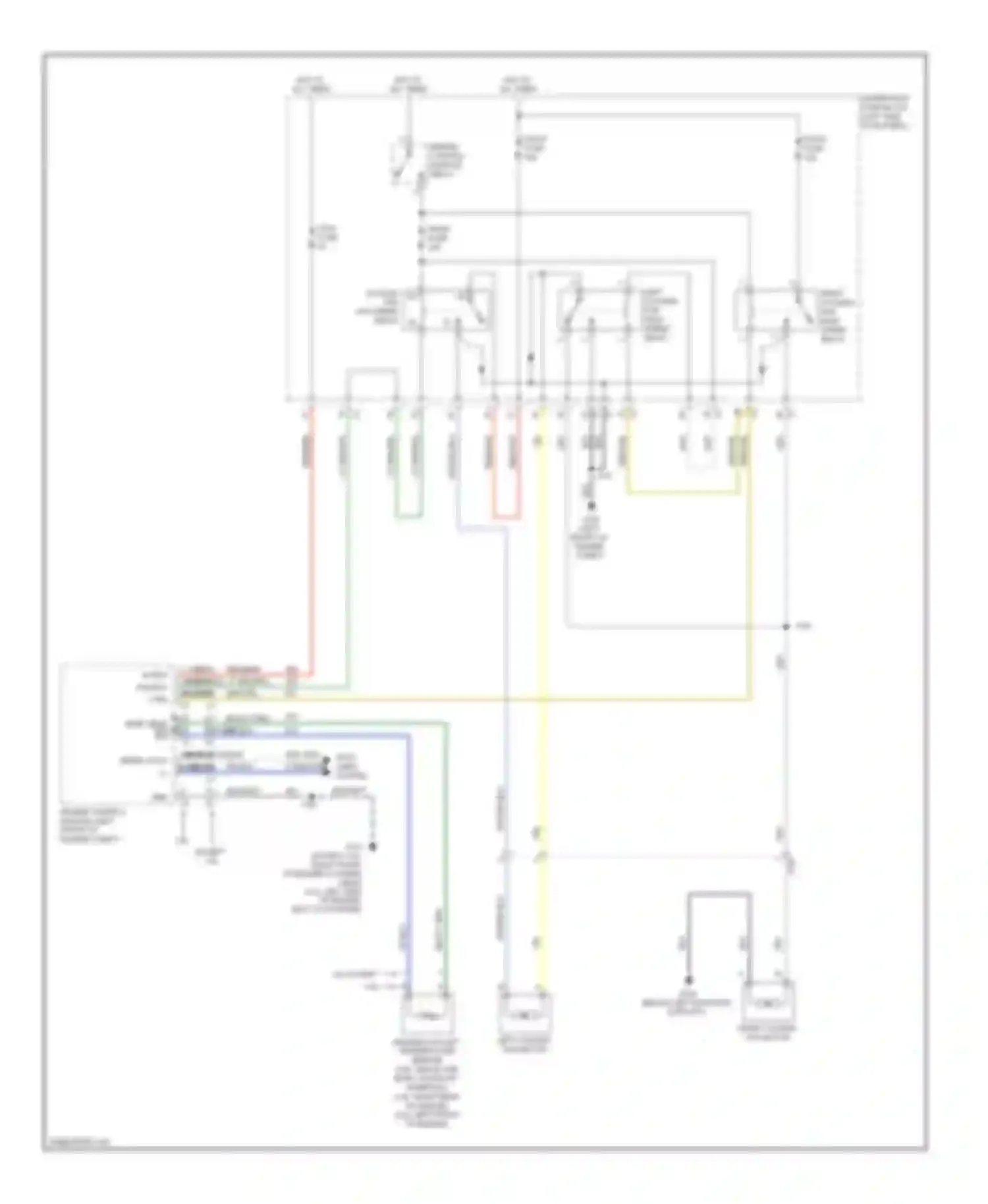

Wiring diagram 52 59 42 56 46 45 batt + volt lo spd fan rly ctrl hi spd fan rly ctrl (1 of 1)
2501 2500 COMPUTER DATA LINES SYSTEM
40 39 55 42 GMLAN SERIAL DATA (-) GMLAN SERIAL DATA (+)
44 82 24 8 SENS LO REF ENG TEMP SENS SIG
52 59 42 56 46 45 BATT + VOLT LO SPD FAN RLY CTRL HI SPD FAN RLY CTRL
BLK WIRE
BLK/LT GRN WIRE
BLK/WHT WIRE
BRN/YEL WIRE
COOLING FAN LOW SPEED RELAY
DK BLU WIRE
ENGINE CONTROL MODULE (LEFT FRONT OF ENGINE COMPT)
ENGINE CONTROL MODULE RELAY
FUSE
GRY WIRE
HOT AT ALL TIMES
LEFT COOLING FAN HIGH SPEED RELAY
LEFT COOLING FAN MOTOR
LT GRN/PPL WIRE
OF BATTERY)
RED/BRN WIRE
RED/WHT WIRE
RIGHT COOLING FAN HIGH SPEED RELAY
RIGHT COOLING FAN MOTOR
UNDERHOOD FUSE BLOCK (LEFT SIDE
WHT WIRE
WHT/DK BLU WIRE
YEL WIRE
Go to component -> Cooling fan circuit -> 52 59 42 56 46 45 BATT + VOLT LO SPD FAN RLY CTRL HI SPD FAN RLY CTRL
