Buick LaCrosse I (2004-2009) column shift console shift Wiring diagram
This page shows the only wiring diagram for the component.column shift console shift, which is found in the car Buick LaCrosse I (2004-2009). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

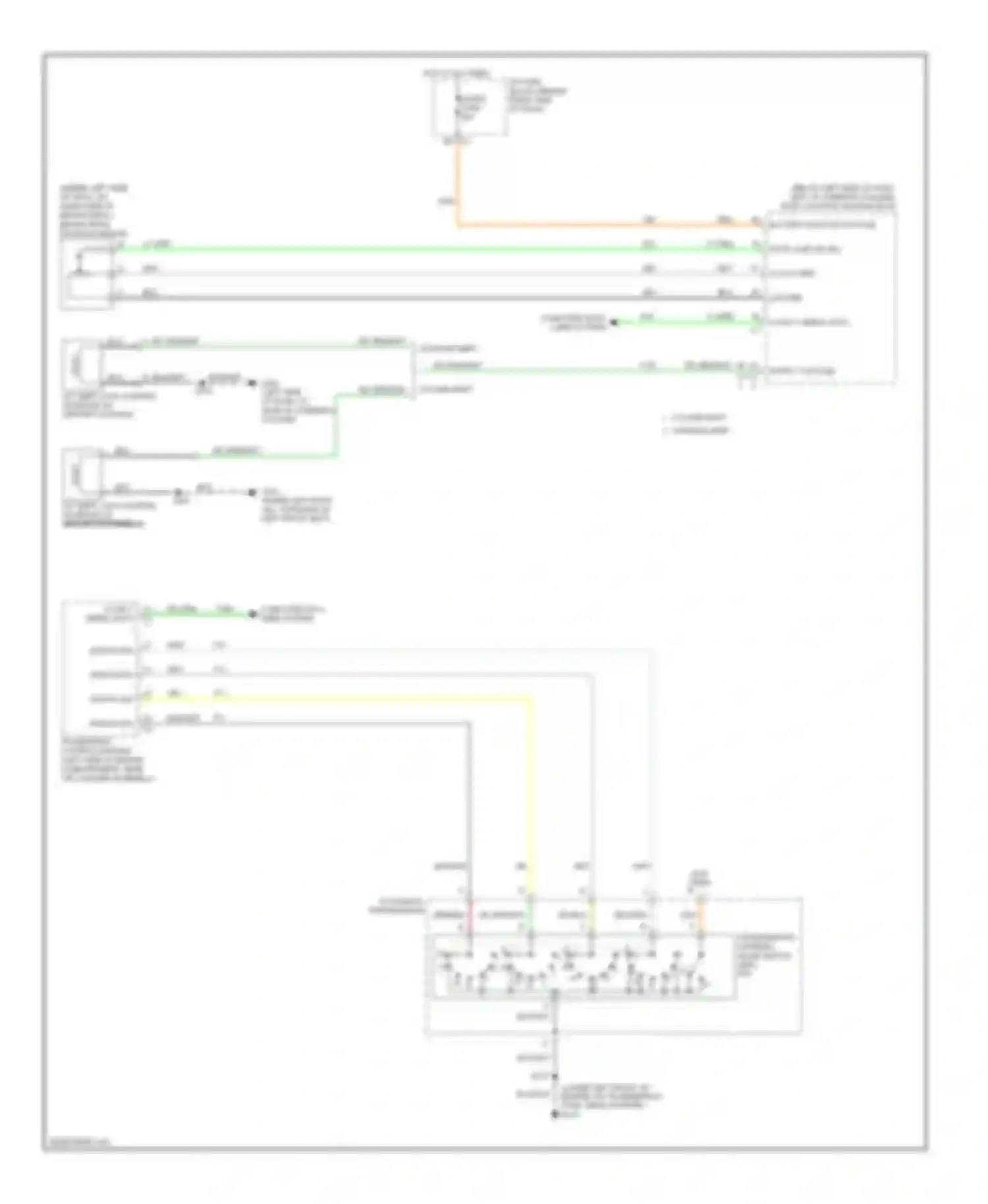

Wiring diagram column shift console shift (1 of 1)
10 VOLT REF
A/T SHIFT LOCK CONTROL SOLENOID (IN CENTER CONSOLE)
A/T SHIFT LOCK CONTROL SOLENOID (IN CENTER CONSOLE) (IN CENTER CONSOLE)
AUTOMATIC TRANSMISSION
BATTERY POSITIVE VOLTAGE
BLK WIRE
BLK/WHT WIRE
CLASS 2 SERIAL DATA
COLUMN SHIFT
COLUMN SHIFT CONSOLE SHIFT
COMPUTER DATA LINES SYSTEM
CONSOLE SHIFT
DK GRN WIRE
DK GRN/WHT WIRE
GRY WIRE
GRY/WHT WIRE
HAZRD FUSE
HOT AT ALL TIMES
I/P FUSE BLOCK (BEHIND RIGHT SIDE OF DASH)
LOW REF
LT GRN WIRE
NCA WIRE
ORG/ WIRE
RED/BLK WIRE
STOP LAMP SW SIG
SUPPLY VOLTAGE
SWITCH SIG A
SWITCH SIG B
SWITCH SIG C
SWITCH SIG P
TRANSMISSION INTERNAL MODE SWITCH (IMS) P/N
WHT WIRE
YEL WIRE
YEL/BLK WIRE
Go to component -> 3.8l vin 2, shift interlock circuit -> COLUMN SHIFT CONSOLE SHIFT
