Buick Envision II (2020-2024) trailer wiring harness connector Wiring diagrams
This page contains all the electrical diagrams for the component. trailer wiring harness connector, in which he is found in the car Buick Envision II (2020-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram trailer wiring harness connector (1 of 2)
ACTIVE GRILLE AIR SHUTTER ACTUATOR
AIR CONDITIONING COMPRESSOR AIR CONDITIONING CLUTCH
BATTERY MONITOR MODULE
BLK WIRE
BLK/WHT WIRE
BRAKE MASTER CYLINDER BRAKE SYSTEM CONTROL MODULE
ENGINE COOLANT FLOW CONTROL VALVE
ENGINE COOLANT FLOW CONTROL VALVE BLOCK
ENGINE RESTART RELAY
ENGINE WIRING HARNESS JUNCTION BLOCK
EVAPORATIVE EMISSION CANISTER PURGE PUMP
IGNITION COIL 1
IGNITION COIL 2
IGNITION COIL 3
IGNITION COIL 4
LEFT FRONT SIDE MARKER LAMP
LEFT FRONT STRUT TOWER)
LEFT REAR SIDE MARKER LAMP
LEFT SIDE OBSTACLE DETECTION CONTROL MODULE
LOW NOTE HORN
NCA WIRE
PARKING ASSIST CONTROL MODULE
PASSENGER RESTRAINTS OCCUPANT CLASSIFICATION SYSTEM MODULE
REAR CLOSURE HANDSFREE LAMP
REAR CLOSURE HANDSFREE MODULE
REAR LICENSE PLATE LAMP MODULE
REMOTE FUNCTION ACTUATOR MODULE
RESTRAINTS CONTROL MODULE
RIGHT FRONT HEADLAMP
RIGHT FRONT SIDE MARKER LAMP
RIGHT REAR BODY STRUCTURE STOP LAMP
RIGHT REAR COMBINATION LAMP LIFTGATE
RIGHT REAR SIDE MARKER LAMP
RIGHT SIDE OBSTACLE DETECTION CONTROL MODULE
STARTER RELAY
TRAILER WIRING HARNESS CONNECTOR
TRANSMISSION CONTROL MODULE
WHT WIRE
Go to component -> Ground distribution circuit (1 of 6) -> TRAILER WIRING HARNESS CONNECTOR

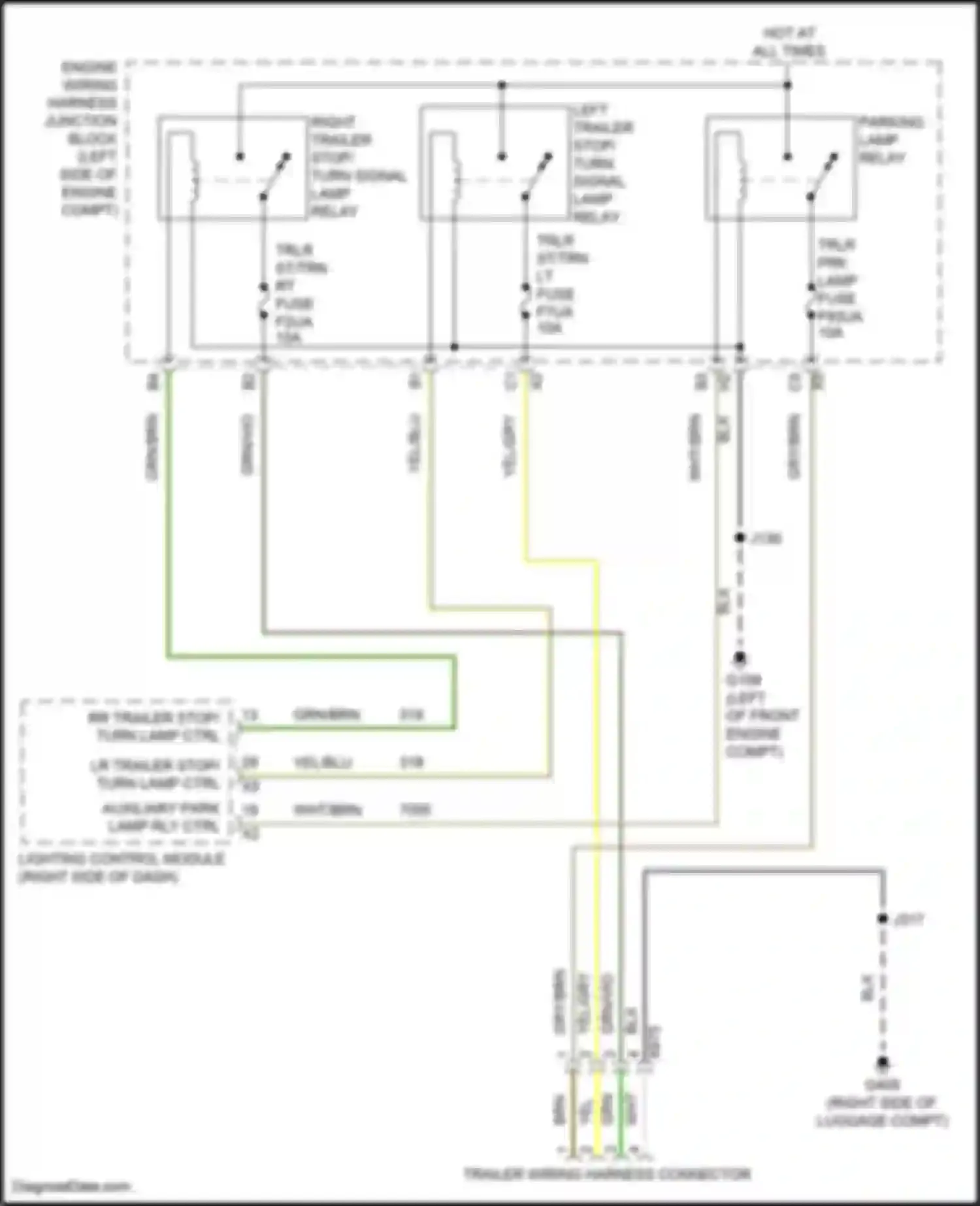

Wiring diagram trailer wiring harness connector (2 of 2)
AUXILIARY PARK LAMP RLY CTRL
BLK WIRE
BRN WIRE
ENGINE WIRING HARNESS JUNCTION BLOCK
GRN WIRE
GRN/BRN WIRE
GRN/VIO WIRE
GRY/BRN WIRE
HOT AT ALL TIMES
LEFT TRAILER STOP/ TURN SIGNAL LAMP RELAY
LIGHTING CONTROL MODULE (RIGHT SIDE OF DASH)
LR TRAILER STOP/ TURN LAMP CTRL
PARKING LAMP RELAY
RIGHT TRAILER STOP/ TURN SIGNAL LAMP RELAY
RR TRAILER STOP/ TURN LAMP CTRL
TRAILER WIRING HARNESS CONNECTOR
WHT WIRE
WHT/BRN WIRE
YEL WIRE
YEL/BLU WIRE
YEL/GRY WIRE
Go to component -> Trailer tow circuit -> TRAILER WIRING HARNESS CONNECTOR
