Buick Encore I (2012-2016) 17 11 hdlp sw flash to pass sig hdlp dimmer sw hi beam sig Wiring diagram
This page shows the only wiring diagram for the component.17 11 hdlp sw flash to pass sig hdlp dimmer sw hi beam sig, which is found in the car Buick Encore I (2012-2016). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

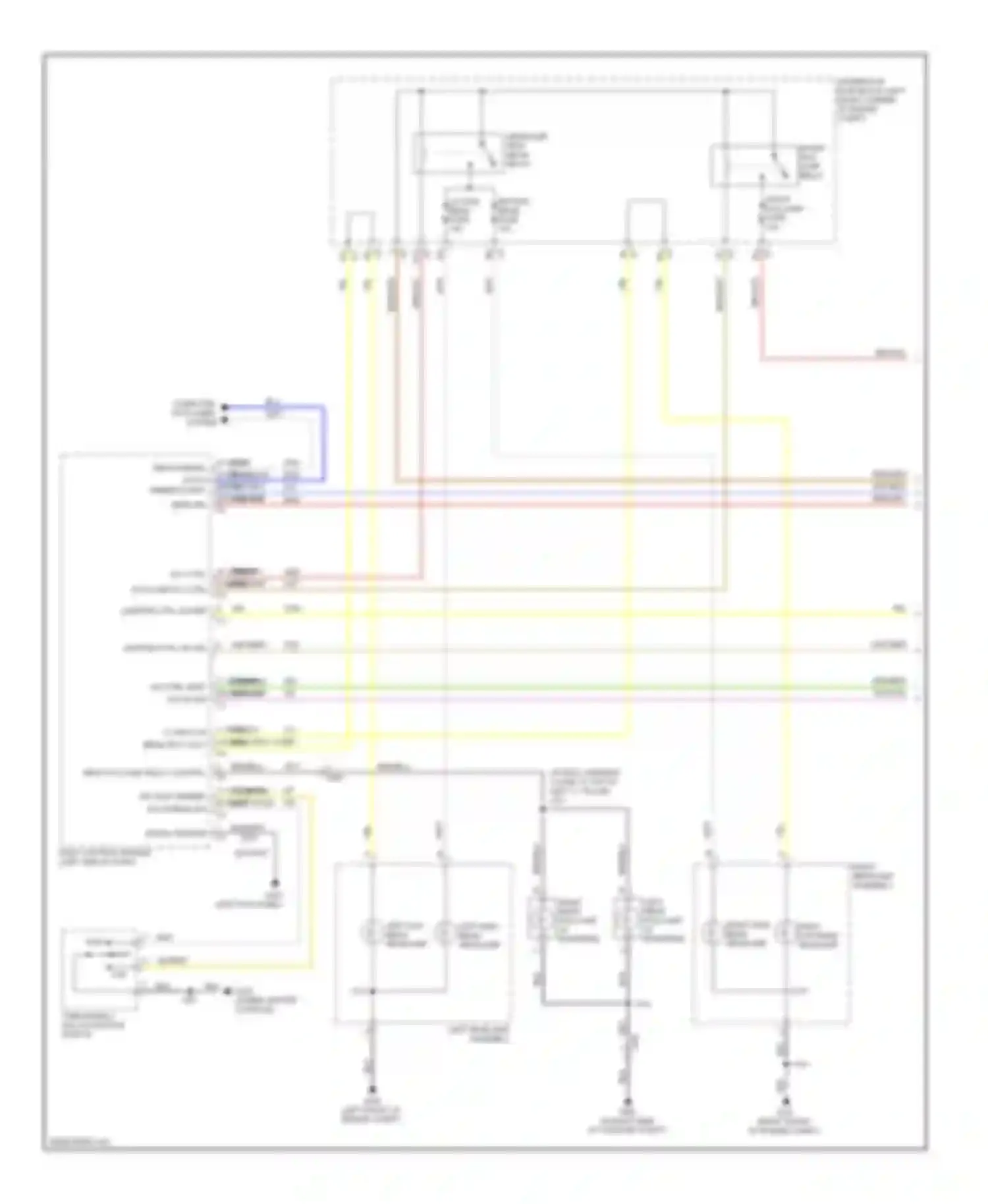

Wiring diagram 17 11 hdlp sw flash to pass sig hdlp dimmer sw hi beam sig (1 of 1)
1 2 RT HDLP LW BEAM SPLY VOLT LT HDLP LW BEAM SPLY VOLT
11 16 HDLP SW HDLP OFF SIG CTRL HDLP SW ON SIG
17 11 HDLP SW FLASH TO PASS SIG HDLP DIMMER SW HI BEAM SIG
18 13 HDLP HI BEAM RLY CTRL
23 24 10 3 HI SPD GMLAN SERIAL DATA- HI SPD GMLAN SERIAL DATA+
AMBIENT LIGHT SENS SIG B+
ASSEMBLY
BLK WIRE
BLK/WHT WIRE
BLU WIRE
BODY CONTROL MODULE (LEFT SIDE OF DASH)
BRN/BLU WIRE
BRN/VIO WIRE
BRN/WHT WIRE
COMPUTER DATA LINES SYSTEM
FOG LAMP RLY CTRL
FRONT FOG LAMP
FRONT FOG LAMP FUSE
FTP
GRN/BRN WIRE
HEADLAMP HIGH BEAM RELAY
HIGH LOW
LEFT HEADLAMP ASSEMBLY
LEFT HIGH BEAM HEADLAMP
LEFT LOW BEAM HEADLAMP
LEFT REAR FOG LAMP (IF EQUIPPED)
LH HIGH BEAM FUSE
LIGHTING CTRL SW REF
LIGHTING CTRL SW SIG
REAR FOG LAMP RELAY CONTROL
RED/GRN WIRE
RED/GRY WIRE
RELAY
RH HIGH BEAM FUSE
RIGHT HEADLAMP
RIGHT HIGH BEAM HEADLAMP
RIGHT LOW BEAM HEADLAMP
RIGHT REAR FOG LAMP (IF EQUIPPED)
SIGNAL GROUND
TURN SIGNAL/ MULTI-FUNCTION SWITCH
UNDERHOOD FUSE BLOCK (LEFT FRONT CORNER OF ENGINE COMPT)
WHT WIRE
WHT/BLU WIRE
WHT/BRN WIRE
WHT/VIO WIRE
YEL WIRE
YEL/BRN WIRE
Go to component -> Headlights circuit (1 of 2) -> 17 11 HDLP SW FLASH TO PASS SIG HDLP DIMMER SW HI BEAM SIG
