Wiring Diagrams for BMW Z4 G29 facelift (2022-2024)

Automatic a/c circuit

Anti-lock brakes circuit

Access/start circuit Anti-theft & central locking circuit

Body control modules circuit

Data link connector circuit High/low bus circuit

Cooling fan circuit

Cruise control circuit

Heated mirrors circuit, w/ lin bus function Heated mirrors circuit, w/o lin bus function Rear defogger circuit

Electronic power steering circuit

Electronic suspension circuit

Wiring diagram engine performance 2.0l turbo

Wiring diagram engine performance 3.0l turbo

Backup lamps circuit Exterior lamps circuit

Ground distribution circuit

Headlights circuit

Horn circuit

Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Driver"s memory seat circuit Memory mirrors circuit, w/ lin bus function Memory mirrors circuit, w/o lin bus function Passenger"s memory seat circuit

Blind spot monitoring circuit Lane departure warning circuit Navigation circuit, high level Navigation circuit, mid level Navigation circuit, w/ hifi radio & active sound design Navigation circuit, w/ hifi radio & w/o active sound design Navigation circuit, w/o hifi radio & active sound design Navigation circuit, w/o hifi radio w/ active sound design Parking assistant circuit Rear camera circuit

Power distribution circuit

Power door locks circuit

Power mirrors circuit

Heated seats circuit, w/ memory Heated seats circuit, w/o memory Heated steering wheel circuit Lumbar circuit Passenger power seat circuit Sport seats circuit

Power top/sunroof circuit

Power windows circuit

Base radio circuit, w/ active sound design Base radio circuit, w/o active sound design Hifi radio circuit, w/ active sound design Hifi radio circuit, w/o active sound design Receiver audio module circuit, high level Receiver audio module circuit, mid level

Shift interlock circuit

Charging circuit, w/ dual storage system Charging circuit, w/o dual storage system Starting circuit

Supplemental restraints circuit

A/t circuit Rear axle circuit

Trunk & fuel door release circuit

Warning systems circuit

Wiper/washer circuit

ANTI-LOCK BRAKES, WIPER/WASHER, STARTING/CHARGING SYSTEMS AUXILIARY BATTERY BATTERY ELECTRONICS CAN BUS TERMINAL RESISTOR 2 CAN BUS TERMINAL RESISTOR 6 CAN BUS TERMINAL RESISTOR 11 CENTER WASHER NOZZLE HEATING DRIVER BELT FORCE LIMITER GAS GENERATOR DRIVER KNEE AIR BAG GAS GENERATOR DRIVER SIDE AIR BAG GAS GENERATOR DRIVER'S DOOR LOCK FRONT PASSENGER BELT FORCE LIMITER GAS GENERATOR FRONT PASSENGER DOOR LOCK FRONT PASSENGER KNEE AIR BAG GAS GENERATOR FRONT PASSENGER SIDE AIR BAG GAS GENERATOR GAS GENERATOR SAFETY BATTERY TERMINAL HIFI AMPLIFIER IGNITION COIL CYLINDER 1 IGNITION COIL CYLINDER 2 IGNITION COIL CYLINDER 3 IGNITION COIL CYLINDER 4 IGNITION COIL CYLINDER 5 IGNITION COIL CYLINDER 6 LEFT FRONT VALVE COIL LEFT REAR VALVE COIL LEFT WASHER NOZZLE HEATING REGULATED DIFFERENTIAL LOCK RIGHT FRONT VALVE COIL RIGHT REAR VALVE COIL RIGHT WASHER NOZZLE HEATING SAFETY BATTERY TERMINAL GAS GENERATOR SUBWOOFER FANFARE HORN SUPPLEMENTAL RESTRAINTS, ANTI-LOCK BRAKES SYSTEMS TAILGATE LOCK TWEETER FANFARE HORN W/ REGULATED REAR AXLE DIFFERENTIAL LOCK W/O REGULATED REAR AXLE DIFFERENTIAL LOCK

AIR DISTRIBUTION FLAP MOTOR BLOWER MOTOR W/ OUTPUT STAGE COWL PANEL LOCK ELECTRIC MOTOR DRIVE DEFROSTER FLAP MOTOR DIGITAL MOTOR ELECTRONICS ELECTROMOTIVE THROTTLE ACTUATOR ENGINE COMPARTMENT POWER DISTRIBUTION BOX ENGINE CONTROLS SYSTEM ENGINE CONTROLS, STARTING/CHARGING SYSTEMS ENGINE VENTILATION HEATING EXHAUST VANOS SOLENOID ACTUATOR EXTERIOR LIGHTS, ANTI-LOCK BRAKES, ENGINE CONTROLS, CRUISE CONTROL SYSTEMS FRESH AIR/ RECIRCULATED AIR FLAP MOTOR INTAKE VANOS SOLENOID ACTUATOR LEFT AIR DISTRIBUTION FLAP MOTOR LEFT FRONT PEDESTRIAN PROTECTION ACTUATOR LEFT FRONT STRATIFICATION FLAP MOTOR LEFT REAR PEDESTRIAN PROTECTION ACTUATOR MIXED AIR FLAP MOTOR REAR COMPARTMENT FLAP MOTOR REAR MIXED AIR FLAP MOTOR REGULATED DIFFERENTIAL LOCK SERVO MOTOR RIGHT AIR DISTRIBUTION FLAP MOTOR RIGHT FRONT PEDESTRIAN PROTECTION ACTUATOR RIGHT FRONT STRATIFICATION FLAP MOTOR RIGHT REAR PEDESTRIAN PROTECTION ACTUATOR SERVO MOTOR STARTER MOTOR VIBRATION ACTUATOR

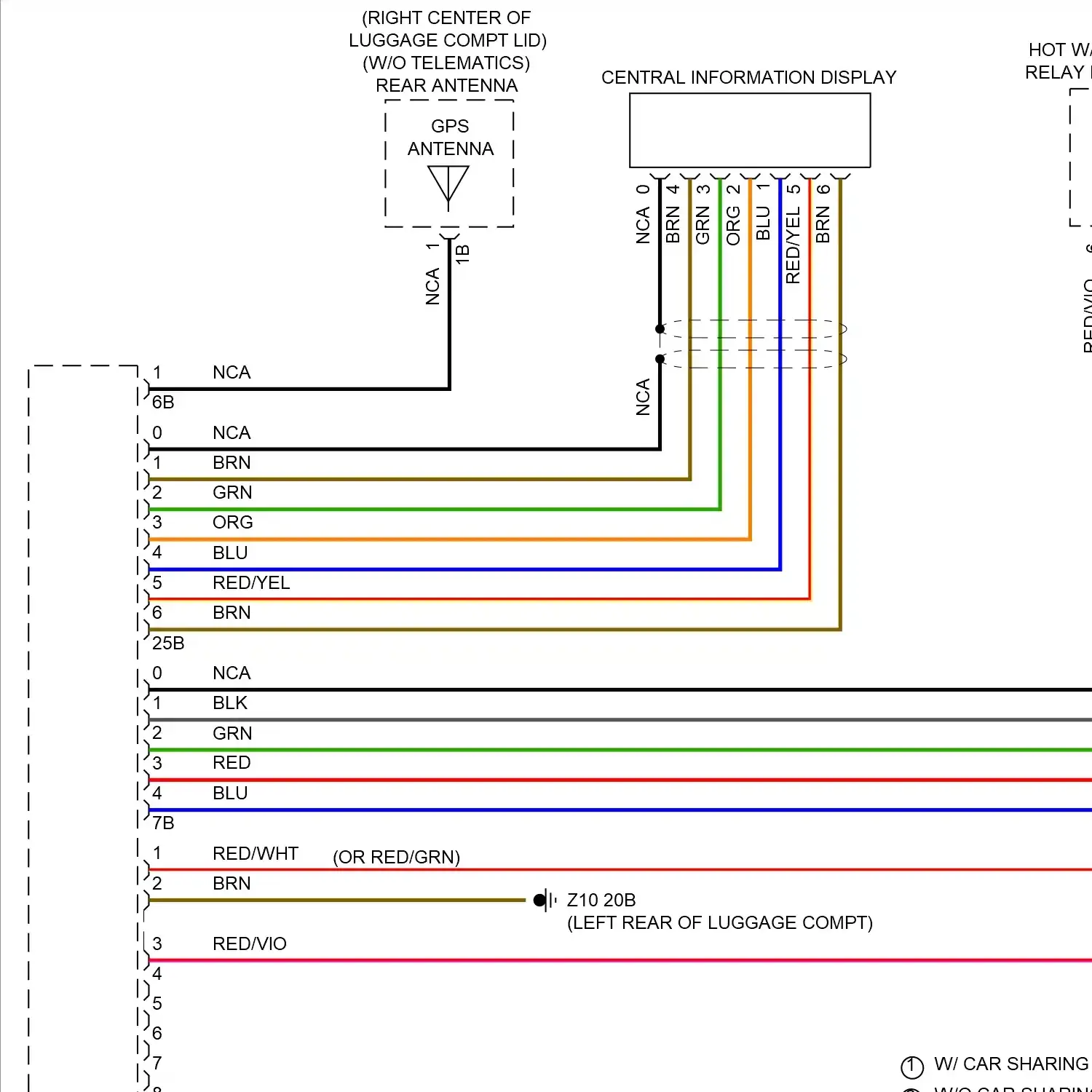

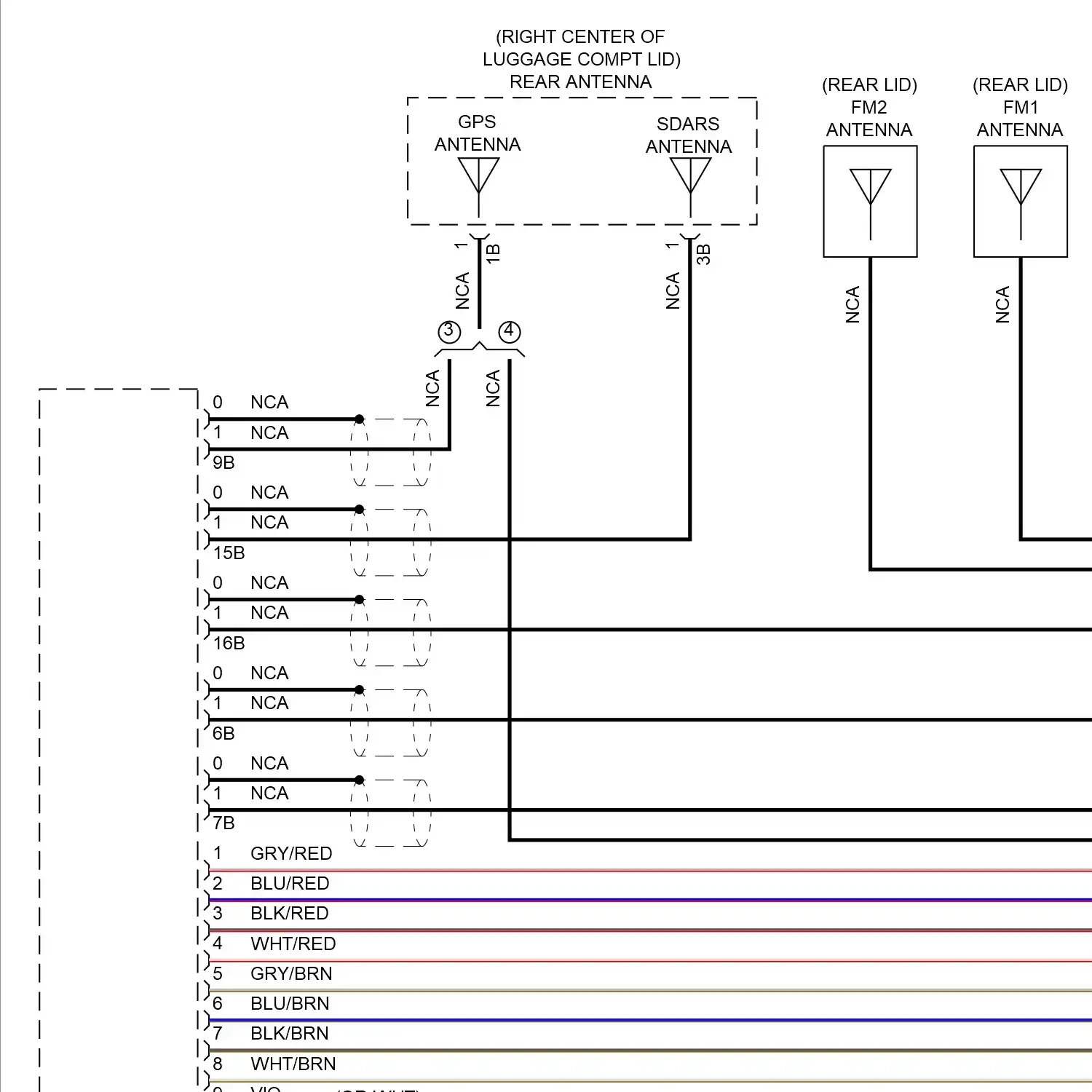

ANTENNA AMPLIFIER ANTENNA FM 1 ANTENNA FM 2 BLUETOOTH ANTENNA FRONT CENTER CONSOLE INTERIOR ANTENNA GPS ANTENNA LEFT EXTERIOR ANTENNA LUGGAGE COMPARTMENT ANTENNA REAR ANTENNA REAR ANTENNA 2 REAR CENTER CONSOLE INTERIOR ANTENNA RIGHT EXTERIOR ANTENNA RING ANTENNA SDARS ANTENNA TELEPHONE ANTENNA TV ANTENNA TV ANTENNA 2 W/ ANTENNA AMPLIFIER W/O ANTENNA AMPLIFIER WIRELESS CHARGING SHELF ANTENNA AMPLIFIER WLAN ANTENNA

AUTOMATIC HOLD BUTTON DRIVER'S DOOR CENTRAL LOCKING BUTTON DTC BUTTON FANFARE HORN BUTTON FRONT PASSENGER DOOR CENTRAL LOCKING BUTTON FRONT PASSENGER'S DOOR CENTRAL LOCKING BUTTON HILL DESCENT CONTROL BUTTON MSA BUTTON NUMBER PLATE LIGHT W/ REAR LID BUTTON PARKING ASSISTANCE BUTTON PARKING BRAKE BUTTON REAR WINDOW HEATING BUTTON START-STOP BUTTON VEHICLE INTERIOR TAILGATE BUTTON

CAMERA BASED DRIVER SUPPORT SYSTEMS KAFAS CAMERA HEATING REAR VIEW CAMERA REAR VIEW CAMERA SHIELD

DIAGNOSTIC SOCKET USB CHARGING SOCKET 3

CONVERTIBLE TOP CONTROL UNIT DRIVER'S SEAT ANGLE ADJUSTMENT DRIVE UNIT DRIVER'S SEAT FORWARD/ BACKWARD ADJUSTMENT DRIVE UNIT DRIVER'S SEAT HEIGHT ADJUSTMENT DRIVE UNIT HEAD UNIT LEFT CONVERTIBLE TOP DRIVE UNIT LIGHT OPERATING UNIT RIGHT CONVERTIBLE TOP DRIVE UNIT

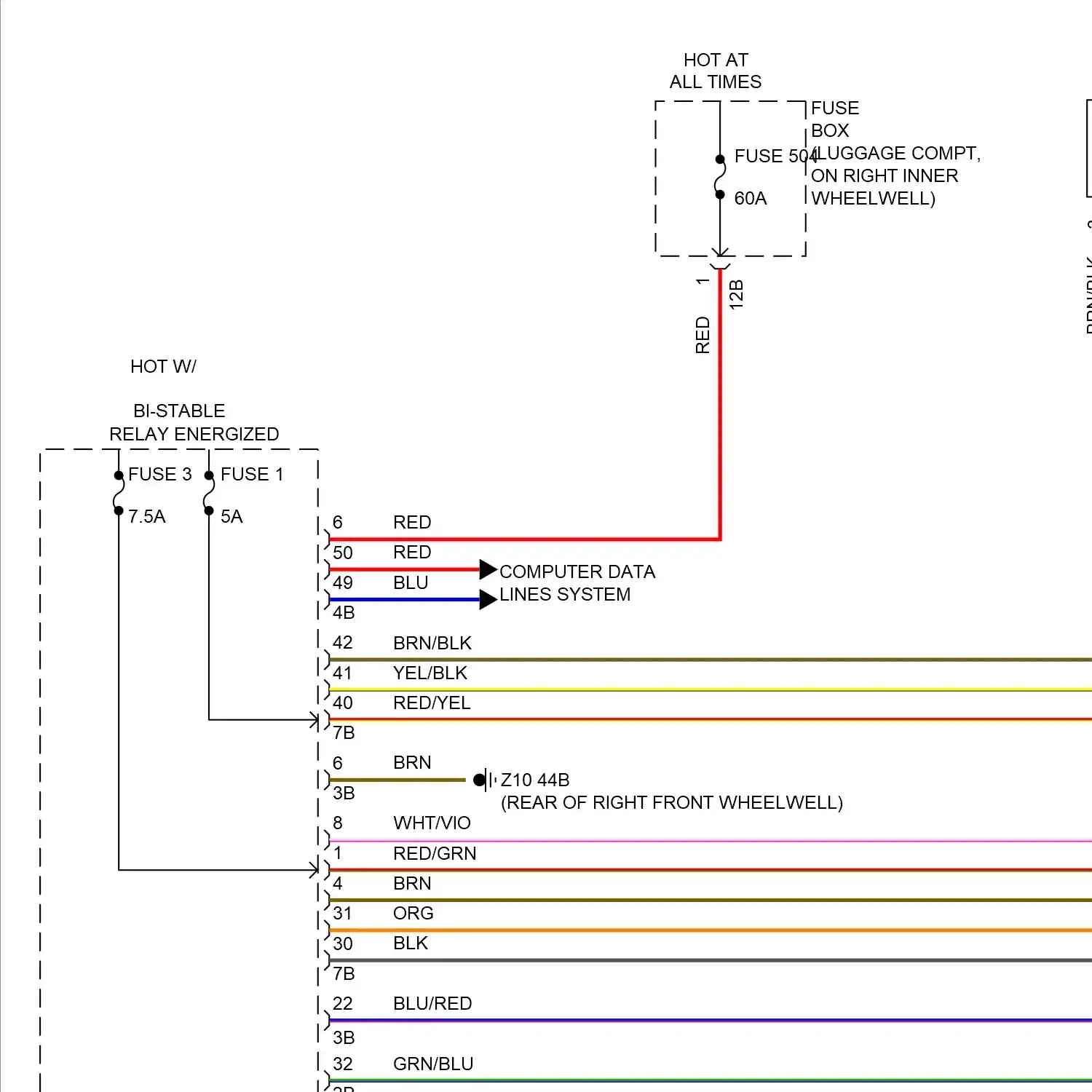

FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 8 FUSE 10 FUSE 11 FUSE 14 FUSE 18 FUSE 20 FUSE 21 FUSE 28 FUSE 29 FUSE 32 FUSE 34 FUSE 36 FUSE 37 FUSE 39 FUSE 40 FUSE 46 FUSE 48 FUSE 51 FUSE 52 FUSE 53 FUSE 55 FUSE 56 FUSE 57 FUSE 59 FUSE 60 FUSE 61 FUSE 62 FUSE 63 FUSE 64 FUSE 65 FUSE 66 FUSE 67 FUSE 68 FUSE 69 FUSE 70 FUSE 71 FUSE 72 FUSE 73 FUSE 75 FUSE 76 FUSE 203 FUSE 204 FUSE 206 FUSE 208 FUSE 209 FUSE 210 FUSE 212 FUSE 214 FUSE 215 FUSE 216 FUSE 217 FUSE 218 FUSE 220 FUSE 231 FUSE 244 FUSE 252 FUSE 254 FUSE 255 FUSE 258 FUSE 266 FUSE 268 FUSE 269 FUSE 271 FUSE 400 FUSE 401 FUSE 404 FUSE 406 FUSE 501 FUSE 502 FUSE 504 FUSE BOX HOT AT ALL TIMES FUSE BOX

HEADLIGHT BEAM THROW ADJUSTMENT DRIVE LEFT HEADLIGHT RIGHT HEADLIGHT

DRIVER THIGH SUPPORT HEATING DRIVER'S SEAT BACKREST HEATING DRIVER'S SEAT HEATING ELECTRONICS DRIVER'S SEAT SURFACE HEATING FRONT PASSENGER SEAT HEATING ELECTRONICS FRONT PASSENGER THIGH SUPPORT HEATING FRONT PASSENGER'S SEAT BACKREST HEATING MIRROR HEATING STEERING WHEEL HEATING

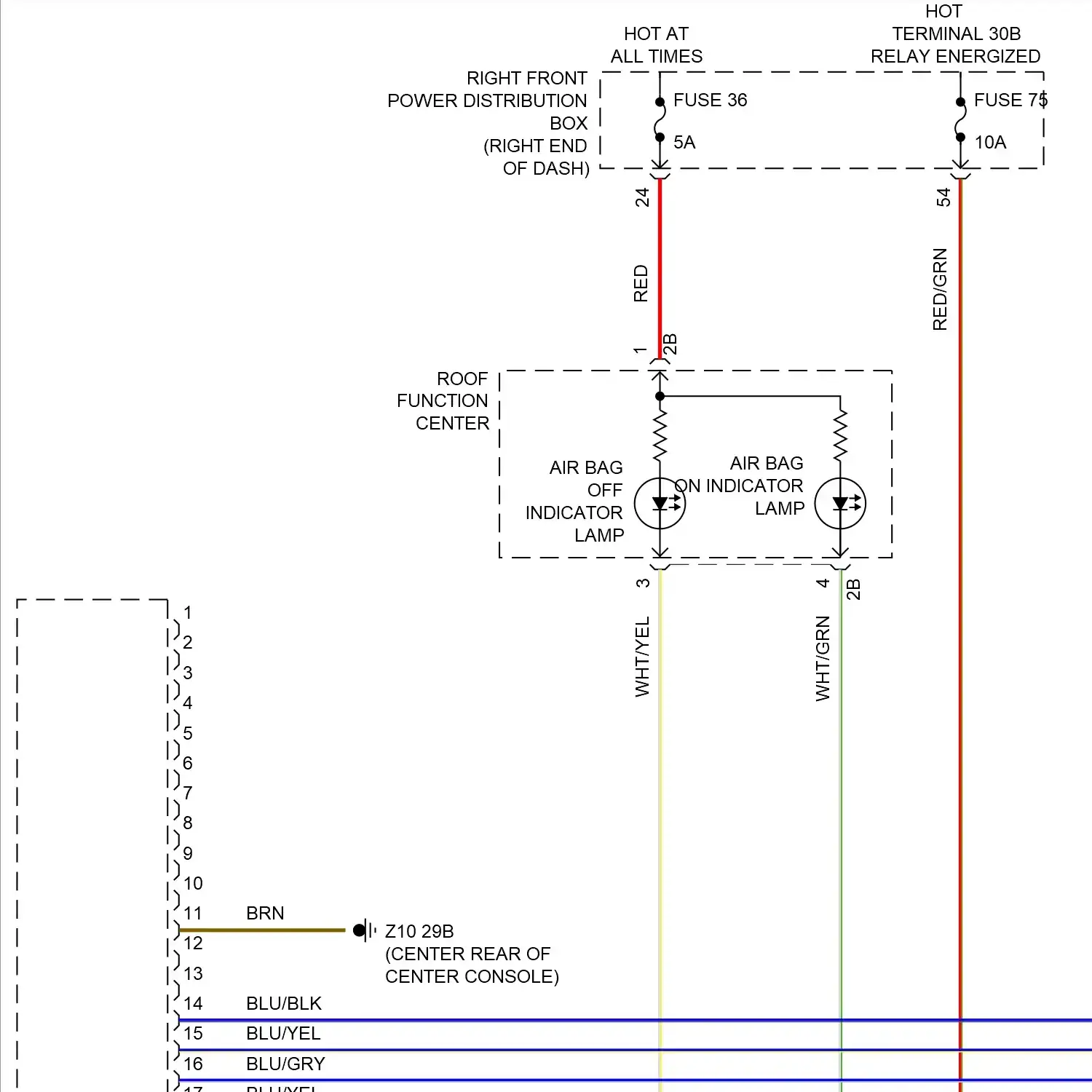

AIR BAG OFF INDICATOR LAMP AIR BAG ON INDICATOR LAMP TURN INDICATOR

AUXILIARY STOP LAMP AUXILIARY TURN SIGNAL LAMP COMPUTER DATA LINES, INTERIOR LIGHTS SYSTEMS DEFOGGER, INTERIOR LIGHTS SYSTEMS DOOR LOCKS, ANTI-THEFT, INTERIOR LIGHTS SYSTEMS DOOR LOCKS, ANTI-THEFT, INTERIOR LIGHTS, TRUNK, TAILGATE, FUEL DOORS SYSTEMS DRIVER'S DOOR GROUND LIGHTS EXTERIOR LIGHTS, HORNS SYSTEMS EXTERIOR LIGHTS, INTERIOR LIGHTS, AIR CONDITIONING SYSTEMS FRONT PASSENGER DOOR GROUND LIGHTS FRONT PASSENGER'S DOOR GROUND LIGHTS HEADLIGHTS, EXTERIOR LIGHTS SYSTEMS LUGGAGE COMPARTMENT LAMP SIDE LIGHTS/ DAYTIME DRIVING LIGHTS TAIL LAMP

DRIVER'S SEAT PNEUMATIC PUMP ELECTRIC FUEL PUMP CONTROL ELECTRONICS FRONT PASSENGER SEAT PNEUMATIC PUMP LOW TEMPERATURE COOLANT CIRCUIT COOLANT PUMP TURBOCHARGER COOLANT PUMP WINDSHIELD WASHER PUMP

BI-STABLE RELAY DEADLOCKING RELAY DME MAIN RELAY DRIVER'S DOOR LOCKING RELAY ELECTRIC FAN CUT-OFF RELAY HOT W/ BI-STABLE RELAY ENERGIZED HOT W/ DME MAIN RELAY ENERGIZED HOT W/ POWER SUPPLY SENSORS/ ACTUATORS RELAY ENERGIZED HOT W/ VALVETRONIC RELAY ENERGIZED IGNITION, FUEL INJECTION RELAY LOCKING RELAY POWER SUPPLY SENSORS/ ACTUATORS RELAY POWER SUPPLY SENSORS/ACTUATORS RELAY REAR WINDOW HEATING RELAY RELAY ENERGIZED UNLOCKING RELAY VALVETRONIC RELAY

AUTOMATIC AIR RECIRCULATION CONTROL SENSOR BOOST PRESSURE SENSOR CHARGE AIR TEMPERATURE/ INTAKE MANIFOLD PRESSURE SENSOR COOLANT LEVEL SENSOR COOLANT TEMPERATURE SENSOR COWL PANEL LOCKED HALL EFFECT SENSOR CRANKCASE TEMPERATURE SENSOR CRANKSHAFT SENSOR DRIVER SEAT POSITION SENSOR DRIVER'S DOOR MICROWAVE SENSOR ENGINE OIL PRESSURE SENSOR EVAPORATOR TEMPERATURE SENSOR EXHAUST CAMSHAFT SENSOR EXHAUST GAS PRESSURE SENSOR GASOLINE PARTICULATE FILTER FRONT PASSENGER SEAT OCCUPANCY DETECTION SEAT CUSHION HEATER/ SENSOR FRONT PASSENGER SEAT OCCUPANCY DETECTION SEAT CUSHION HEATER/SENSOR FRONT PASSENGER SEAT POSITION SENSOR FRONT RADAR SENSOR FUEL LEVEL SENSOR FUEL LEVEL SENSOR 2 GEAR SENSOR GEARBOX OIL TEMPERATURE SENSOR HIGH BEAM ASSISTANT SENSOR, CONTROL INCREMENTAL ENCODER HALL EFFECT SENSOR 2 INCREMENTAL TRANSDUCER HALL EFFECT SENSOR INTAKE AIR TEMPERATURE SENSOR INTAKE CAMSHAFT SENSOR INTELLIGENT BATTERY SENSOR KNOCK SENSOR KNOCK SENSOR #2 LEFT "B" PILLAR AIR BAG SENSOR LEFT CONVERTIBLE TOP LOCKED, CLOSED HALL EFFECT SENSOR LEFT FOOTWELL TEMPERATURE SENSOR LEFT FRONT AIR BAG SENSOR LEFT FRONT BRAKE PAD WEAR SENSOR LEFT FRONT BRAKE PRESSURE SENSOR LEFT FRONT CENTER ULTRASONIC SENSOR LEFT FRONT DOOR AIR BAG SENSOR LEFT FRONT OUTER ULTRASONIC SENSOR LEFT FRONT RIDE HEIGHT SENSOR LEFT FRONT SIDE PARKING MANEUVERING ASSISTANT ULTRASONIC SENSOR LEFT FRONT VENTILATION TEMPERATURE SENSOR LEFT FRONT VERTICAL-ACCELERATION SENSOR LEFT FRONT WHEEL RPM SENSOR LEFT REAR CENTER ULTRASONIC SENSOR LEFT REAR NEAR RANGE RADAR SENSOR LEFT REAR OUTER ULTRASONIC SENSOR LEFT REAR RIDE HEIGHT SENSOR LEFT REAR ULTRASONIC SENSOR LEFT REAR WHEEL RPM SENSOR MEMORY FUNCTION HALL SENSOR OIL LEVEL SENSOR OUTSIDE TEMPERATURE SENSOR OXYGEN SENSOR AFTER CATALYTIC CONVERTER OXYGEN SENSOR BEFORE CATALYTIC CONVERTER PASSENGER'S DOOR MICROWAVE SENSOR POSITION SENSOR POSITION SENSOR VALVETRONIC SERVOMOTOR RADIATOR OUTLET TEMPERATURE SENSOR RAIL PRESSURE SENSOR RAIN/LIGHT/ SOLAR CONDENSATION SENSOR RAIN/LIGHT/SOLAR CONDENSATION SENSOR REFRIGERANT PRESSURE SENSOR RIGHT "B" PILLAR AIR BAG SENSOR RIGHT CONVERTIBLE TOP LOCKED, CLOSED HALL EFFECT SENSOR RIGHT FOOTWELL TEMPERATURE SENSOR RIGHT FRONT AIR BAG SENSOR RIGHT FRONT BRAKE PRESSURE SENSOR RIGHT FRONT CENTER ULTRASONIC SENSOR RIGHT FRONT DOOR AIR BAG SENSOR RIGHT FRONT OUTER ULTRASONIC SENSOR RIGHT FRONT SIDE PARKING MANEUVERING ASSISTANT ULTRASONIC SENSOR RIGHT FRONT VENTILATION TEMPERATURE SENSOR RIGHT FRONT VERTICAL-ACCELERATION SENSOR RIGHT FRONT WHEEL RPM SENSOR RIGHT REAR BRAKE PAD WEAR SENSOR RIGHT REAR CENTER ULTRASONIC SENSOR RIGHT REAR NEAR RANGE RADAR SENSOR RIGHT REAR OUTER ULTRASONIC SENSOR RIGHT REAR ULTRASONIC SENSOR RIGHT REAR WHEEL RPM SENSOR ROTOR POSITION SENSOR SIREN, TILT SENSOR SOFT TOP STOWED HALL EFFECT SENSOR STEERING TORQUE SENSOR VENTURI NOZZLE PRESSURE SENSOR WASHER FLUID LEVEL SENSOR WINDSHIELD PANEL UNLOCKED HALL EFFECT SENSOR

FRONT CENTER MID-RANGE SPEAKER LEFT FRONT MID-RANGE SPEAKER LEFT REAR MID-RANGE SPEAKER RIGHT FRONT MID-RANGE SPEAKER RIGHT REAR MID-RANGE SPEAKER

AIR DISTRIBUTION MICRO SWITCH BRAKE FLUID LEVEL SWITCH BRAKE LIGHT SWITCH DRIVE EXPERIENCE SWITCH DRIVER ASSISTANCE SYSTEM OPERATING FACILITY, HAZARD WARNING SWITCH DRIVER SEAT LUMBAR SUPPORT SWITCH DRIVER'S DOOR SEAT SWITCH CLUSTER DRIVER'S DOOR SWITCH BLOCK DRIVER'S SEAT BACKREST WIDTH ADJUSTMENT SWITCH DRIVER'S SEAT LUMBAR SUPPORT SWITCH DRIVER'S SIDE SEAT ADJUSTMENT SWITCH BLOCK ETHERNET SWITCH FRONT PASSENGER DOOR POWER WINDOW SWITCH FRONT PASSENGER LUMBAR SUPPORT SWITCH FRONT PASSENGER SEAT BACKREST WIDTH ADJUSTMENT SWITCH FRONT PASSENGER'S DOOR POWER WINDOW SWITCH GEAR SELECTOR SWITCH GEAR SELECTOR SWITCH CENTER CONSOLE CONTROL GLOVE BOX LIGHT SWITCH HOOD CONTACT SWITCH HOTEL POSITION SWITCH LEFT FRONT VANITY MIRROR SWITCH LEFT MULTI-FUNCTION STEERING COLUMN SWITCH CLUSTER PASSENGER SIDE SEAT ADJUSTMENT SWITCH BLOCK PASSENGER'S DOOR SEAT SWITCH CLUSTER PASSENGER'S SIDE SEAT ADJUSTMENT SWITCH BLOCK PRESSURE SWITCH RIGHT FRONT VANITY MIRROR SWITCH RIGHT MULTI-FUNCTION STEERING WHEEL SWITCH CLUSTER STEERING COLUMN SWITCH CLUSTER STEERING WHEEL HEATED SWITCH W/ ETHERNET SWITCH W/ SURROUND VIEW CAMERA W/O ETHERNET SWITCH W/ SURROUND VIEW CAMERA, ETHERNET SWITCH W/O ETHERNET SWITCH W/O SURROUND VIEW CAMERA W/ ETHERNET SWITCH W/O SURROUND VIEW CAMERA, ETHERNET SWITCH

CONTROL VALVE COOLANT EXPANSION TANK SHUTOFF VALVE CRANKCASE COOLANT SHUTOFF VALVE DRIVER LUMBAR SUPPORT VALVE BLOCK DRIVER'S SEAT BACKREST WIDTH ADJUSTMENT VALVE BLOCK ELECTRICAL WASTEGATE VALVE FRONT PASSENGER LUMBAR SUPPORT VALVE BLOCK FRONT PASSENGER SEAT BACKREST WIDTH ADJUSTMENT VALVE BLOCK FUEL VENT VALVE OIL PRESSURE CONTROL VALVE QUANTITY CONTROL VALVE

(OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU) (OR YEL WIRE BLU) RED/WHT WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/RED WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/ORG WIRE BRN/RED WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLK/YEL WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/GRN WIRE PNK WIRE PNK/BLK WIRE PNK/BLU WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE VIO WIRE VIO/BLU WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE YEL/WHT WIRE

2.0L TURBO 3.0L TURBO ACCELERATOR PEDAL MODULE ACTIVE SOUND DESIGN ADJUSTMENT DRIVE AIR CONDITIONING AIR CONDITIONING COMPRESSOR AIR CONDITIONING SYSTEM ANTI-THEFT ALARM SYSTEM LED ANTI-THEFT SYSTEM AUDIO CONTROL PANEL BASS SPEAKERS BODY DOMAIN CONTROLLER BOTTOM CENTER DASHBOARD LIGHTING BOTTOM DRIVER'S SIDE DASHBOARD LIGHTING BOTTOM RADIATOR BLIND DRIVE BRAKE LIGHT CAPACITOR BOX CAR SHARING MODULE CENTER CONSOLE CENTER CONSOLE CONTROL CENTER CONSOLE LIGHTING CENTER REAR OF LUGGAGE COMPT) CENTER STACK STORAGE COMPARTMENT LIGHTING CENTRAL INFORMATION DISPLAY CLUTCH MODULE COMPUTER DATA LINES SYSTEM COMPUTER DATA LINES, NAVIGATION SYSTEMS CONSOLE CENTER CONTROL CONVERTIBLE TOP DRIVE CONVERTIBLE TOP MODULE COOLING FANS SYSTEM CORNERING LIGHT CRASH SAFETY MODULE DEFOGGER SYSTEM DEFOGGER, NAVIGATION SYSTEMS DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, ANTI-THEFT, TRUNK, TAILGATE, FUEL DOORS SYSTEMS DRIVER ELECTRONICS OUTSIDE DOOR HANDLE DRIVER RETRACTOR TENSIONER DRIVER SEAT MODULE DRIVER VEHICLE EXTERIOR MIRROR DRIVER'S AIR BAG GAS GENERATORS DRIVER'S DOOR ENTRY LIGHTING DRIVER'S DOOR INSIDE DOOR HANDLE LIGHT DRIVER'S DOOR POWER WINDOW DRIVE W/ CONTROL ELECTRONICS DRIVER'S DOOR POWER WINDOW DRIVER W/ CONTROL ELECTRONICS DRIVER'S SEAT BACKREST ANGLE ADJUSTMENT DRIVE DRIVER'S SEAT BELT BUCKLE CONTACT DRIVER'S SEAT MODULE DRIVER'S SIDE BOTTOM DASHBOARD LIGHTING ELECTRIC FAN ELECTRICAL EXHAUST FLAP ELECTRO- MECHANICAL POWER STEERING ELECTROCHROMIC INTERIOR MIRROR ELECTROCHROMIC MIRROR ELECTROMECHANICAL POWER STEERING ELECTRONIC POWER STEERING SYSTEM ELECTRONIC SUSPENSION SYSTEM ELECTRONIC TRANSMISSION CONTROL ELECTRONICS TOUCH DETECTION EMERGENCY LOUDSPEAKER FRONT CENTER ARMREST LIGHT FRONT CENTER TWEETER FRONT CENTER VENTILATION GRILLE FRONT INTERIOR LIGHT FRONT PASSENGER AIR BAG GAS GENERATORS FRONT PASSENGER DOOR ENTRY LIGHTING FRONT PASSENGER DOOR INSIDE DOOR HANDLE LIGHT FRONT PASSENGER DOOR POWER WINDOW DRIVE W/ CONTROL ELECTRONICS FRONT PASSENGER RETRACTOR TENSIONER FRONT PASSENGER SEAT ANGLE ADJUSTMENT DRIVE FRONT PASSENGER SEAT BACKREST ANGLE ADJUSTMENT DRIVE FRONT PASSENGER SEAT FORWARD/ BACK SEAT ADJUSTMENT FRONT PASSENGER SEAT FORWARD/ BACKWARD ADJUSTMENT DRIVE FRONT PASSENGER SEAT HEIGHT ADJUSTMENT DRIVE FRONT PASSENGER SEAT MODULE FRONT PASSENGER SEAT OCCUPANCY DETECTION EVALUATION ELECTRONICS FRONT PASSENGER VEHICLE EXTERIOR MIRROR FRONT PASSENGER'S DOOR ENTRY LIGHTING FRONT PASSENGER'S DOOR INSIDE DOOR HANDLE LIGHT FRONT PASSENGER'S DOOR POWER DRIVE WINDOW W/ CONTROL ELECTRONICS FRONT PASSENGER'S SEAT BELT BUCKLE CONTACT FUEL FILLER FLAP CENTRAL LOCKING DRIVE FUEL INJECTOR CYLINDER 1 FUEL INJECTOR CYLINDER 2 FUEL INJECTOR CYLINDER 3 FUEL INJECTOR CYLINDER 4 FUEL INJECTOR CYLINDER 5 FUEL INJECTOR CYLINDER 6 GLOVE COMPARTMENT LIGHT GROUND DISTRIBUTION SYSTEM HEAD-UP DISPLAY HEADLIGHTS, WIPER/WASHER SYSTEMS HEAT MANAGEMENT MODULE HIGH BEAM HORNS SYSTEM HOT AT ALL TIMES HOT FILM AIR MASS METER HOT W/ HOT W/ TERMINAL INSTRUMENT CLUSTER SYSTEM INSTRUMENT PANEL INTEGRATED SUPPLY MODULE INTERFERENCE SUPPRESSION FILTER 2 JUMP START TERMINAL LANE CHANGE WARNING LED LEFT FRONT FOOTWELL LIGHT LEFT FRONT MIXING FLAP DRIVE LEFT FRONT SIDE MARKER LIGHT LEFT FRONT TWEETER LEFT FRONT VANITY MIRROR LIGHT LEFT FRONT WHEEL ELECTRONICS SYSTEM LEFT FRONTAL LIGHT ELECTRONICS LEFT OUTER TAILLIGHT LEFT PARKING BRAKE DRIVE LEFT REAR TWEETER LEFT REAR WHEEL ELECTRONICS SYSTEM LEFT SHIFT PADDLE LIGHT SOURCE 1 LIGHT SOURCE 2 LIGHT SOURCE 3 LIGHT SOURCE 4 LIGHT SOURCE 5 LIGHT SOURCE 6 LIGHT SOURCE 7 LIGHT SOURCE 8 LIGHT SOURCE 9 LIGHT SOURCE 10 LIN POWER DISTRIBUTION BOX LOW BEAM MAGNETIC CLUTCH MIRROR ELECTRONICS MIRROR FOLD- IN DRIVE NATURAL VACUUM LEAK DETECTION NAVIGATION SYSTEM NAVIGATION, AIR CONDITIONING SYSTEMS NAVIGATION, SOUND SYSTEMS NFC NEAR- FIELD COMMUNICATION NFC NEAR-FIELD COMMUNICATION WIRELESS CHARGING STORAGE NOT USED OPTIONAL W/ TERMINATION PLUG PARKING MANEUVERING ASSISTANT PASSENGER ELECTRONICS OUTSIDE DOOR HANDLE POWER DISTRIBUTION SYSTEM POWER WINDOWS, DEFOGGER, NAVIGATION SYSTEMS REAR LID REAR POWER DISTRIBUTION BOX REAR POWER DISTRIBUTION BOX LIN POWER DISTRIBUTION BOX REAR WINDOW DEFROSTER REBOUND STAGE RECEIVER AUDIO MODULE REMOTE CONTROL RECEIVER RIGHT END OF DASH) RIGHT FRONT FOOTWELL LIGHT RIGHT FRONT MIXING FLAP DRIVE RIGHT FRONT POWER DISTRIBUTION BOX RIGHT FRONT SIDE MARKER LIGHT RIGHT FRONT TWEETER RIGHT FRONT VANITY MIRROR LIGHT RIGHT FRONT WHEEL ELECTRONICS SYSTEM RIGHT FRONTAL LIGHT ELECTRONICS RIGHT OUTER TAILLIGHT RIGHT PARKING BRAKE DRIVE RIGHT REAR TWEETER RIGHT REAR WHEEL ELECTRONICS SYSTEM RIGHT SHIFT PADDLE ROOF FUNCTION CENTER SEATS SYSTEM SOUND SYSTEM SOUND SYSTEMS SPARK PLUG STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING WHEEL MODULE TELEMATIC COMMUNICATION BOX TOP DRIVER'S DOOR TRIM PANEL LIGHTING TOP FRONT PASSENGER'S DOOR TRIM PANEL LIGHTING TOP RADIATOR BLIND DRIVE TRANSFER TERMINAL POINT TRANSMISSIONS SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM USB CONNECTION USB PORT VERTICAL DYNAMICS PLATFORM W/ AUDIO RECEIVER MODULE W/ CAR SHARING W/ CAR SHARING MODULE W/ ELECTRICAL SEAT ADJUSTMENT W/ EXTENDABLE THIGH SUPPORT W/ HOT FILM AIR MASS METER W/ INTERIOR LIGHT PACKAGE W/ RECEIVER AUDIO MODULE W/ SEAT MODULE W/ TELEMATICS W/ VERTICAL DYNAMICS MANAGEMENT W/ WIRELESS CHARGING STORAGE W/O AUDIO RECEIVER MODULE W/O CAR SHARING W/O CAR SHARING MODULE W/O ELECTRICAL SEAT ADJUSTMENT W/O EXTENDABLE THIGH SUPPORT W/O HOT FILM AIR MASS METER W/O INTERIOR LIGHT PACKAGE W/O MEMORY W/O RECEIVER AUDIO MODULE W/O SEAT MODULE W/O TELEMATICS W/O VERTICAL DYNAMICS MANAGEMENT W/O WIRELESS CHARGING STORAGE WASHER FLUID RESERVOIR) WIPER MODULE WIPER/WASHER SYSTEM WIRELESS CHARGING STORAGE
