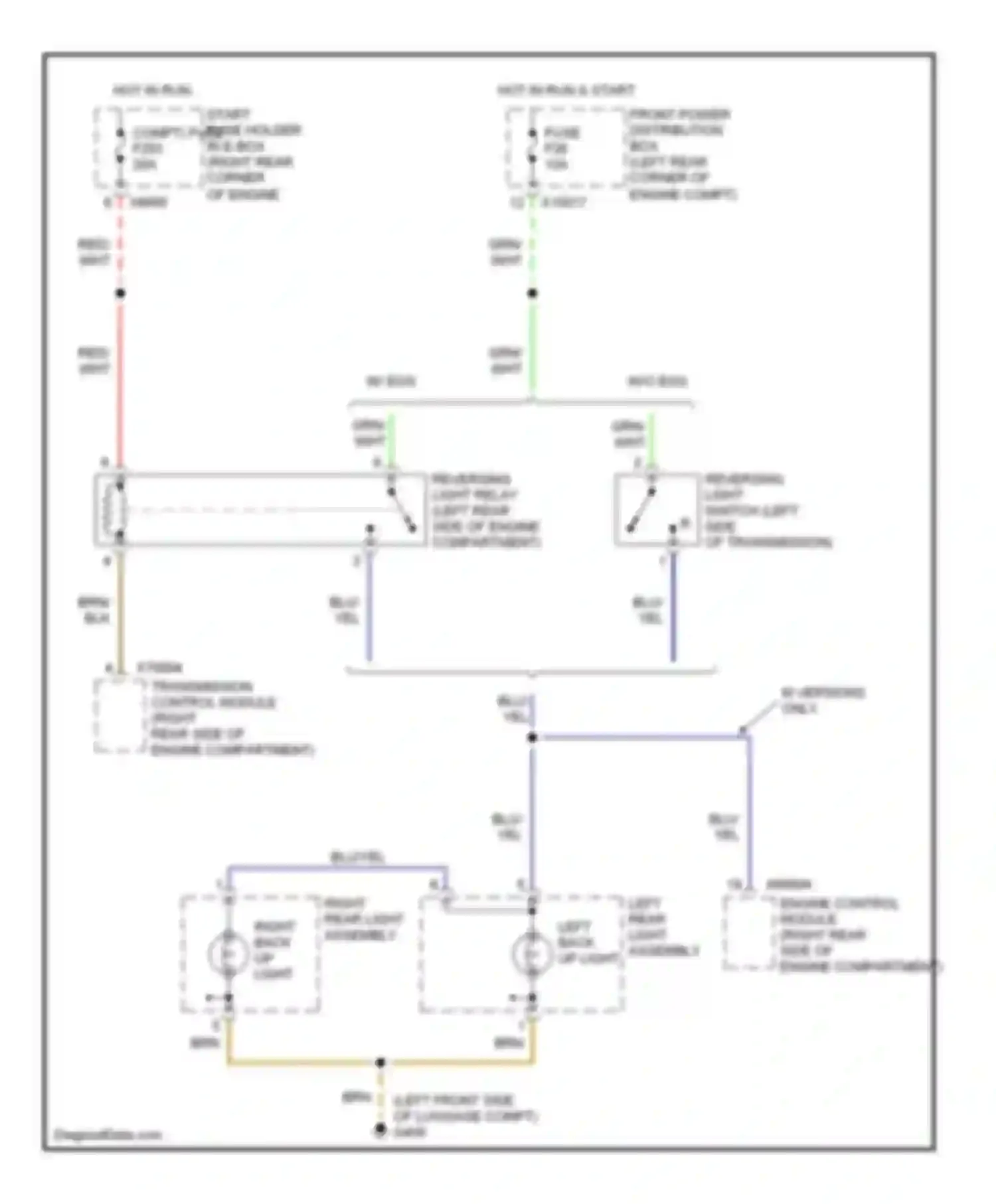

Back-up lamps circuit for BMW Z3 E36 facelift (2000-2002)
Back-up lamps circuit
BLK WIRE
BLU WIRE
BLU/YEL WIRE
BRN WIRE
ENGINE CONTROL MODULE (RIGHT REAR SIDE OF ENGINE COMPARTMENT)
GRN WIRE
HOT IN RUN, START FUSE HOLDER IN E-BOX (RIGHT REAR CORNER OF ENGINE COMPT) FUSE
LEFT REAR LIGHT ASSEMBLY LEFT BACK UP LIGHT
M VERSIONS ONLY
RED WIRE
REVERSING LIGHT RELAY (LEFT REAR SIDE OF ENGINE COMPARTMENT)
REVERSING LIGHT SWITCH (LEFT SIDE OF TRANSMISSION)
RIGHT BACK-UP LIGHT
RIGHT REAR LIGHT ASSEMBLY
TRANSMISSION CONTROL MODULE (RIGHT REAR SIDE OF ENGINE COMPARTMENT)
W/ EGS
W/O EGS
WHT WIRE
YEL WIRE
