2.8l, auxiliary cooling fan circuit for BMW Z3 E36 (1995-2000)

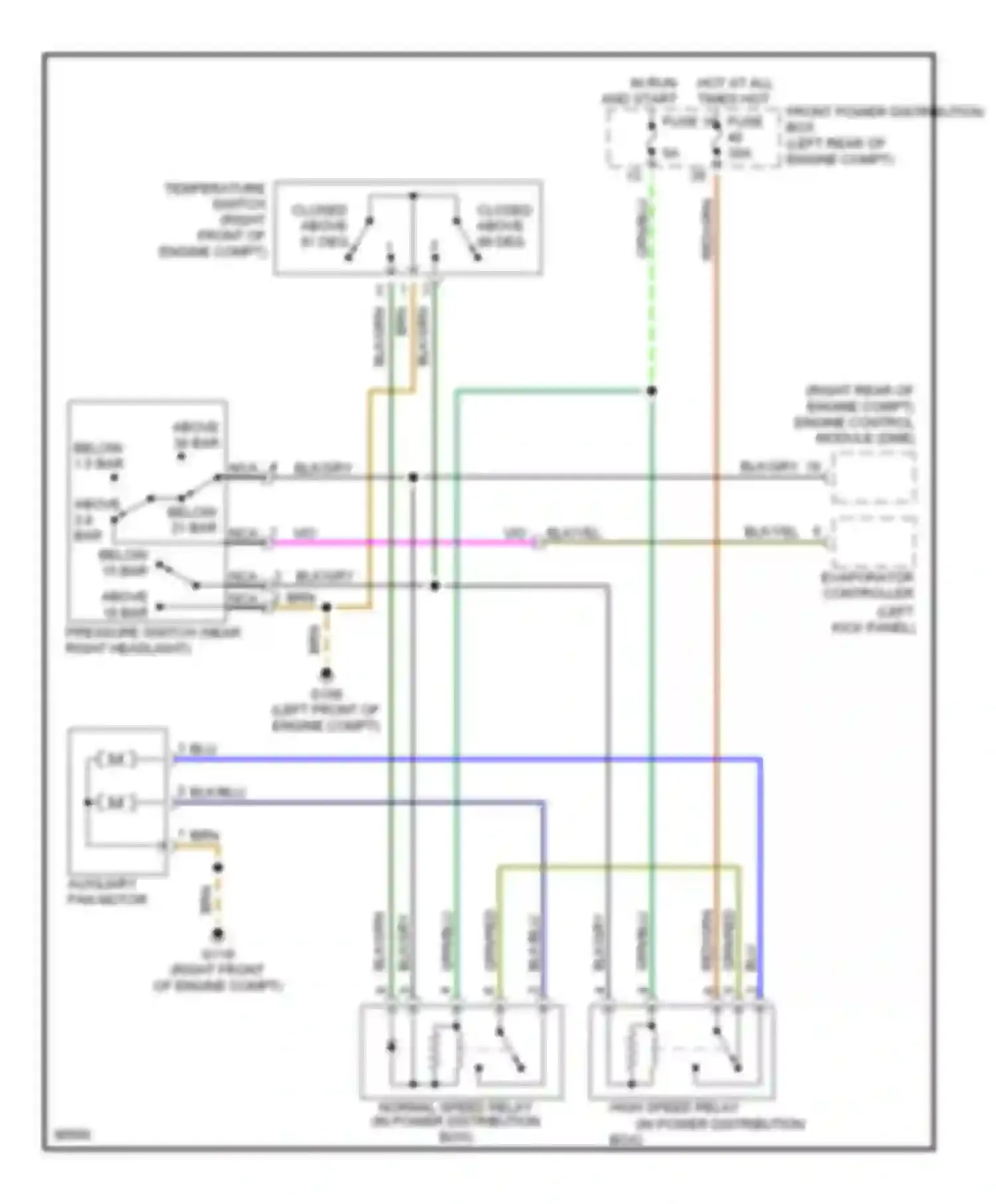

2.8l, auxiliary cooling fan circuit
ABOVE 2.6 BAR
ABOVE 30 BAR
AUXILIARY FAN MOTOR
BELOW 1.5 BAR
BELOW 15 BAR ABOVE 18 BAR
BELOW 21 BAR
BLK/BLU WIRE
BLK/GRN WIRE
BLK/GRY WIRE
BLK/YEL WIRE
BLU WIRE
BRN WIRE
CLOSED ABOVE 91 DEG
CLOSED ABOVE 99 DEG
EVAPORATOR CONTROLLER (LEFT KICK PANEL)
FRONT POWER DISTRIBUTION BOX (LEFT REAR OF ENGINE COMPT)
FUSE 40 FUSE 16
GRN/BLU WIRE
GRN/RED WIRE
HIGH SPEED RELAY (IN POWER DISTRIBUTION BOX)
HOT AT ALL TIMES HOT IN RUN AND START
NCA WIRE
NORMAL SPEED RELAY (IN POWER DISTRIBUTION BOX)
PRESSURE SWITCH (NEAR RIGHT HEADLIGHT)
RED/GRN WIRE
TEMPERATURE SWITCH (RIGHT FRONT OF ENGINE COMPT)
VIO WIRE
