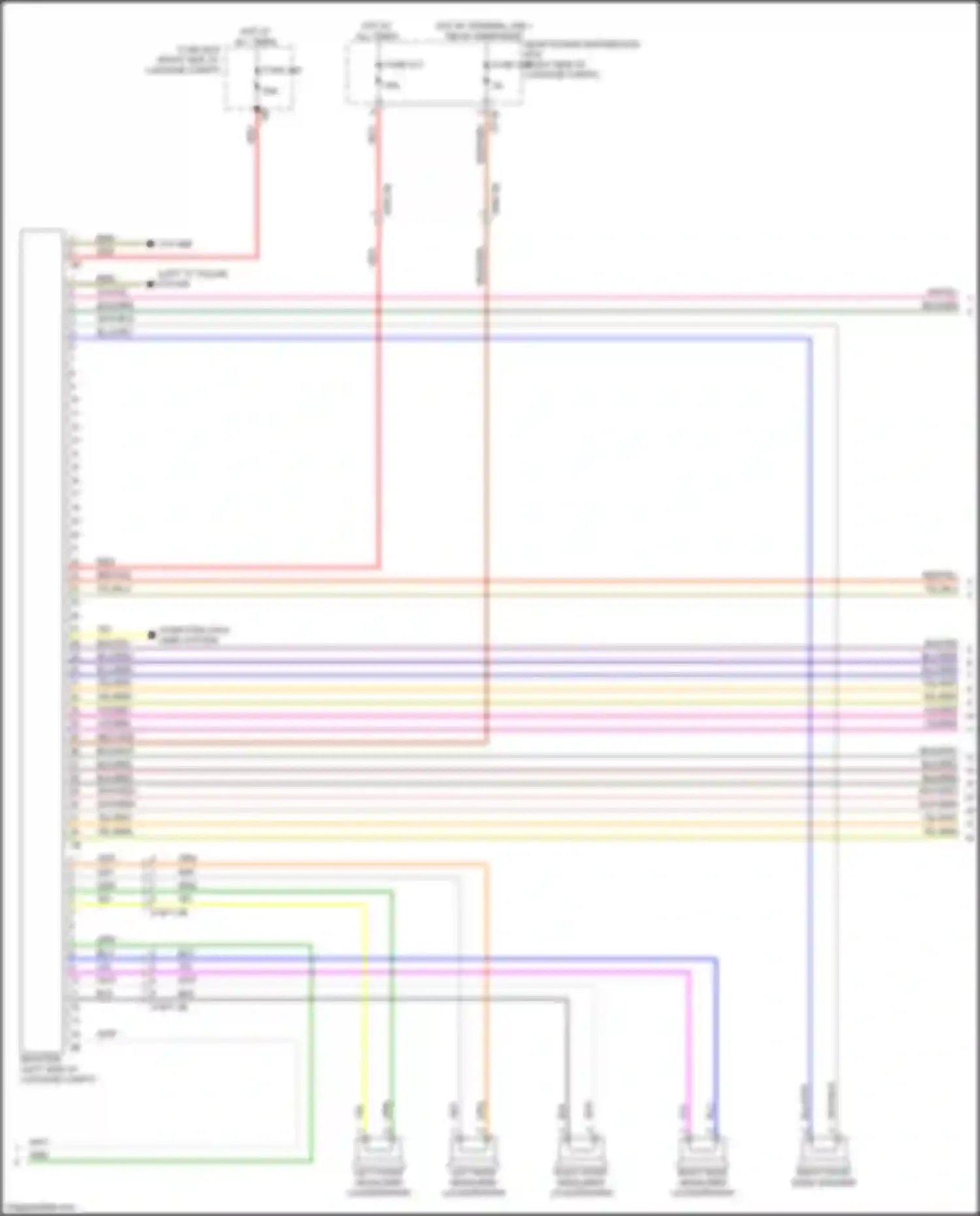

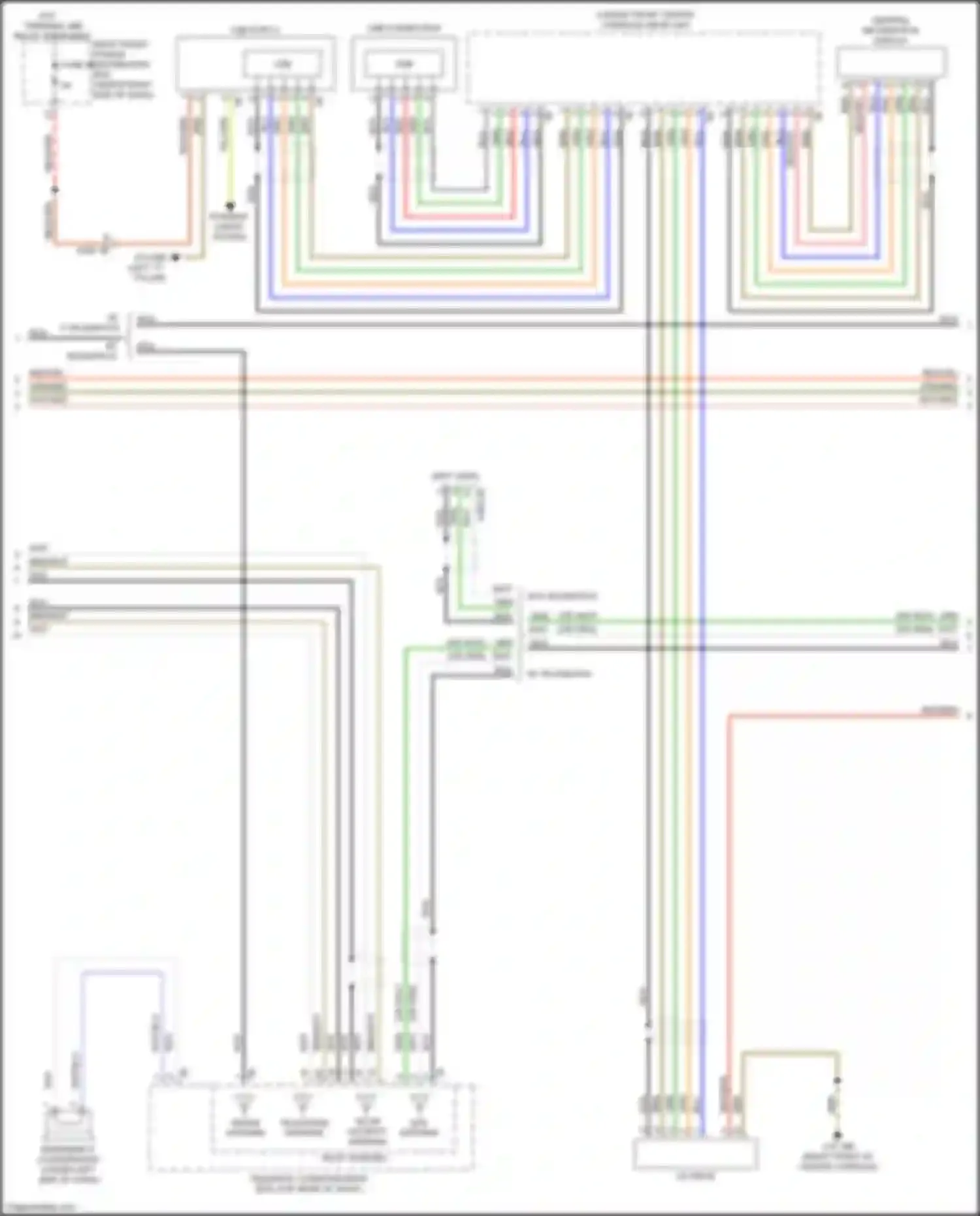

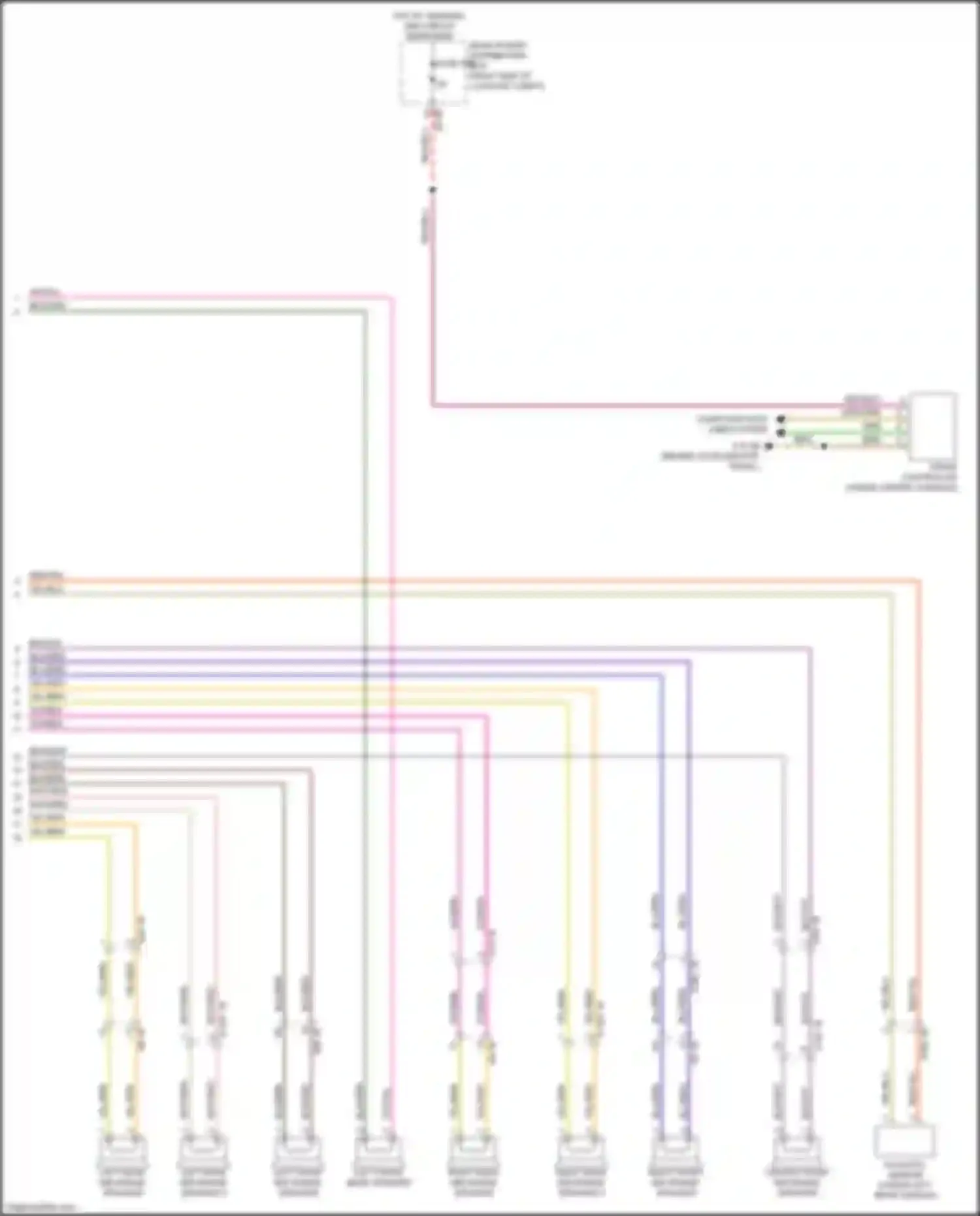

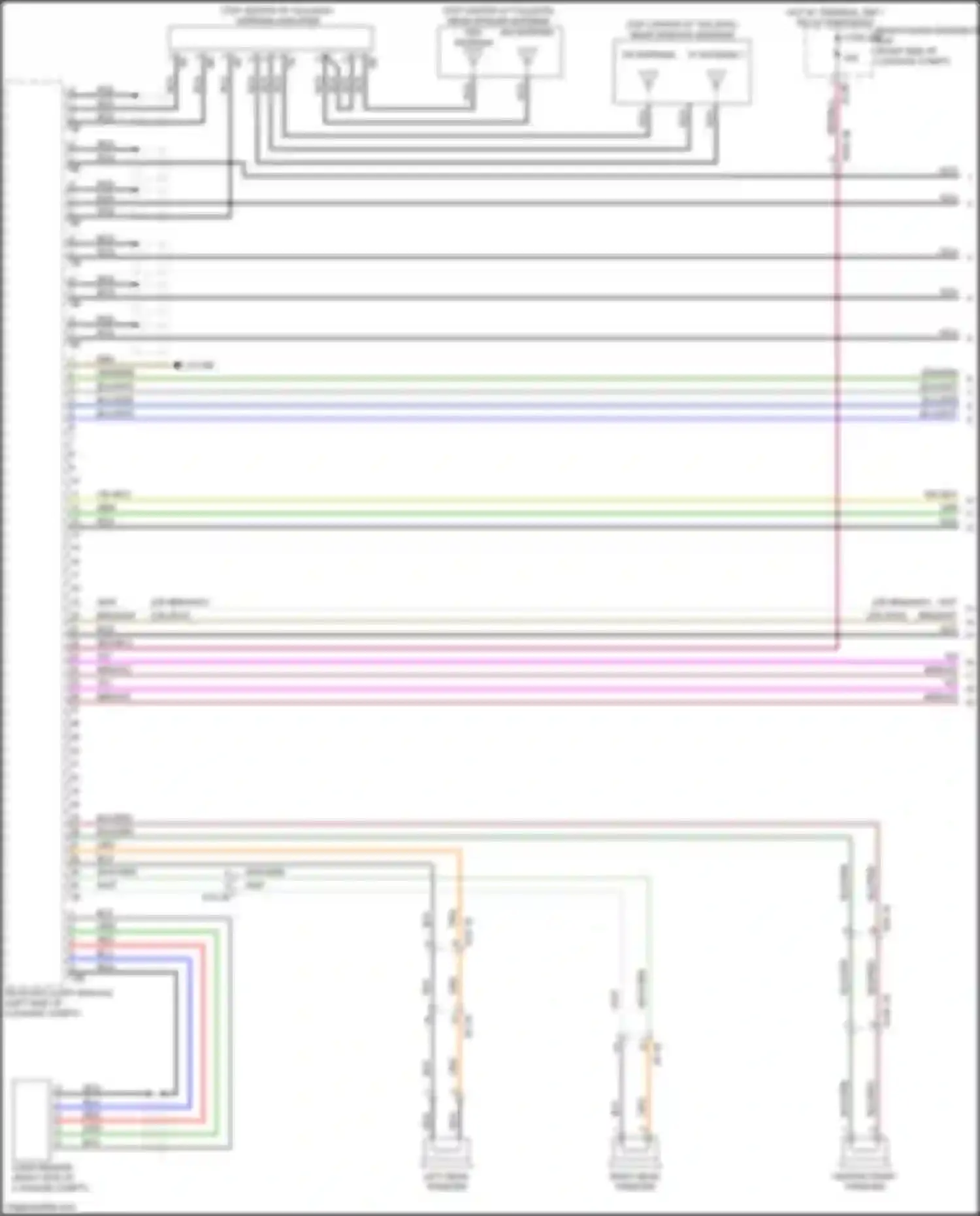

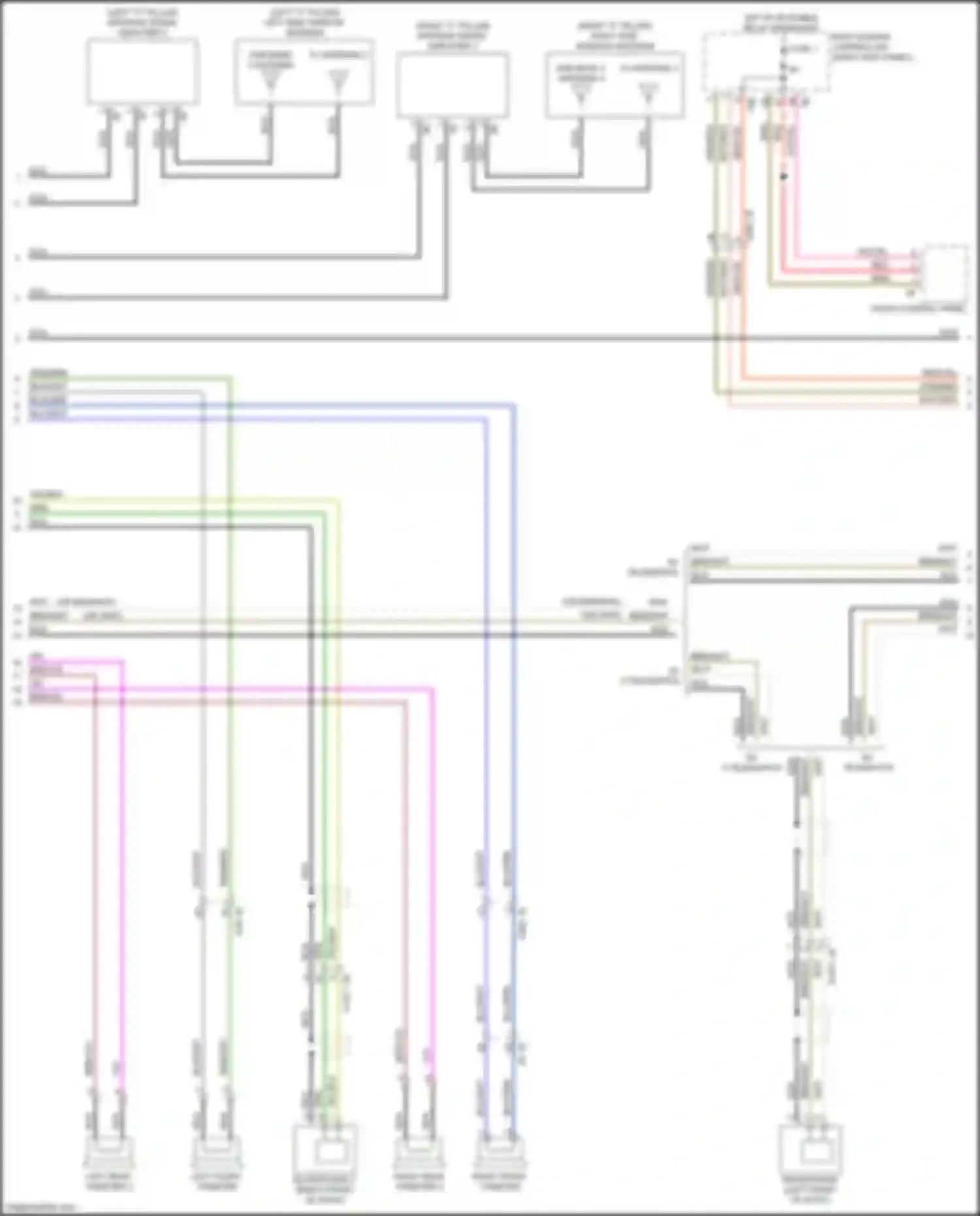

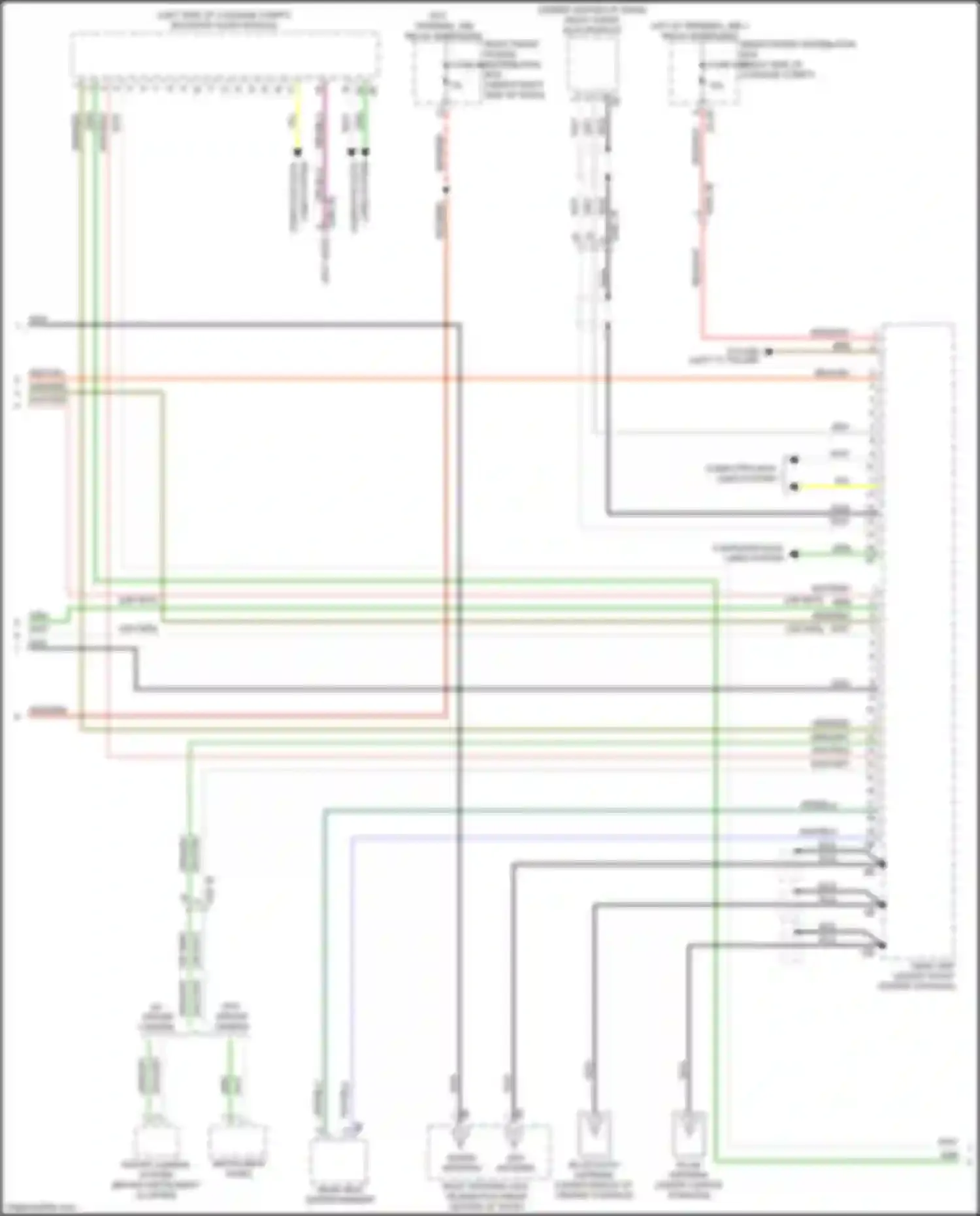

Navigation circuit, high level w/ receiver audio module for BMW X7 G07 (2018-2022)

AM ANTENNA BLK WIRE BLK/GRN WIRE BLK/RED WIRE BLK/WHT WIRE BLU WIRE BLU/GRN WIRE BLU/WHT WIRE BRN WIRE BRN/VIO WIRE BRN/WHT WIRE CARD READER CENTER FRONT TWEETER FM ANTENNA FUSE 220 GRN WIRE GRN/BRN WIRE LEFT REAR TWEETER NCA WIRE ORG/ WIRE REAR POWER DISTRIBUTION BOX RECEIVER AUDIO MODULE RED WIRE RED/BLU WIRE RELAY ENERGIZED RIGHT REAR TWEETER TV ANTENNA 1 VIO WIRE WHT WIRE WHT/GRN WIRE YEL/BLK WIRE

ANTENNA SIGNAL AMPLIFIER 2 ANTENNA SIGNAL AMPLIFIER 3 AUDIO CONTROL PANEL BLK/WHT WIRE BLU/GRN WIRE BLU/WHT WIRE BODY DOMAIN CONTROLLER BRN WIRE BRN/VIO WIRE BRN/WHT WIRE DAB BAND 3 ANTENNA DAB BAND 3 ANTENNA 2 FUSE 1 GRN WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/RED WIRE HOT W/ BI-STABLE RELAY ENERGIZED LEFT "C" PILLAR) LEFT FRONT TWEETER LEFT REAR TWEETER 2 LEFT SIDE WINDOW ANTENNA MICROPHONE MICROPHONE 2 + NCA WIRE RED WIRE RED/YEL WIRE RIGHT FRONT TWEETER RIGHT REAR TWEETER 2 RIGHT SIDE WINDOW ANTENNA TV ANTENNA 2 TV ANTENNA 3 VIO WIRE VIO/YEL WIRE W/ TELEMATICS W/O TELEMATICS WHT WIRE WHT/RED WIRE YEL/BLK WIRE

BLK WIRE BLU WIRE BRN WIRE BRN/WHT WIRE CD DRIVE CENTRAL INFORMATION DISPLAY EMERGENCY LOUDSPEAKER FUSE 59 GPS ANTENNA GRN WIRE GRN/RED WIRE HOT W/ LEFT "C" PILLAR) NCA WIRE ORG/ WIRE RED WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/YEL WIRE RELAY ENERGIZED RIGHT FRONT POWER DISTRIBUTION BOX ROOF ANTENNA SDARS ANTENNA TELEMATIC COMMUNICATION BOX (TOP REAR OF ROOF) TELEPHONE ANTENNA USB USB CONNECTION USB PORT 2 W/ TELEMATICS W/O TELEMATICS WHT WIRE WHT/BLU WIRE WHT/RED WIRE WLAN HOTSPOT ANTENNA YEL/GRN WIRE

BLUETOOTH ANTENNA BRN WIRE COMPUTER DATA COMPUTER DATA LINES SYSTEM DRIVER CAMERA SYSTEM FUSE 212 FUSE 63 GPS ANTENNA GRN WIRE GRN/BLU WIRE GRN/GRY WIRE GRN/RED WIRE GRY WIRE HEAD UNIT HOT W/ INSTRUMENT PANEL LEFT "C" PILLAR) LINES SYSTEM NCA WIRE NIGHT VISION ELECTRONICS REAR POWER DISTRIBUTION BOX REAR SEAT ENTERTAINMENT RED/BLU WIRE RED/BRN WIRE RED/WHT WIRE RED/YEL WIRE RELAY ENERGIZED RIGHT FRONT POWER DISTRIBUTION BOX ROOF ANTENNA (W/O TELEMATICS) (REAR CENTER OF ROOF) SDARS ANTENNA W/ DRIVER CAMERA W/O DRIVER CAMERA WHT WIRE WHT/BLU WIRE WHT/GRY WIRE WHT/RED WIRE WLAN ANTENNA YEL WIRE

BLK WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLU WIRE BLU/BRN WIRE BLU/GRY WIRE BLU/RED WIRE BOOSTER BRN WIRE COMPUTER DATA LINES SYSTEM FUSE 214 FUSE 217 FUSE 500 GRN WIRE GRY WIRE HOT AT ALL TIMES HOT AT ALL TIMES FUSE BOX LEFT "C" PILLAR) LEFT FRONT HEADLINER LOUDSPEAKER LEFT REAR HEADLINER LOUDSPEAKER ORG/ WIRE REAR POWER DISTRIBUTION BOX RED WIRE RED/GRN WIRE RED/YEL WIRE RELAY ENERGIZED RIGHT FRONT BASS SPEAKER RIGHT FRONT HEADLINER LOUDSPEAKER RIGHT REAR HEADLINER LOUDSPEAKER VIO WIRE VIO/BRN WIRE VIO/RED WIRE VIO/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BRN WIRE WHT/RED WIRE YEL WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/RED WIRE

ACOUSTIC SENSOR BLK/BRN WIRE BLK/GRN WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLU/BRN WIRE BLU/RED WIRE BRN WIRE CENTER FRONT MID-RANGE SPEAKER COMPUTER DATA LINES SYSTEM FUSE 262 GRN WIRE HOT W/ TERMINAL LEFT FRONT BASS SPEAKER LEFT FRONT MID-RANGE SPEAKER LEFT REAR MID- RANGE SPEAKER 2 LEFT REAR MID-RANGE SPEAKER ORG/GRN WIRE REAR POWER DISTRIBUTION BOX RED/BLU WIRE RED/YEL WIRE RIGHT FRONT MID-RANGE SPEAKER RIGHT REAR MID- RANGE SPEAKER 2 RIGHT REAR MID-RANGE SPEAKER VIO/BRN WIRE VIO/RED WIRE VIO/YEL WIRE WHT/BRN WIRE WHT/RED WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/RED WIRE
