Independent heating circuit for BMW X6 E71 (2007-2012)

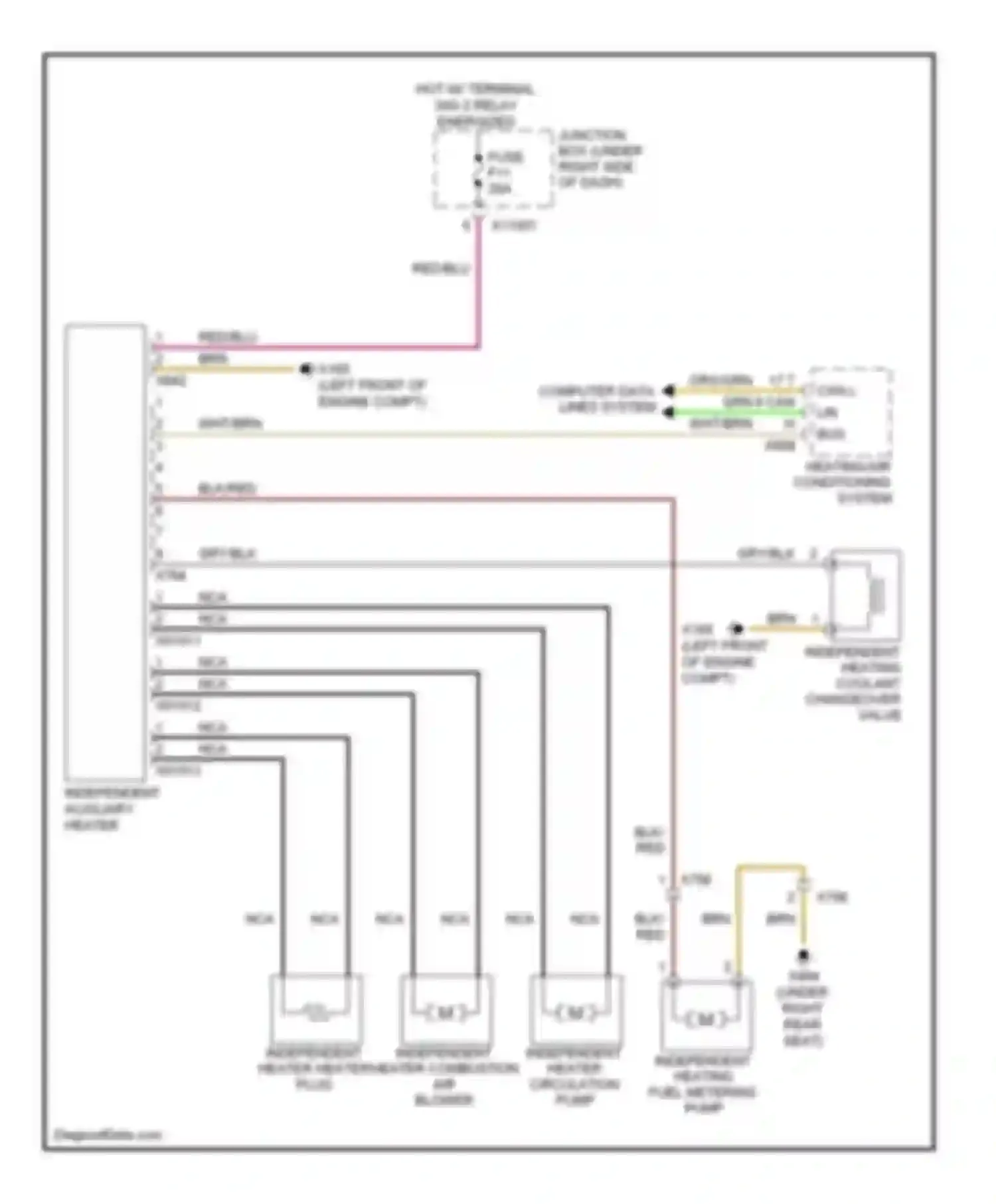

Independent heating circuit
17 7 8 CAN H CAN L LIN BUS
BLK WIRE
BLK/RED WIRE
BRN WIRE
COMPUTER DATA LINES SYSTEM
FUSE
GRN WIRE
GRY/BLK WIRE
HEATING/AIR CONDITIONING SYSTEM
HOT W/ TERMINAL
INDEPENDENT AUXILIARY HEATER
INDEPENDENT HEATER CIRCULATION PUMP
INDEPENDENT HEATER COMBUSTION AIR BLOWER
INDEPENDENT HEATER HEATER PLUG
INDEPENDENT HEATING COOLANT CHANGEOVER VALVE
INDEPENDENT HEATING FUEL METERING PUMP
JUNCTION BOX (UNDER RIGHT SIDE OF DASH)
NCA WIRE
ORG/GRN WIRE
RED WIRE
RED/BLU WIRE
WHT/BRN WIRE
