BMW X5 E53 (1999-2003) trunk lid locking switch 1) unlock 2) lock Wiring diagrams

This page contains all the electrical diagrams for the component. trunk lid locking switch 1) unlock 2) lock, in which he is found in the car BMW X5 E53 (1999-2003). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

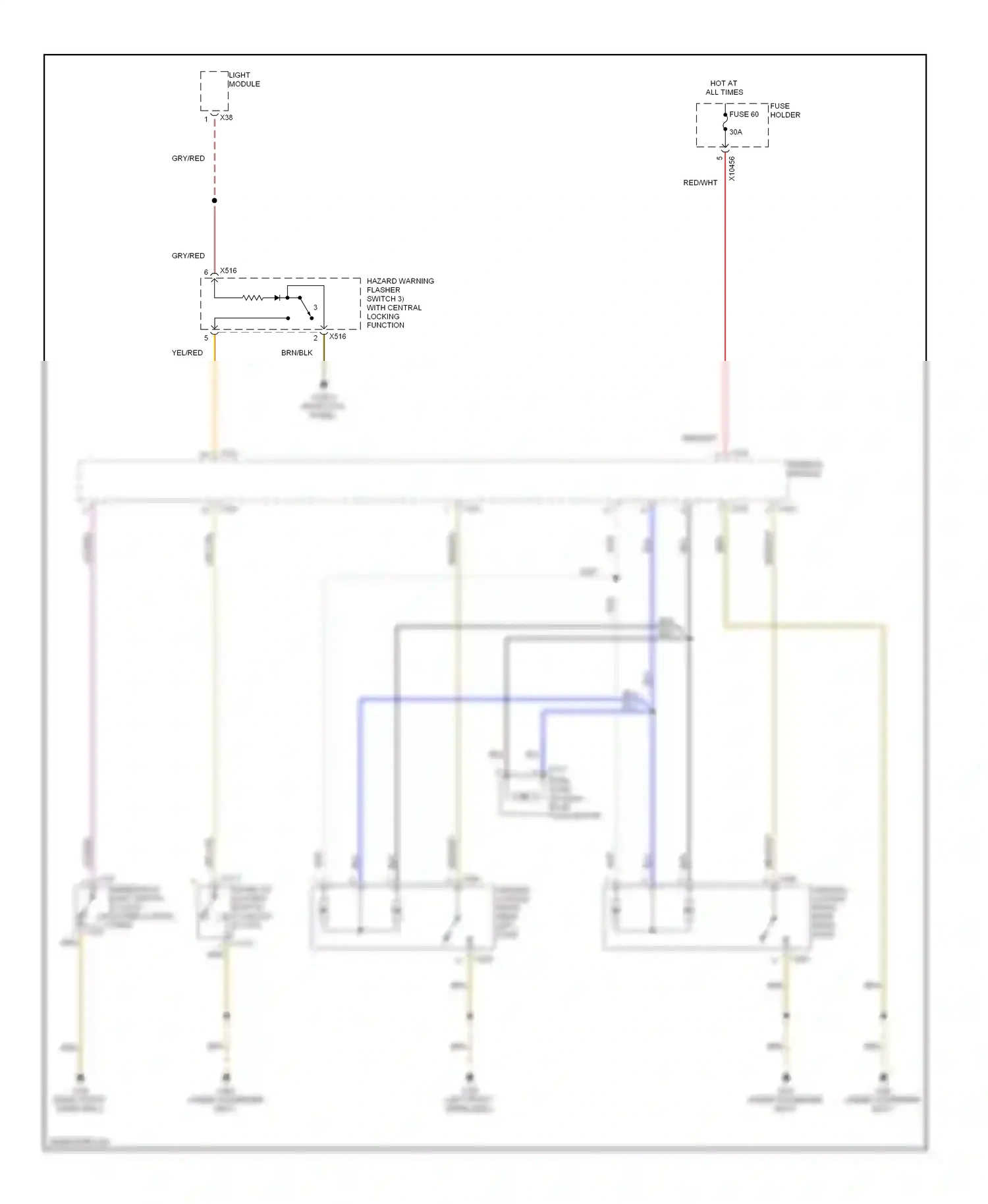

Wiring diagram trunk lid locking switch 1) unlock 2) lock (1 of 4)

Wiring diagram trunk lid locking switch 1) unlock 2) lock for BMW X5 E53 (1999-2003) (1 of 4)
Get lifetime access to BMW X5 E53 (1999-2003)

BLK WIRE BLU WIRE BRN WIRE BRN/BLK WIRE BRN/GRY WIRE BRN/WHT WIRE CENTRAL LOCKING DRIVE, REAR LEFT DOOR CENTRAL LOCKING DRIVE, REAR RIGHT DOOR FUEL TANK ACCESS FLAP LOCK MOTOR FUSE 60 FUSE HOLDER GENERAL MODULE GRY/RED WIRE GRY/YEL WIRE HAZARD WARNING FLASHER SWITCH 3) WITH CENTRAL LOCKING FUNCTION HOT AT ALL TIMES LIGHT MODULE RED/WHT WIRE TRUNK LID LOCKING SWITCH 1) UNLOCK 2) LOCK UNDERHOOD LIGHT SWITCH 1) HOOD CLOSED 2) HOOD OPEN VIO/GRN WIRE WHT WIRE YEL/RED WIRE

Go to component -> Anti-theft & central locking circuit, early production (2 of 3) -> TRUNK LID LOCKING SWITCH 1) UNLOCK 2) LOCK

Wiring diagram trunk lid locking switch 1) unlock 2) lock (2 of 4)

Wiring diagram trunk lid locking switch 1) unlock 2) lock for BMW X5 E53 (1999-2003) (2 of 4)
Get lifetime access to BMW X5 E53 (1999-2003)

BLK WIRE BLU WIRE BRN WIRE BRN/BLK WIRE BRN/GRY WIRE BRN/WHT WIRE CENTRAL LOCKING DRIVE, REAR LEFT DOOR CENTRAL LOCKING DRIVE, REAR RIGHT DOOR FUEL TANK ACCESS FLAP LOCK MOTOR FUSE 60 FUSE HOLDER GENERAL MODULE GRY/RED WIRE GRY/YEL WIRE HAZARD WARNING FLASHER SWITCH 3) WITH CENTRAL LOCKING FUNCTION HOT AT ALL TIMES LIGHT MODULE RED/WHT WIRE TRUNK LID LOCKING SWITCH 1) UNLOCK 2) LOCK UNDERHOOD LIGHT SWITCH 1) HOOD CLOSED 2) HOOD OPEN VIO/GRN WIRE WHT WIRE YEL/RED WIRE

Go to component -> Anti-theft & central locking circuit, late production (2 of 3) -> TRUNK LID LOCKING SWITCH 1) UNLOCK 2) LOCK

Wiring diagram trunk lid locking switch 1) unlock 2) lock (3 of 4)

Wiring diagram trunk lid locking switch 1) unlock 2) lock for BMW X5 E53 (1999-2003) (3 of 4)
Get lifetime access to BMW X5 E53 (1999-2003)

BLK WIRE BLU WIRE BRN WIRE BRN/BLK WIRE BRN/GRY WIRE BRN/WHT WIRE CENTRAL LOCKING DRIVE, REAR LEFT DOOR CENTRAL LOCKING DRIVE, REAR RIGHT DOOR FUEL TANK ACCESS FLAP LOCK MOTOR FUSE 60 FUSE HOLDER GENERAL MODULE GRY/RED WIRE GRY/YEL WIRE HAZARD WARNING FLASHER SWITCH 3) WITH CENTRAL LOCKING FUNCTION HOT AT ALL TIMES LIGHT MODULE RED/WHT WIRE TRUNK LID LOCKING SWITCH 1) UNLOCK 2) LOCK UNDERHOOD LIGHT SWITCH 1) HOOD CLOSED 2) HOOD OPEN VIO/GRN WIRE WHT WIRE YEL/RED WIRE

Go to component -> Power door locks circuit, early production (2 of 3) -> TRUNK LID LOCKING SWITCH 1) UNLOCK 2) LOCK

Wiring diagram trunk lid locking switch 1) unlock 2) lock (4 of 4)

Wiring diagram trunk lid locking switch 1) unlock 2) lock for BMW X5 E53 (1999-2003) (4 of 4)
Get lifetime access to BMW X5 E53 (1999-2003)

BLK WIRE BLU WIRE BRN WIRE BRN/BLK WIRE BRN/GRY WIRE BRN/WHT WIRE CENTRAL LOCKING DRIVE, REAR LEFT DOOR CENTRAL LOCKING DRIVE, REAR RIGHT DOOR FUEL TANK ACCESS FLAP LOCK MOTOR FUSE 60 FUSE HOLDER GENERAL MODULE GRY/RED WIRE GRY/YEL WIRE HAZARD WARNING FLASHER SWITCH 3) WITH CENTRAL LOCKING FUNCTION HOT AT ALL TIMES LIGHT MODULE RED/WHT WIRE TRUNK LID LOCKING SWITCH 1) UNLOCK 2) LOCK UNDERHOOD LIGHT SWITCH 1) HOOD CLOSED 2) HOOD OPEN VIO/GRN WIRE WHT WIRE YEL/RED WIRE

Go to component -> Power door locks circuit, late production (2 of 3) -> TRUNK LID LOCKING SWITCH 1) UNLOCK 2) LOCK
