BMW X5 M F95 facelift (2023-2024) front autonomous parking camera Wiring diagram
This page shows the only wiring diagram for the component.front autonomous parking camera, which is found in the car BMW X5 M F95 facelift (2023-2024). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

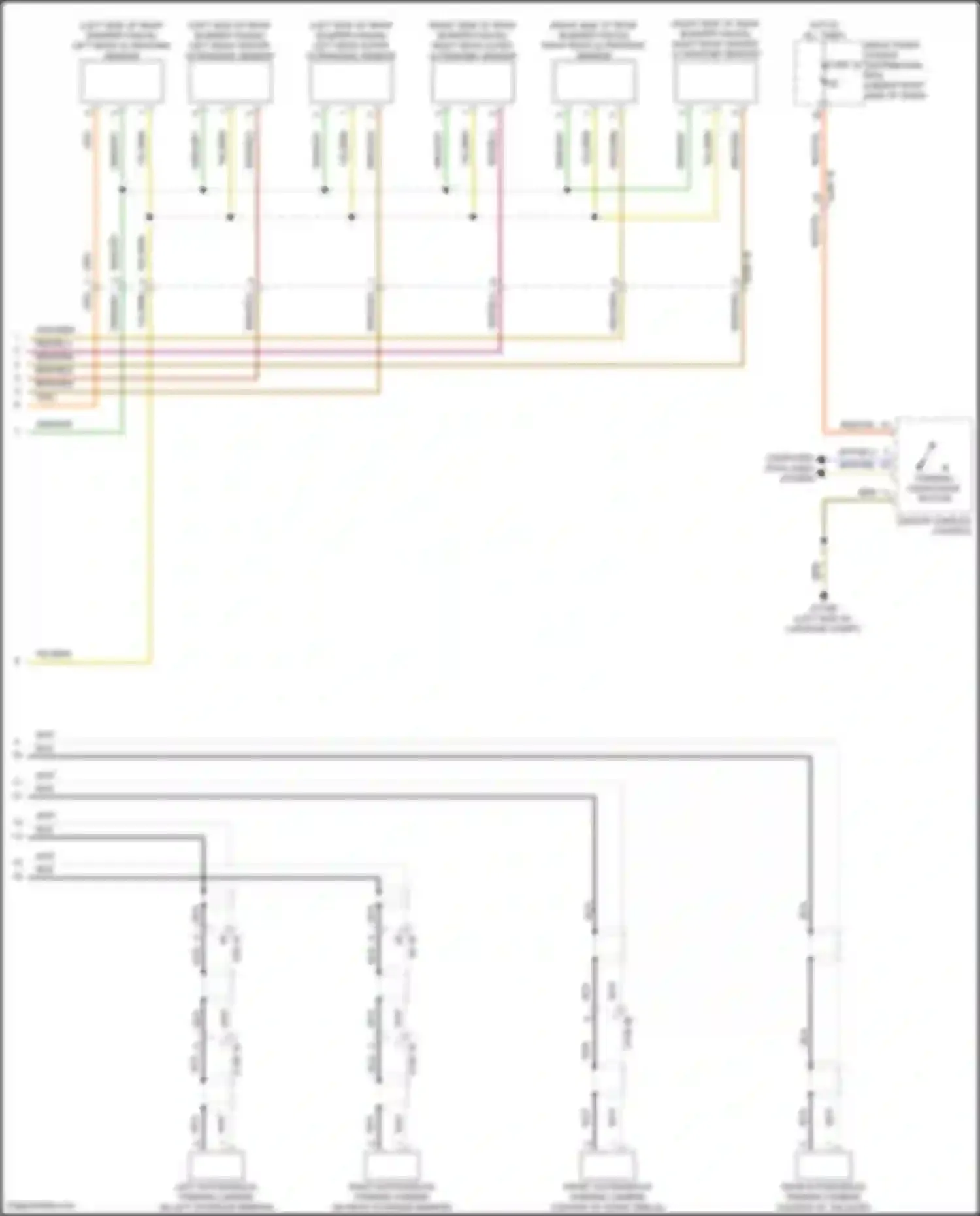

Wiring diagram front autonomous parking camera (1 of 1)
BRN WIRE
BRN/ORG WIRE
BRN/RED WIRE
CENTER CONSOLE CONTROL
COMPUTER DATA LINES SYSTEM
FRONT AUTONOMOUS PARKING CAMERA
FUSE 32
GRN/GRY WIRE
HOT AT ALL TIMES
LEFT AUTONOMOUS PARKING CAMERA
LEFT REAR CENTER ULTRASONIC SENSOR
LEFT REAR OUTER ULTRASONIC SENSOR
LEFT REAR ULTRASONIC SENSOR
NCA WIRE
ORG/ WIRE
ORG/GRN WIRE
PARKING ASSISTANCE BUTTON
REAR AUTONOMOUS PARKING CAMERA
RED/BLU WIRE
RED/YEL WIRE
RIGHT AUTONOMOUS PARKING CAMERA
RIGHT FRONT POWER DISTRIBUTION BOX
RIGHT REAR CENTER ULTRASONIC SENSOR
RIGHT REAR OUTER ULTRASONIC SENSOR
RIGHT REAR ULTRASONIC SENSOR
WHT WIRE
WHT/BLU WIRE
WHT/YEL WIRE
YEL/BRN WIRE
Go to component -> Parking assistant circuit, w/o parking maneuvering assistant & w/ surround view camera (2 of 2) -> FRONT AUTONOMOUS PARKING CAMERA
